Stratus Extra Wide 12k lbs Single Point Manual Release 2-Post Lift SAE-F12X
SKU SAE-F12X
Lead time:
Original price
$4,599.00
-
Original price
$4,599.00
Original price
$4,599.00
$4,599.00
-
$4,599.00
Current price
$4,599.00
-
DESCRIPTION

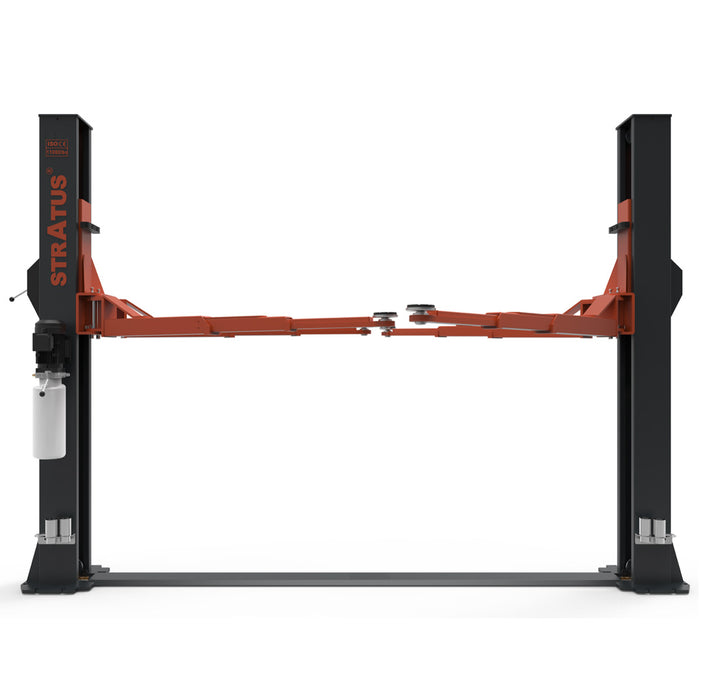

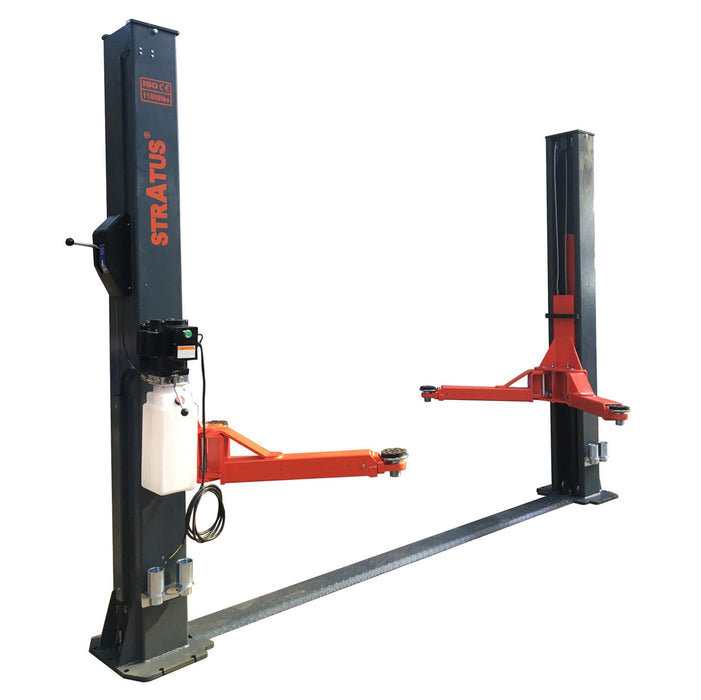

Stratus SAE-F12X Extra Wide Floor Plate 12,000 lbs Capacity Single Point Manual Release Auto Lift
Introducing the Stratus Extra Wide Floor Plate! This incredibly engineered piece of heavy-duty machinery is a game-changer in the world of car lifts. Its unique design supports an astonishing 12,000 lbs. capacity, powerful enough to safely lift your vehicles. As part of our distinguished series of 2 Post 12,000 lbs manual release storage lifts, you can assure your cars are secured and protected. Set yourself apart with the reliable and robust F12X Auto Lift. There's no better place to trust your beloved cars with!
-
FEATURES + BENEFITS
- Base Plate / Open Top
- Single-point manual release
- Multi-strand, non-rotary, non-stretchy cable
- Top limiter switch
- Stable and reliable, easy maintenance
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)
Includes
- 4pcs Screw-up rubber pads - Peg 60mm (2 5/16")
- 4pcs 4" Truck Adaptors - Peg 60mm (2 5/16")
-
SPECIFICATIONS
Model F142X Capacity 12,000 lbs Max Lifting Height with Adapaters 78 13/16"(2002mm)
Min Lifting Height with Adpaters
8' 1/8" (207mm)
Max Lifting Height without Adapters
74 13/16" (1900mm)
Min Lifting Height without Adapters
4 15/16" (125mm)
Rise Time
~55 sec
Overall Height
122 1/2" (3112mm)
Overall Width
21 1/4" (540mm)
Overall Length
160 1/4" (4070mm)
Inside Columns
129 15/16" (3300mm)
Drive Thru
116 3/16" (2951mm) Front Arm Reach Max 74 13/16" (1900) Front Arm Reach Min 35 1/16" (890)
Rear Arm Reach Max 74 13/16" (1800) Rear Arm Reach Min 35 1/16" (890) Motor 4 HP, 220V, 60 HZ, 1PH Oil AW32 or AW46 Breaker 30A Weight 1960 lbs Dimensions 112"L x 41"W x 29"H Requirements 6" - 3000 psi -
WARRANTY
Warranty Information
- 5-Year Structural Components Warranty
- 3-year Hydraulic Components Warranty
- 2-year Electrical Parts Warranty
- 5-Year Structural Components Warranty
