Atlas® PV12PX Adj Height Ex-Wide/Ex-Tall 2 Post Lift 12,000 lbs #ATEXH-PV12PX-FPD
Lead time:
-
DESCRIPTION
Atlas® PV12PX Two Post Lift – Heavy-Duty Performance at Unbeatable Value
The Atlas® PV series delivers exceptional value for those who demand a professional-grade, heavy-duty two-post lift—without the premium price tag. Trusted by automotive professionals for over a decade, these lifts are known for their rugged durability and uncompromising performance. Thousands have been sold, and customers continue to describe them with words like “bulletproof,” “built like a tank,” and “tough as nails.”
The Atlas® PV12PX is a commercial-grade two-post lift engineered to handle both long wheelbase trucks and low-clearance passenger vehicles. With 123 inches between the symmetrical columns and a 109-inch drive-through clearance, even the widest vehicles—or those with large mirrors—can be easily accommodated.
Features
- Extended-length symmetrical arms to safely support trucks with running boards.
- Low pad height for easy access to standard passenger cars.
- Peg-style truck adapters for added reach and flexibility.
- Increased lift height for hassle-free servicing of vans, box trucks, and taller vehicles.
The Atlas® ATEXH-PV12PX model includes three adjustable height settings, with a minimum height of 150 inches (12'6")—ideal for shops with taller ceilings. Note: Extra short cables are required for operation at the lowest height setting.
Whether you're lifting a sedan or a commercial truck, the Atlas® PV12PX is built to perform—day in, day out.
-
FEATURES + BENEFITS
- 12,000 lb. capacity
- Extra Tall & Extra Wide
- Commercial Grade
- Adjustable height 150" (12' 6") or 165" (13' 9") or 177" (14' 9")
- Special low height 150" (12' 6") (Requires purchase of extra cables)
- Symmetric arms
- Automatic Arm Restraints
- "Padded" Shut-Off Bar
- Door Guards on Carriages
- Single Point Lock Release
- Direct-Drive Cylinders
- Powder Coat Finish

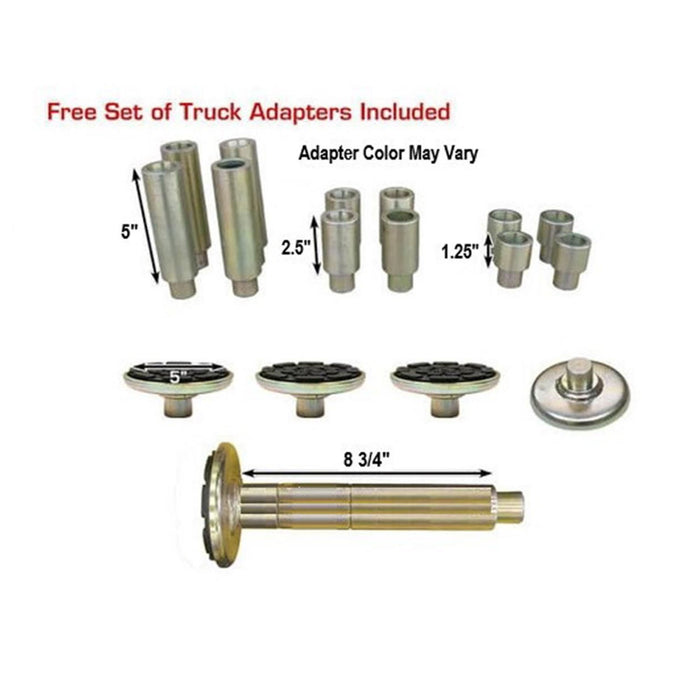

- Free 12 Piece Truck Adapter Set
- Mounting Hardware Included
- Shipping weight: 2,160 lbs.
- 5 yr. Structural ‐ 2 yr. Hydraulic ‐ 1 yr. Power Unit ‐ Parts Only Warranty
Includes
- 12 Piece Truck Adapter Set
-
SPECIFICATIONS
Lifting Capacity 12,000 lbs Overall Height Low - 150" (12' 6")
Middle - 165" (13' 9")
High - 168" (14')Height To Shut Off Bar Low - 141" (11' 9") need to purchase shorter cables
Middle - 156" (13')
High - 168" (14')
Overall Width w/o Motor 150 3/4" Overall Width w/ Motor
159"
Outside Column To Outside Column
138 1/2" Maximum Lift Height w/o Adapters 72 1/4"
Maximum Lift Height w/ adapters
79 1/4"
Minimum Arm Height 4 1/2"
Minimum Arm Height (Assuming Level Floor) 4 1/2" Arm Collapsed
37 1/2"
Arm Fully Extended
57"
Width Between Columns
123 1/4"
Drive Thru 109 1/2"
Round Lift Pad
5 1/2" Across / 1 1/4" Shank
Adapter Sizes (4 ea.)
1 1/4" / 2 1/2" / 5"
Motor/Electrical Requirement 220V (1) phase / 30 amp breaker recommended
Oil Requirements 3-5 Gallons AW32/AW46 Shipping Weight 2,160 lbs. -
WARRANTY
Warranty Information
- 5-Year Structural Warranty
- 2-year Hydraulic-Power Warranty
- 5-Year Structural Warranty
