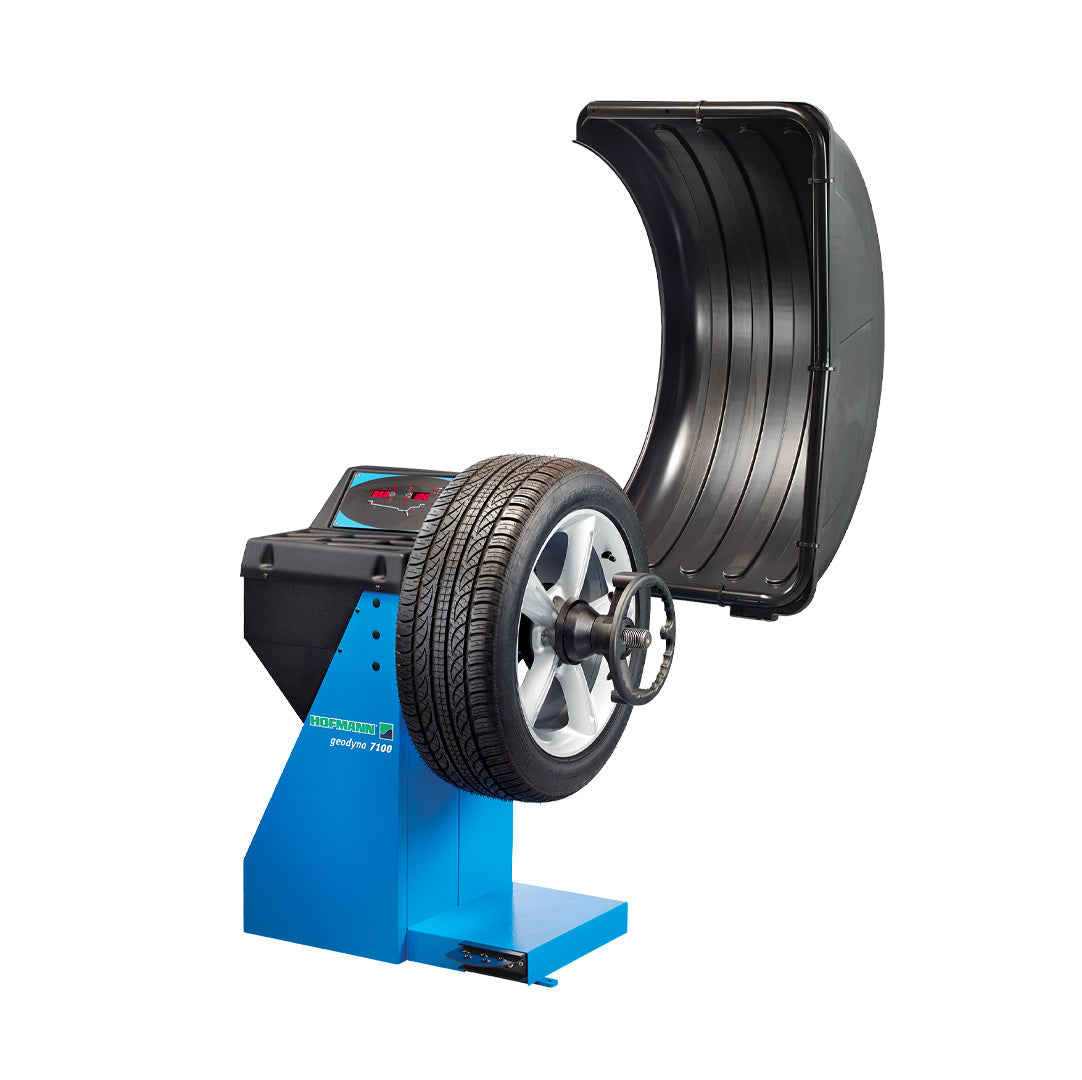

Hofmann GEODYNA® 7100 Wheel Balancer with Digital Display #EEWB761AE1

• DESCRIPTION
• FEATURES
• SPECIFICATIONS
• WARRANTY + MANUALS

• DESCRIPTION

  The geodyna® 7100 offers space-saving usability, with belt-driven one-spin balance, the VPI measuring system, user-friendly 2D SAPE data entry and an intuitive control panel.

  • Part Number: EEWB761AE1
  • Small footprint
  • Semi-automatic input of offset and rim diameter via 2D SAPE
  • Manual input of rim width
  • Conspicuous and intuitive LED display
  • Imbalance minimization and optimization programs
  • VPI measurement technique for uncompromised accuracy
  • QuickBal for reduced measurement time: Short start-stop cycle time: 6.5 seconds (15" rim)
  • Measuring speed < 100 rpm
  • Wheel guard
  • Clamping of wheel on integrated flange with quick nut
  • EZ-Collets - Mobile app helps service technicians identify the best tools for their wheel balancing jobs. Using the EZ-Collets mobile app, service professionals can select a vehicle to find and compare options for the best collet, flange, or quick plate for the wheel. The app also provides information about the tire and rim for the vehicle.
  • The EZ-Collets app is free to download through the Apple and Google stores and requires user email activation.

• FEATURES

  • EZ-COLLETS MOBILE APP: The EZ-Collets mobile app makes wheel balancing more efficient.
  • SPLIT WEIGHT MODE: Hides adhesive weights behind two adjacent spokes so they cannot be seen from the outside.
  • QUICKBAL™: 30% reduced cycle time, less than 4,5 seconds, maintaining the same high accuracy.
  • GAUGE ARM: Semi-automatic data entry and positioning of adhesive weights.
  • OVERSIZED SHAFT: The 225 mm length allows the use of stud-hole flanges and other accessories for almost every type of rim.
  • VPM TECHNIQUE: Measurement system for high precision and repeatability.

• SPECIFICATIONS

  Specifications	GEODYNA7100
  Wheel clamping	Quick Nut
  Diameter of shaft	40 mm
  Measuring speed	< 100 rpm
  Balancing accuracy	0.035 (1 g)
  Angular resolution	±0.35°
  Length of shaft	225 mm
  Start/Stop balance time - Check spin (Wheel 195/65R15)	6 s
  Manual rim diameter range	8" - 32"
  Manual offset range	1" - 20"
  Manual rim width range	1" - 20"
  Semi-automatic rim diameter range	8" - 25"
  Semi-automatic rim width range	1" - 20"
  Max. wheel diameter	37.8"
  Max. wheel weight	154 lbs (70 kg)
  Motorized	Yes
  Power Requirements	230 VAC 1ph 50/60 Hz
  Dimensions LxWxH (Unit only)	43" x 39.5" x 67"
  Net Weight	154 lbs (70 kg)




• WARRANTY + MANUALS

  • 5 Years Motor
  • 2 Year Parts
  • 1 Year Labor



  GEODYNA® 7100

  WHEEL BALANCER SELECTOR

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Hofmann equipment Warranty Policy - Hofmann USA products carry the following warranties:

HOFMANN WHEEL BALANCERS

• LABOR 6 MONTHS
• PARTS 1 YEAR
• ELECTRONIC CIRCUIT BOARD 3 YEARS
• ELECTRIC MOTOR 5 YEARS

HOFMANN WHEEL ALIGNERS

• LABOR - 6 MONTHS
• CIRCUIT BOARDS, PC’S, CRT & LCD - 3 YEARS
• PARTS & PRINTER - 1 YEAR

Hofmann Equipment Warranty Policy - Hofmann USA products carry the following warranties:

HOFMANN BRAKE LATHES

• LABOR - 6 MONTHS
• PARTS - 2 YEARS
• ELECTRIC MOTOR - 1 YEAR

HOFMANN TIRE CHANGERS

• LABOR - 6 MONTHS
• PARTS - 1 YEAR
• ELECTRIC MOTOR - 3 YEARS
• AIR MOTOR - 1 YEAR
• TRANSMISSION - 3 YEARS

Hofmann Equipment Warranty Policy - Hofmann USA products carry the following warranties:

HOFMANN LIFTS

• LABOR - 1 YEAR
• PARTS - 1 YEAR
• POWER PACK - 18 MONTHS (1 YEAR SCISSOR ALIGNMENT)
• HYDRAULICS - 1 YEAR
