AMGO® Hydraulics 14,000 lbs 4-Post Lift #PRO-14
AMGO shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | PRO-14 |
| Lifting Capacity | 14,000 lbs |
| Lift Type | Four-Post Service |
| Overall Height | 86 3/16" |
| Drive-Thru Clearance | 102 1/16" |
| Motor | 2.0 HP |
- Not published in the AMGO documentation for this model — confirm with Alamo before install (AMGO publishes a spec/feature brochure, not a full concrete-spec install manual, for this model)
- Power unit is 220V, 60Hz, single-phase (AMGO ETL-certified unit, 2.0 HP)
- Supply cord sized and grounded per your electrician's load calc
- Circuit amperage not specified by AMGO — have your electrician size the breaker
- Overall height of the lift is 86 3/16"
- Per-setting ceiling clearance table not published for this model
- Not published in the AMGO documentation for this model — confirm with Alamo before install

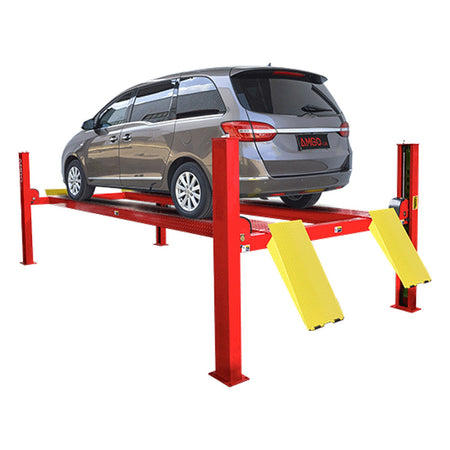

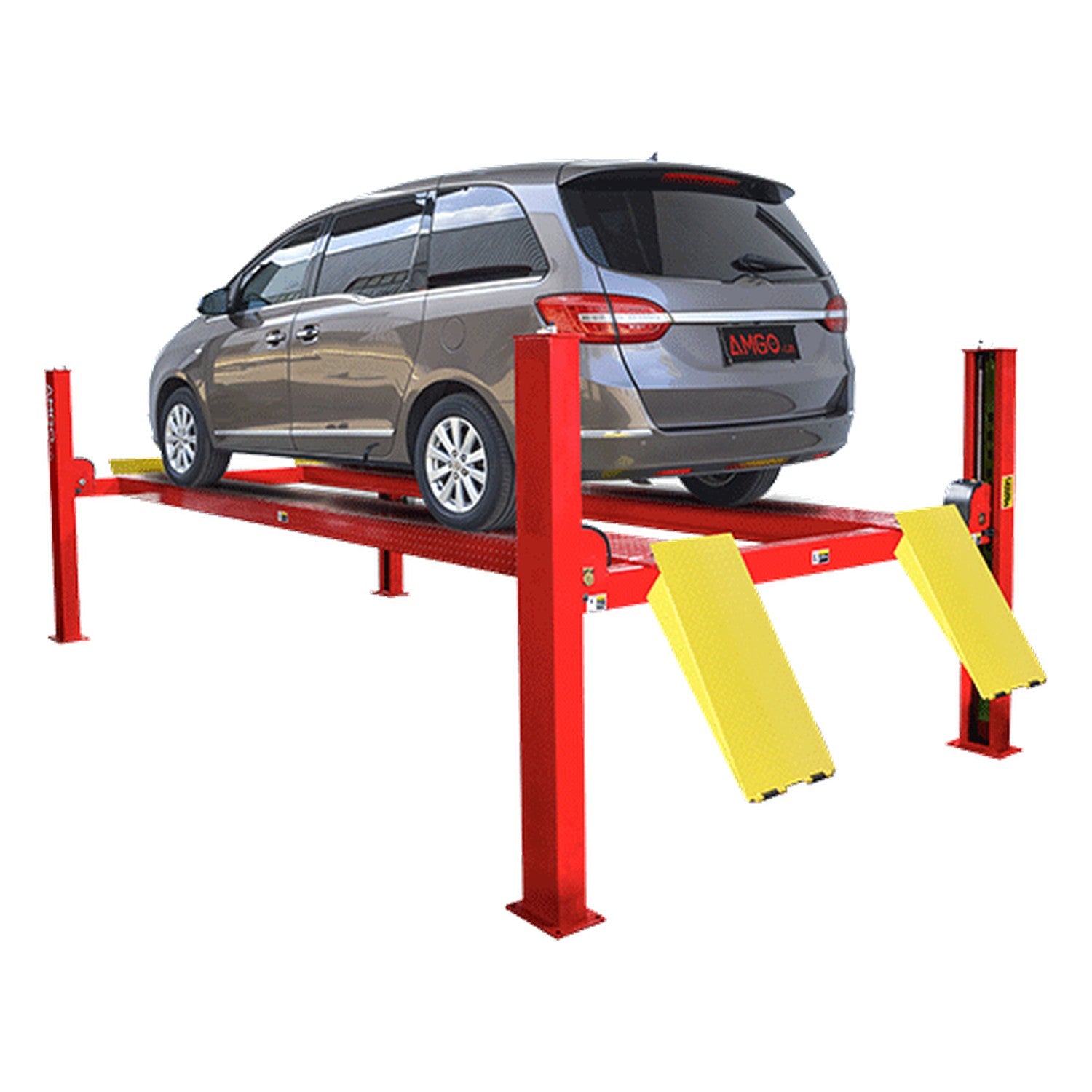

AMGO® Hydraulics PRO-14 14,000 lbs 4-Post Lift
The AMGO® Hydraulics PRO-14 is a 14,000 lbs-capacity commercial four-post service lift, a fourteen-thousand-pound truck-capable four-post. Rated for 14,000 lbs with 116-inch column spacing and 102-inch drive-thru, it steps up to full-size trucks, vans and long-wheelbase daily drivers. A cable-driven mechanism, AMGO ETL-certified power unit, primary multiple safety locks and cable-slack protection come standard, along with non-skid diamond platforms. It ships with power unit 071102.
The PRO-14 carries fourteen thousand pounds on heavy-duty runways, so shops working three-quarter-ton trucks and cargo vans get real headroom over a twelve-thousand-pound lift.
Who It's Built For
- Shops servicing full-size trucks, vans and larger SUVs
- Fleets needing fourteen-thousand-pound service capacity
- Techs who outgrew a twelve-thousand-pound four-post
- Bays with the length for standard (non-extended) runways
- Owners wanting AMGO ETL power for heavier vehicles
What It's NOT Built For
- Vehicles beyond fourteen thousand pounds — look at the PRO-18
- Extra-long wheelbases — consider the extended PRO-14E
- Flush or in-ground bays — surface mount only
- Weak slabs — verify concrete before buying
- Four-wheel alignment — choose the PRO-14A
Key Differentiator: Fourteen-thousand-pound truck-capable service four-post
The PRO-14 carries fourteen thousand pounds on heavy-duty runways, so shops working three-quarter-ton trucks and cargo vans get real headroom over a twelve-thousand-pound lift.
- Full-size trucks and cargo vans on standard runways
- Alignment work or extra-long vehicles (see PRO-14A / PRO-14E)
How the PRO-14 Compares - Which AMGO Four-Post Lift Fits Your Shop?
| Model | Capacity | Service Type | Overall Length (w/ ramps) | Drive-Thru |
|---|---|---|---|---|
| PRO-14 | 14,000 lbs | Service | 258 9/16" | 102 1/16" |
| PRO-14E | 14,000 lbs | Service | 287 1/16" | 102 1/16" |
| PRO-14A | 14,000 lbs | Alignment | 257 1/2" | 102 1/16" |
| PRO-14AE | 14,000 lbs | Alignment | 286" | 102 1/16" |
All compared models are AMGO four-post lifts. Call (844) 480-6059 and we will help you decide before ordering.
Full Specifications – PRO-14
| Brand | AMGO® Hydraulics |
| Model | PRO-14 |
| Part / SKU | ALMAMGPRO14 |
| Lifting Capacity | 14,000 lbs |
| Service Type | General service |
| Lifting Time | 81s |
| Overall Length (incl. ramps) | 258 9/16" |
| Overall Length (no ramps) | 210 5/16" |
| Overall Width | 130 7/8" |
| Width Between Columns | 116" |
| Max. Lifting Height | 75 9/16" |
| Overall Height | 86 3/16" |
| Minimum Height | 7 7/8" |
| Drive-Thru Clearance | 102 1/16" |
| Motor | 2.0 HP, 220V/60Hz, single phase |
| Power Unit | 071102 |
| Gross Weight | 3,111 lbs |
| Shipping Carton | 219" x 23" x 35" |
| Shipping Weight | 3,071 lbs |
Installation Requirements
- Concrete: Slab spec is not published in AMGO's brochure for this model — Alamo verifies your slab before anchoring
- Power: 220V, 60Hz single-phase (AMGO ETL-certified 2.0 HP unit); confirm your service at order
- Overhead: Clear the raised lift and its air/shut-off hardware
- Anchoring: Anchored per the AMGO installation procedure by our crew
AMGO 5-3-2 Limited Warranty – PRO-14
AMGO Hydraulics backs every four-post lift with one of the strongest warranties in the industry, covering defects in materials and workmanship under normal commercial service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, runways/platforms, cross beams, top beam, base plates, drive-in ramps |
| 3 Years | Hydraulic Parts | Cylinders, oil seal, oil hose, fittings |
| 2 Years | Other Parts, Electrical & Power Unit | Cables, electrical components and the ETL-certified power unit (consumption parts excluded) |
Alamo Equipment administers your warranty directly — call (844) 480-6059 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items and is voided by installation on non-compliant concrete, loading past the rated capacity, or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
Frequently Asked Questions - PRO-14
Why Buy the PRO-14 from Alamo Equipment & Service?
- We install it. Our crew levels the columns, runs the cables and commissions the PRO-14 on your floor.
- We service it. Parts and warranty go through our shop at (844) 480-6059, not an offshore hotline.
- We size it with you. Tell us your bay length, width and vehicles; we confirm the 14,000 lift fits.
- Straight answers. We'll tell you when the alignment version or a different capacity is the smarter buy.
- Call for Shipping. Freight is quoted per order — call (844) 480-6059 for your rate to your bay.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
AMGO shipping is quoted by destination before payment. Select your product options and request a freight quote above. We will confirm the shipping total before sending a payment link.
