APlusLift 4000LB Air Operated Sliding Bridge Jack #ABJ-40
Couldn't load pickup availability

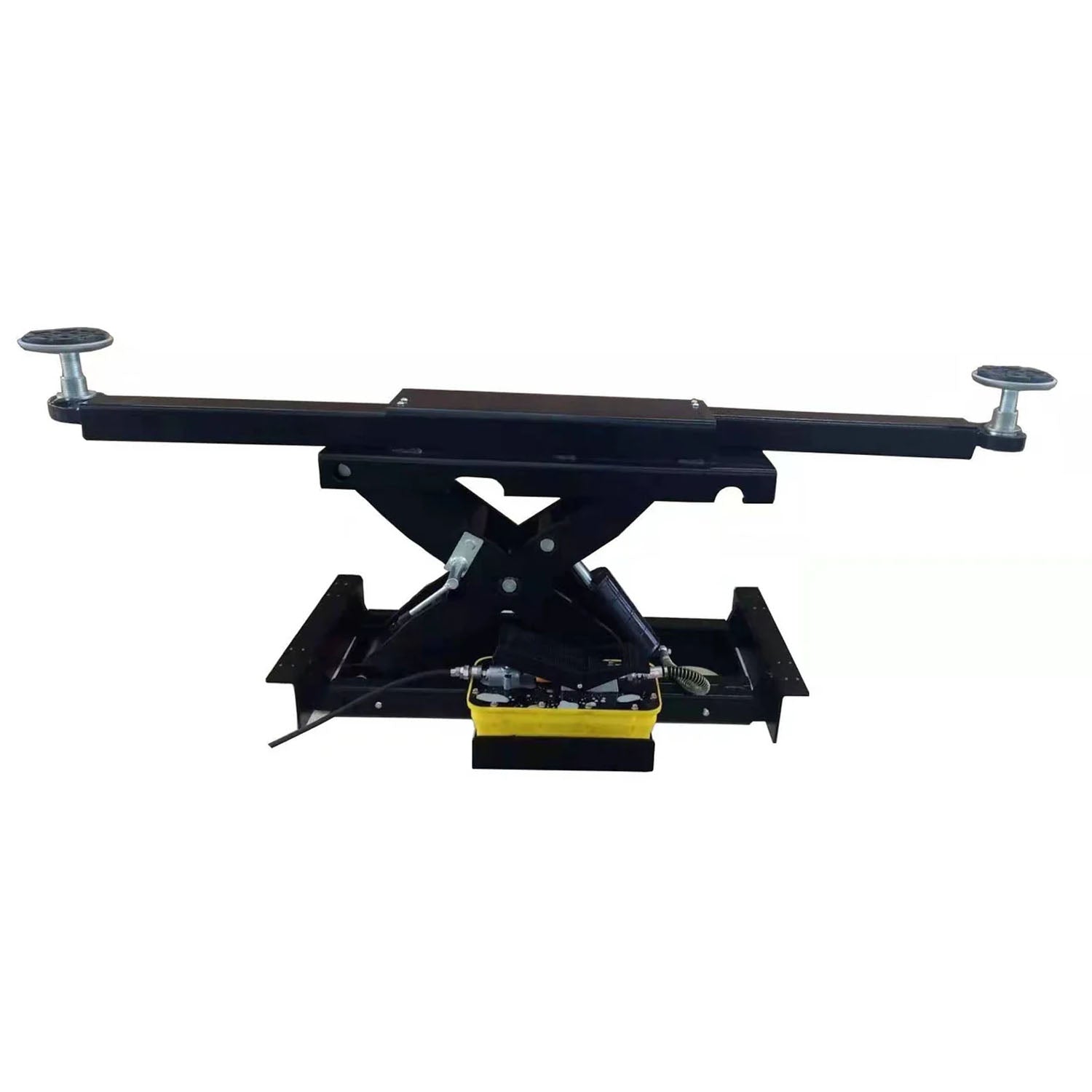

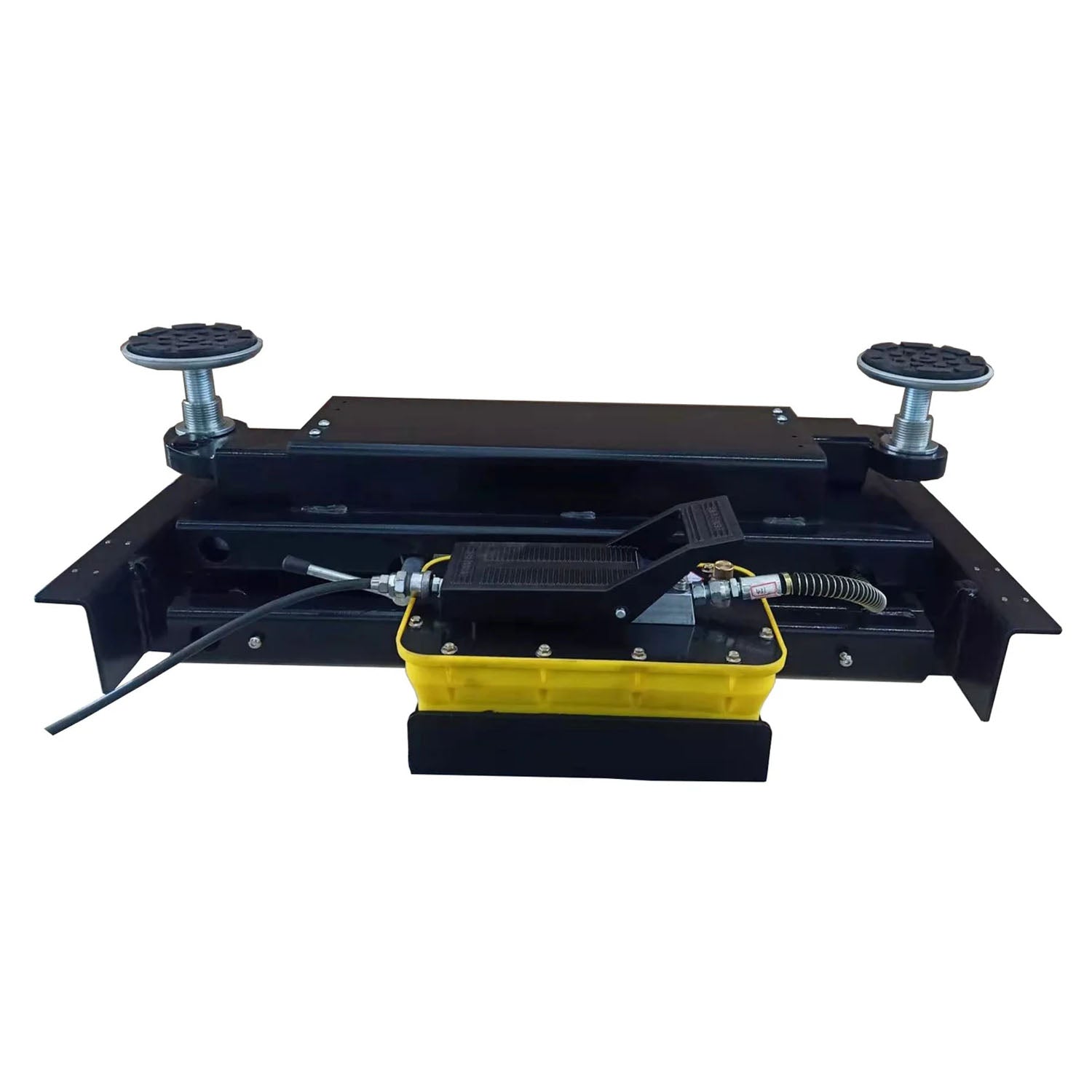

APlusLift 4000LB air-operated (ABJ-40) sliding bridge jacks are an ideal complement to a 4-post storage lift. The jack can be used to lift the front or rear side of a vehicle to perform wheel and brake services efficiently. The ABJ-40 sliding jack features telescoping support arms and adjustable screw pads, allowing for easy height adjustment to accommodate most vehicles. Optional truck adapters (height extensions) are available if needed.
Features:
- The ABJ-40 bridge jack is compatible with the following car lift models: HW-8S, HW-8SXLT, HW-9KDP, and HW-4P10S.

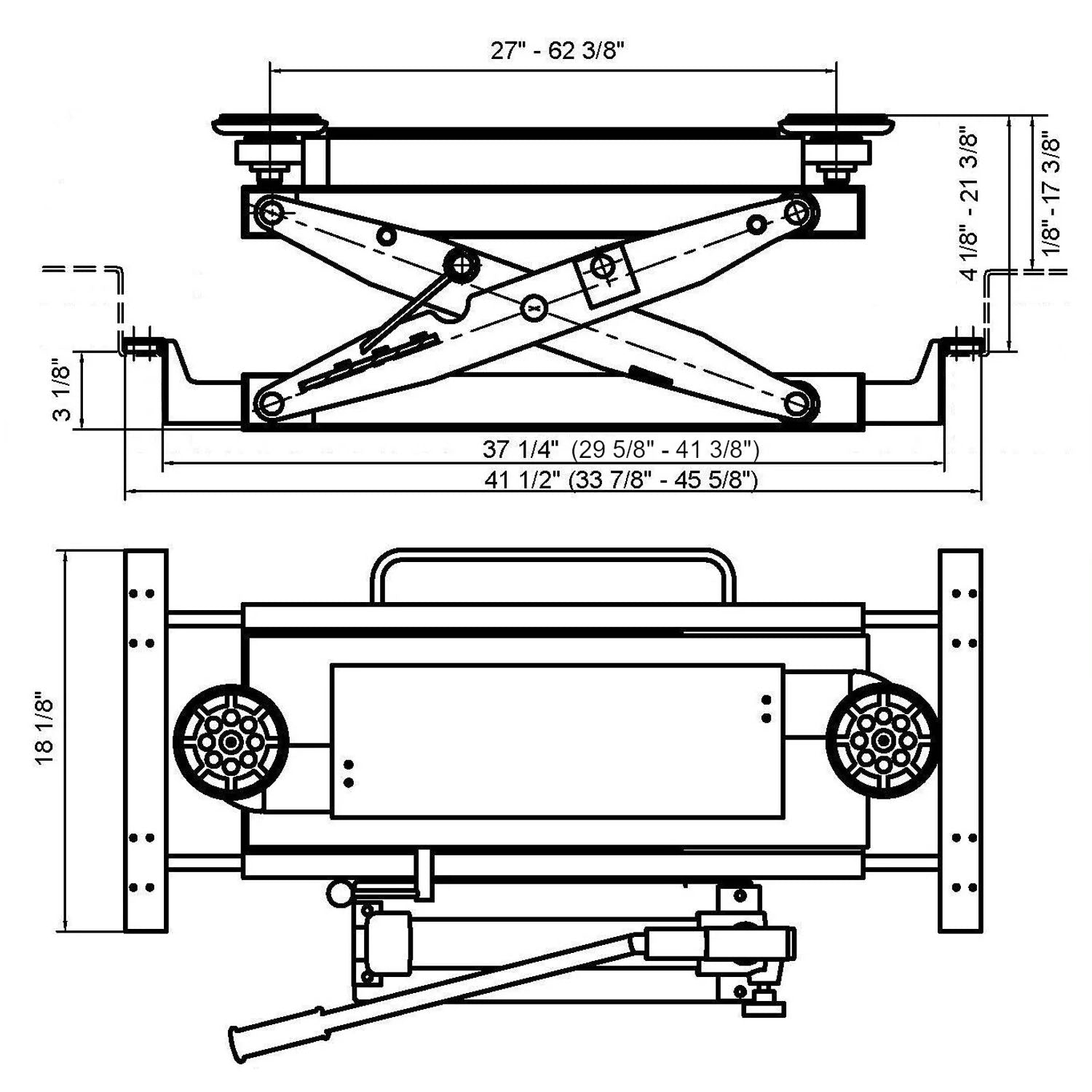

- Minimum Lifting Height 1/8" (See Diagram)
- Two Adjustable Screw Pads and Two 2 3/4" Tall Truck Adapters Included
- Long Arm Extensions: 27" - 62 3/8"
- Adjustable Width to fit almost all service and storage lifts
Technical Specifications:
| Model | ARJ-40 |
| Installation Manual | ARJ-40 Manual |
| Type | Bridge Jack |
| Warranty | 12 months |
| Lifting capacity | 4,000 lbs |
| Operating Mode | Air Operated |
| Overall Length | 33 7/8" - 45 5/8" |
| Distance between arm pads | 27" - 62 3/8" |
| Overall width | 18 1/8" |
| Lifting Height | 1/8" - 17 3/8" |
| Hydraulic Oil | 0.5 gallons of AW32 |
| Shipping weight | 300 lbs |
| Shipping dimensions | 40"l x 24"w x 11"h |
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(844) 480-6059. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Warranty Information
- 3-Year Structural Components Warranty
- 1-year Parts Warranty
