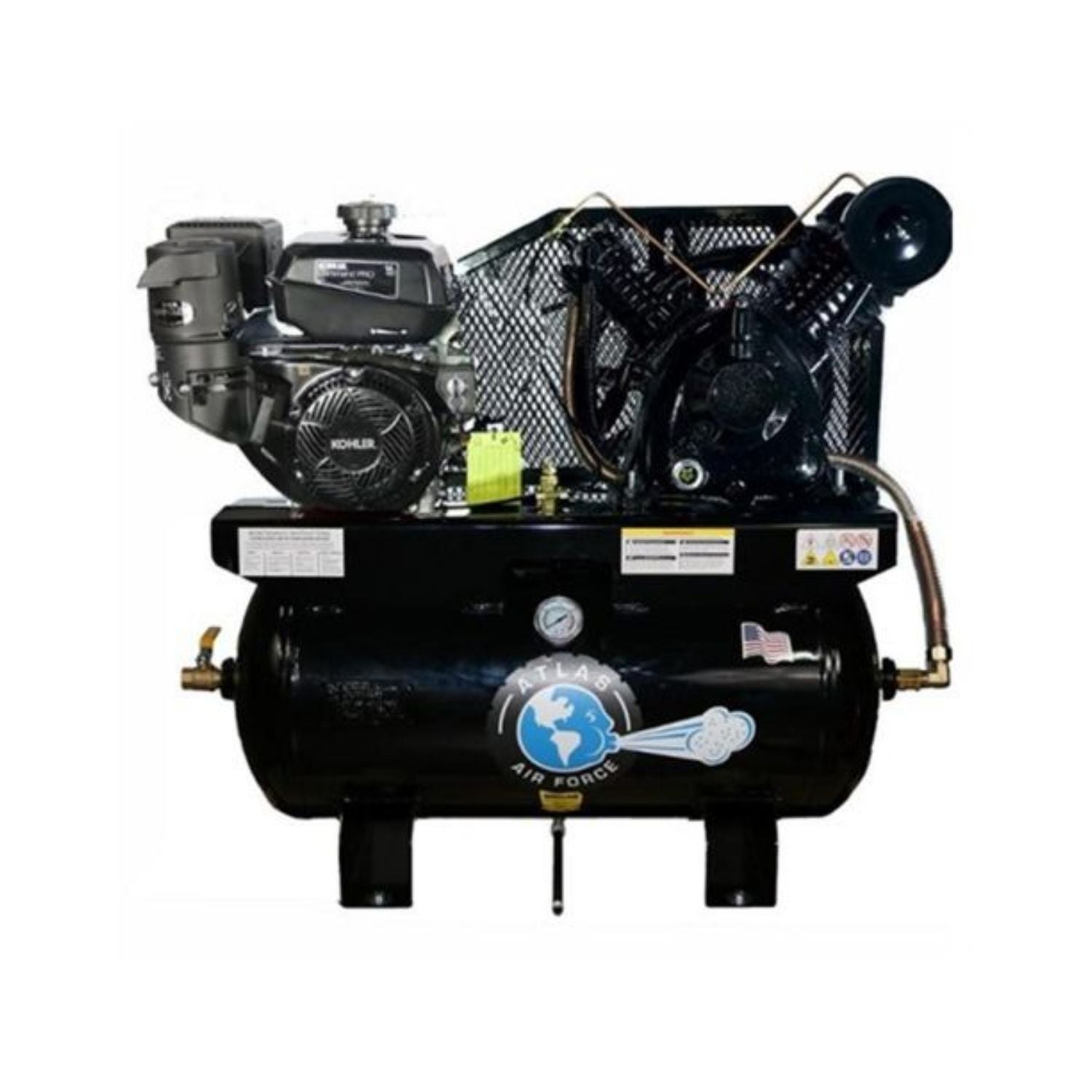

Atlas® AF14G 14HP Gas Air Compressor with Kohler Engine #ATEMPAF14G-FPD
Couldn't load pickup availability
| Model / Part Number | ATEMPAF14G-FPD |
| Horsepower | 14 HP (Kohler CH440, Electric Start) |
| Tank | 30 Gallon Horizontal |
| CFM @ 90 PSI | 25 CFM @ 90 PSI |
| Pressure Range | 145–175 PSI |
| Warranty | 1-year parts only |
Atlas® AF14G — 14 HP (Kohler CH440, Electric Start) Air Compressor
A gas-powered compressor is the difference between running full shop air at a job site with no power hookup and having to schedule around whatever electrical access happens to be available that day.
The Atlas® AF14G is a gas-powered 2-stage reciprocating compressor rated for 14 HP (Kohler CH440, Electric Start) with a 30 gallon horizontal tank, built for shops and commercial operations that need compressed air on tap all day without paying for accessories they don’t need.
Who the AF14G Is Built For
- ✅ Construction sites, agricultural operations, and remote job locations where electrical power isn't available and reliability matters most
- ✅ Service trucks and mobile technicians who need dependable air for large impact wrenches and pneumatic tools away from the shop
- ✅ Buyers who prefer Kohler engine architecture over Honda for parts availability, dealer network, or personal brand preference
- ✅ Fleet operations already running Kohler-powered equipment who want to standardize on one engine platform for easier maintenance
- ✅ Field-service techs who need slightly more horsepower headroom than the 13HP AF13G offers for the same tank size and CFM class
- ✅ Operations that need a portable, horizontal-tank compressor that mounts easily on a truck bed or trailer
What the AF14G Is NOT Built For
- ❌ Shop-based operations with standard electrical service already available — an electric AF-series unit (like the AF9) delivers more CFM per dollar when gas portability isn't needed
- ❌ Indoor, enclosed-space use — like any gas engine, the AF14G needs ventilation and should not run in an unventilated shop bay
- ❌ Buyers who specifically want Honda engine architecture — see the AF13G instead
What Makes the AF14G Different
Commercial 2-Stage Pump
The AF14G uses a 2-Cylinder, 2-Stage pump built for daily, all-day duty cycles — not a hobby-grade single-stage unit that struggles under continuous shop use.
CFM & Pressure Output
Delivers 25 CFM @ 90 PSI and holds pressure across a 145–175 PSI range, enough headroom to run impact wrenches, tire equipment, and paint tools without the tank running dry.
Plus Package Upgrades
gas-powered unit, no electrical Plus Package accessories.
Power Requirements
gas-powered, no electrical hookup required.
- Construction/agricultural/remote job sites
- Kohler engine preference
- No electrical hookup available
- Shop-based use with power already available
- Buyers preferring Honda engines — see AF13G
AF14G vs. FS-Curtis CA14-K (13 HP Kohler Gas, 30 Gal Horizontal) — Which Compressor Is Right for Your Shop?
| Decision Point | AF14G | FS-Curtis CA14-K (13 HP Kohler Gas, 30 Gal Horizontal) |
|---|---|---|
| Horsepower / Engine | 14 HP, Kohler CH440 Electric Start | 13 HP, Kohler Gas Drive |
| Tank | 30 Gallon Horizontal | 30 Gallon Horizontal |
| CFM @ 175 PSI | 19 CFM | 22.5 CFM (E57 pump) |
| Best fit | Field service buyers preferring Atlas's pump architecture | Shops comparing FS-Curtis Kohler gas-drive architecture |
Choose the AF14G if you're already invested in the Atlas AF-series lineup or prefer its pump architecture. Choose the FS-Curtis CA14-K if you want to compare a similar Kohler-powered gas-drive unit from a different manufacturer. Both stay inside Alamo’s catalog — call (844) 480-6059.
Full Specifications — AF14G
| Model / Part Number | ATEMPAF14G-FPD |
| Horsepower | 14 HP (Kohler CH440, Electric Start) |
| Pump | 2-Cylinder, 2-Stage |
| Configuration | Gas-Powered 2-Stage Reciprocating |
| Tank | 30 Gallon Horizontal |
| CFM @ 90 PSI | 25 CFM @ 90 PSI |
| CFM @ 175 PSI | 19 CFM @ 175 PSI |
| Pressure Range | 145–175 PSI |
| Overall Dimensions | 46" L × 19" W × 37" H |
| Shipping Weight | 627 lbs |
| Warranty | 1-year parts only |
⚠️ Setup Requirements
- Electrical: gas-powered, no electrical hookup required.
- Floor space: 46" L × 19" W × 37" H footprint; plan clear access on at least two sides for maintenance and tank drain.
- Ventilation: Locate in a dry, ventilated area away from dust and moisture to protect the pump and tank.
- Weight: 627 lbs shipping weight — confirm your floor/dock can receive and position the unit.
- Setup: Installation is available as a quoted service (piping, electrical tie-in, functional test) — it’s not included in the purchase price. Call (844) 480-6059 for an install quote if you’d like Alamo’s crew to set it up.
Atlas® Warranty — AF14G
Atlas® backs the AF14G with a 1-year parts-only warranty.
| Component | Coverage Term |
|---|---|
| Tank & pump | 1 year parts |
| Motor & electrical components | 1 year parts |
| Wear items (belts, filters, gaskets) | Not covered (consumable) |
Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to Atlas® warranty terms, conditions, and requirements.
Frequently Asked Questions — Atlas® AF14G
Why Buy the AF14G from Alamo Equipment & Service?
- Installation available. Buying online gets you the compressor — piping and electrical tie-in are an extra-charge service. We have the crews to install it and can quote that separately; call (844) 480-6059 for a quote.
- We service it. These compressors need preventative maintenance up to 4x a year per the manufacturer — oil changes, belt and air filter checks, contactor and electrical inspection. Call (844) 480-6059 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 14 HP (Kohler CH440, Electric Start), 30 Gallon Horizontal tank, 25 CFM @ 90 PSI — we’ll confirm this matches your shop’s actual air draw before you order.
- Free shipping. Ships free to the 48 contiguous states.
- Expert comparison help. Not sure if the AF14G or the FS-Curtis CA14-K (13 HP Kohler Gas, 30 Gal Horizontal) is the better fit? We’ll walk you through it.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
