Atlas® AF7 5HP 80 Gal Vert Air Compressor w/Mag Starter #ATEMPAF7-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

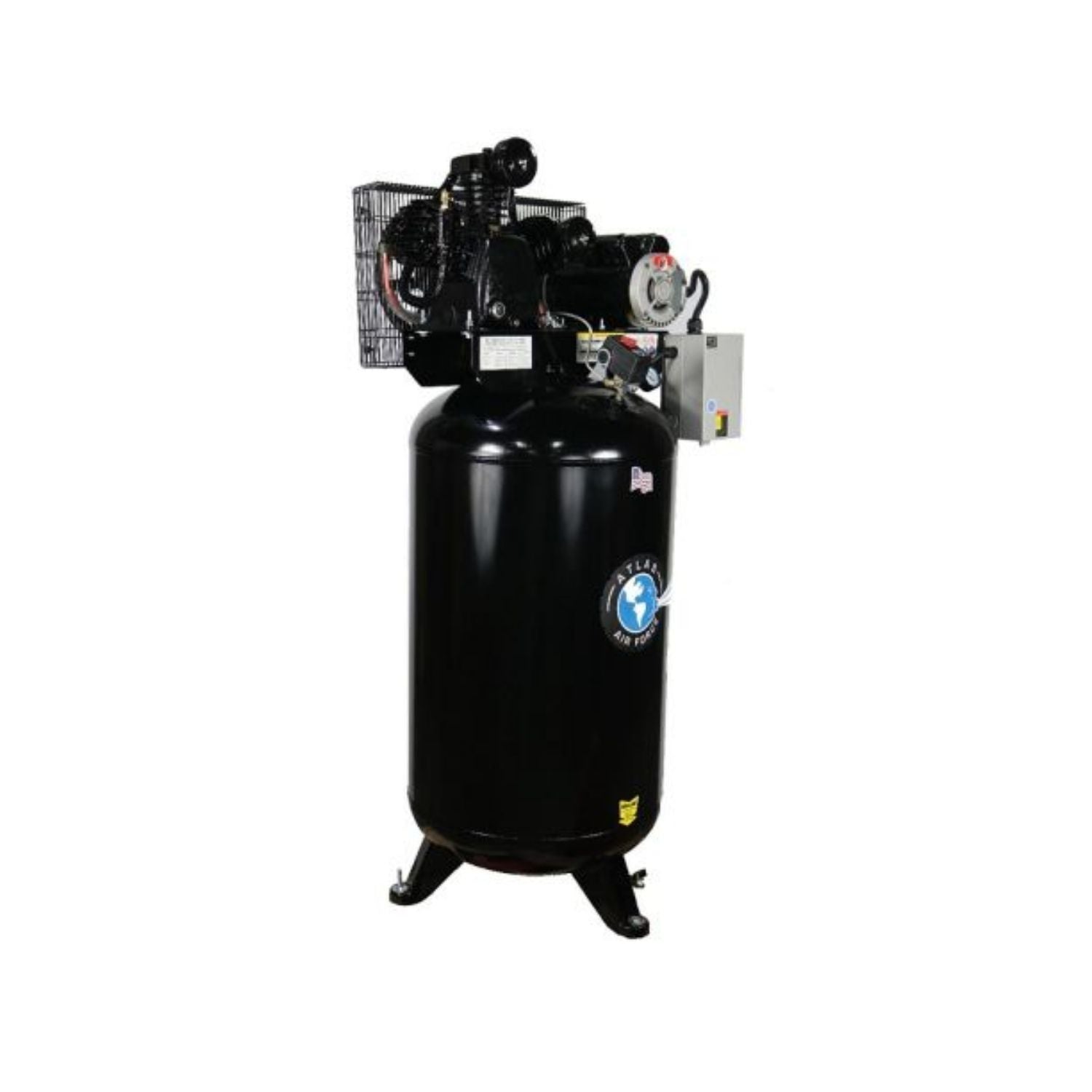

  The Atlas® AF7 5HP 80 Gallon Air Compressor is a commercial-grade, 2-stage vertical compressor designed for full shop use with added electrical protection and ease of operation.

  Built with a low-RPM 5HP motor and a heavy-duty 3-cylinder cast iron pump, the AF7 delivers strong airflow and consistent pressure for running pneumatic tools, tire equipment, and sandblast cabinets. It operates between 145–175 PSI, providing high efficiency and longer duty cycles compared to single-stage units.

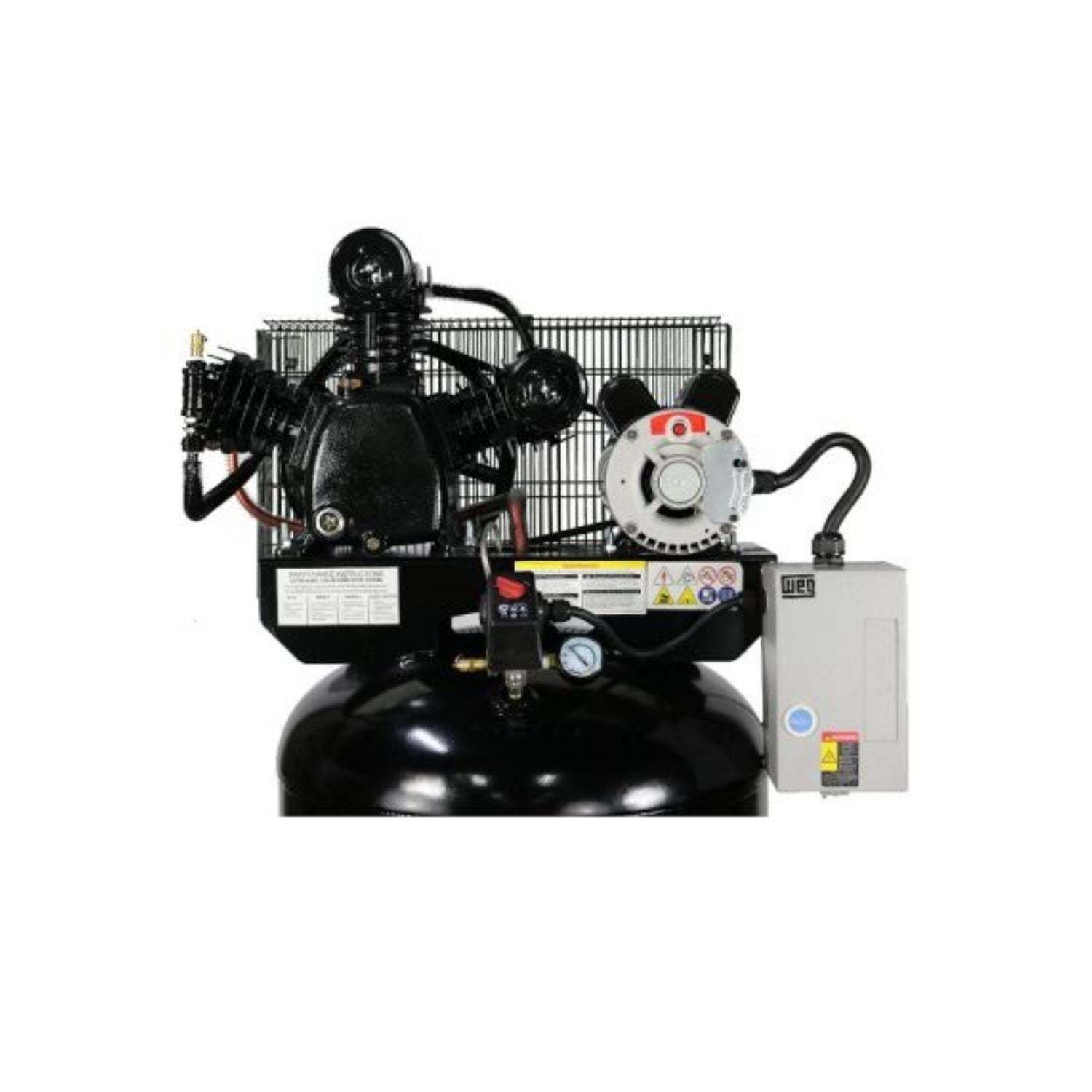

  What sets this model apart is the included magnetic starter, which regulates electrical input, protects the motor, and extends overall lifespan—making it safer and easier to install than non-starter versions.

• FEATURES AND BENEFITS

  • 2-Stage Pump
  • 5HP, Low RPM Motor
  • 80 Gallon Vertical Tank (Made in the USA)
  • Air Output 145-175 PSI
  • Extremely Quiet Operation
  • Magnetic Starter Included, Controls Electric Input
  • Adding To Longevity Of The Unit
  • Set of Vibro-Isolation Pads Included
  • Hands Free Tank Drain ExtensionFinned Tank Inlet Tube For Reduced Tank Water Accumulation

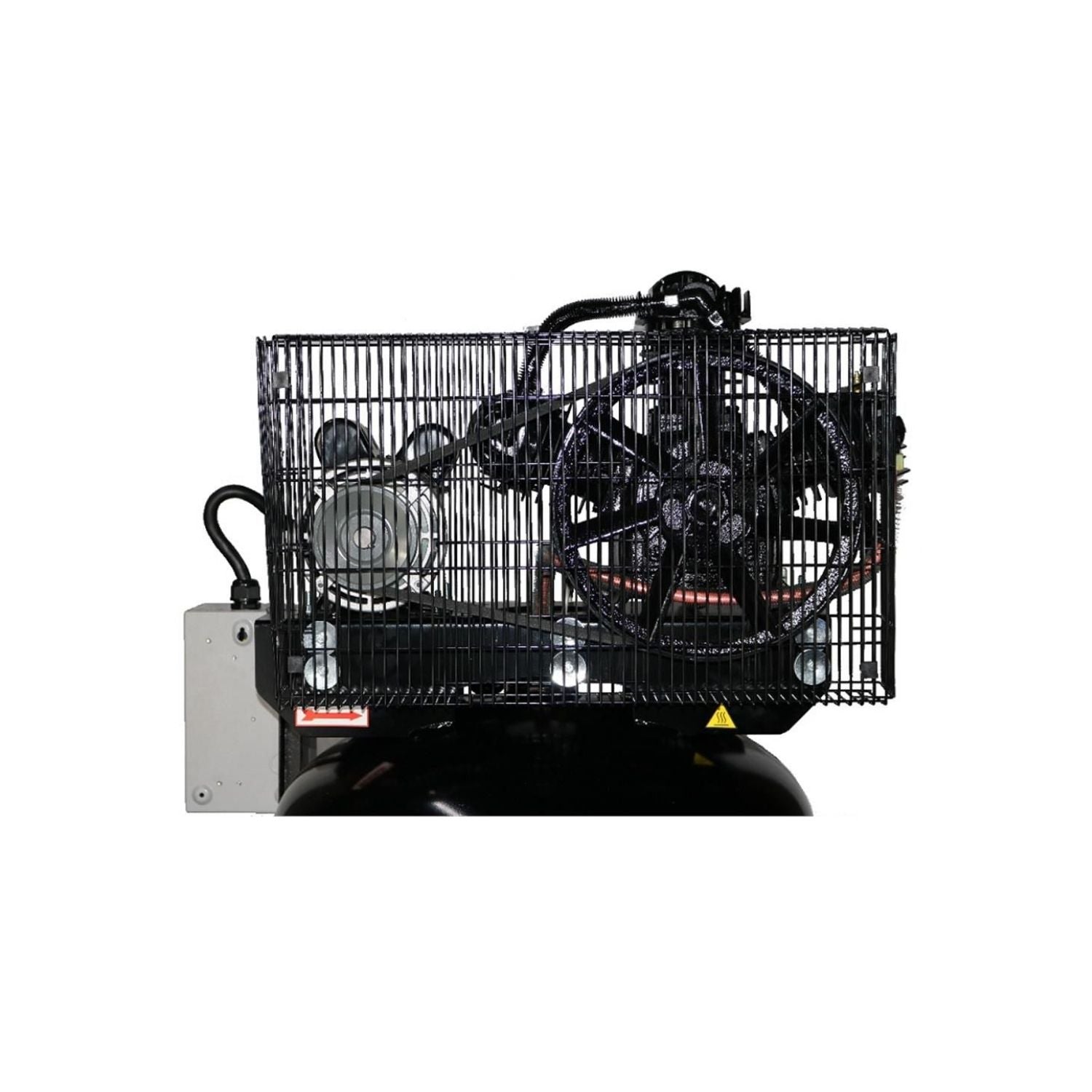

  • Heavy Duty Metal Belt Guard
  • Electric: 220volt/1phase, 30 Amp Breaker, Number 10 Wire Required
  • 1 Year Parts Only Warranty

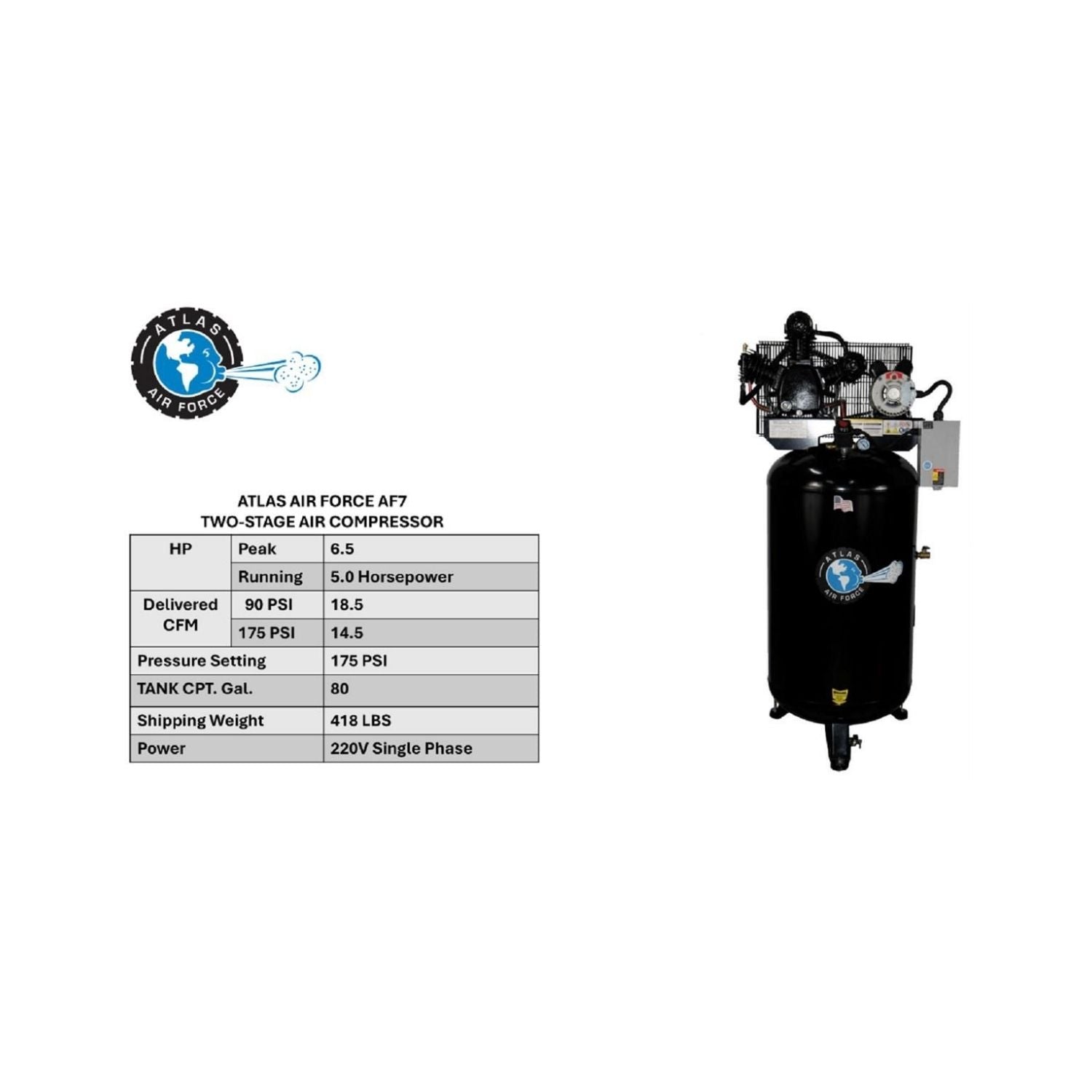

• SPECIFICATIONS

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEMPAF7-FPD
  UPC:	810524020923
  Country of Origin:	USA
  Motor Running:	5 Horsepower
  Delivered-CFM @ 145 PSI:	18.5
  Delivered-CFM @ 175 PSI:	14.5
  Pressure Setting:	145-175 PSI
  Tank Capacity:	80 Gallons
  Air Outlet Size:	1/2" NPT (Ball Valve Included)

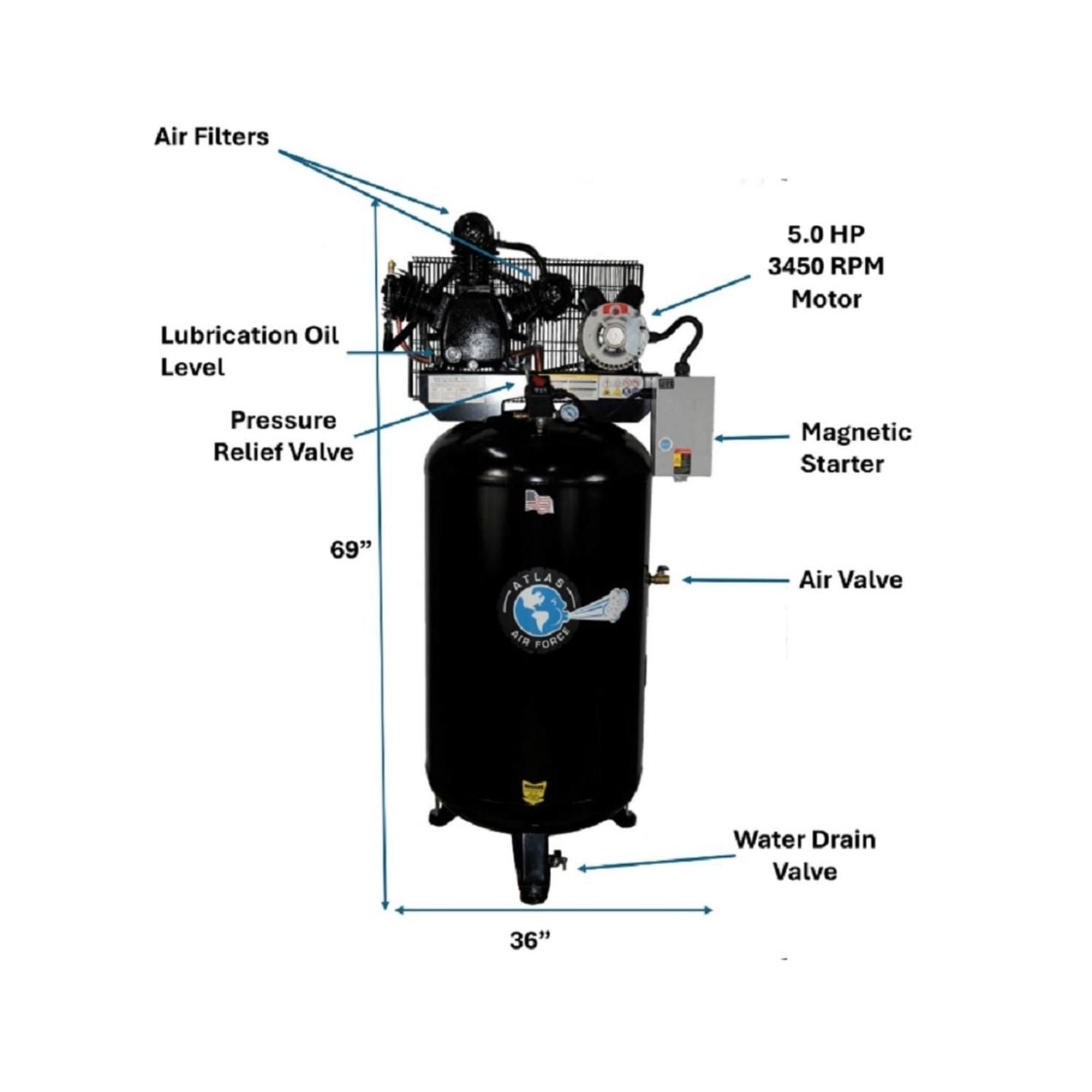

  Overall Dimensions:	36" L x 24" W x 69" H
  Motor Voltage:	220 Volt, 1PH, 30 Amp Breaker Required
  Compressor Pump:	3 Cylinder, 2-Stage
  Shipping Weight:	418 lbs.

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
