Atlas® Auto SPINS Automotive Rotisserie #ATEHT-ROTI-NEW-FPD
Couldn't load pickup availability
| SKU | ATEHT-ROTI-NEW-FPD |
| Product Type | Automotive Restoration Rotisserie |
| Maximum Capacity | 3,000 lbs |
| Rotation | 360° |
| Mounting Bracket Width | 14-1/4" - 48-3/4" |
| Maximum Body Width | 85" |
| Working Height | 20-1/2" - 48-1/2" |
| Working Length | Up to 19 ft |
| Recommended Ceiling Height | 8 ft |
| Main Structure | 3" x 3" Square Steel Tubing |
| Steel Thickness | 1/8" / 9 Gauge |
| Height Adjustment | 2 Hydraulic Rams |

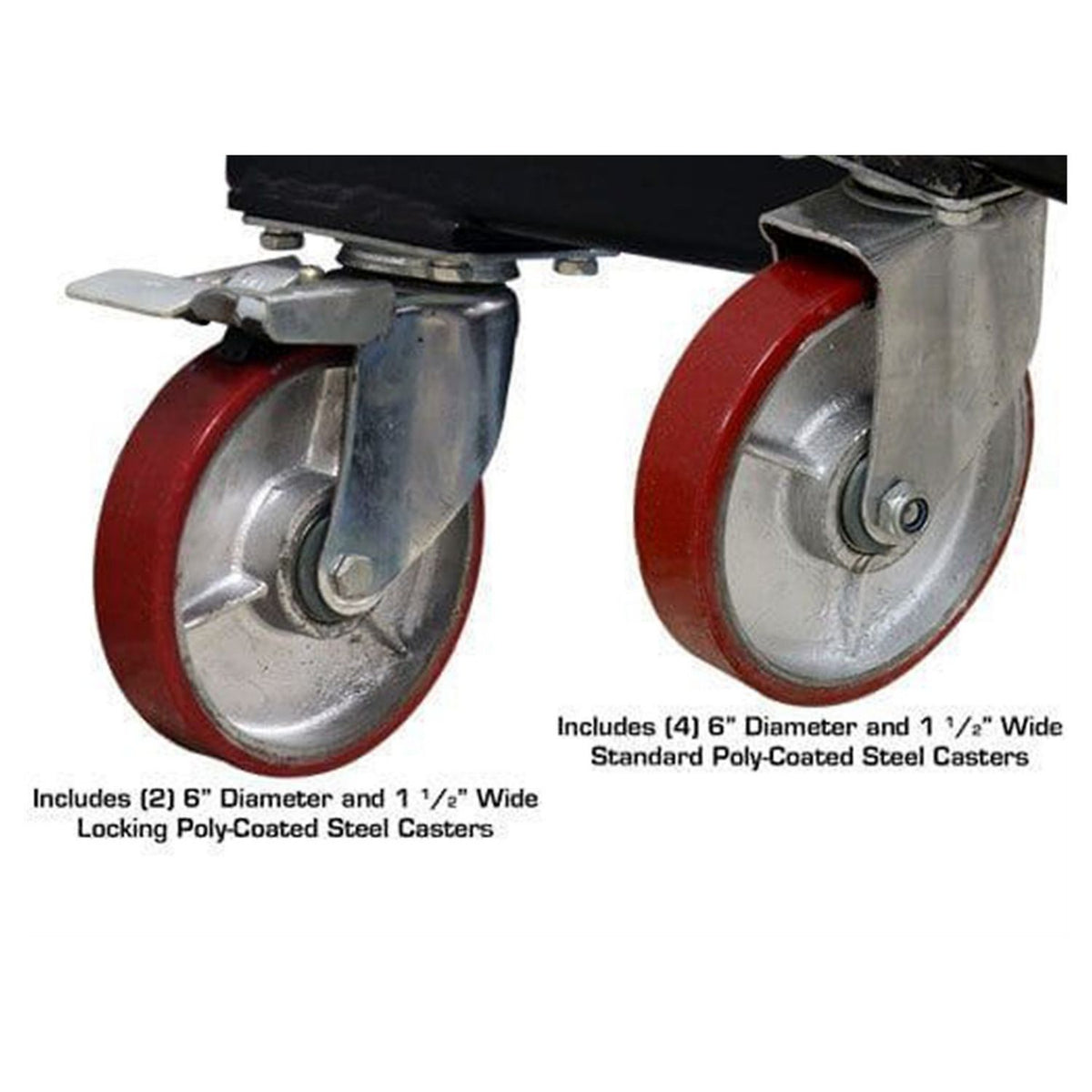

| Casters | 6" x 1-1/2" Polyurethane Swivel Casters |
| Shipping Weight | 600 lbs |
| Warranty | 1-Year Parts-Only Warranty |
- 8 ft ceiling-height requirement
- Working length up to 19 ft
- Allow clearance for full vehicle rotation
- Threaded adjuster helps locate center of gravity
- Bases must remain parallel
- Vehicle must be balanced before rotation

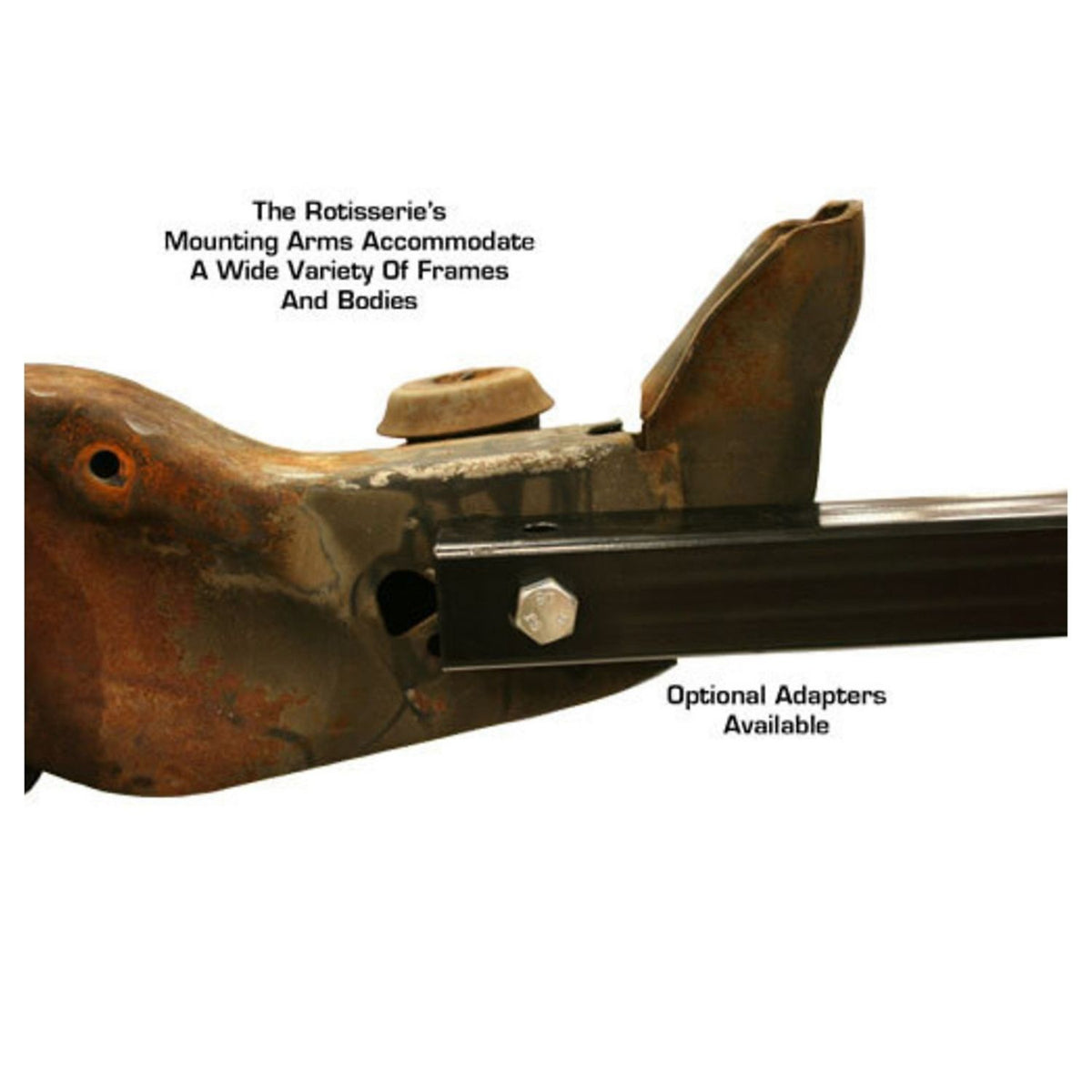

- Vehicle mounting points vary by make/model
- Verify all mounting hardware before lifting
- Specialty adapters available separately

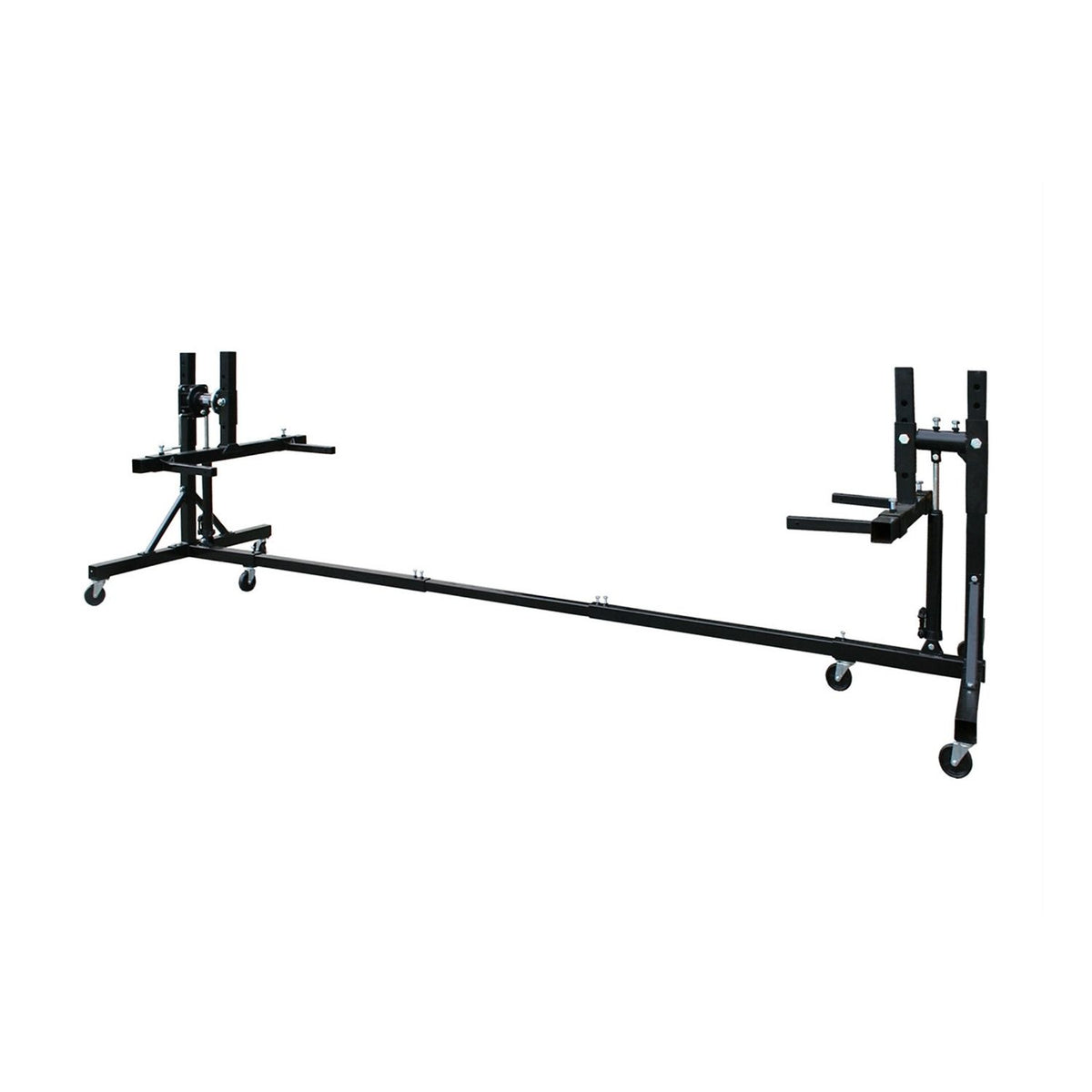

Atlas Auto SPINS Automotive Rotisserie

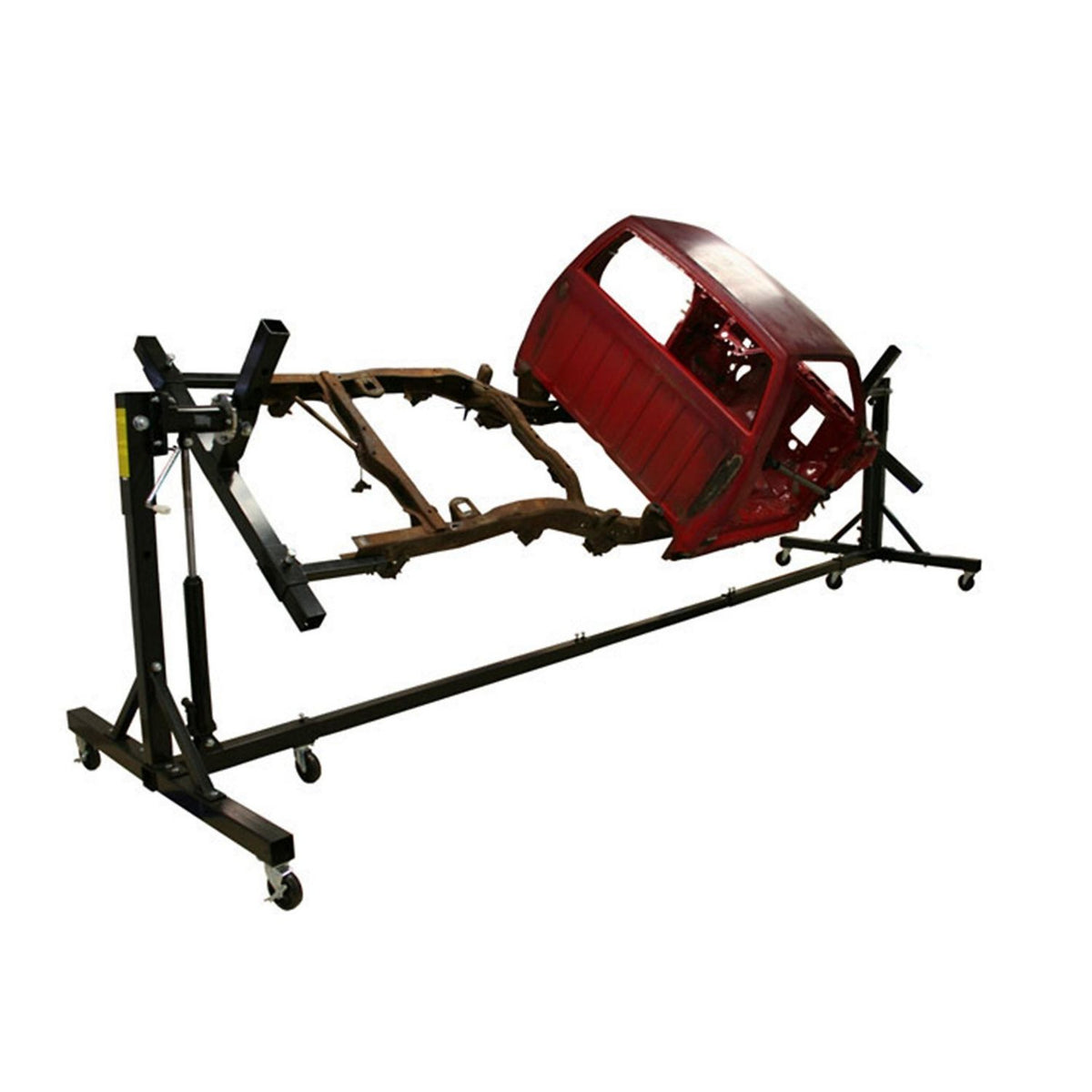

The Atlas Auto SPINS, or Simple Position In Seconds, is a 3,000 lb automotive restoration rotisserie designed to support car and truck bodies or frames while providing full 360-degree access for restoration work.
Once the body or frame is correctly mounted and balanced, the hand-crank rotation system allows the vehicle structure to be repositioned for easier access during welding, sandblasting, bodywork, coating, and other restoration procedures.
Adjustable Restoration Platform

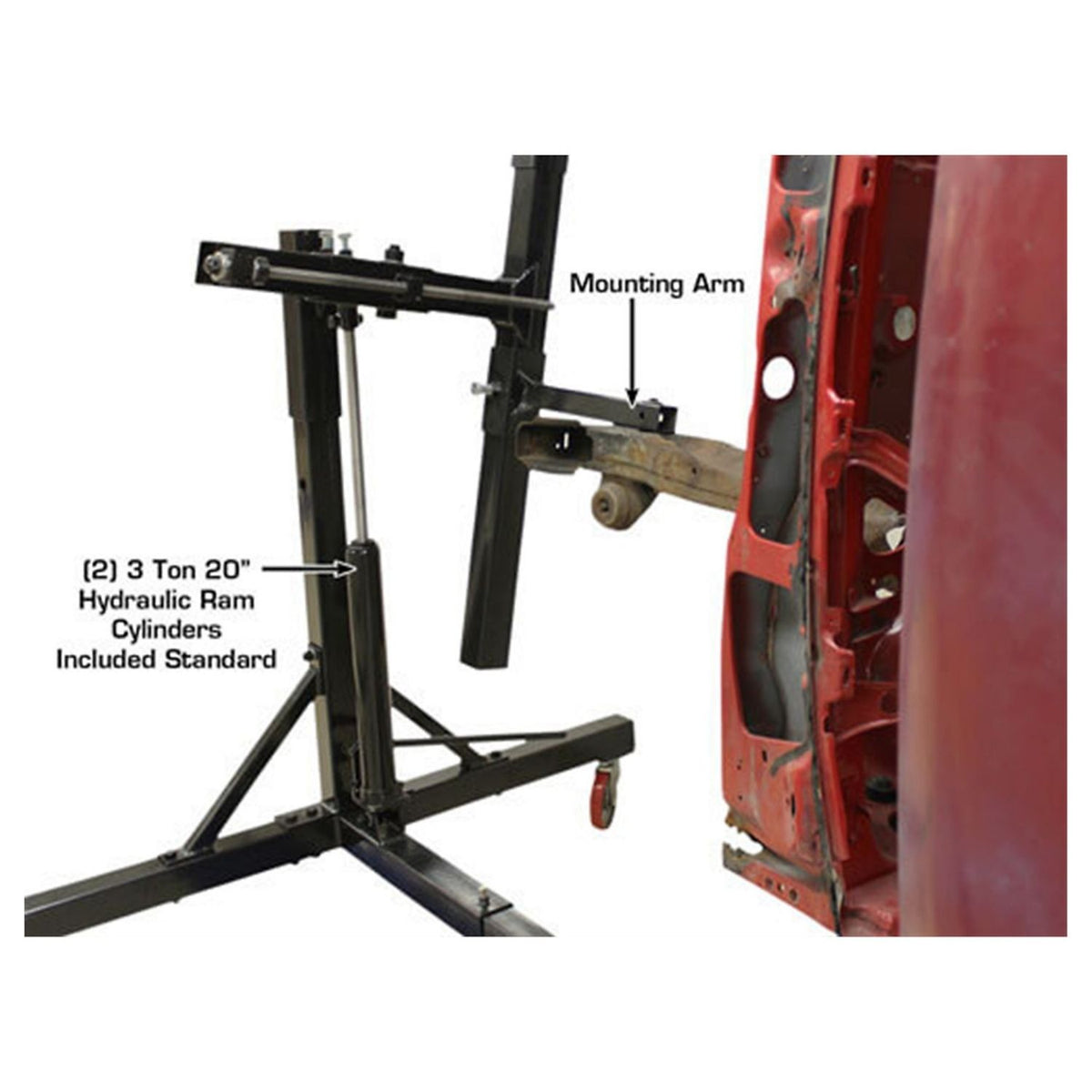

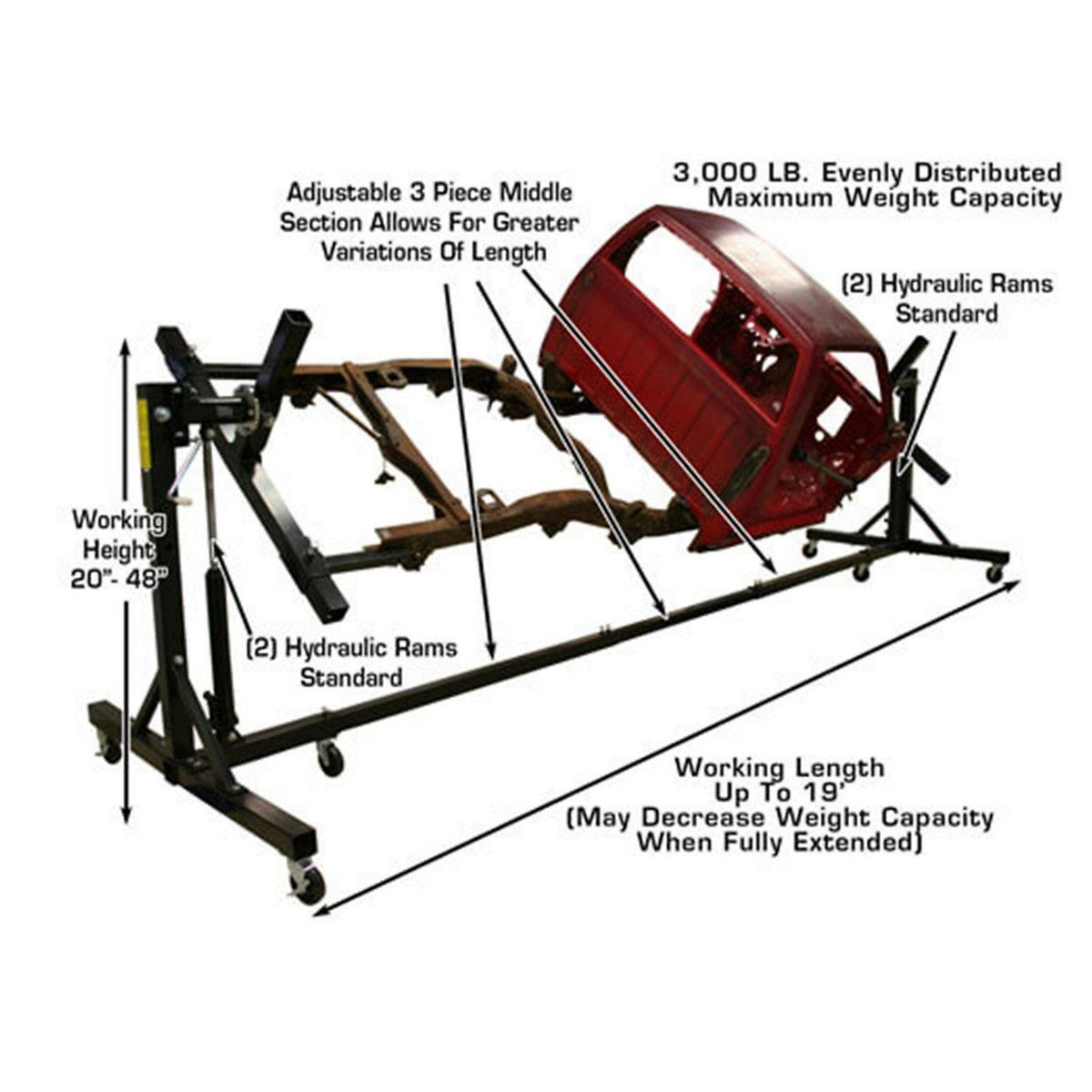

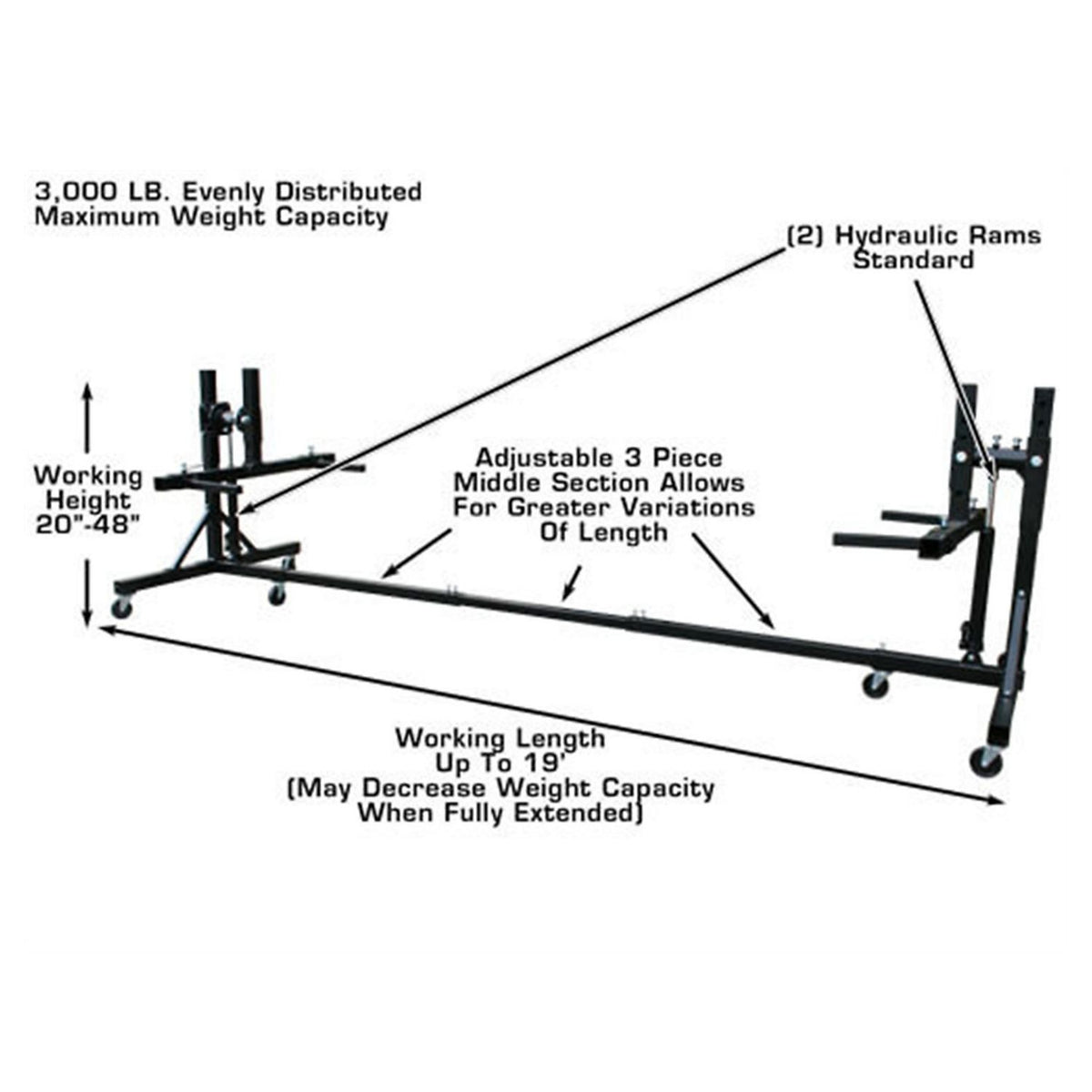

The unit adjusts in width, working length, height, and center-of-gravity position. Two hydraulic rams help raise the vehicle body from jack stands to working height before rotation.
Center-of-Gravity Adjustment

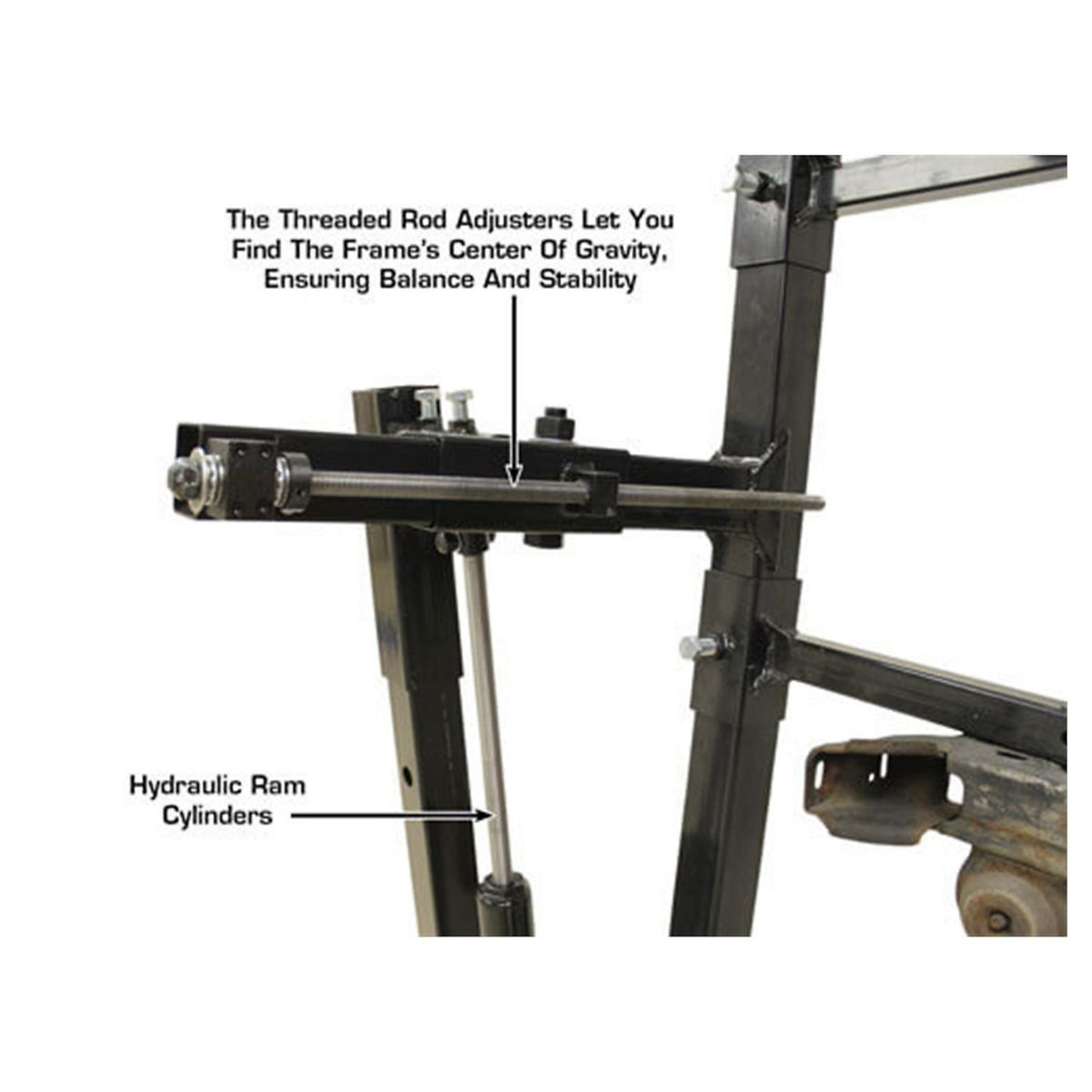

Threaded rod adjusters allow the operator to fine-tune the rotational center to help balance the mounted body or frame before using the rotating crank.
Auto SPINS Features
- 3,000 lb maximum weight capacity
- Full 360-degree body or frame rotation
- Threaded center-of-gravity adjustment
- Two hydraulic lifting rams
- Adjustable width, height, length, and centering
- Heavy-duty powder-coated construction
- 3" x 3" square-tube main structure
- 1/8" / 9-gauge steel construction
- Six polyurethane swivel caster wheels
- Optional specialty vehicle adapters available
Restoration Applications
- Body restoration
- Frame restoration
- Welding
- Sandblasting
- Underside bodywork
- Coating and refinishing access
Full Specifications
| SKU | ATEHT-ROTI-NEW-FPD |
| Maximum Capacity | 3,000 lbs |
| Rotation | 360° |
| Mounting Bracket Width | 14-1/4" - 48-3/4" |
| Maximum Body Width | 85" |
| Working Height | 20-1/2" - 48-1/2" |
| Working Length | Up to 19 ft |
| Ceiling Height Requirement | 8 ft |
| Main Structure | 3" x 3" Square Tubing |
| Steel Thickness | 1/8" / 9 Gauge |
| Hydraulic Rams | 2 |
| Caster Size | 6" Diameter x 1-1/2" Wide |
| Caster Material | Polyurethane |

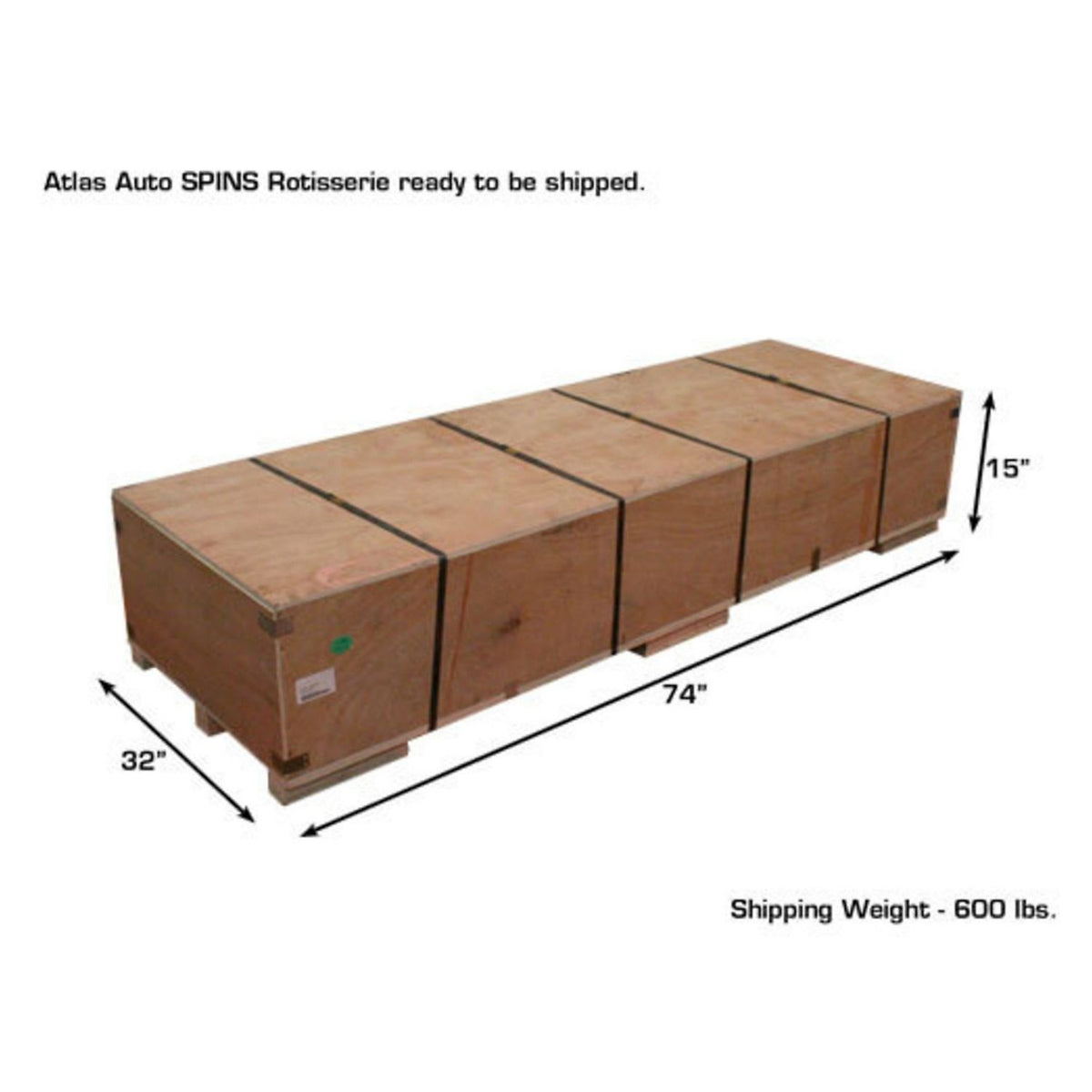

| Shipping Weight | 600 lbs |
⚠️ Important Setup Notes
- Vehicle mounting points vary by make and model.
- Verify all mounting bolts before raising the vehicle.
- Keep both rotisserie bases parallel.
- Balance the mounted body or frame before attempting rotation.
- Atlas warns against using the rotating crank while the load is unbalanced.
- Working capacity decreases when the rotisserie is extended to maximum length.
Warranty Information
Atlas currently lists a one-year parts-only warranty for the Auto SPINS Rotisserie. Warranty coverage remains subject to Atlas's current warranty terms and exclusions.
| Warranty | 1 Year |
| Coverage Type | Parts Only |
❓ Frequently Asked Questions
What is the capacity of the Atlas Auto SPINS?
Atlas rates the rotisserie for a maximum load of 3,000 lbs.
Can it rotate a vehicle body 360 degrees?
Yes. Once correctly mounted and balanced, the system provides full 360-degree rotation.
Does the rotisserie include hydraulic lifting?
Yes. Two hydraulic rams provide height adjustment and assist with raising the body or frame into working position.

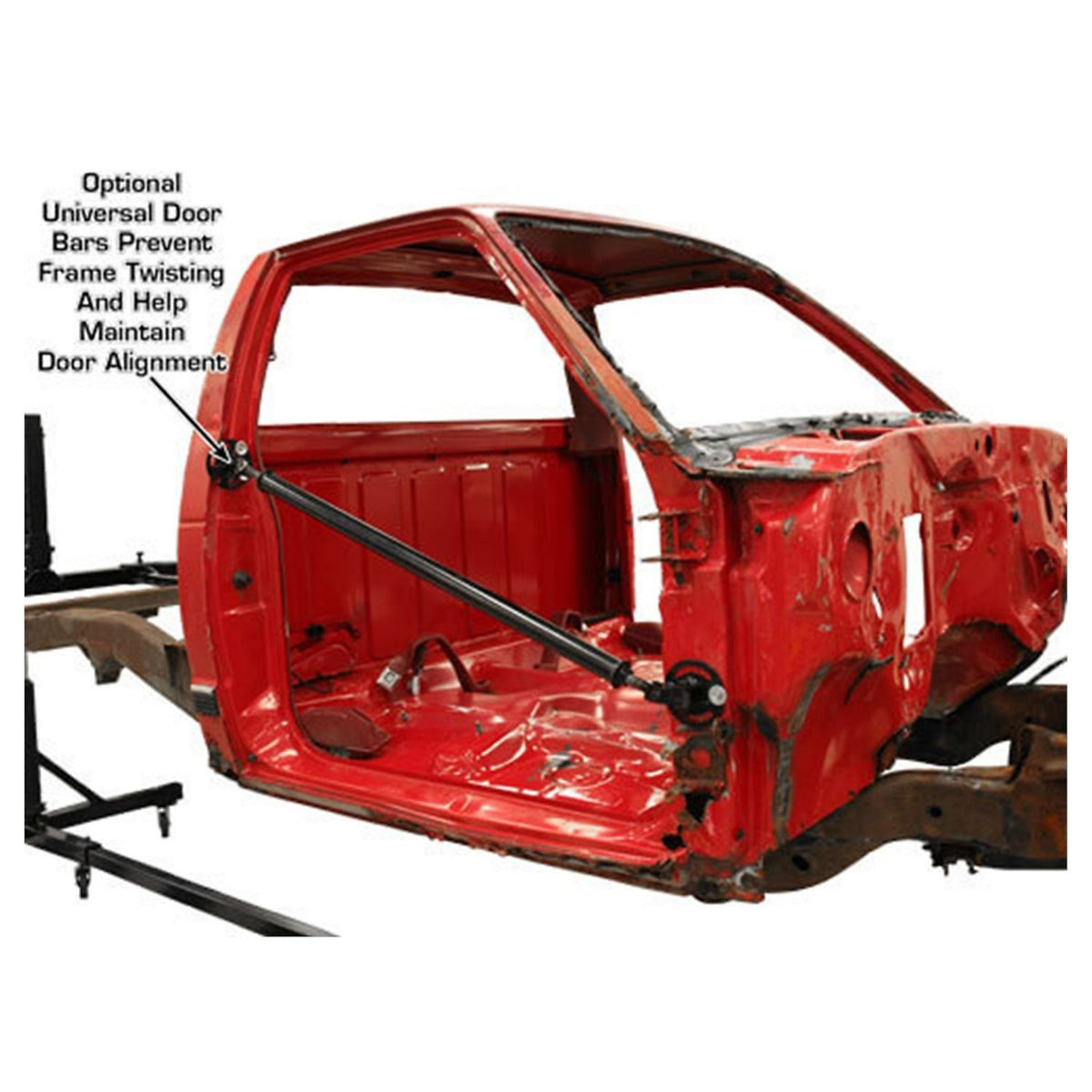

Are specialty adapters available?
Yes. Atlas lists additional rotisserie adapters for different mounting applications.
