Atlas® Garage PRO8EXTL & RJ35 Lift Combo #ATEXH-PRO8EXTL-COMBO-FPD
Couldn't load pickup availability
| Lift | PRO8000EXT-L |
| Lift — capacity | 8,000 lbs |
| Lift — type | 4-post free-standing/portable hobbyist lift, EXTRA TALL / EXTRA LONG |
| Lift — lifting height | 84" |
| Lift — clearance under runways | 78 1/2" |
| Lift — columns | 98 1/2" |
- 110 volt, 30 amp breaker
- Dedicated circuit — have an electrician confirm
- Standard residential panel territory
- 98 1/2" columns + vehicle at full 84" rise
- Measure lights, door tracks, and openers
- Confirm vehicle raised height before ordering
- Maximum wheelbase 173"
- Fits long-wheelbase pickups — except duallys
- Two RJ35 jacks included for both axles

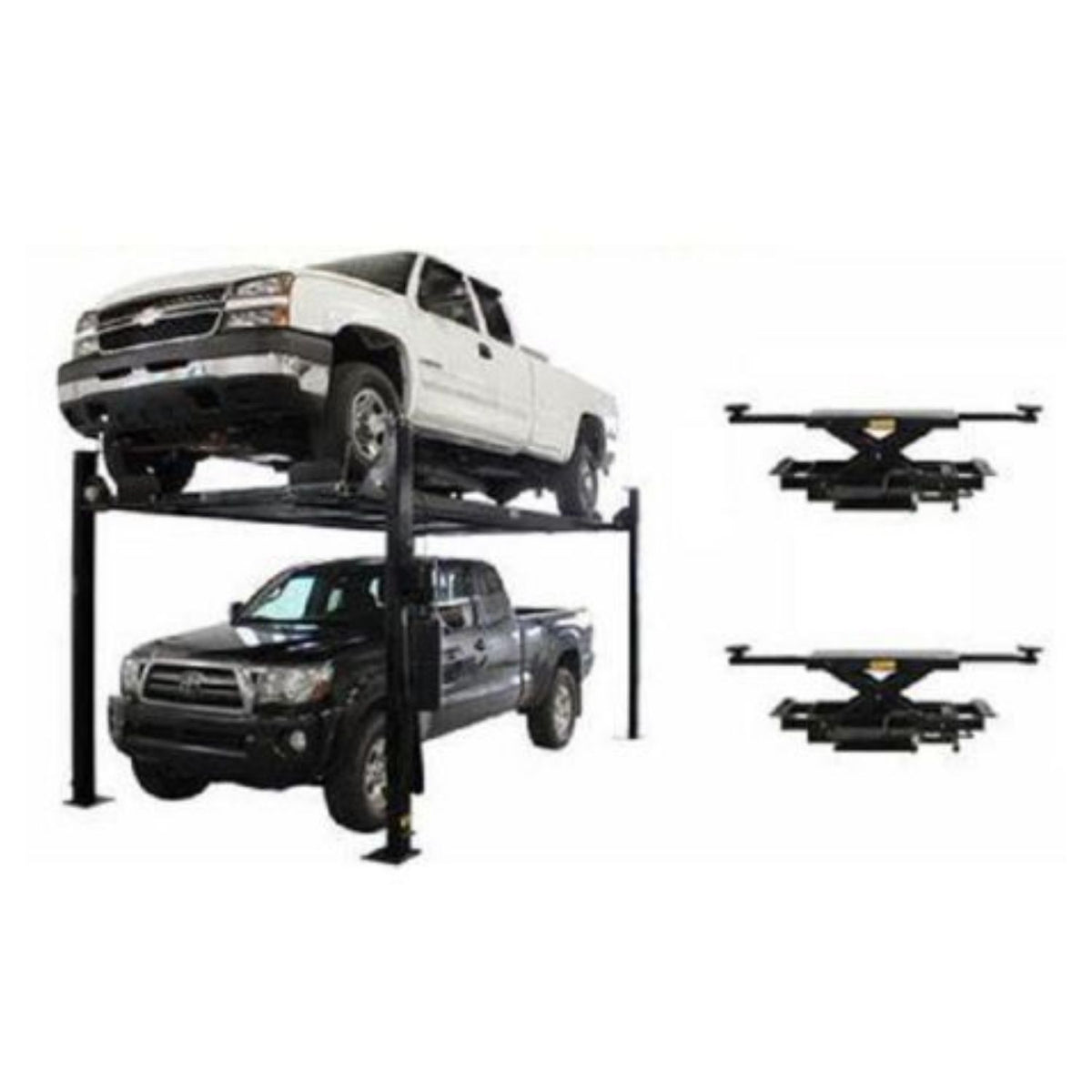

Atlas Garage PRO8000EXT-L + RJ35 Combo — Lift Combo Package
A home four-post that lifts the truck but not its wheels is half a service bay — and the RJ35 hand-pump jacks that fix it are usually bought separately, twice, with two shipping charges. The Atlas Garage PRO8000EXT-L + RJ35 combo delivers the complete version in one order: the extra tall/extra long 8,000 lb Garage PRO lift with TWO RJ35 3,500 lb sliding bridge jacks that ride its runways.
The lift is the one that fits long-wheelbase pickups (173" max wheelbase, 84" of rise); the jacks are the hand-pump sliding type — no air compressor required, which is the standard home-garage reality — and the combo pairs them with the fit guaranteed by the manufacturer.
Who the Atlas Garage PRO8000EXT-L + RJ35 Combo Is Built For
- Home shops with long-wheelbase pickups — the EXT-L's 173" wheelbase and 185" runways hold crew-cab trucks that standard hobby lifts can't, and the two included jacks put the wheels in the air for brake and tire work.
- Restoration shops — the extra 14" of column height gives real working clearance underneath while the sliding jacks handle the disassembly work on top of the runways.
- Garages without compressed air — the RJ35 jacks are hand-pump (porta-power) operated: no compressor, no plumbing, no air requirement anywhere in this combo.
- Truck owners who do their own brake work — two 3,500 lb jacks cover both axles; the manufacturer's combo includes both per its own page.
- Buyers comparing the PRO-FLOOR combos — the floor panels add storage below; this combo adds wheel service above — the buyer's priority picks the pairing.
What the Atlas Garage PRO8000EXT-L + RJ35 Combo Is NOT Built For
This is not a commercial-cycle combo — the Garage PRO line is built for homeowners and restoration shops (the 412A combos are the commercial answer), and 3,500 lb jacks won't lift 3/4-ton HD axles. It's not for duallys (the EXT-L's exception, per the manufacturer), and no air-compressor-free garage needs the air-jack combos instead.
Important sizing note: measure garage width (116 1/2" with motor), ceiling against the 98 1/2" columns plus vehicle at full rise, and confirm wheelbase (173" max) and loaded weight before purchase.
What Makes the Atlas Garage PRO8000EXT-L + RJ35 Combo Different
The lift: Garage PRO8000EXT-L
Extra tall, extra long: 84" of rise, 185" runways, 173" max wheelbase — the home 4-post that fits the trucks other hobby lifts turn away.
The jacks: two RJ35 sliding bridges
3,500 lbs each, hand-pump operated (no air needed), riding the runways — the manufacturer includes both in this combo.
One order, one freight day
Lift and both jacks arrive together, matched by the manufacturer — the RJ35's 20 1/2"–47" extension range is specified for the PRO runways, so there's no fit guesswork.
Best For
- Long-wheelbase pickups (not duallys)
- Restoration shops
- No-air garages
- Home brake & tire work
Not Ideal For
- Commercial daily cycles (see 412A combo)
- 3/4-ton HD axles
- Dually pickups
What the combo changes vs buying the pieces separately
| Buy the Combo | Buy Separately | |
|---|---|---|
| Component matching | both RJ35 jacks are the manufacturer's pairing for the PRO8000EXT-L runways | you verify jack fit yourself |
| Freight | one inbound freight bill, one delivery day | lift and jacks arrive as separate freight |
| Setup | jacks roll onto the runways at delivery — one day, done | separate deliveries to coordinate |
| Service path | one warranty path through Alamo | two purchase trails to track |
The EXT-L's 84" rise and the two hand-pump jacks turn a storage lift into a service bay — bought together, they're guaranteed to work as one.

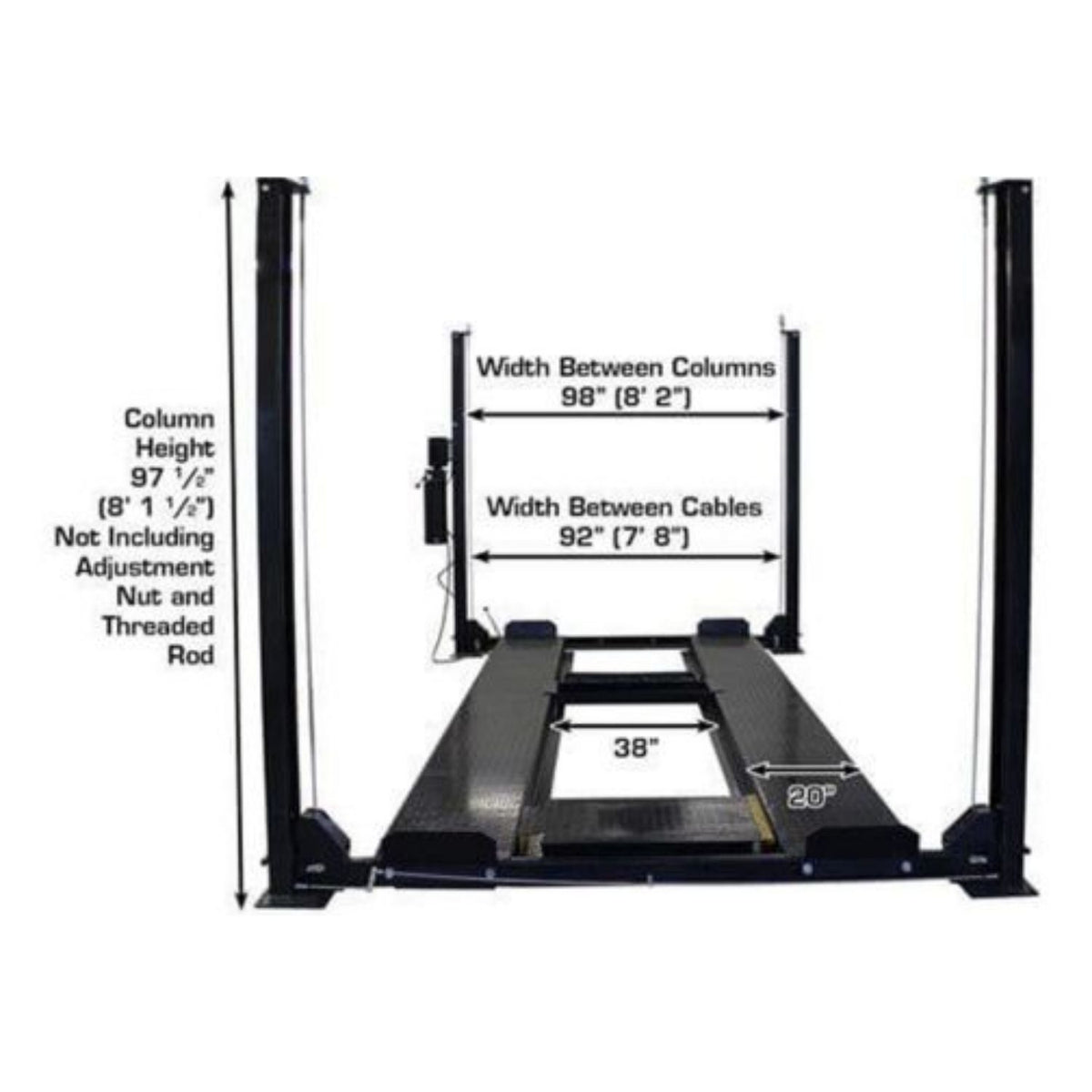

Full Specifications - Atlas Garage PRO8000EXT-L + RJ35 Combo
| Lift — capacity | 8,000 lbs |
| Lift — type | 4-post free-standing/portable hobbyist lift, EXTRA TALL / EXTRA LONG |
| Lift — lifting height | 84" |
| Lift — clearance under runways | 78 1/2" |
| Lift — columns | 98 1/2" |

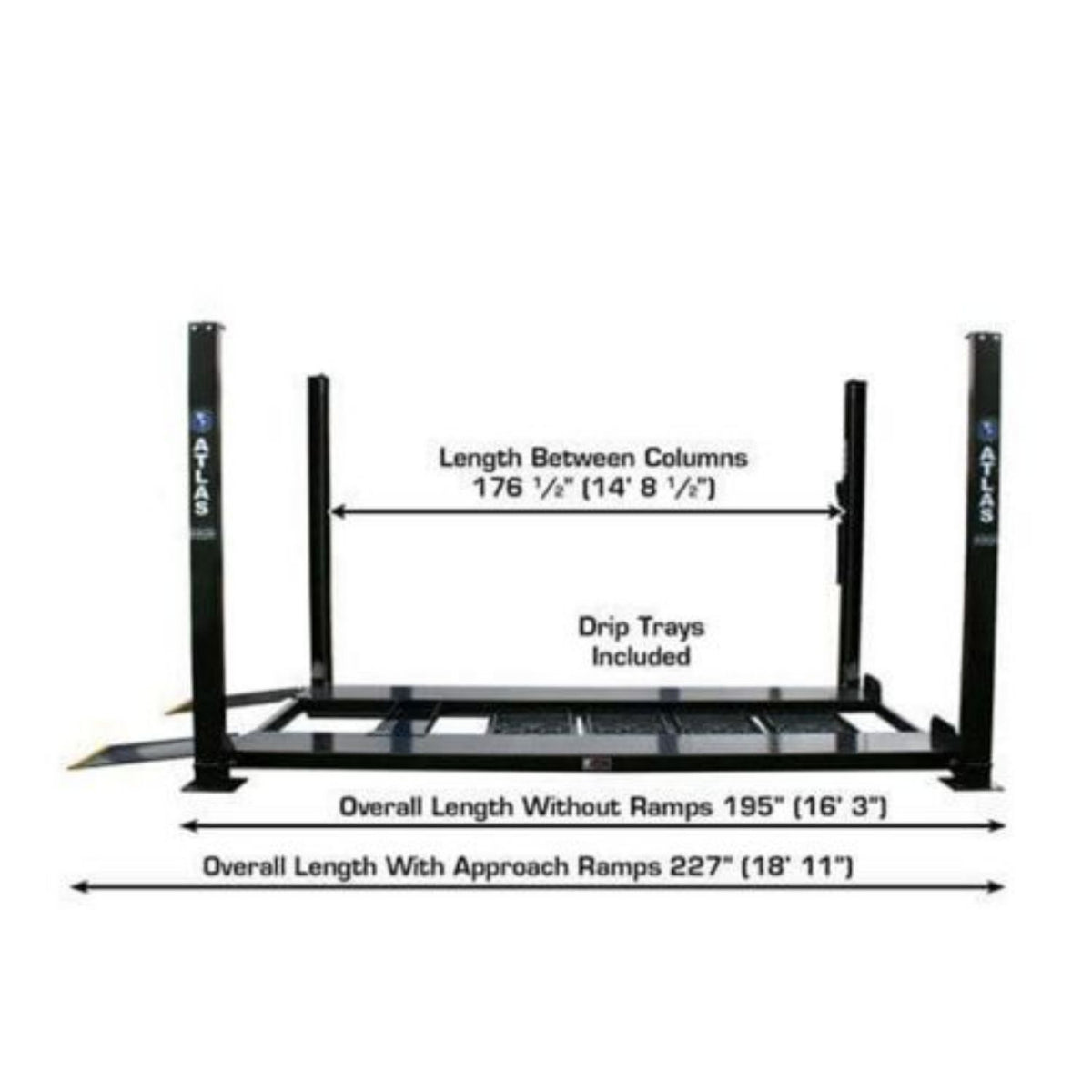

| Lift — overall width | 108" w/o motor / 116 1/2" w/ motor |
| Lift — runway length | 185" |
| Lift — max wheelbase | 173" |
| Lift — power | 110V, 30A |

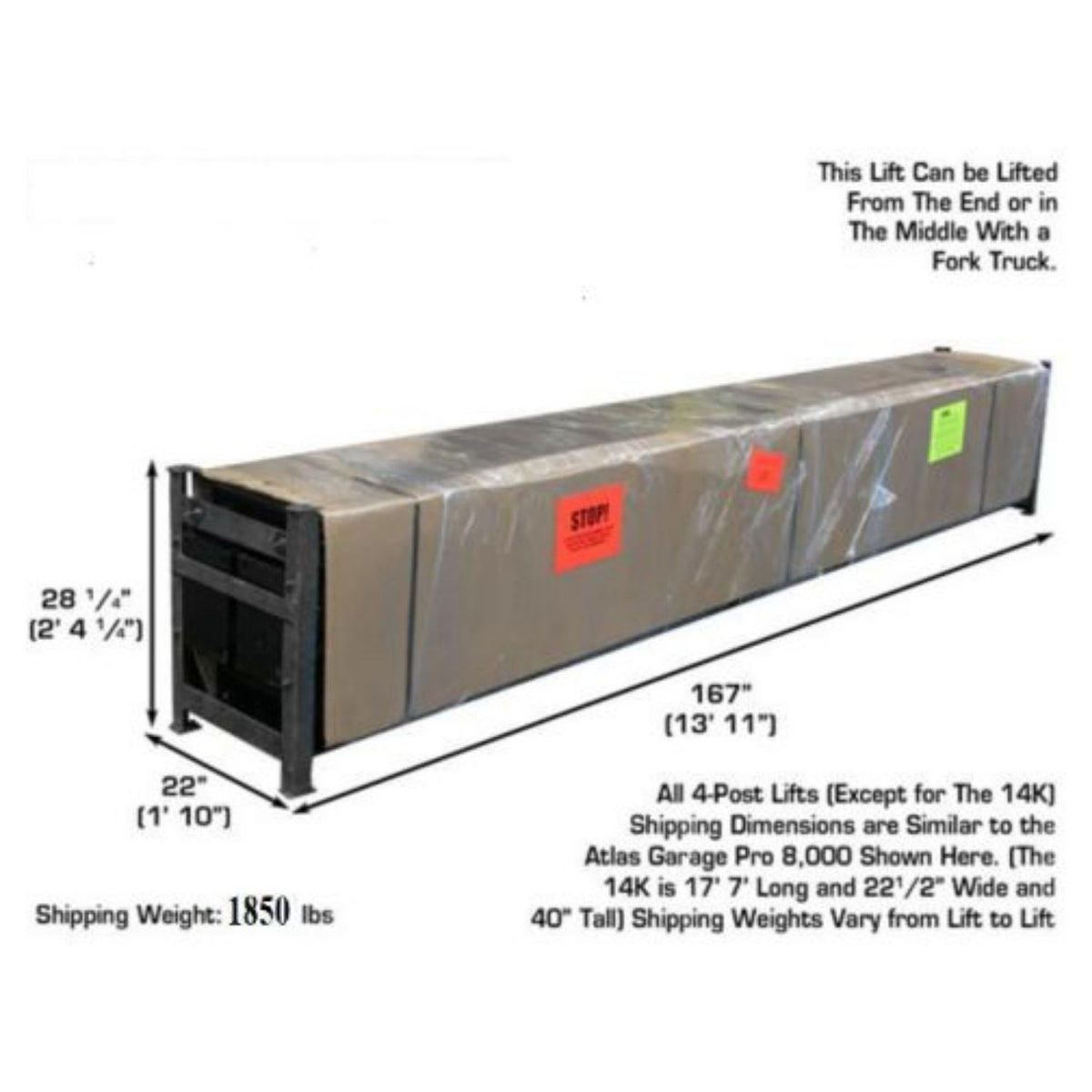

| Lift — shipping weight | 1,900 lbs |

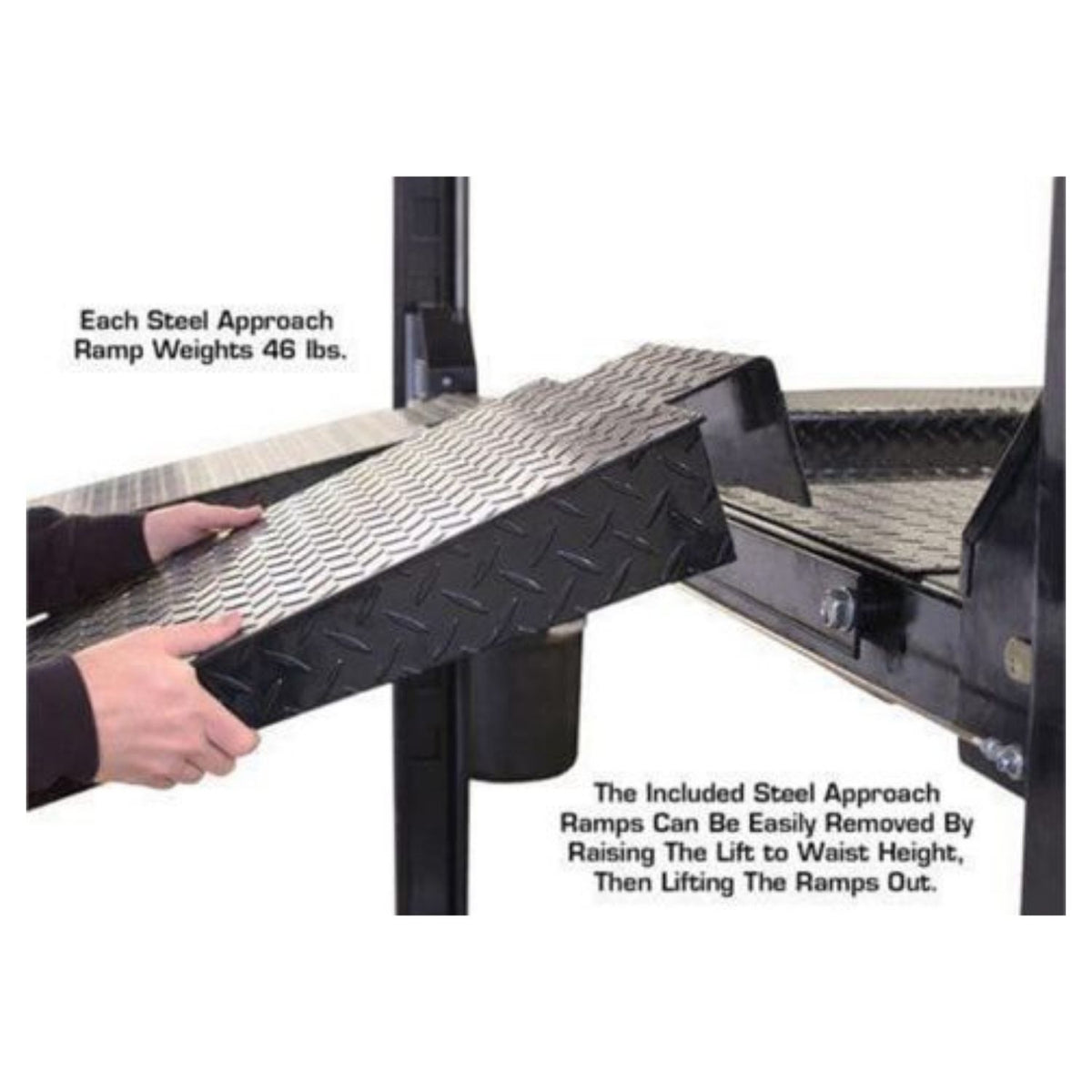

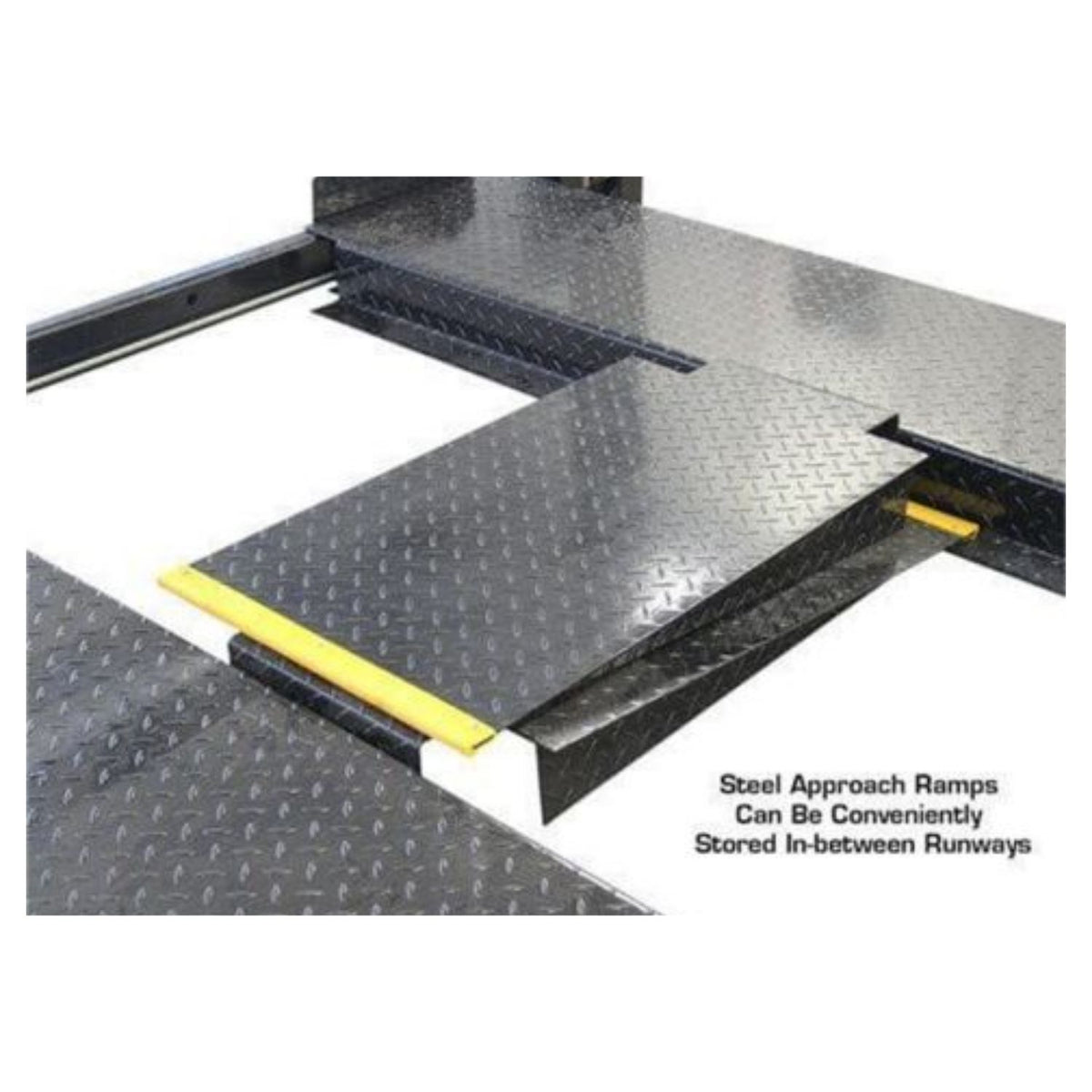

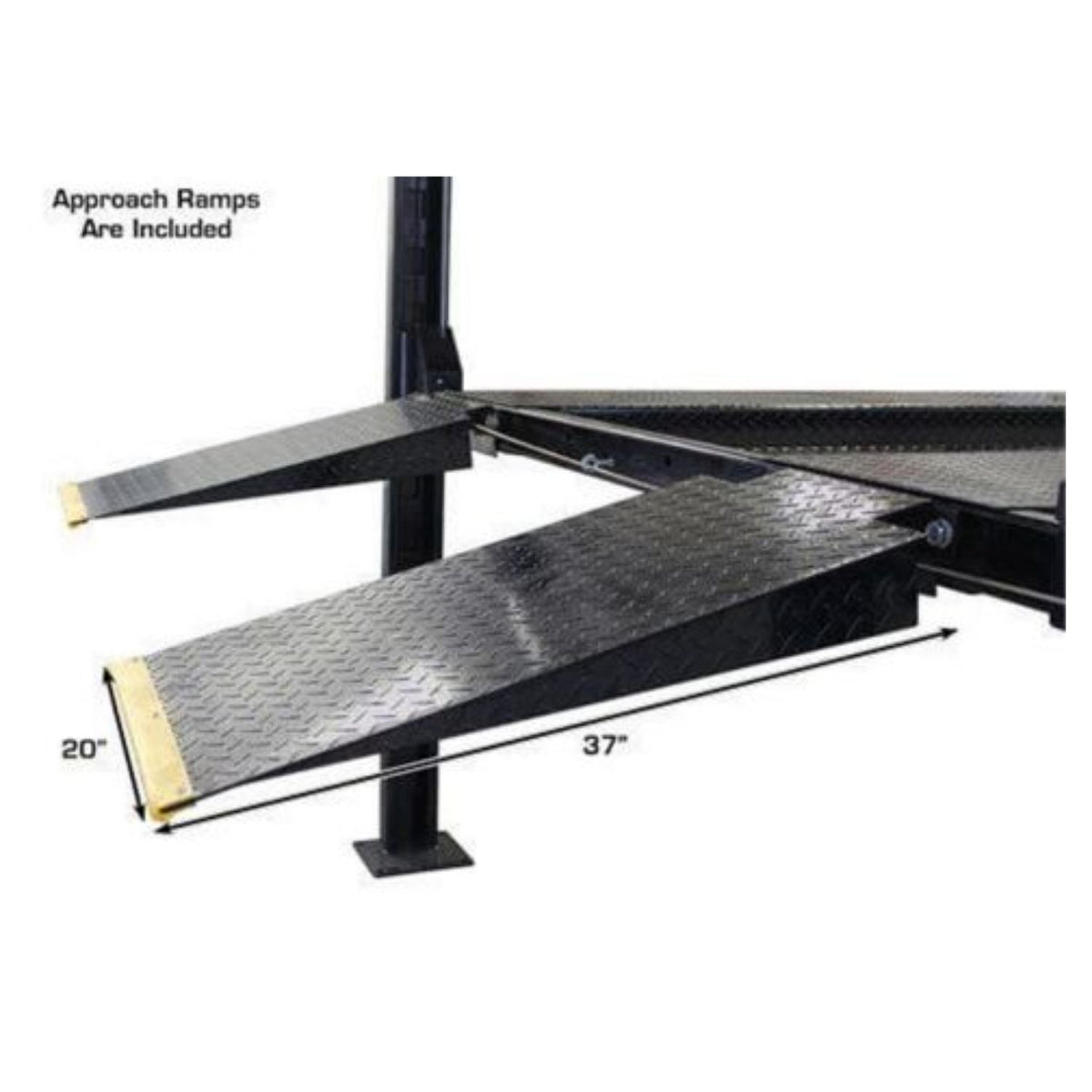

| Lift — included | Caster kit, steel ramps, jack tray, 4 drip trays, 4 wheel stops, 2 chocks, diamond-plated runways |
| Jacks (2x) — capacity | 3,500 lbs each (RJ35) |
| Jacks (2x) — operation | Manual hand-pump (porta-power) — no air required |
| Jacks (2x) — fit | 20 1/2"–47" lower extension width; top width 39 1/2"–64 3/4" |
| Jacks (2x) — max lift w/ adapters | 17 1/4" |
⚠️ Installation Requirements
- Free-standing portable lift design — position per the included manual; no permanent anchoring
- Electrical: 110 volt, 30 amp breaker — have an electrician confirm the dedicated circuit
- Accessory installs per its own instructions (jack rolls onto tracks; panels drop in)
- Confirm vehicle raised height against the ceiling before ordering
- Alamo delivers it — and services the lifts we sell
Atlas® Automotive Equipment Warranty - Atlas Garage PRO8000EXT-L + RJ35 Combo
The combo carries the Garage PRO lift warranty and Atlas's standard jack coverage, handled through Alamo.
| Component | Coverage Term |
|---|---|
| Lift — steel structure (PRO8000EXT-L) | 2 years |
| Lift — hydraulics | 1 year (parts only) |
| Jacks — parts (RJ35 x2) | 1 year (parts only) |
Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we help get the issue moving.
Warranty terms can change. Confirm exact coverage at the time of purchase. Warranty can be void if the lift is installed improperly or not anchored per spec.
❓ Frequently Asked Questions - Atlas Garage PRO8000EXT-L + RJ35 Combo
What does the combo include?
The Garage PRO8000EXT-L 8,000 lb lift plus TWO RJ35 3,500 lb sliding bridge jacks — the manufacturer's combo specifies both jacks.
Do the jacks need air?
No — the RJ35 jacks are hand-pump (porta-power) operated. A garage with no compressor uses everything in this combo.
Will it fit a dually?
No — the manufacturer specifies the EXT-L fits longer-wheelbase pickups EXCEPT duallys. For dual-wheel trucks, the Atlas 409HP takes them.
Why buy the combo instead of the pieces separately?
Fit and logistics: the combo's RJ35 jacks are the manufacturer's own pairing for the PRO8000EXT-L runways (20 1/2"–47" extension range), everything ships on one freight bill, and the hand-pump design means there's no air system to add.
Why Buy the Atlas Garage PRO8000EXT-L + RJ35 Combo from Alamo Equipment & Service?
- We sell what fits. Vehicle mix, ceiling, air (or lack of it) — we confirm the pairing before you order.
- We deliver it. One freight day, lift and jacks together.
- We service it. Lift and jacks through one shop, one warranty path.
- We know the home-lift trade. EXT-L vs standard PRO8000 vs the PRO-FLOOR combos — one call sorts the garage math.
- Complete from day one. The lift and the jacks that fit it, guaranteed by the combo.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner. Call (817) 865-3707 or email our team.
Equipment ships free — delivered to your business, no freight charges. Parts & accessories ship at standard parcel rates unless the item description says otherwise.
