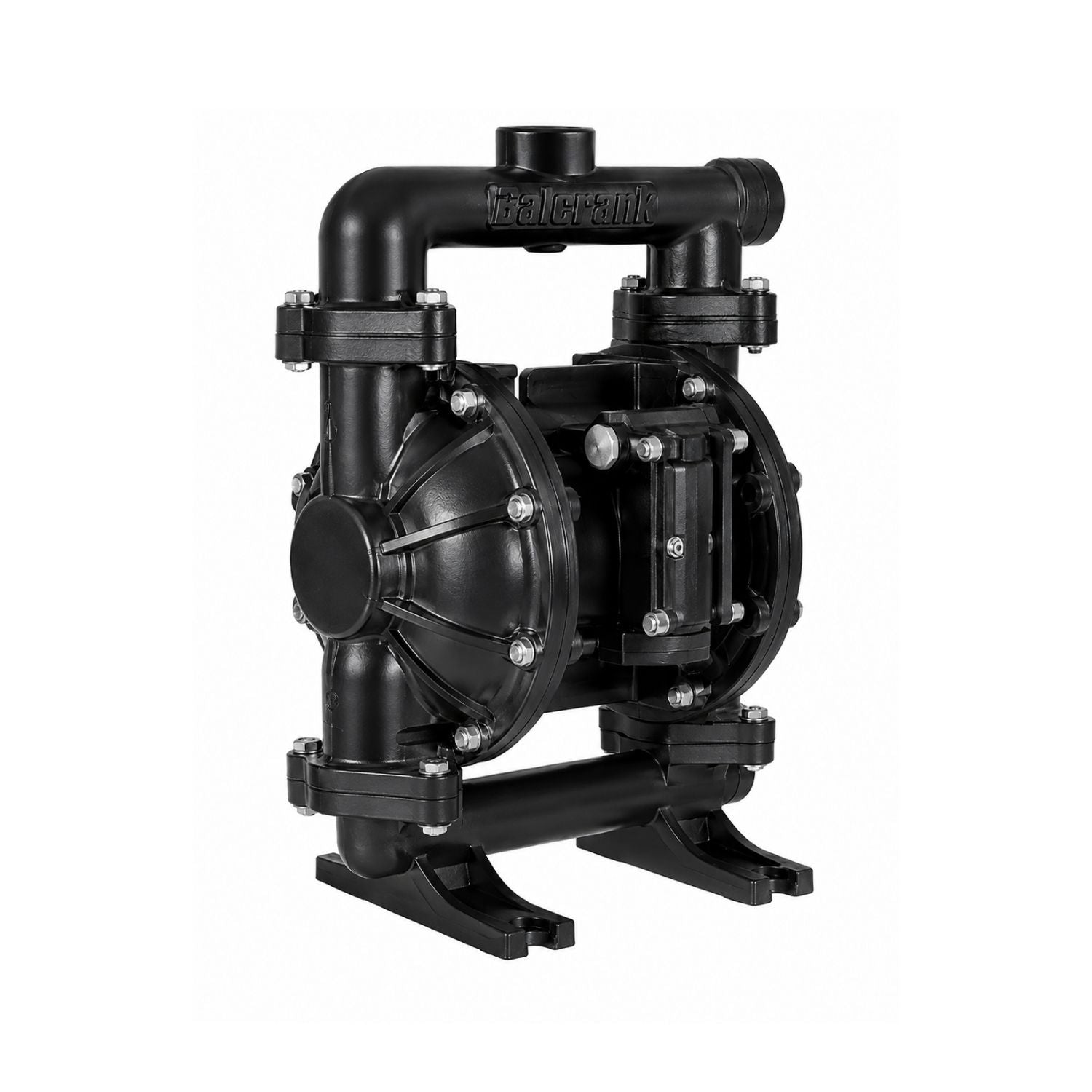

Balcrank CP10 1" Aluminum AODD Diaphragm Pump #1120-045
Regular price
$917.15
Regular price
-35%
$1,411.00
Sale price
$917.15
Specifications
| Balcrank Part Number | 1120-045 |
| Model | CP10A-NAC-HHC |
| Product Type | Air-Operated Double-Diaphragm Pump |
| Pump Size | 1" |
| Construction | Aluminum |
| Air Inlet | 3/8" NPT(F) |
| Fluid Inlet | 1" NPT(F) |
| Fluid Outlet | 1" NPT(F) |
| Maximum Free Flow | 35 GPM (130 L/min) |
| Air Pressure Range | 20–120 PSI (1.5–8 bar) |
| Maximum Solids in Suspension | 1/8" (3.2 mm) |
| Service Bulletin | SB 1210 |
Balcrank CP10 1" Aluminum AODD Diaphragm Pump #1120-045
Balcrank #1120-045 is the CP10A-NAC-HHC 1" aluminum air-operated double-diaphragm pump. Its compact CP10 design is rated for maximum free flow up to 35 GPM.
Recommended Fluids
- Anti-freeze / glycol
- Lubricants
- Used oil and used fluids
- Hydraulic oil
Applications
Balcrank lists the CP10 for medium- to large-volume transfer, dewatering, and fluid evacuation applications.
