Balcrank 275 Gallon Double-Wall Oil Dispense Tank Package #1135-060
| Balcrank Part # | 1135-060 |
| Application | Medium / Heavy-Duty Fluid Dispensing |
| Tank Capacity | 275 gallons |
| Tank Dimensions | 43 x 28 x 61 in (L x W x H) |
| Pump | Balcrank Panther® 5:1 Piston Pump |
| Hose Reel | Classic Series, 50 ft x 1/2 in |
| Dispense Handle | DR Handle with Flexible Extension & 1/4-Turn Manual Oil Tip |
| Tank Construction | Double Wall - Polyethylene Inner Tank / Galvanized Steel Outer Tank |
| Secondary Containment | Outer tank holds 110% of inner tank capacity |
| Tank Certification | UL 2258 |
| Bung Openings | 4 x 2 in |
| Compatible Fluids | Bio Fuels, Motor Oil & ATF |

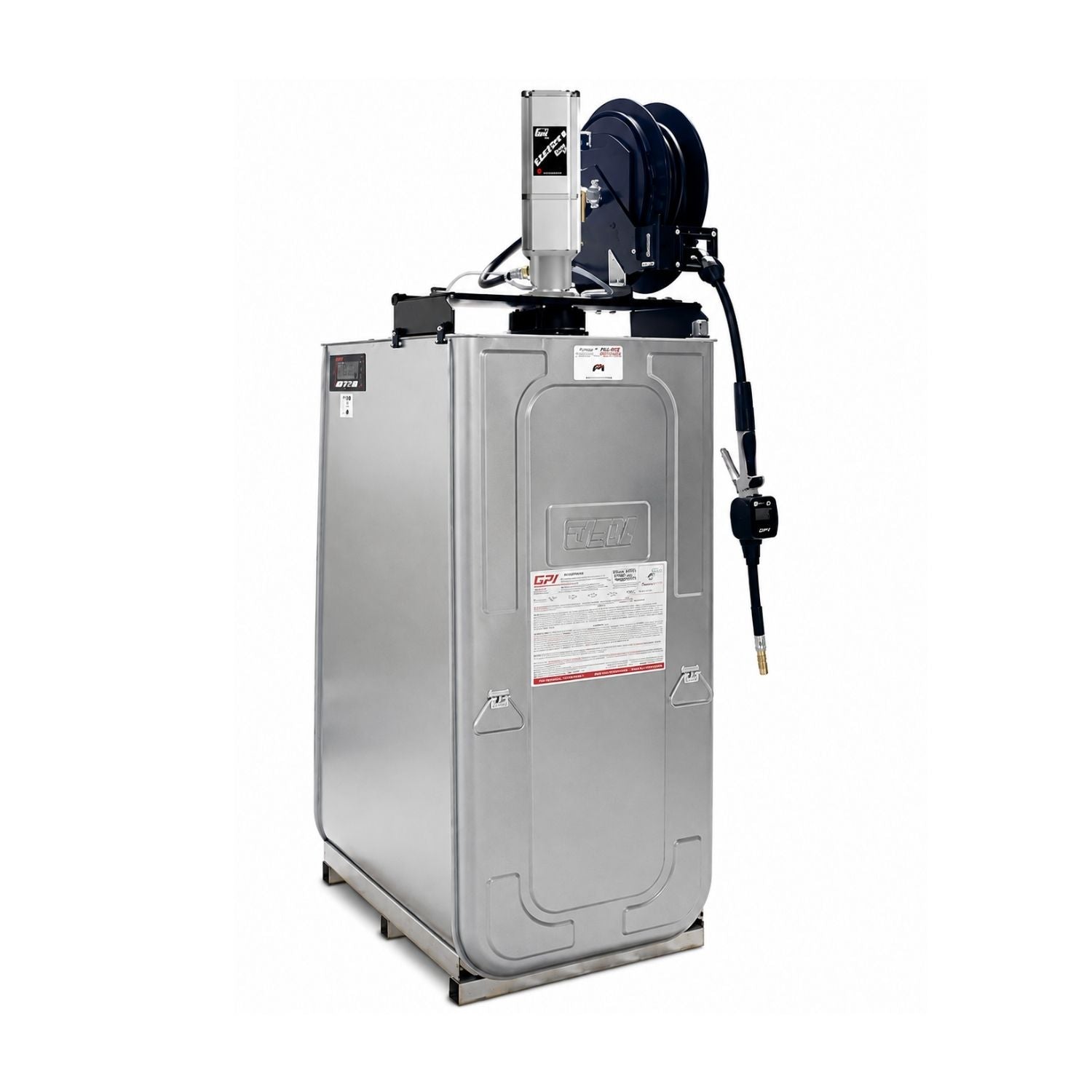

Balcrank 275 Gallon Double-Wall Oil Dispense Tank Package with Panther® 5:1 Pump #1135-060
The Balcrank #1135-060 is a complete 275-gallon double-wall fluid dispensing package built around the higher-pressure Panther® 5:1 piston pump and a 50 ft Classic Series hose reel. The package gives medium-volume maintenance shops, quick lubes, dealerships, and fleet facilities greater dispensing flexibility and longer pumping capability than lower-ratio systems.
The lightweight double-wall tank combines a seamless high-density polyethylene inner tank with a galvanized-steel outer tank. The outer tank provides 110% secondary containment while keeping the overall package substantially lighter than a conventional all-steel tank.
Questions before ordering? Call (817) 865-3707 and our team will help confirm tank capacity, fluid compatibility, installation requirements, and the correct package for your shop.
Package Includes
- 275 Gallon Double-Wall Tank: 43 x 28 x 61 in (L x W x H)
- Panther® 5:1 Piston Pump: Higher-pressure pump for longer fluid dispensing distances
- 50 ft Classic Series Hose Reel: 1/2 in hose configuration
- DR Dispense Handle: Flexible extension with 1/4-turn manual oil tip
- Filter / Regulator: Auto-drain, 1/4 in NPT(F)
- 2.5 ft Reel Inlet Hose
- 5 ft Air Connecting Hose
- Air Quick-Connect Coupler & Nipple
- Sight Gauge
- Vented Fill Cap
- Pump & Reel Bracket
Tank Features
- Blow-molded, high-density seamless polyethylene inner tank
- Weld-free galvanized-steel outer tank with oil- and fire-resistant seal
- Outer tank provides 110% secondary containment
- Up to 50% lighter than conventional steel tanks
- Four 2 in bung openings
- Wide handles for easier handling and positioning
- UL 2258 certified
Compatibility & Application
Designed for medium-volume fluid dispensing applications using compatible bio fuels, motor oil, and ATF. The Panther® 5:1 pump provides increased pressure and greater dispensing flexibility for applications requiring longer plumbing runs or pumping distances.
Tank placement notice: Always verify local and state requirements before installation. Balcrank notes that some jurisdictions may treat UL 2258 certification differently from UL 142 steel-tank requirements. Confirm requirements with your local fire marshal or authority having jurisdiction before ordering or installing the tank.
Frequently Asked Questions
Part numbers: 1135060
Shipping follows the method shown on the product page and at checkout. Standard parcel, calculated LTL, freight quotes, included freight, and pickup may apply by item.
