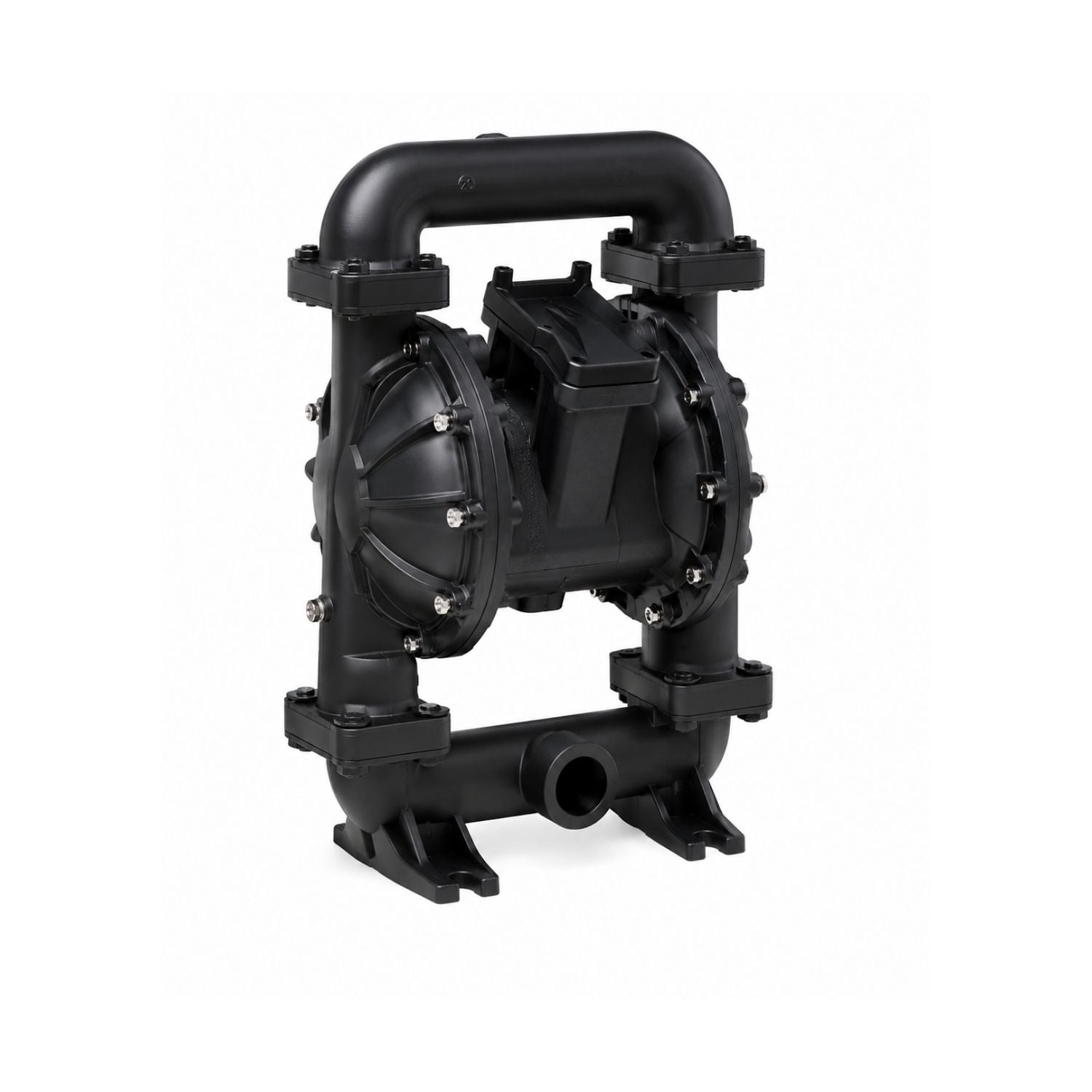

Balcrank UP20 2" Aluminum AODD Diaphragm Pump #1120-041
Regular price
$2,519.40
Regular price
-35%
$3,876.00
Sale price
$2,519.40
Specifications
| Balcrank Part Number | 1120-041 |
| Model | UP20A-NAC-HHC |
| Product Type | Air-Operated Double-Diaphragm Pump |
| Pump Size | 2" |
| Pump Construction | Aluminum |
| Air Inlet | 3/4" NPT(F) |
| Fluid Inlet | 2" NPT(F) |
| Fluid Outlet | 2" NPT(F) |
| Maximum Free Flow | 170 GPM (650 L/min) |
| Air Pressure Range | 20–120 PSI (1.5–8 bar) |
| Maximum Solids in Suspension | 1/4" (6.4 mm) |
| Diaphragm Material | Hytrel |
| Service Bulletin | SB 1206 |
Balcrank UP20 2" Aluminum AODD Diaphragm Pump #1120-041
Balcrank #1120-041 is the UP20A-NAC-HHC 2" aluminum air-operated double-diaphragm pump. Balcrank rates the UP20 for very large-volume fluid transfer and evacuation applications with maximum free flow up to 170 GPM.
Recommended Fluids
- Anti-freeze / glycol
- Lubricants
- Used oil and used fluids
- Hydraulic oil
Applications
Balcrank lists the UP20 for very large-volume transfer, dewatering, and fluid evacuation applications, including use in agriculture, mining and construction, lube trucks, in-plant transfer, and railroad or mass-transit service environments.
