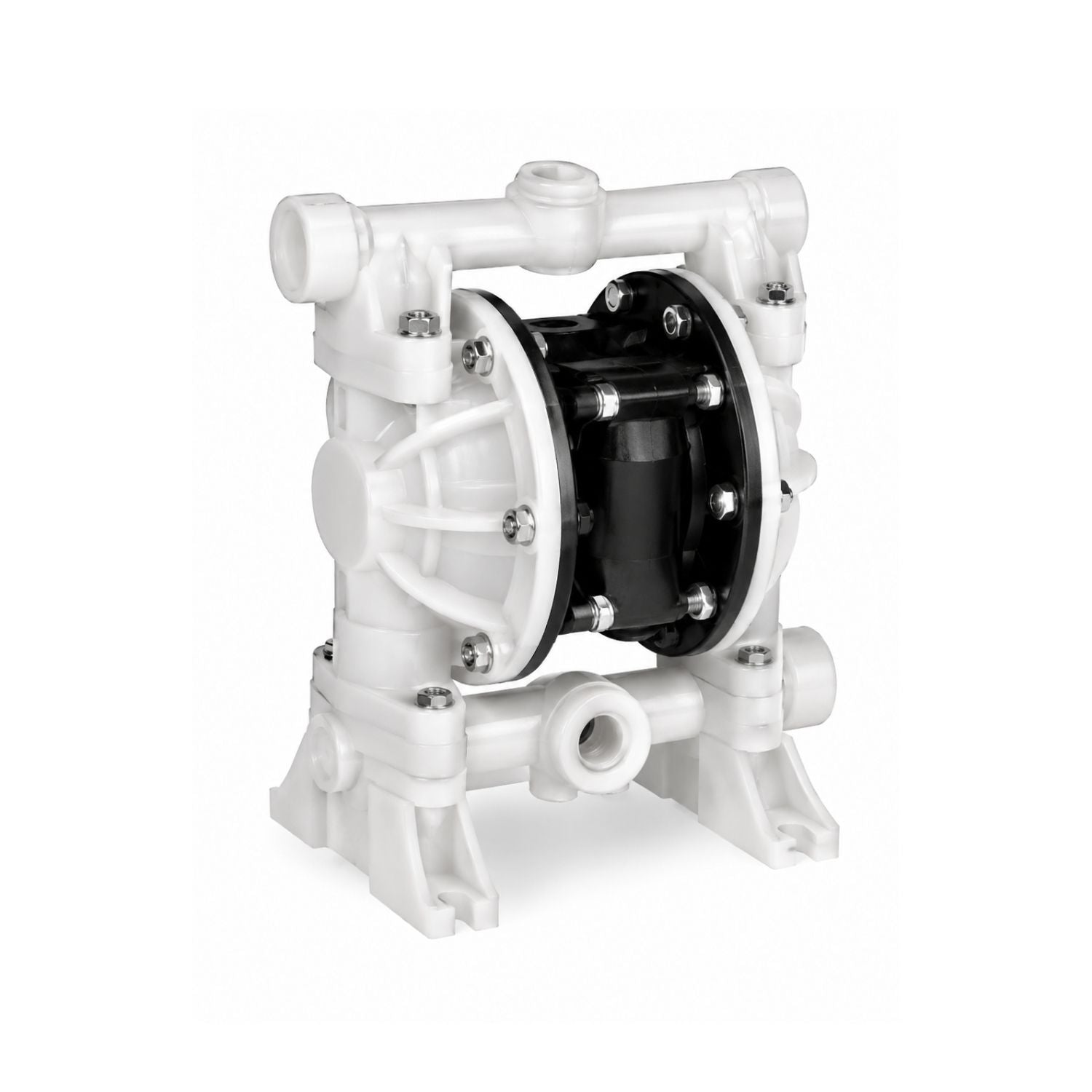

Balcrank UP05 1/2" Polypropylene AODD Diaphragm Pump #1120-047
Regular price
$706.55
Regular price
-35%
$1,087.00
Sale price
$706.55
Specifications
| Balcrank Part Number | 1120-047 |
| Model | UP05B-NPS-PMA |
| Product Type | Air-Operated Double-Diaphragm Pump |
| Pump Size | 1/2" |
| Construction | Polypropylene |
| Air Inlet | 1/4" NPT(F) |
| Fluid Inlet | 1/2" NPT(F) |
| Fluid Outlet | 1/2" NPT(F) |
| Maximum Free Flow | 14.3 GPM (54 L/min) |
| Air Pressure Range | 20–120 PSI (1.5–8 bar) |
| Maximum Solids in Suspension | 3/32" (2.5 mm) |
| Service Bulletin | SB 1211 |
Balcrank UP05 1/2" Polypropylene AODD Diaphragm Pump #1120-047
Balcrank #1120-047 is the UP05B-NPS-PMA 1/2" polypropylene air-operated double-diaphragm pump. Balcrank rates this configuration for maximum free flow up to 14.3 GPM.
Recommended Fluids
- Anti-freeze / glycol
- Windshield washer solution
- Lubricants
- Used fluids
- Hydraulic oil
Applications
Balcrank lists this UP05 polypropylene pump for medium-volume transfer, dewatering, and fluid evacuation applications.
