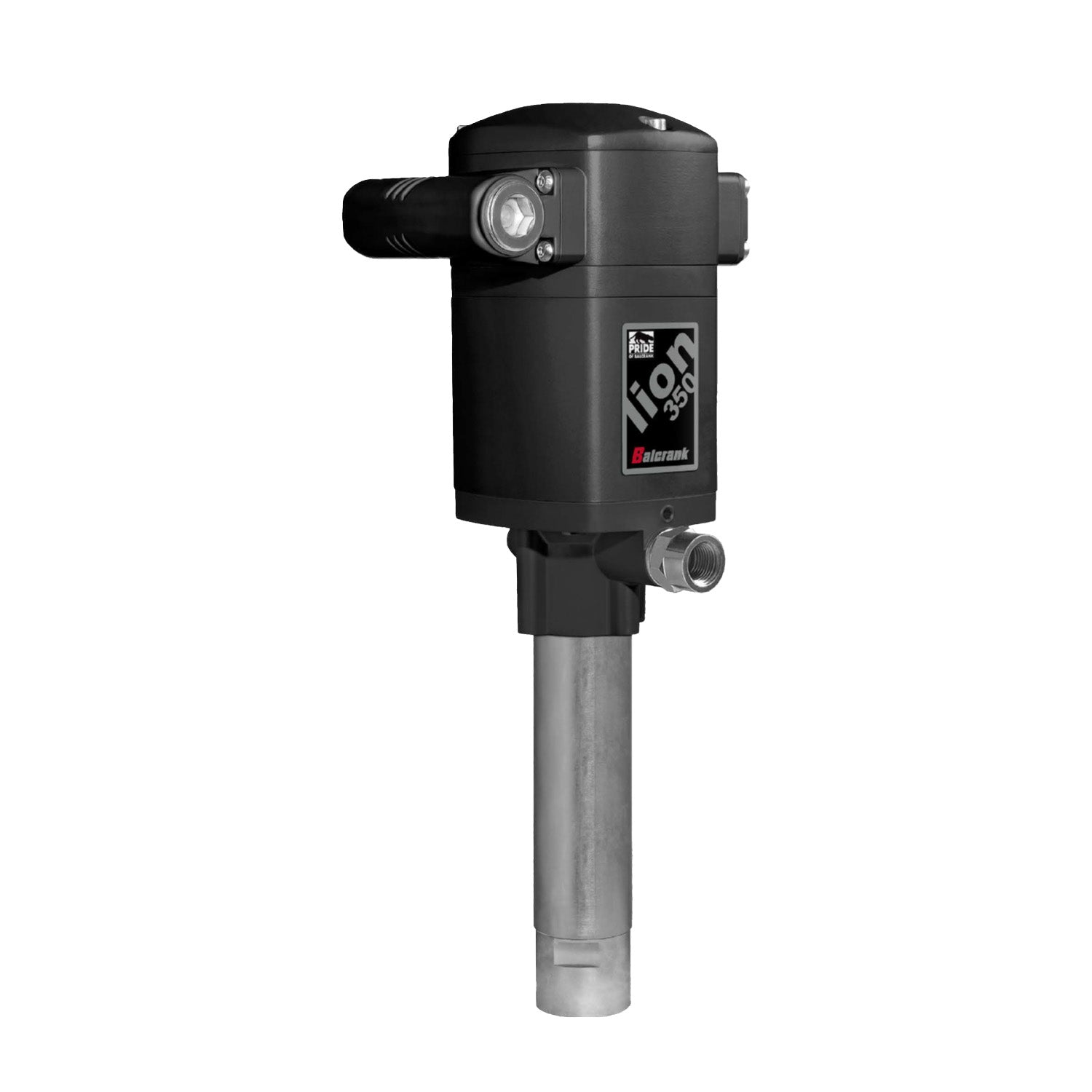

Balcrank Lion™ 350 5:1 Oil Pump, 2 models available

• DESCRIPTION
• TECHNICAL
• APPLICATION
• WARRANTY & MANUAL

• DESCRIPTION

  Double-acting, air-operated, medium pressure, heavy-duty pumps for dispensing lubricants in medium to large size installations, which may include simultaneous dispense points. Built-in port for the included pressure relief valve. (Wall mount does include bung adaptor)

  Fluids:

  • Synthetic and mineral based oil
  • Hydraulic oil
  • Gear oil
  • Transmission fluid

  Part Numbers

  • 1430-010 - Lion™ 350 5:1, Wall mt Stub

  • 1430-012 - Lion™ 350 5:1, 55 gal Drum length

• TECHNICAL

  Pump Ratio	5:1
  Operating air pressure	30 to 175 psi (2 to 12 bar)
  Air consumption(1)	12.4 SCFM (350 Nl/min)
  Maximum pressure	875 psi (60 bar)
  Air motor effective diameter	3.25” (80 mm)
  Air motor stroke	3.15” (80 mm)
  Delivery at 80 cpm	3.2 gal/min (12 l/min)
  Flow rate	8 gal/min (30 l/min)
  Air inlet	3/8” NPT (F)
  Swivel inlet (stub pump only)	1 1/2” NPT (F)
  Swivel outlet	1/2” NPT (F)
  Wetted materials	Hard chromed steel, Steel, Polyurethane, NBR, Aluminum
  Noise level	Pump noise level meets OSHA requirements at all recommended operating air pressures
  Service Bulletin	SB 1155

• APPLICATION

  • 3 1/4” Air motor: Pneumatically actuated air valve with only three moving parts and no springs. Large effective area for maximum pumping power
  • Efficient internal air exhaust: Prevents icing, which can stall pump operation
  • Long life packings: Dual packing seals provide trouble-free operation
  • Double acting pump: Provides even and smooth fluid flow
  • Double ball pump design: Stub pump used for positive priming and pumping of all grades of oil
  • Large port pump inlet ball-check valve: Helps in positive priming and improves pump efficiency
  • Includes a pressure relief valve kit (3120-214): Pressure relief kit relieves system pressure, that can cause damage to lubrication systems



• WARRANTY

  5 Year Warranty

  Lion Series 350 5:1 Oil Pump Manual
