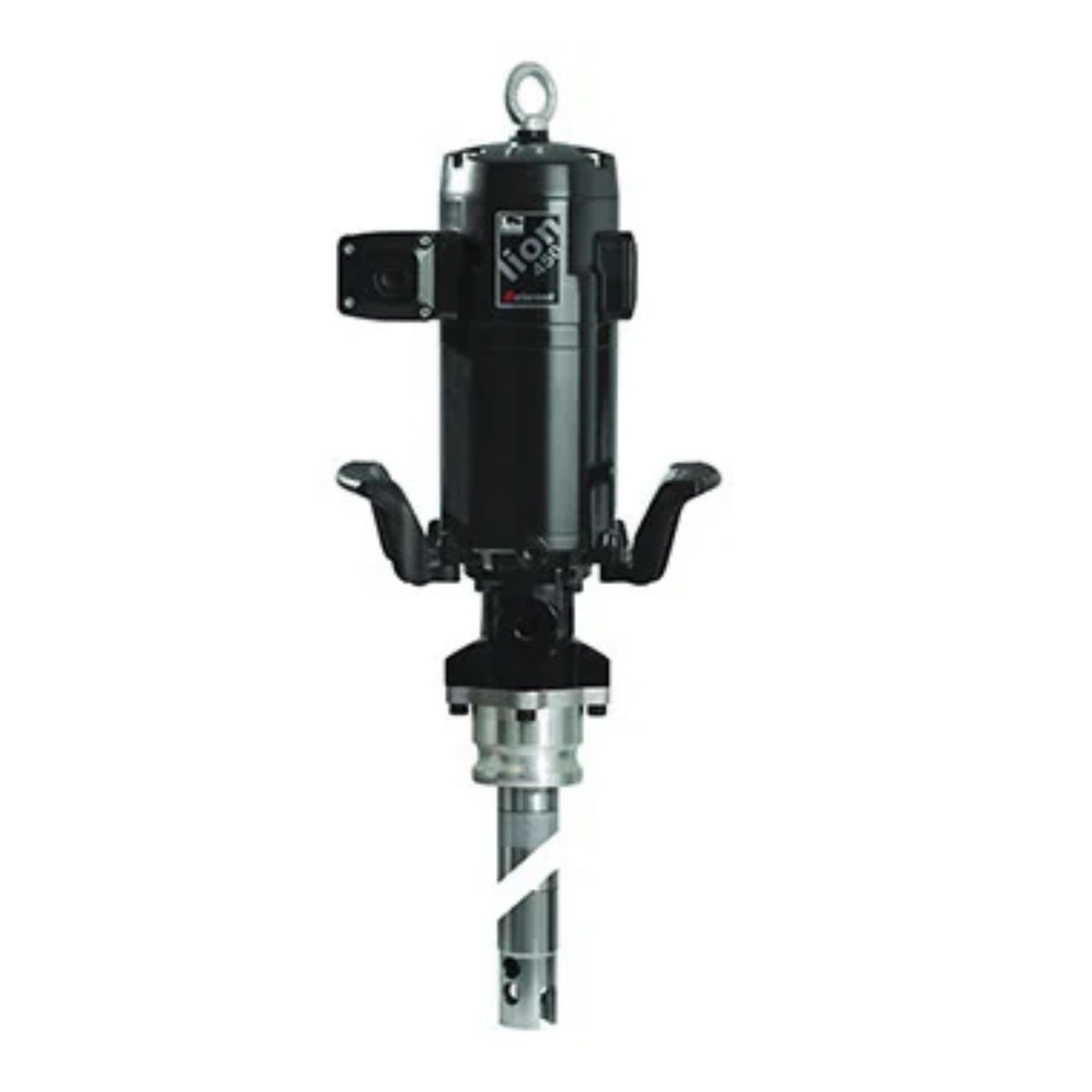

Balcrank Lion 450 40:1 Grease Pump, 120 lb, Kirkpatrick #1450-003K

Description

📚 Manufacturer Resources

Lion 450 40:1 Specification Sheet (PDF)Lion 450 40:1 Service Bulletin (PDF)

Quick Specs

Part number	1450-003K / 1450003K
Manufacturer	Balcrank
Series	Lion 450 40:1
Pump ratio	40:1
Configuration	Grease pump
Container	120 lb container
Operating air pressure	Up to 200 psi (14 bar)
Recommended operating air pressure	90 psi (6 bar)
Maximum free flow	24 lb/min (11 kg/min)
Continuous duty flow rate	8 lb/min (3.5 kg/min)
Cycles per lb	10
Maximum fluid stall pressure	8,000 psi (560 bar)
Air inlet	1/2 in NPT(F)
Fluid outlet	1/2 in NPT(F)
Air motor effective diameter	4.5 in (115 mm)
Air motor stroke	4 in (100 mm)
Air consumption	26.5 CFM (750 Nl/min) at 5 bar air, NLGI-0 grease, 20 °C, 80 cycles/min
Wetted materials	Cast iron, steel, hard chromed steel, UHMWPE, Buna-N™, PTFE
Noise level	80 dB (1 m, 7 bar air, free delivery)

Not for use with flammable fluids. Verify fluid compatibility before use. For grease heavier than NLGI-2 or custom system design, call us.

Balcrank Lion 450 40:1 Grease Pump, 120 lb, Kirkpatrick (#1450-003K)

The Balcrank Lion 450 40:1 Grease Pump, 120 lb, Kirkpatrick (#1450-003K) is a Balcrank grease pump for a 120 lb container. It is a medium-volume pump for higher flow and pressure, and works with a follower plate, gravity inductor, or double post RAM.

Compatibility & Fitment

• Works with a follower plate system, a gravity inductor system, or a double post RAM.
• Built for a 120 lb container.
• Not sure it fits your system? Call (817) 865-3707 with the part number.

Frequently Asked Questions

Is this the right pump for my container?

This part number is configured for 120 lb container. Match the container size before you order, or call (817) 865-3707 and we will confirm.

What does the 40:1 ratio mean?

It is the pump's output-pressure ratio against supplied air pressure. Higher ratios deliver more pressure to long lines and cold, stiff grease; lower ratios favor volume.

What is the part number?

It is 1450-003K, also written 1450003K — match it against the pump or outfit you are replacing before you order.

How does it ship?

This item ships by freight quote. We confirm the carrier and rate for your address before the order ships. Call (817) 865-3707 with your ZIP code and delivery details for the current quote.

Part numbers: 1450-003K, 1450003K
