Balcrank Panther® HP 5:1 Non-Metered Oil Piston Pump Package - 55 Gal #1131-066

SKU: ALMBAL1131066
(0)
$1,309.75
-35% $2,015.00 $1,309.75
In stock
Usually ships within 24 hours

Got questions?

Feel free to

Email: info@alamoequipment.com

Phone: (817) 865-3707

  • DESCRIPTION

    The Panther® HP 5:1 Pump Package for a Non-Metered 55-gallon drum includes all hoses and adapters to connect an oil pump to the air supply and oil dispense line. Wall mounting hardware is not provided.

    Compatible Fluids: Auto Transmission Fluid and Oil.

    • SKU: 1131-066: 55 Gallon Non-Metered
    • Manufacturer: Balcrank
    • Size: Universal
    • Flow-Rate: 8 GPM
    • Product Type: Pump System
    • Pump Ratio: 5:1
    • Weight: 24.00 LBS

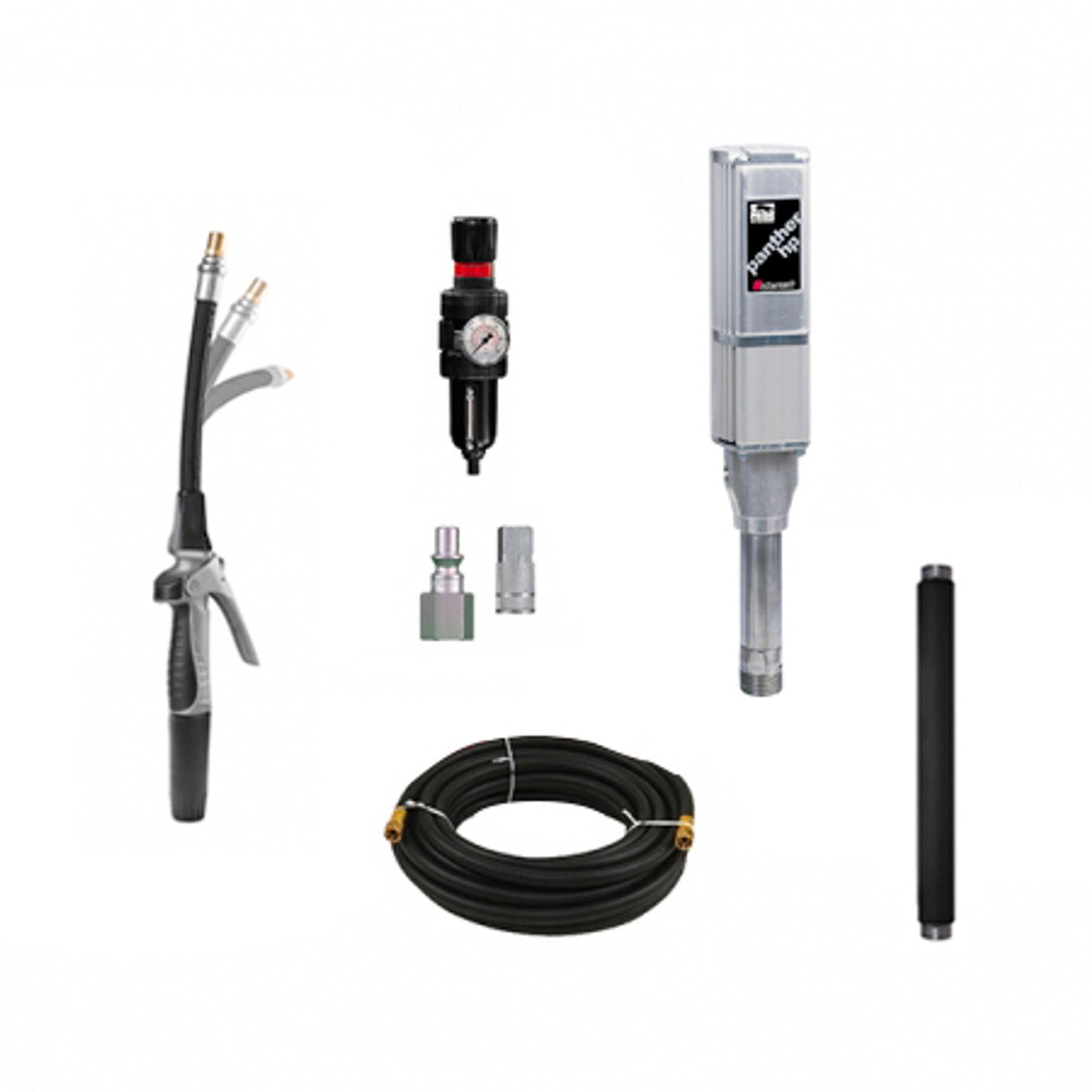

    Package Includes:

    • 5:1 Ratio Panther® Pump (1130-016)
    • 10 ft. x 1/2 in. Dispense Hose (8249-010)
    • Suction Tube 1 in. NPT(M) x 26 in. - 30 in. (4412-046)
    • Handle Flex-Memory 1/4 Turn (3320-024)
    • F/R Mini Auto Drain 1/4" NPT (F) (3260-033)
    • Air Coupler 1/4 in. (3270-003)
    • Air Nipple 1/4 in. (3270-004)

  • FEATURES

    • Pressure relief on Pride Series models - built-in safety feature reduces premature wear of hoses and seals
    • Mechanical air valve - more reliable, no stalling and no icing
    • Designed for lower air consumption - extends compressor life
    • Built-in muffler - results in quiet operation and eliminates icing
    • Stainless steel pump rod - reduces corrosion and extends seal life
    • Double-acting pump - delivers consistent fluid flow with greater dispensing accuracy

  • SPECIFICATIONS

    • Pump Ratio: 5:1
    • Operating Air Pressure: 10 to 150 PSI
    • Pump Delivery with SAE (10W-30 oil, 68° F, 100 PSI air pressure): 8 gal/m (23 l/m)
    • Air Consumption (100 PSI & 3 G/M): 24.80 SCFM
    • Max Fluid Stall Pressure: 760 PSI (52.4 bar)
    • Cycles per Gallon: 57
    • Air Inlet: 1/4 in. NPT (F)
    • Fluid Inlet: 1 in. NPT (F), 1 1/2 in. NPT (M)
    • Fluid Outlet: 1/2 in. NPT (F)
    • Effective Air Piston Diameter: 2 1/2 in. (63.5 mm)
    • Wetted Materials: Carbon steel, Nitrile Rubber, Stainless steel, Nickel plated steel, Nylon, Ultrathane, Zinc Plated Steel, and Aluminum
    • Typical Applications: Automotive Dealerships, Industrial plants, Mining, Mobile Lube, Quick Lubes, Tire Center, Transmission Centers
