Balcrank Panther® HP 5:1 Non-Metered Oil Piston Pump Package - 16 Gal Pail #1131-064

• DESCRIPTION
• FEATURES
• SPECIFICATIONS
• DOWNLOADS

• DESCRIPTION

  The Panther® HP 5:1 Pump Package for Non-Metered 16-gallon pails includes all hoses and adapters to connect an oil pump to the air supply and oil dispense line. Wall mounting hardware is not provided.

  • SKU: 1131-064: 16 Gallon Non-Metered
  • Manufacturer: Balcrank
  • Pressure: 760 psi
  • Flow-Rate: 8 GPM
  • Tube Length: 18 inches
  • Inlet Size: 1 inch FNPT / 1 1/2 inch MNPT
  • Pump Ratio: 5:1
  • Weight: 44.00 LBS

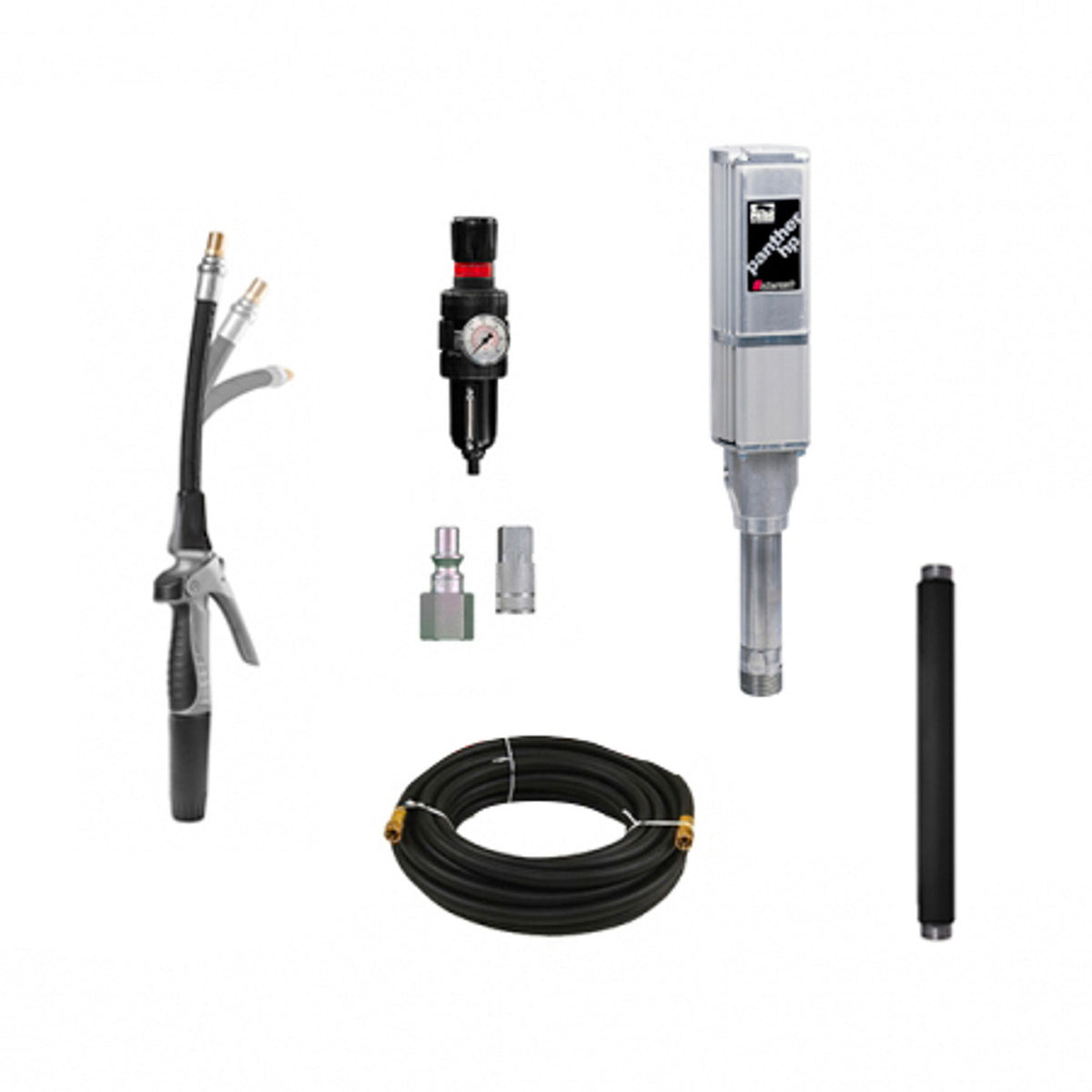

  Package Includes:

  • 5:1 Ratio Panther® Pump (1130-016)
  • 10 ft. x 1/2 in. Dispense Hose (8249-010)
  • 1 in. NPT(M) x 18 in. - 30° Suction Tube (4412-044)
  • Handle w/ Flex- Memory Ext & 1/4 Turn (3320-024)
  • F/R Mini Auto Drain 1/4 in. NPT(F) (3260-033)
  • Air Coupler 1/4 in. (3270-003)
  • Air Nipple 1/4 in. (3270-004)

• FEATURES

  • Pressure relief on Pride Series models have built-in safety features reducing premature wear of hoses and seals
  • Mechanical air valve is more reliable; no stalling and no icing
  • Designed for lower air consumption, which extends compressor life
  • Built-in muffler results in quiet operation and eliminates icing
  • Stainless steel pump rod reduces corrosion and extends seal life
  • High-quality Nitrile Rubber seals
  • Double-acting pump delivers consistent fluid flow with greater dispensing accuracy
  • Air motor features a precision air reversing valve mechanism with dual valve ports for improved high-speed breathing
  • Contains a positive trip detent spool mechanism that eliminates stalling (blowing air) when the pump is caught between strokes
  • Simple yet durable construction with all internal parts lubricated at the factory using a life-tested synthetic grease
  • Features a nitrided steel pump rod and foot valve for superior wear and corrosion resistance
  • Pump's exterior is constructed from aircraft grade extruded aluminum for an outstanding strength-to-weight ratio

• SPECIFICATIONS

  • Pump ratio: 5:1
  • Operating air pressure range: 10 - 150 PSI (10 bar)
  • Pump delivery with SAE
  • 10W-30 oil, 68° F, 100 PSI air pressure and free flow: 8 gal/m (23 l/m)
  • Air consumption (100 PSI & 3 G/M): 24.80 SCFM
  • Max fluid stall pressure @150 PSI air: 760 PSI (52.4 bar)
  • 57 cycles per gallon
  • Air inlet: 1/4 in. NPT (F)
  • Fluid inlet: 1 in. NPT (F), 1 1/2 in. NPT (M)
  • Fluid outlet: 1/2 in. NPT (F)
  • Effective air piston diameter: 2.5 in. (63.5 mm)
  • Wetted materials: Nickel-plated steel, Carbon steel, Nitrile
  • Rubber, Aluminum, Stainless steel, Nylon, and Ultrathane®
  • Pump is suitable for simultaneous fluid distribution of up to four dispense points, or for pumping to distances of up to 750 feet
  • Maximum simultaneous dispense points @ 1.5 gal/m (5.7 l/m) per dispense point (Note: pumping distance and pipe diameter will effect dispensing performance)

• DOWNLOADS

  Balcrank Panther™ 5:1 Oil Pump #1131-064 Spec Sheet
