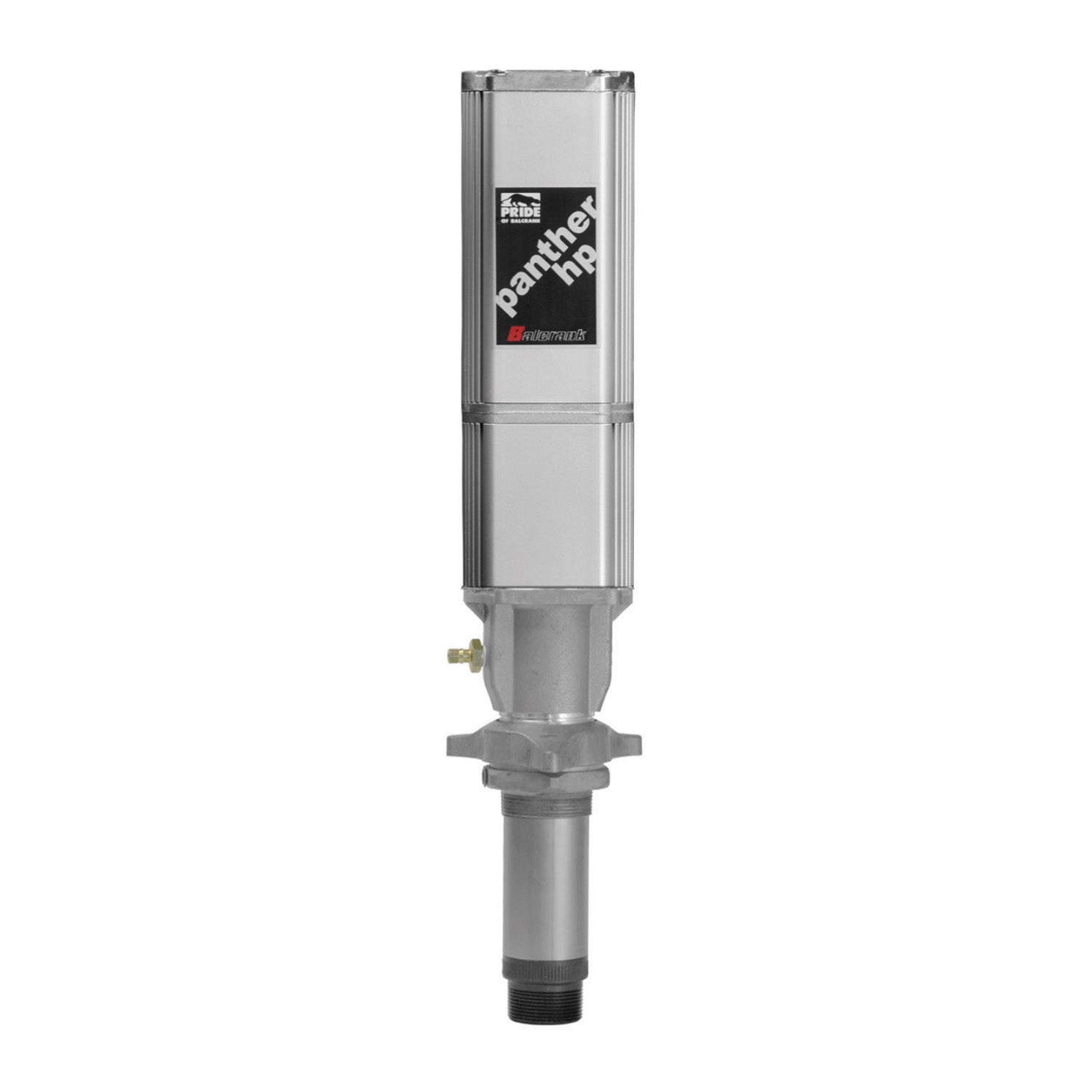

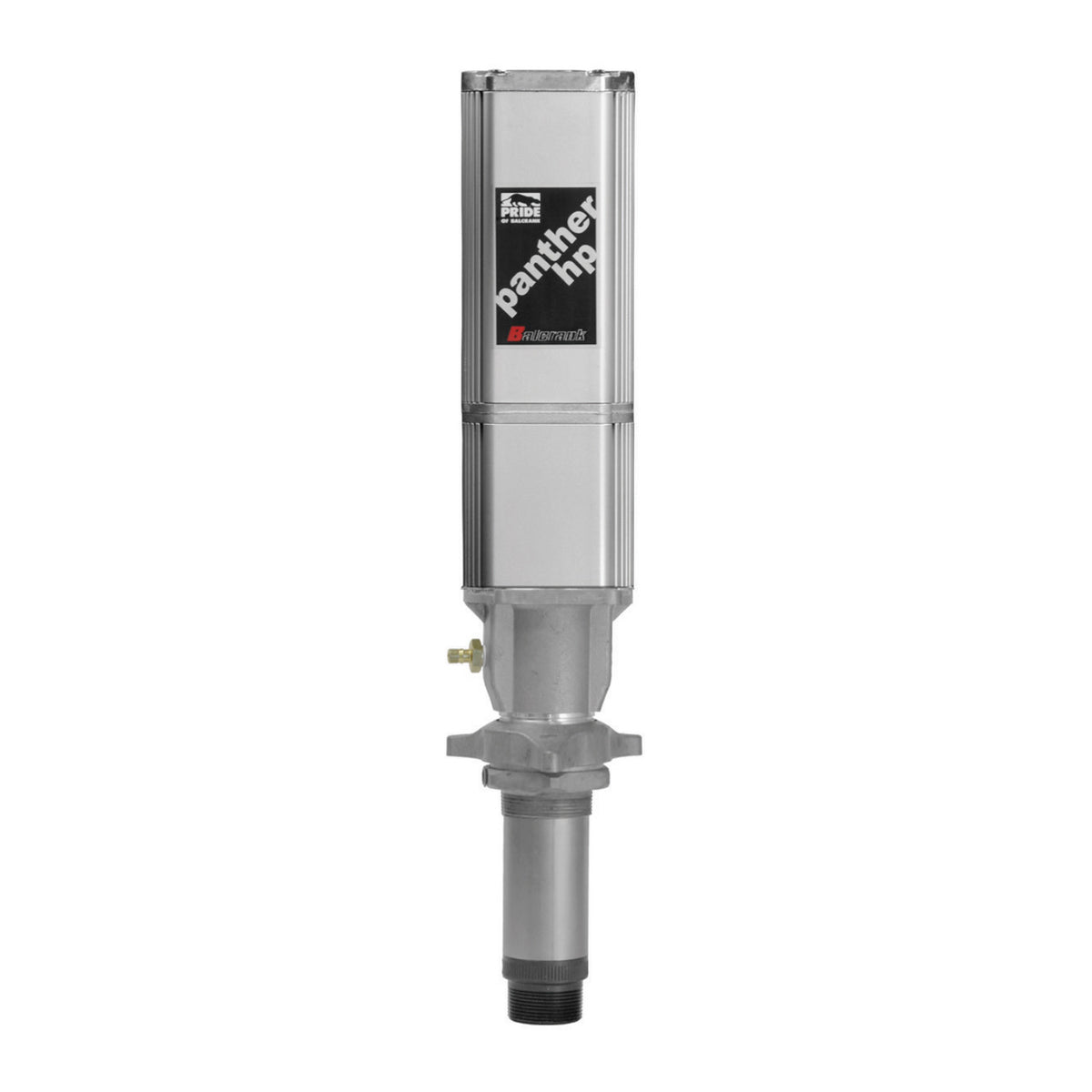

Balcrank Panther™ 5:1 Oil Pump #1130-016
Lead time:
-
DESCRIPTION
The Balcrank Panther™ 5:1 Oil Pump #1130-016 is an HP 5:1 ratio double-acting pump engineered for outstanding performance and reliability for dispensing lubricating oils and similar products up to SAE 90. The 5:1 ratio Panther® pump is suitable for simultaneous fluid distribution of up to two dispense points at a distance of up to 700 feet.
Pride Series pumps are manufactured with a mechanical air valve and piston design, which is more forgiving in environments with contaminated air. The 5:1 version is a medium-pressure pump for supplying higher pressures and for longer pumping distances than the 3:1 version but at a lower volume, ideal for longer pumping distances and overall flow rates of 4 gpm.
NOTE: Thermal expansion of the fluid in a distribution system can cause an increase in system pressure that can damage lubrication system components. Use the pressure relief valve kit included with this pump.
(1) Ensure that all hose fittings and piping are rated for fluid outlet pressures. Balcrank recommends a minimum of 3x safety factor. Warning! Do not use any Pride series products with flammable fluids. Verify fluid compatibility with MSDS sheets. Contact Balcrank for specific system design performance and technical data.
- SKU: 1130-016
- Manufacturer: Balcrank
- Size: Universal
- Flow-Rate: 7.4 GPM
- Pump Ratio: 3:1
- Weight: 25.00 LBS
-
FEATURES
- Pressure relief on Pride Series models - built-in safety feature reduces premature wear of hoses and seals.
- Mechanical air valve - more reliable, no stalling and no icing.
- Designed for lower air consumption - extends compressor life.
- Built-in muffler - results in quiet operation and eliminates icing.
- Stainless steel pump rod - reduces corrosion and extends seal life.
- Double acting pump - delivers consistent fluid flow with greater dispensing accuracy.
-
SPECIFICATIONS
Operating Air Pressure 10-150 psi (.7-10 bar) Cycles per Gallons 57 cyc/gal (15.06 cyc/liter) Air Consumption 100 psi (7 bar) & 4 gal/min (15 l/min) 24.80 SCFM Max Fluid Stall Pressure @ 150 psi (10 bar) (1) 760 psi (52 bar) Effective Air Piston Diagram 2.5” (63.5 mm) Free Flow Pump Delivery with SAE 10W30 Oil, 68º F (20º C), 100 psi (7 bar) air pressure 6 gal/min (30 l/min) Air Inlet 1/4" NPT (F) Fluid Inlet 1" NPT (F); 1 1/2" NPT (M) Fluid Outlet 1/2" NPT (F) Wetted Materials Steel, Nickel Plated Steel, Stainless Steel, Aluminum, Ultrathane, Buna-N™, and Nylon Service Bulletin SB 1064
-
