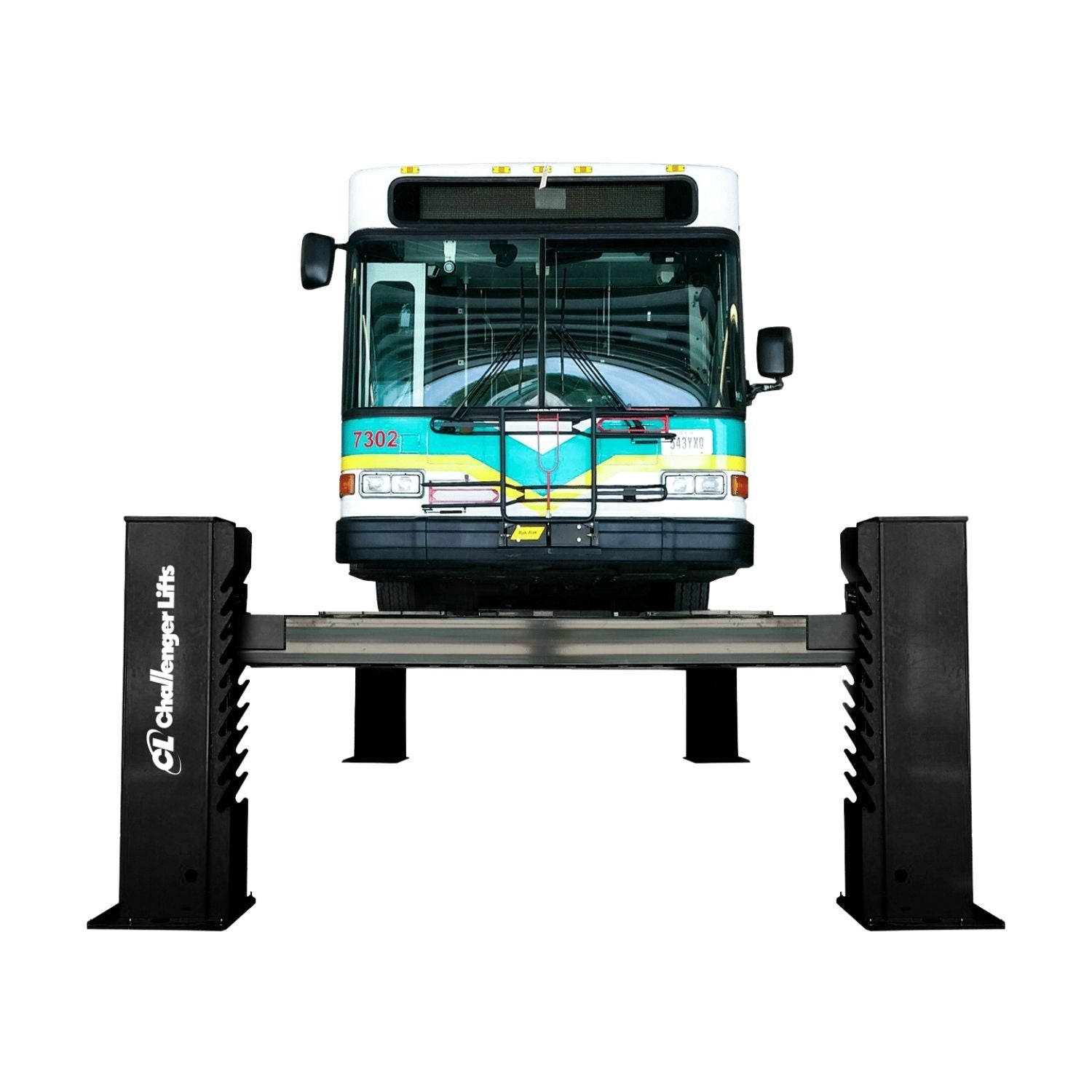

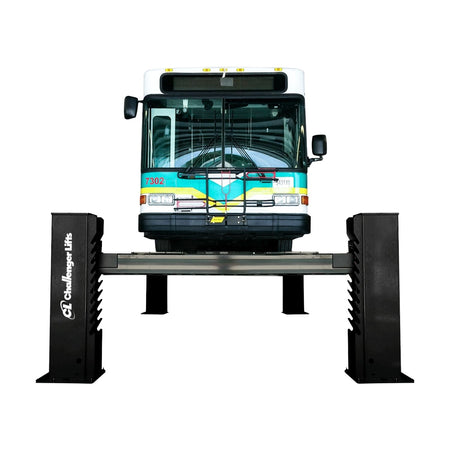

Challenger 30K Heavy-Duty 4-Post Alignment Lift #4030EAX
Regular price
$37,459.62
Regular price
-36%
$58,530.67
Sale price
$37,459.62
ALI® Certified
Challenger heavy-duty four-post lifts are independently tested to ANSI/ALI ALCTV safety standards. Verify at autolift.org
Manuals & Resources
Need installation help? Call Alamo at (817) 865-3707 - we install, service, and inspect every lift we sell.
Quick Specs - Challenger 4030EAX
| Lifting Capacity | 30,000 lbs. |
| Max. Wheelbase | 281" |
| Max. Two-Wheel Alignment | 256" |
| Rise Height | 71.75" |
| Overall Length | 344" |
| Overall Width | 172.75" |
| Runway Width | 24" |
| Motor / Voltage | 3HP, 208v - 230v (single phase standard) |
| Min. Recommended Bay Size | 31' x 17' |
| ALI® / ETL Certified | Yes |
| Shipping | Ships freight - Alamo coordinates delivery |
Questions about bay size or electrical service? Call (817) 865-3707 and Alamo will check your building against this lift before you order.
Will the 4030EAX Fit Your Bay?
Floor space, not weight rating, is usually the limiting factor here. Challenger's minimum recommended bay size for this model is 31' x 17'. That is the recommendation, not a hard floor - Alamo will review your actual layout.
RISE HEIGHT
71.75"
clear working height under the deck
OVERALL LENGTH
344"
front to back footprint
OVERALL WIDTH
172.75"
post to post across the bay
Send us your bay dimensions and we will confirm the fit. Call (817) 865-3707 before you commit to a configuration.
Site Prep - What Your Bay Needs Before Install Day
The prep list for a lift this size is short but non-negotiable. If any one of them is uncertain, call us first.
Concrete
A lift at 30,000 lbs puts real load into the slab. Concrete thickness, strength, and cure age all have to meet Challenger's published installation requirements. If you are unsure what is under your floor, we can help you find out.
Electrical
Challenger publishes a 3HP, 208v - 230v (single phase standard) motor as standard on the 4030 series, with a 90 - 120 psi air supply required for the lock release. Confirm both against your building before install day.
Air Supply
Air-actuated lock release means shop air has to reach the lift. Plan the drop as part of the install, not as an afterthought.
Alamo does not just ship this lift and leave. We size it to your building, coordinate the freight, install it, and come back for inspections.
(817) 865-3707
Talk to Alamo's install team
Challenger 4030EAX 30,000 lb Heavy-Duty 4-Post Lift
Turning away heavy-truck alignment work because the shop's lift can't take a turnplate is real money left on the table. The 4030EAX is built to take that job.
It's cable-driven, rated at 30,000 lb, with a 281" maximum wheelbase and 344" of overall length. Front turntable cutouts support two-wheel alignment work up to 256". Challenger's recommended minimum bay size for this configuration is 31' x 17'. Power is 3HP, 208v - 230v (single phase standard).
Who the 4030EAX Is Built For
- Shops running vehicles near a lighter lift's limit — 30,000 lb of rated capacity covers loads a standard-duty four-post can't take safely.
- Shops that turn away or sublet heavy-truck alignment work — the turntable cutouts and alignment range on this deck are built specifically for that job, not bolted on after.
- Fleets running long-wheelbase trucks and trailers — 281" of wheelbase capacity means the vehicle doesn't overhang the runway ends.
- Buildings that can actually fit the footprint — plan for Challenger's recommended 31' x 17' minimum bay before you order, not just the lift's own dimensions.
- Buyers who want one team for sizing, delivery, install, and service — Alamo measures your bay, installs the lift, and stays the point of contact for warranty and service afterward.
What the 4030EAX Is NOT Built For
- Your heaviest loaded vehicle exceeds 30,000 lbs - capacity is not a number to round down.
- You regularly service vehicles longer than a 281" wheelbase - step up to the next deck length.
- You only ever do general service - the alignment deck is a cost you would not use.
- Your bay is smaller than 31' x 17' - the footprint does not compress.
- You are looking for a two-post - a four-post is a different tool for a different job.
What Sets the 4030EAX Apart
Configuration Highlights
- Cable-driven lift system - heavy-duty steel sheaves and cables, a design Challenger has run in the field for years.
- Single-point air-actuated lock release - all four column locks disengage together from one control.
- Six position level locking - set working height where the job needs it, not where the lift wants it.
- Anti-sway device - keeps the runways stable under off-center and heavy loads.
- Fold-down approach ramps with jack rails - drive-on access plus rolling jack compatibility.
- Alignment deck with front turntable cutouts - cut out for the 10500HD turnplates, sold separately.
- Two-wheel alignment to 256" - alignment capability sized to this model's deck length.
Where It Excels
Sustained heavy-duty service on trucks up to a 281" wheelbase, with the deck configuration matched to alignment work.
Plan Around This
Capacity, wheelbase, and building footprint have to be checked together. A lift can clear one and fail another, which is why Alamo reviews all three before quoting.
Full Specifications - 4030EAX
| Lifting Capacity | 30,000 lbs. |
| Lift Type | Cable-driven, four-post |
| Deck Configuration | Alignment deck |
| Max. Wheelbase | 281" |
| Rise Height | 71.75" |
| Overall Length | 344" |
| Overall Width | 172.75" |
| Inside Columns | 152" |
| Between Columns | 282.625" |
| Max. Two-Wheel Alignment | 256" |
| Height of Columns | 92.25" |
| Height of Runways | 8.5" |
| Width of Runways | 24" |
| Width Between Runways | 46" - 52" |
| Air Supply Required | 90 - 120 psi |
| Motor / Voltage | 3HP, 208v - 230v (single phase standard) |
| Lock System | Six position level locking with pneumatic single-point safety release |
| Min. Recommended Bay Size | 31' x 17' |
| Colors Available | Black |
| ALI® / ETL Certified | Yes |
Installation Requirements
- Concrete must meet Challenger's published thickness, strength, and cure requirements for this model.
- Electrical service sized to the motor specification above, run by a licensed electrician.
- Shop air plumbed to the lift for the pneumatic lock release.
- Installation performed by qualified technicians and commissioned to manufacturer procedure.
- Alamo coordinates freight, rigging, installation, and startup as part of the purchase.
Challenger Lifts Warranty
Challenger Lifts backs the 4030EAX with the following manufacturer coverage to the original owner. Alamo routes service and support after the sale.
| Component | Coverage Term |
| Structural parts | 5 Years |
| Functional parts | 2 Years |
| Labor | 1 Year |
Warranty is to the original owner. Coverage excludes normal wear, improper installation, and unapproved parts. Warranty service is through Alamo Equipment & Service - call (817) 865-3707.
Frequently Asked Questions - 4030EAX
Why Buy the 4030EAX from Alamo Equipment & Service?
- We install it. Alamo anchors, wires, and sets up the 4030EAX so you're not coordinating contractors.
- We service it. After install, call the same equipment team at (817) 865-3707.
- We size it with you. At 30,000 lb and a 281" maximum wheelbase, we confirm it against your bay and vehicle mix before you order.
- Freight handled. This lift ships freight; Alamo coordinates delivery to your bay.
- Expert comparison help. We'll help you pick the right configuration for your shop if the 4030EAX isn't the exact fit.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
