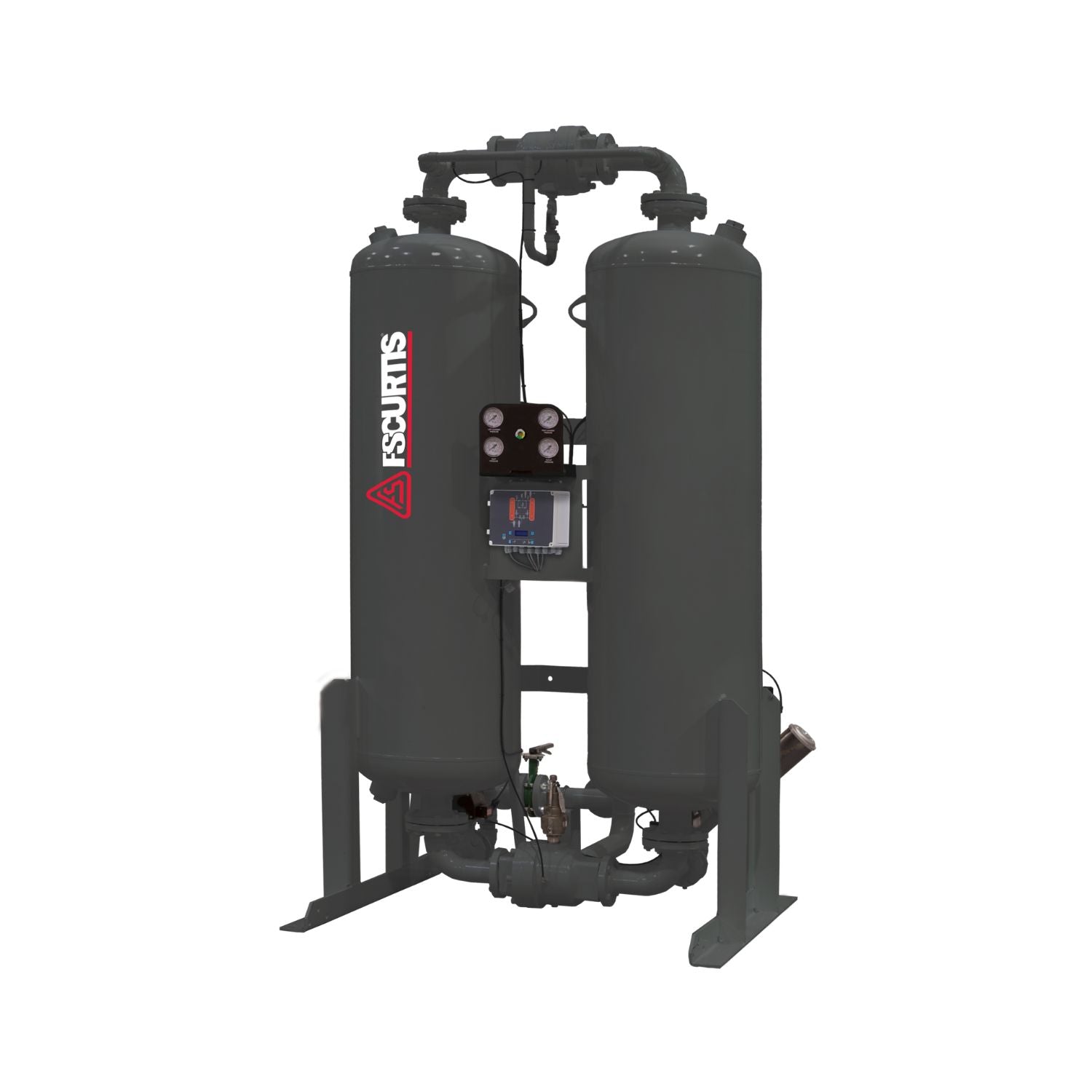

FS-Curtis DLM40 Heatless Low Flow Desiccant Dryer #FDLM00040-1XXXXX
Couldn't load pickup availability
-
DESCRIPTION
The FS-Curtis DLM40 Heatless Lo- Flow Desiccant Air Dryer is designed to deliver dependable, ultra-dry compressed air for low-flow industrial applications where moisture control is critical. Engineered for consistent performance, the DLM40 uses proven heatless desiccant drying technology to provide stable, low-dew-point air that helps protect tools, equipment, and downstream processes. Its compact design and reliable operation make it ideal for point-of-use drying, laboratory environments, instrumentation air, and small compressed air systems that require high air quality and efficient moisture removal.
All models include filter package: Oil Coalescing Prefilter (CF5-20-4-DPL) and Particulate Afterfilter (CF7-20-4-PL)
-
FEATURES + BENEFITS
The DLM desiccant air dryers protect air systems exposed to temperatures below freezing. The fully enclosed wall-mounted package delivers dew points of ISO 8573.1 Class 1 and Class 2 with flow rates of 7 to 50 SCFM. Applications including labs, hospitals, and high tech installations all benefit from the clean, dry air, improved productivity, and more floor space provided by DLW series.
- Enclosed design with clean, streamlined piping for easy installation and quiet operation
- Premium grade desiccant beads enhance surface area, requires minimum purge air, and have high crush strength
- Front-mounted at-a-glance control panel, automatic operation and stored adsorptive energy result in long desiccant life
- Optional filtration system increases the lifetime of desiccant and avoids system contamination
-
SPECIFICATIONS
Model Number DLM40 Inlet Flow scfm 40 @ -40°F | 27 @ -100°F Standard Voltage 115/1/60
Operating Pressure Range 50-150 psig
Maximum Inlet Temperature 120°F (49°C)
NPT 1/2"
Dimensions 49" L x 16" W x 8" D
Weight 180 lbs
