FS-Curtis ML Series C98 20-30HP Basic Pump #FMLDC98
Shipping information
Enter your delivery ZIP code to see priced freight options for this item. Rates match checkout exactly.
FS Curtis shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
Couldn't load pickup availability
| Part Number | FMLDC98 |
| HP | 20-30 HP |
| Configuration | Centro-Ring Pressure-Lubricated, 100% Cast Iron |
| Discharge Size | 2" NPT |
| Oil Capacity | 6 quarts |
| RPM Range | 500-950 |
| Flywheel Configuration | 4B |
| Dimensions | 21" L x 32" W x 35" H |
| Shipping Weight | 880 lbs |

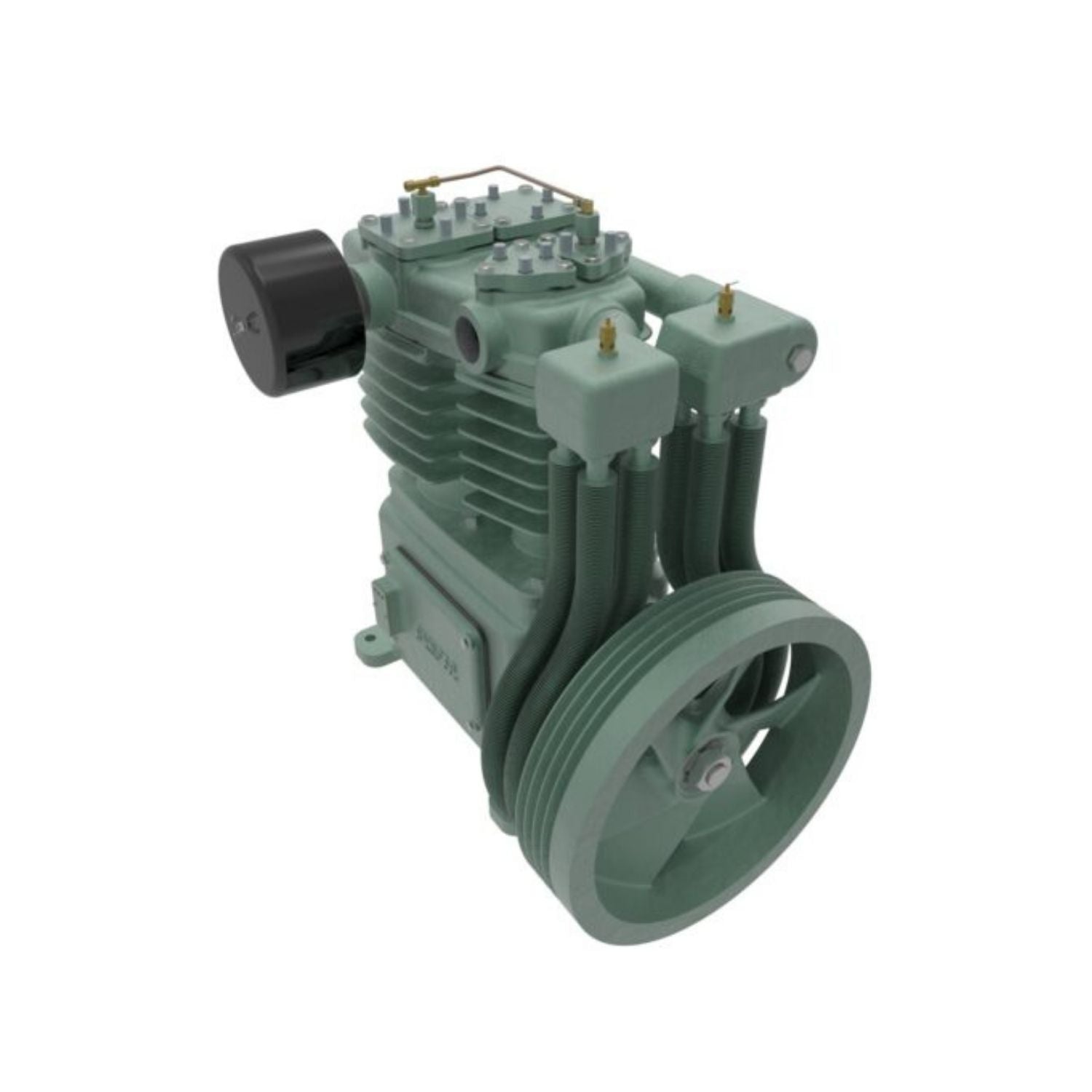

FS-Curtis ML Series C98 20-30HP Basic Pump #FMLDC98
The largest bare pump in the FS-Curtis ML Series lineup, built for the 20-30HP range with a 2" NPT discharge and 6-quart oil capacity. Same Centro-Ring pressure-lubrication design as the rest of the Masterline pumps, scaled up for the highest-output ML applications.
Sold as a bare pump only — for compressor rebuilds, custom air compressor builds, or replacing a worn-out pump on an existing ML25/ML30-equipped unit. It's a pump-only part — no tank or motor — meant to be fitted onto an existing assembly.
Ships by freight. Add to cart and enter your ZIP for a freight quote, or call us.
If you're not fully sure the FMLDC98 is the right size, call (817) 865-3707. Share the FMLDC98 part number when you call so we can confirm the match.
Frequently Asked Questions
Your LTL freight rate is calculated at checkout. Each order may contain one lift or other freight-shipped item. Please order parts and additional freight items separately.
See the attached document for FS CURTIS WARRANTY
