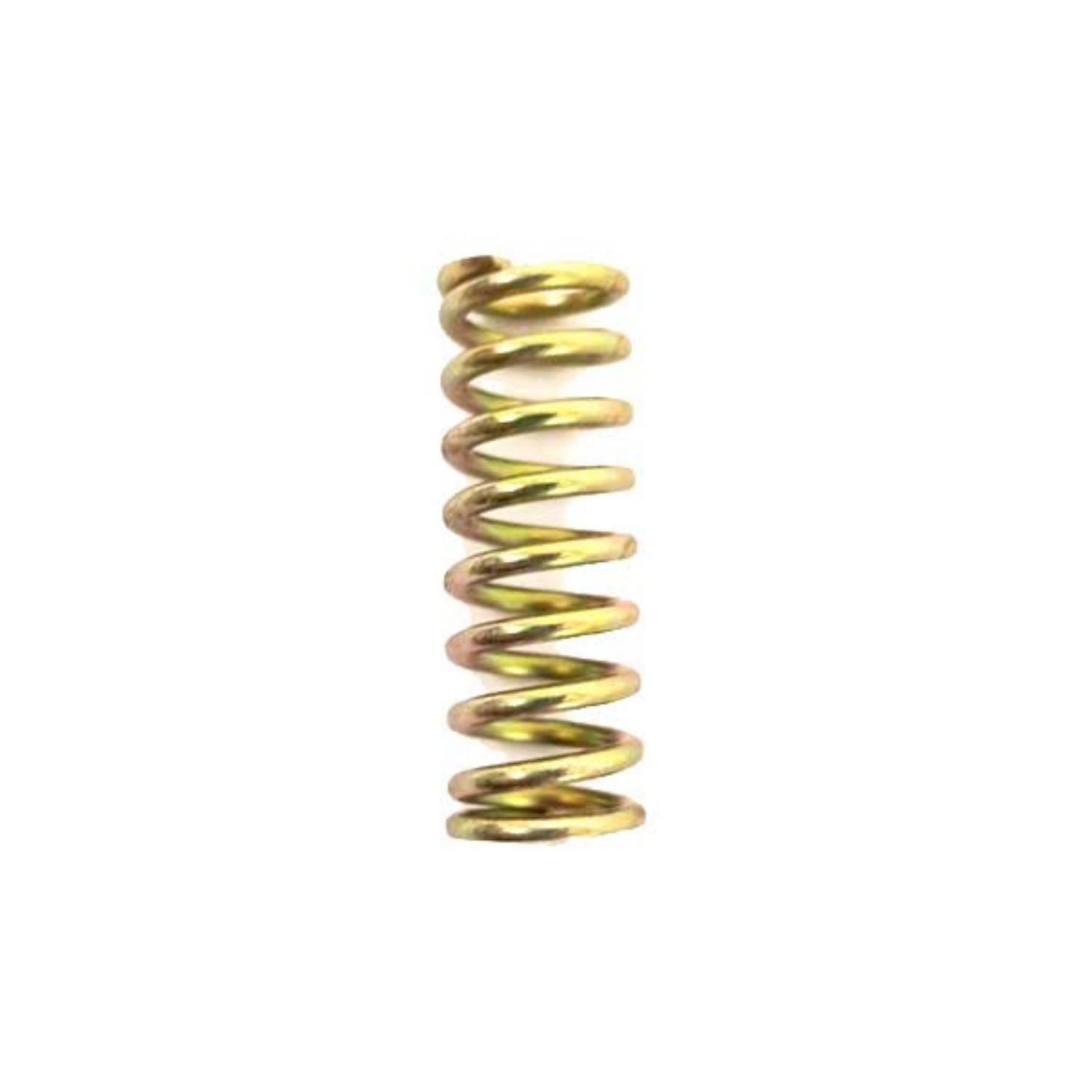

Graco Helical Compression Spring #167585
| Graco Part # | 167585 |
| Product Type | Helical Compression Spring |
| Application | Air Motor Toggle / Trip Mechanism |
| Documented Equipment | Fire-Ball, Monark, President & Related Graco Air Motors |
| Published Dimensions | Approx. 1.5" L x 0.5" W x 0.5" H |
| Quantity Used | Typically 2 per Applicable Air Motor Assembly |
Graco Helical Compression Spring #167585
Genuine Graco #167585 helical compression spring used in the toggle and trip mechanism of compatible Graco pneumatic air motors. Graco service manuals show this spring in multiple air-motor assemblies, including Fire-Ball, Monark, President, and related pump configurations.
The spring works with the air-motor toggle components to provide the spring force required during the motor's reversing and valve-actuation cycle. It is commonly installed as a pair in applicable air-motor assemblies.
Questions before ordering? Call (817) 865-3707 and our team will help confirm compatibility with your Graco pump or air motor.
Compatibility & Fitment
Graco service documentation identifies #167585 in a variety of pneumatic air-motor assemblies, including Fire-Ball 300 and 425 pumps and other Graco Monark/President-style motors. Because exact air-motor configurations vary by pump model and series, confirm part #167585 in your machine's parts manual before ordering.
Service Information
Applicable Graco air-motor parts diagrams commonly show two #167585 compression springs used with the toggle mechanism. Graco does not publish spring rate or wire-diameter specifications in the service manuals reviewed, so replacement should be made by OEM part number rather than by spring dimensions alone.
