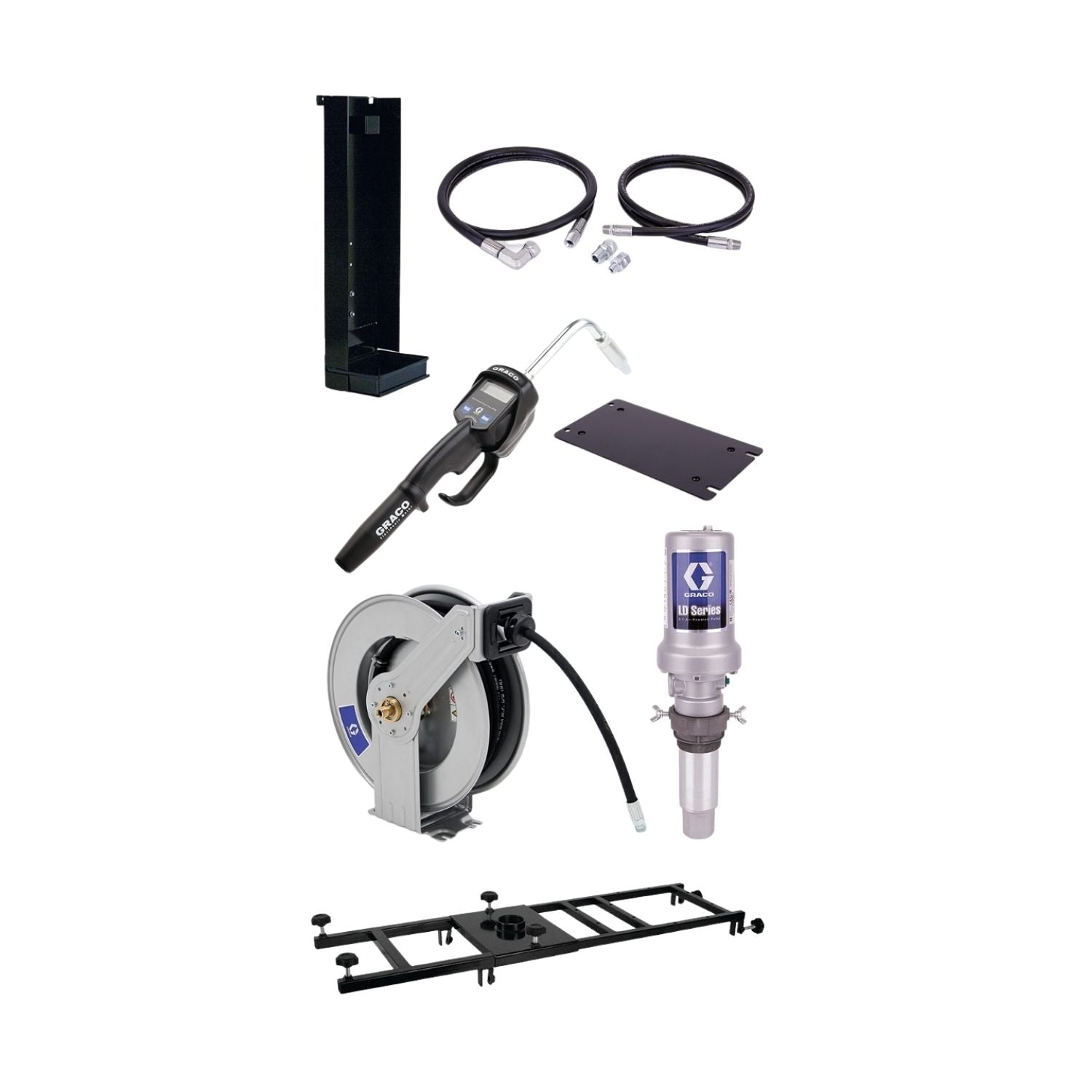

Graco 3:1 Oil Pump Tote-Mount Package #24H702
| Part Number | 24H702 |
| Model / Series | LD Series |
| Type | Piston Pump Package, Stationary Tote-Mount |
| Compatible Material | Oil |
| Pump Ratio | 3:1 |
| Meter Type | EM8 Electronic Manual Meter, Rigid Extension (#25C903) |
| Container Size | 275 gal (1040 L) tote, wall/stationary mount |
| Air Inlet | 1/4 in. NPT |
| Fluid Outlet | 1/2 in. NPT |
| Max Flow Rate | 7.8 GPM |
| Max Working Pressure | 750 psi (52 bar) |
| Wetted Material | Zinc-Plated Carbon Steel, Aluminum, Nitrile, Polyurethane, Nickel-Plated Aluminum |
| Includes | 24G576 pump, 25C903 EM8 meter, HEM004 hose |
Graco LD Series 3:1 Oil Pump Stationary Tote-Mount Package, EM8 Manual Meter #24H702
This package is built for a fixed installation on a 275 gallon oil tote rather than a mobile cart -- pump, meter, and hose matched and ready to mount. The 3:1 pump moves up to 7.8 GPM, and built-in thermal relief and an inlet strainer protect it from pressure spikes and debris. A self-cleaning pilot valve keeps it running reliably even in a dusty shop. This 24H702 version pairs the pump with an EM8 electronic manual meter on a rigid extension for steady, straight-line dispensing.
Questions before ordering? Call (817) 865-3707 and our team will confirm fit for your application.
Compatibility & Fitment
Built for a fixed, wall-mount style install on a 275 gallon (1040 L) intermediate bulk container (IBC) tote -- no cart or drum included. 1/4 in. NPT air inlet requires a regulated shop air line; 1/2 in. NPT fluid outlet feeds the included 50 ft oil hose. This is the manual-meter version.
Warranty
Graco backs this equipment with its standard 1-year warranty against defects in material and workmanship from the date of sale.
