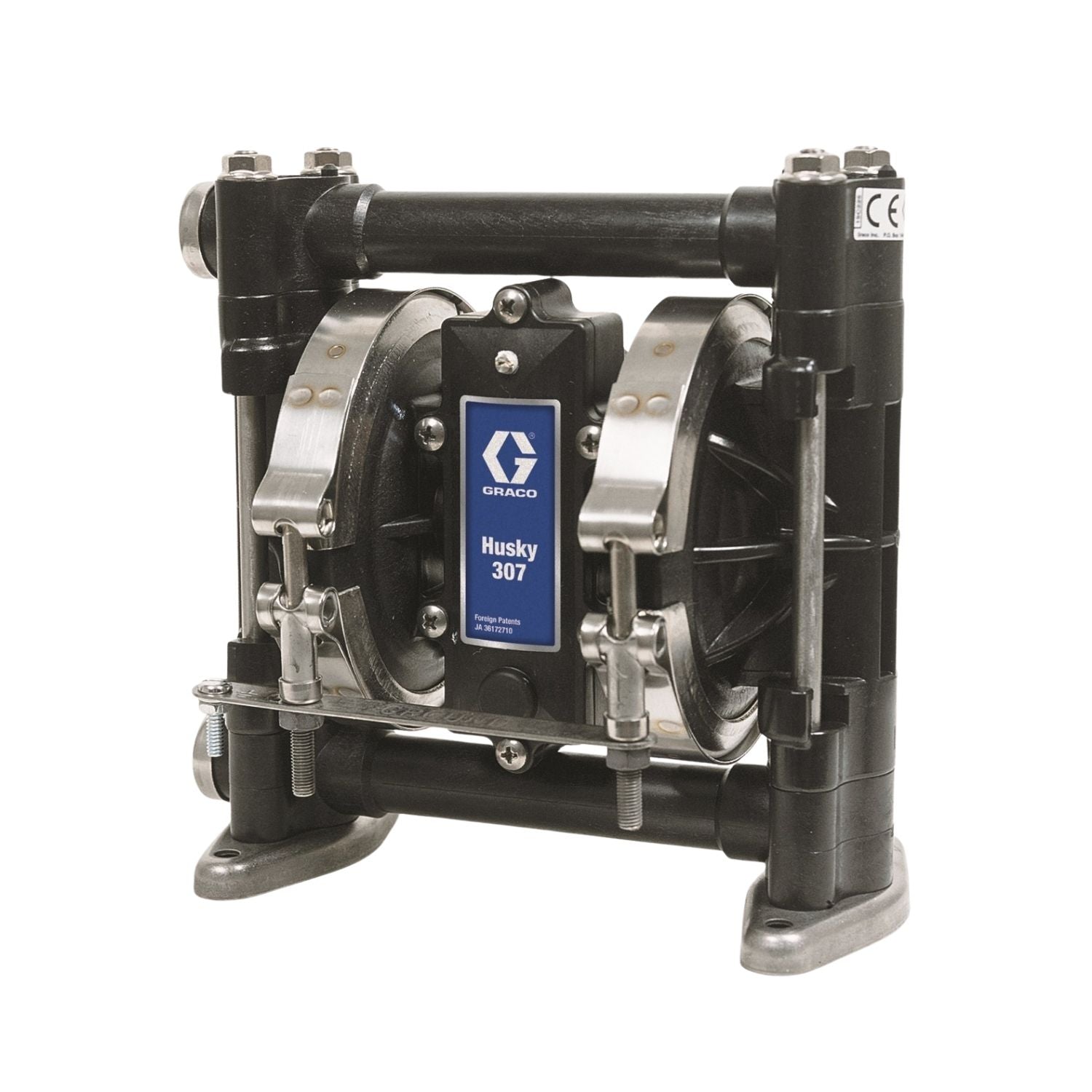

Graco Husky 307 AODD Pump, Acetal, 3/8 in NPT #D31255
| Graco Part # | D31255 |
| UPC | 633955647190 |
| Max Fluid Pressure | 100 psi (7 bar) |
| Air Operating Range | 20-100 psi |
| Max Free-Flow Delivery | 7.5 gpm (28.5 lpm) |
| Max Air Consumption | 30 SCFM |
| Max Pump Speed | 330 cpm |
| Air Inlet | 1/4 in NPT(f) |
| Fluid Inlet/Outlet | 3/8 in NPT(f) |
| Max Suction Lift | 12 ft dry / 21 ft wet |
| Max Solids | 1/16 in (1.6 mm) |
| Operating Temp | 40°F to 140°F |
| Wetted Parts | Acetal (conductive), PTFE balls & diaphragms, acetal seats |
| Product Dimensions | 8.4 x 6 x 8.4 in |
| Product Weight | 6 lb |
| Packaged / Shipping Dimensions | 8.4 x 6 x 8.4 in |
| Packaged / Shipping Weight | 6 lb |
Graco Husky 307 Air-Operated Diaphragm Pump (Acetal)
Graco Husky 307 air-operated double-diaphragm (AODD) pump with a conductive acetal fluid section, PTFE balls and PTFE diaphragms. Designed for compatible fluid-transfer applications where compact size, air-powered operation and chemically compatible wetted materials are required.
Questions before ordering? Call (817) 865-3707 and our team will help confirm the correct pump configuration for your application.
Compatibility & Fitment
AODD pump for a range of fluid-transfer installations with conductive acetal and PTFE wetted components. Use only with fluids that are chemically compatible with the pump's wetted materials. Model 248168 is a related configuration with split inlet/outlet ports.
Warranty
Warranty coverage is subject to Graco's applicable written warranty terms. For exact coverage for part #D31255, call Alamo Equipment at (817) 865-3707.
