Hofmann GEOLINER® 609 Imaging Wheel Aligner #EEWA741TH3

SKU EEWA741TH3

Lead time:

by Hofmann
Original price $14,073.00 - Original price $14,073.00
Original price $14,073.00
$14,073.00
$14,073.00 - $14,073.00
Current price $14,073.00
  • DESCRIPTION

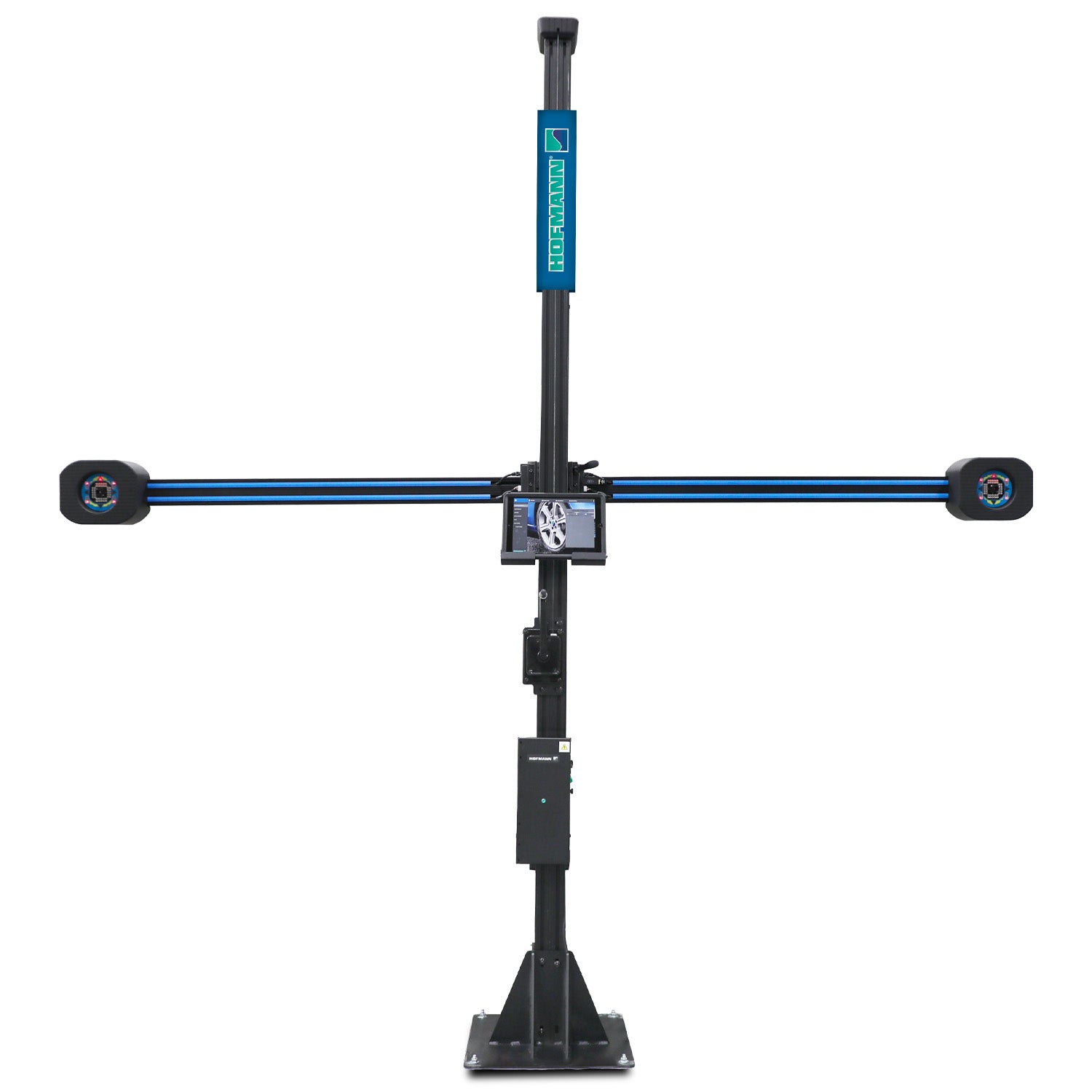

    Uncompromising features in a compact design – the geoliner® 609, has all the same core features of our advanced imaging alignment systems in a compact, economical design. Ready out of the box with minimal installation, this alignment system offers greater lift compatibility with an extended camera beam and two-wheel elevated compensation mode - making the geoliner 609 a flexible alignment solution to support in-house alignment services.

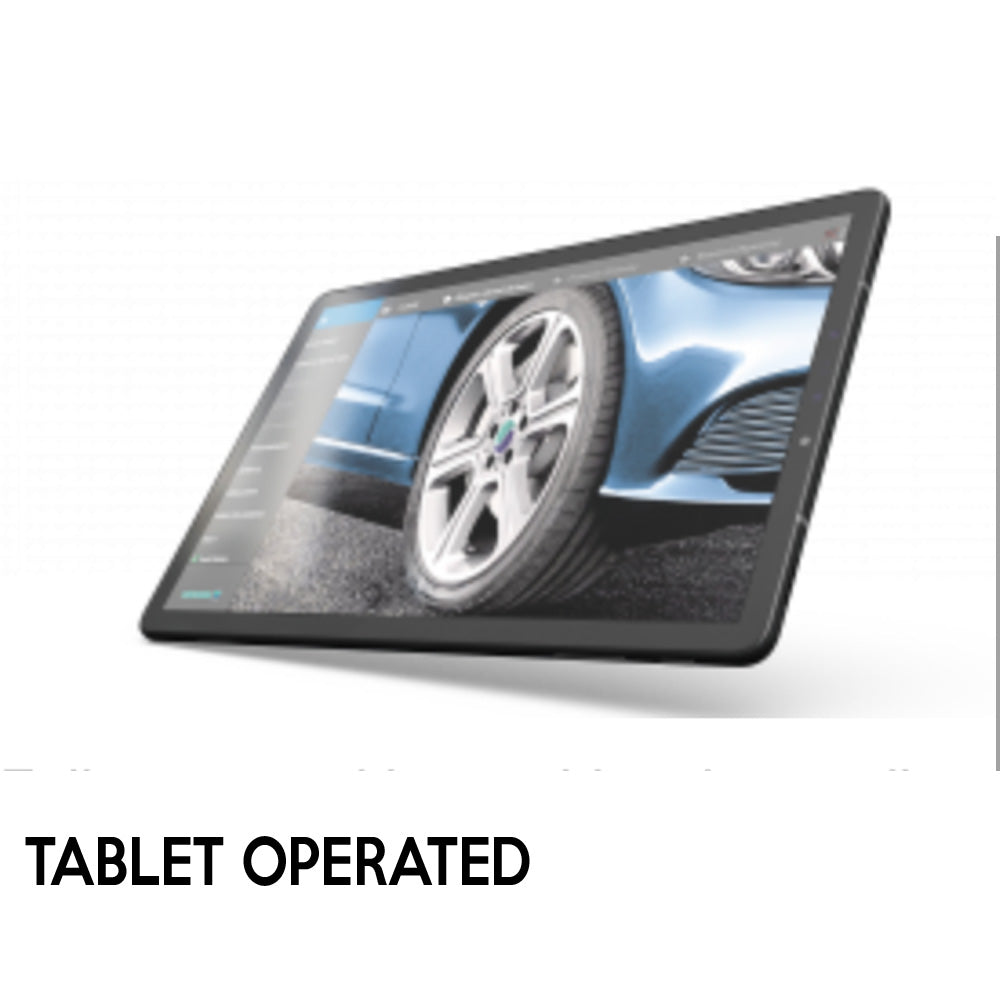

    TABLET OPERATED: Fully operated by a tablet, the geoliner 609 is fully mobile and allows you to perform alignments on any alignment lift type.

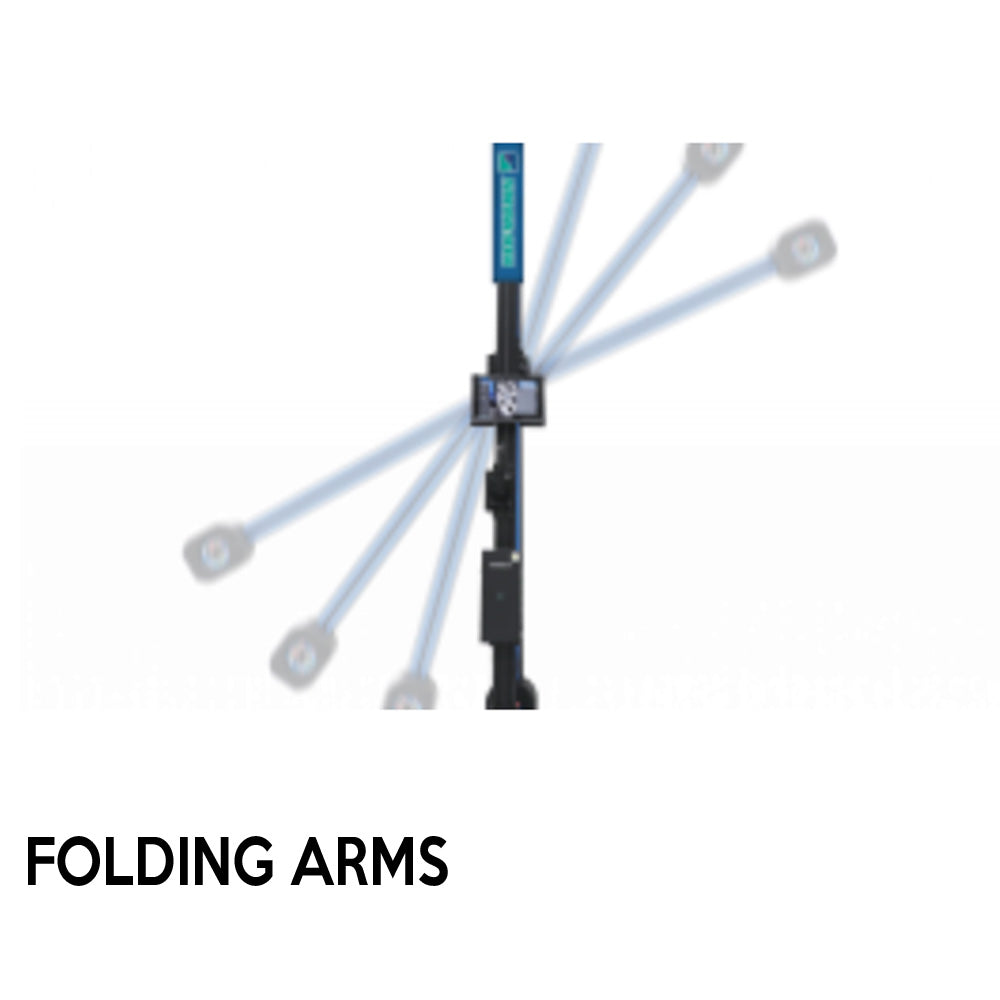

    FOLDING ARMS: The geoliner 609 folding arms were specially designed to be space-saving and add more flexibility to any shop.

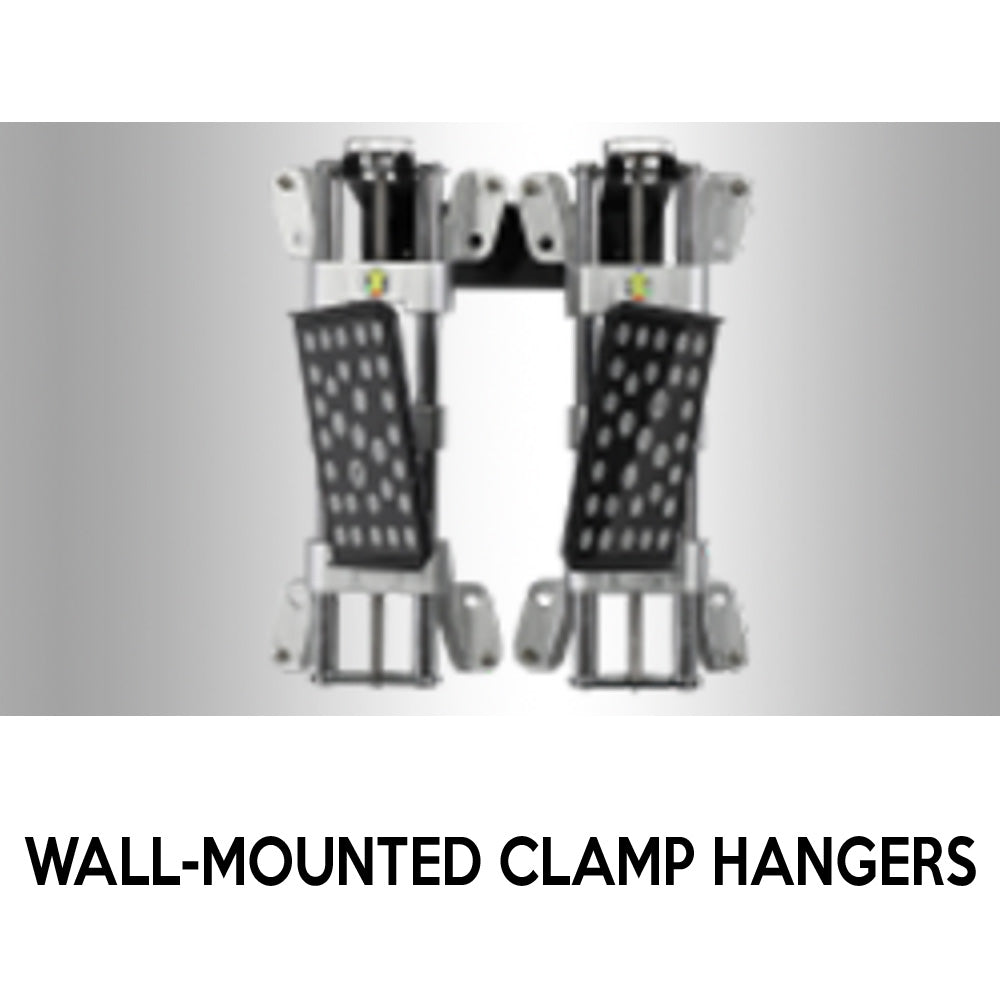

    WALL-MOUNTED CLAMP HANGERS: Suitable for shops with limited space, the wall-mounted clamp hangers allow for an easy installation at any location.

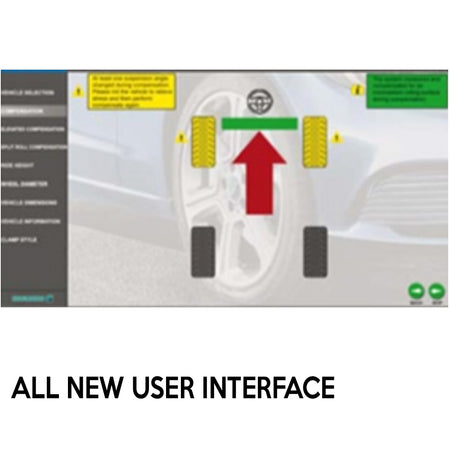

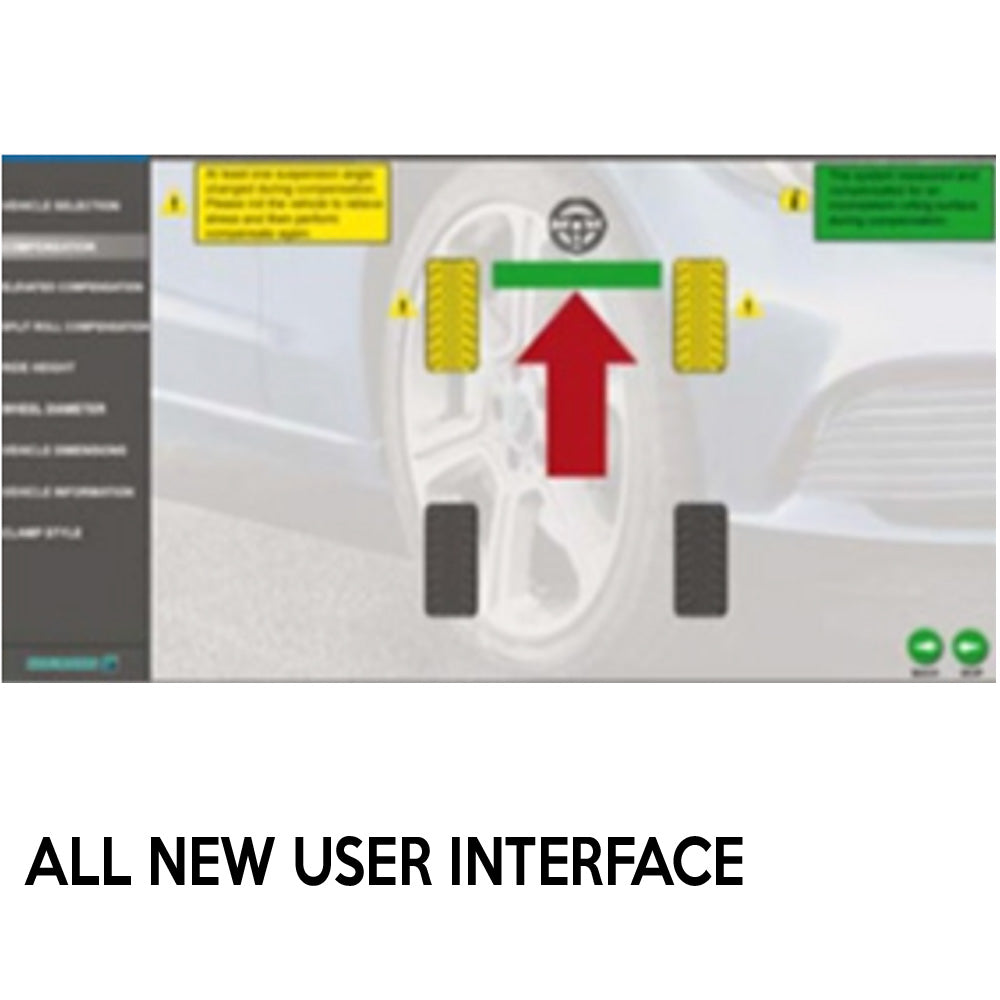

    ALL NEW USER INTERFACE: All new user interfaces with three levels of intervention — Compensate, Warn, Alert — with corrective actions clearly identified and more information just one click away.

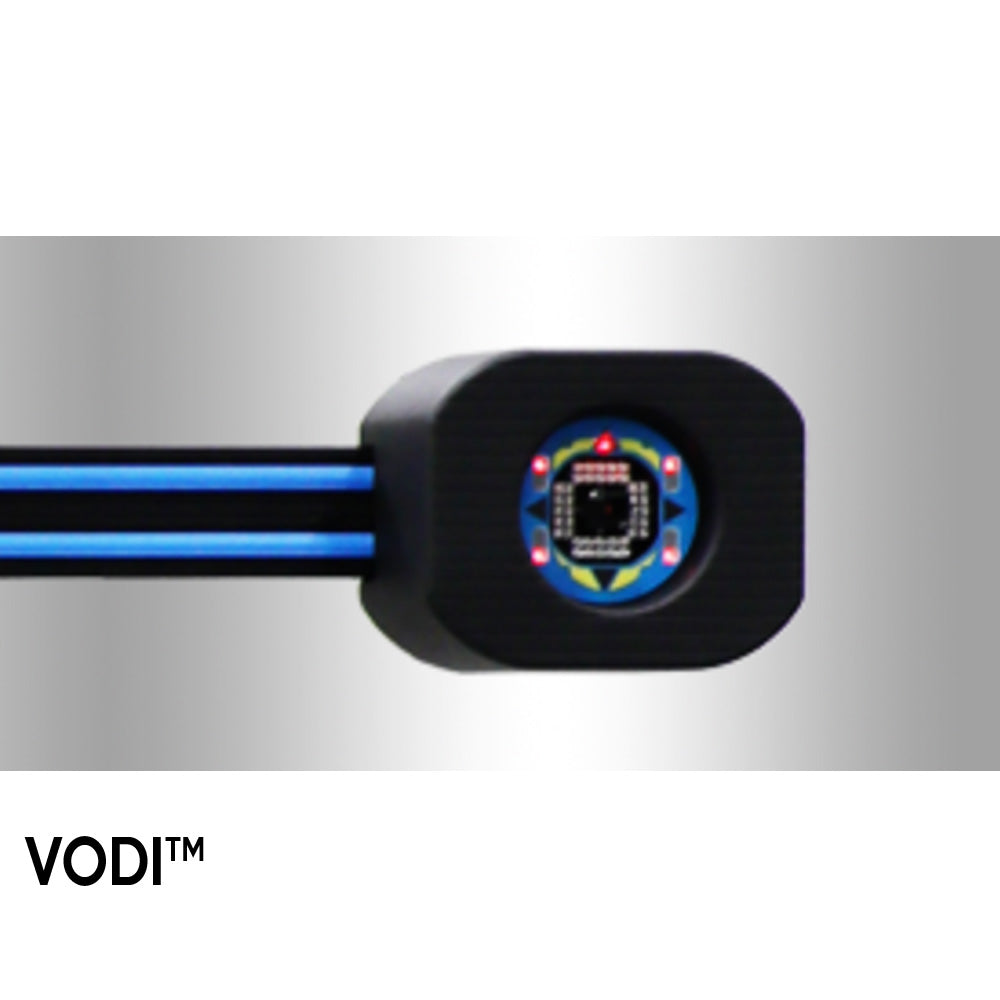

    VODI™: Vehicle Orientation Directional Indicator (VODI) guides the technician through the measurement process. Reduces the amount of time spent walking back and forth from the vehicle to the aligner.

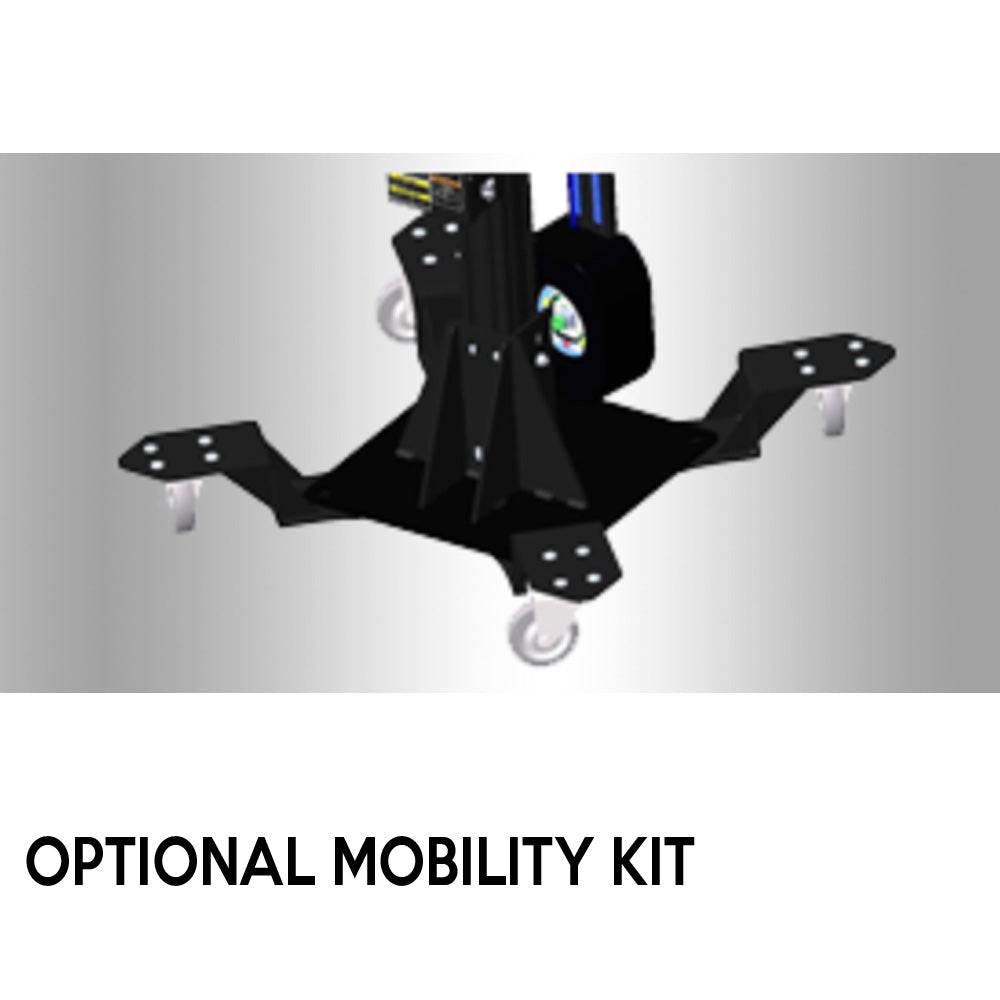

    OPTIONAL MOBILITY KIT: The exclusive geoliner 609 optional mobility kit increases the mobility by allowing the wheel aligner to freely move granting the shop the possibility to perform wheel alignments in different service bays.

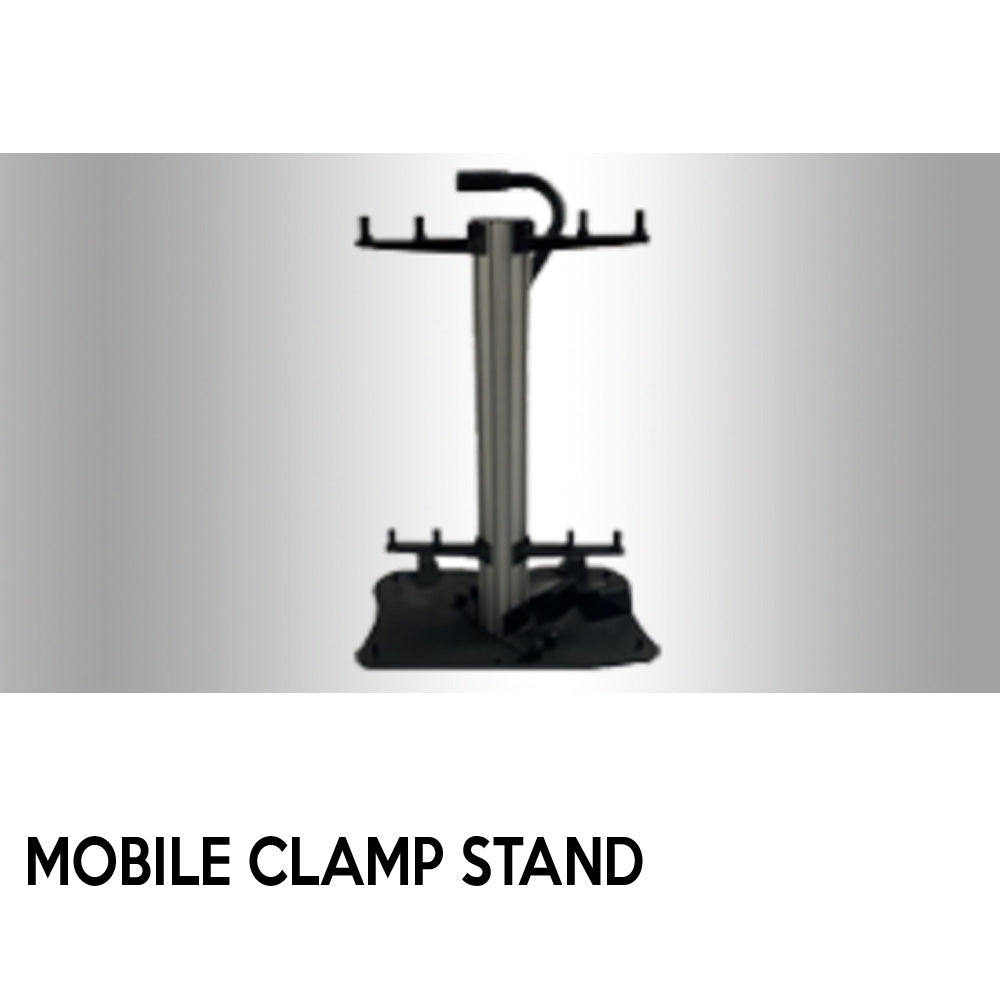

    MOBILE CLAMP STAND: The mobile clamp stand is ideal for shops with extra space that are looking for extra mobility. You can move around the shop freely while securely storing the AC200 clamps.

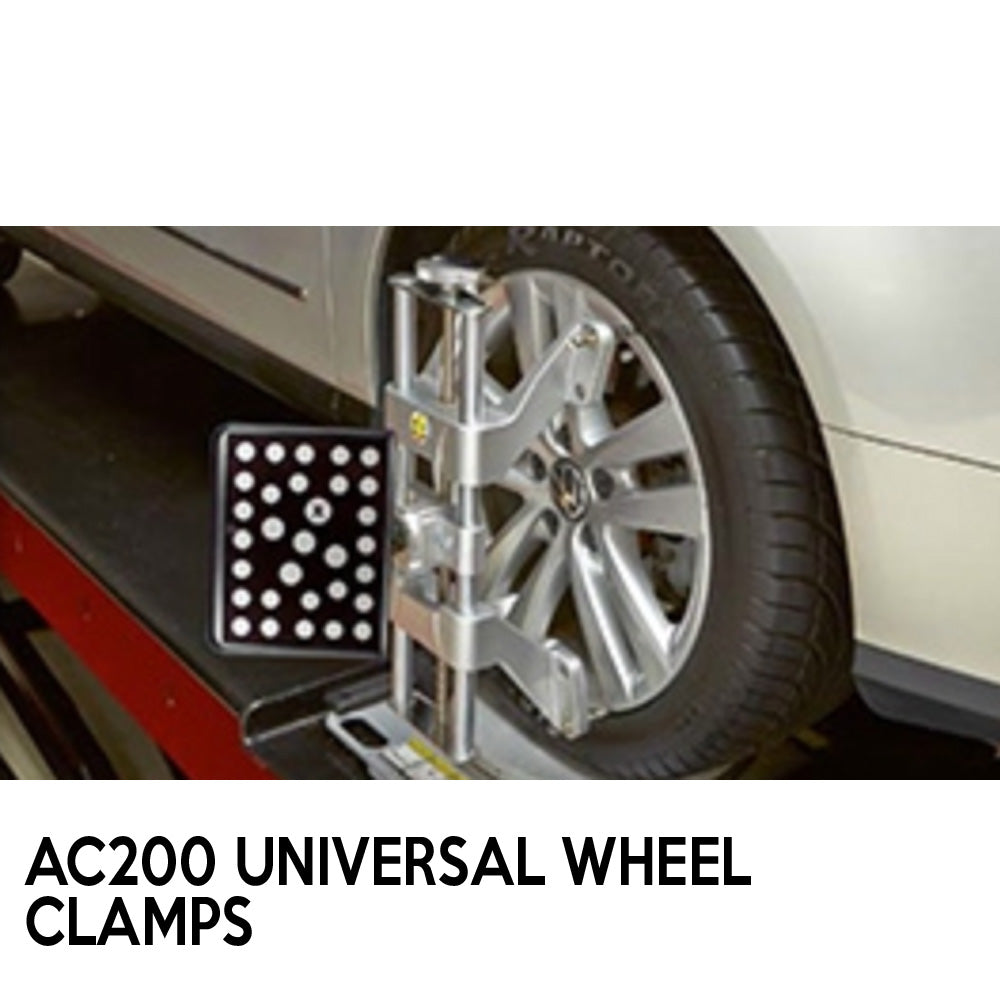

    AC200 UNIVERSAL WHEEL CLAMPS: Fast and easy to use. Self-centering design for accurate measurement of the vehicle dimensions. Two-sided claws eliminate accessories and allow reliable clamping even over hub caps.

    • Part Number: EEWA741TH3
    • Optional Mobility Kit: EAK0363J88A
    • Clamp Storage Cart: EAK0363J89A
  • FEATURES

    • Versatility:
      - Minimal shop space, no console needed
      - Control the aligner from anywhere in the shop using the tablet
      - Rotating camera beam for smaller storage footprint - With an exclusive tilting beam that allows for alignment at multiple rack heights or on stands.

      Efficient Design
      - Pre-assembled, ready-to-install
      - Lightweight, allows one-person installation
      - Robust mechanical winch for precise camera beam movement

      Intelligent Software Tools:
      - Elevated two-wheel compensation mode for customers with limited space, no alignment lift, or vehicles too large for the lift
      - Predictive alignment flow and automatic error detection system
      - Video-speed imaging for fast roll-back compensation
      - Patented VODI™ technology guides efficient measuring

      Online Connectivity:
      - Network updatable software and specifications
      - Quick access to vehicle specifications and repair information, TSBs, recalls, TPMS, ADAS information
      - Cloud services printing

  • SPECIFICATIONS

    Specifications EEWA741TH3
    Wheel size (AC200) 12" - 24"
    Power Supply 115 VAC 1Ph 50/60 Hz
    Tracking Width mm 1219 – 2438mm
    Tracking Width inches 48" - 96"
    Wheel Base mm 2007 - 4572 mm
    Wheel Base inches 79" - 108"

  • WARRANTY + MANUALS

    • 5 Years Motor
    • 2 Year Parts
    • 1 Year Labor

    Click Below on the Brochure

    Hofmann Gelliner® 630 Imaging Wheel Aligner brochure

Hofmann equipment Warranty Policy - Hofmann USA products carry the following warranties:

HOFMANN WHEEL BALANCERS

  • LABOR 6 MONTHS
  • PARTS 1 YEAR
  • ELECTRONIC CIRCUIT BOARD 3 YEARS
  • ELECTRIC MOTOR 5 YEARS

HOFMANN WHEEL ALIGNERS

  • LABOR - 6 MONTHS
  • CIRCUIT BOARDS, PC’S, CRT & LCD - 3 YEARS
  • PARTS & PRINTER - 1 YEAR

HOFMANN BRAKE LATHES

Hofmann equipment Warranty Policy - Hofmann USA products carry the following warranties:

  • LABOR - 6 MONTHS
  • PARTS - 2 YEARS
  • ELECTRIC MOTOR - 1 YEAR

HOFMANN TIRE CHANGERS

  • LABOR - 6 MONTHS
  • PARTS - 1 YEAR
  • ELECTRIC MOTOR - 3 YEARS
  • AIR MOTOR - 1 YEAR
  • TRANSMISSION - 3 YEARS

HOFMANN LIFTS

Hofmann equipment Warranty Policy - Hofmann USA products carry the following warranties:

  • LABOR - 1 YEAR
  • PARTS - 1 YEAR
  • POWER PACK - 18 MONTHS (1 YEAR SCISSOR ALIGNMENT)
  • HYDRAULICS - 1 YEAR
