iDEAL 14K 4-Post Alignment Lift 182.5" #FP14KAC-X

iDEAL 14K 4-Post Alignment Lift — FP14KAC-X

The FP14KAC-X is a 14,000 lb capacity, closed-front, commercial 4-post alignment lift built for shops running front-end and full alignment work alongside general service. It uses a durable, high-quality cable lift system with 18 locking height positions and an extended rise height, and includes a bolt-on runway alignment kit as standard equipment.

With a 182.5 in maximum service wheelbase, a 166.7 in maximum 2-wheel alignment wheelbase, and a 157 in maximum 4-wheel alignment wheelbase, the FP14KAC-X handles most cars, SUVs, and light trucks. Full-width rear wheel slip plates and two turntable positions with spacer covers support proper alignment setup, while narrow and wide runway mounting positions let the lift adapt to different bay layouts.

It's built for alignment shops and full-service repair facilities that want one lift capable of both alignment and general 4-post service work, without needing a dedicated alignment rack and a separate service lift.

Who It's Built For

• ✅ Alignment shops and full-service repair facilities running front-end and full alignment jobs
• ✅ Shops wanting one 4-post lift that handles both alignment and general service work
• ✅ Facilities with narrow or wide bay layouts thanks to adjustable runway mounting positions

What It's NOT Built For

• ❌ Vehicles longer than the 182.5 in max service wheelbase
• ❌ Shops that only need basic storage/parking capacity — see the FP14KC-X service lift for a lower-cost option without the alignment kit

Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.

What Makes the FP14KAC-X Different

14,000 lb Rated Capacity

The FP14KAC-X is rated for 14,000 lb, sized for cars, SUVs, vans, and light-duty trucks up to a 182.5 in wheelbase.

Bolt-On Runway Alignment Kit

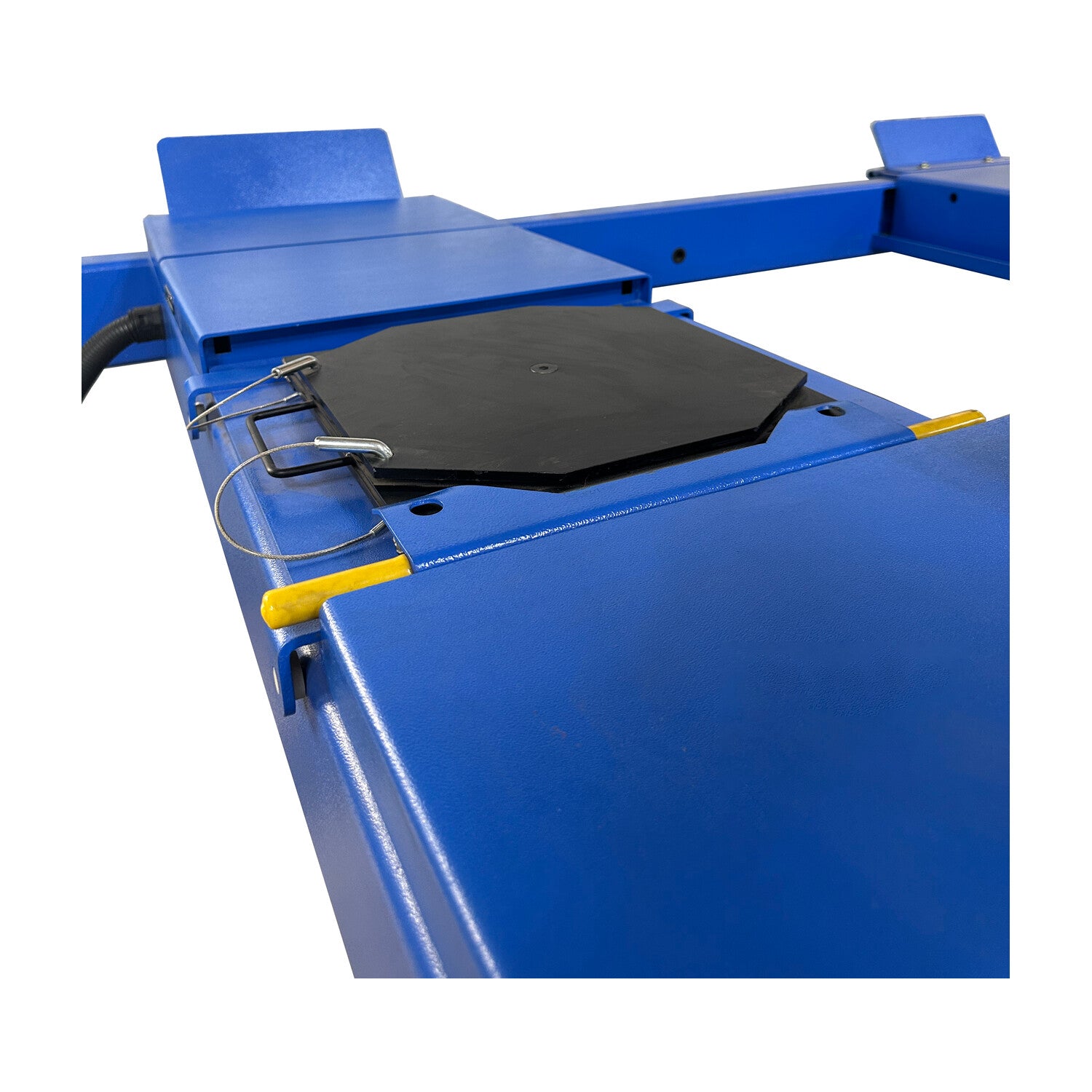

A bolt-on runway alignment kit is included, supporting a 166.7 in max 2-wheel alignment wheelbase and 157 in max 4-wheel alignment wheelbase, with full-width rear wheel slip plates and two turntable positions with spacer covers.

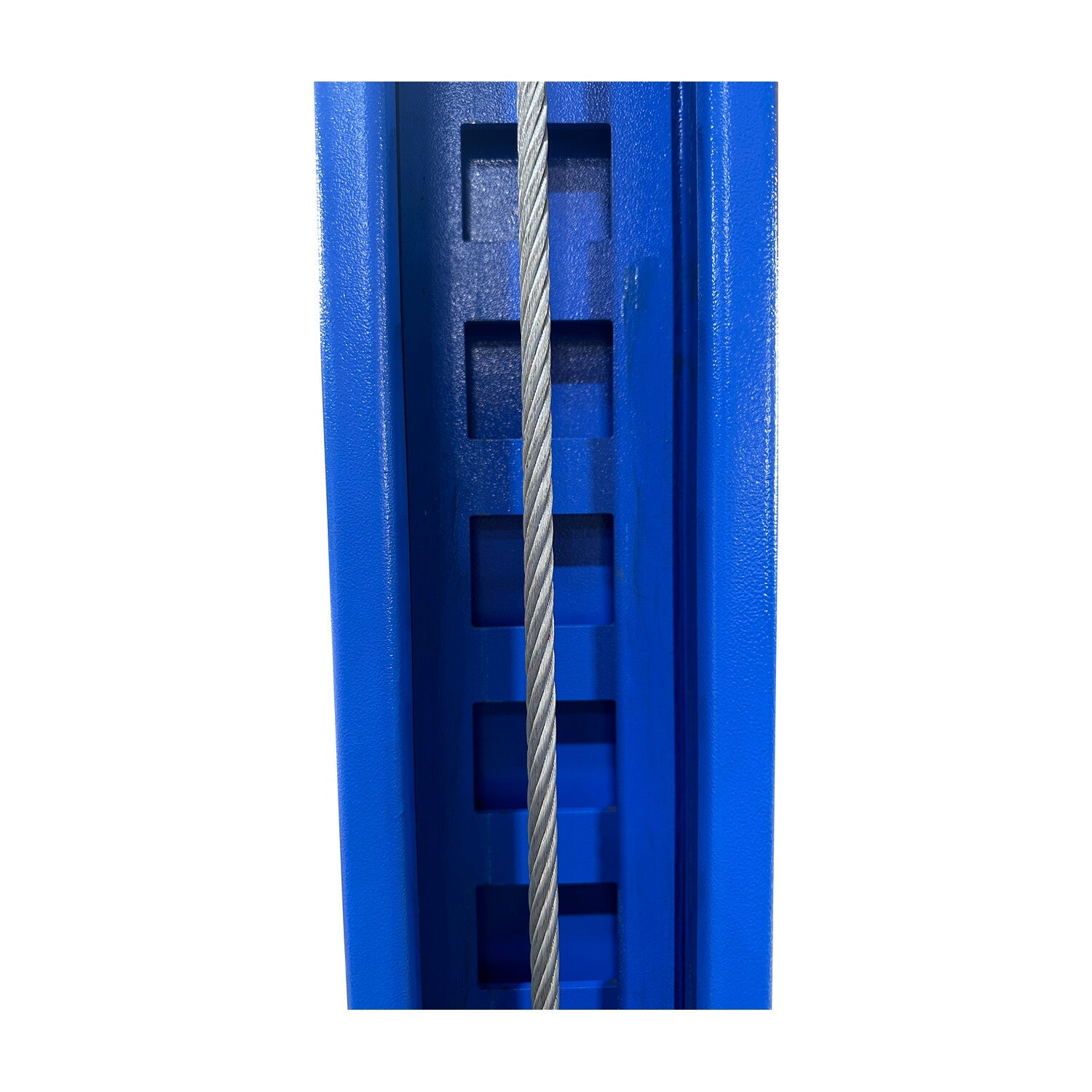

Cable Lift System with 18 Locking Positions

A durable, high-quality cable lift system provides extended rise height across 18 locking height positions, with fully adjustable lock stops for easy leveling and slack cable safety devices.

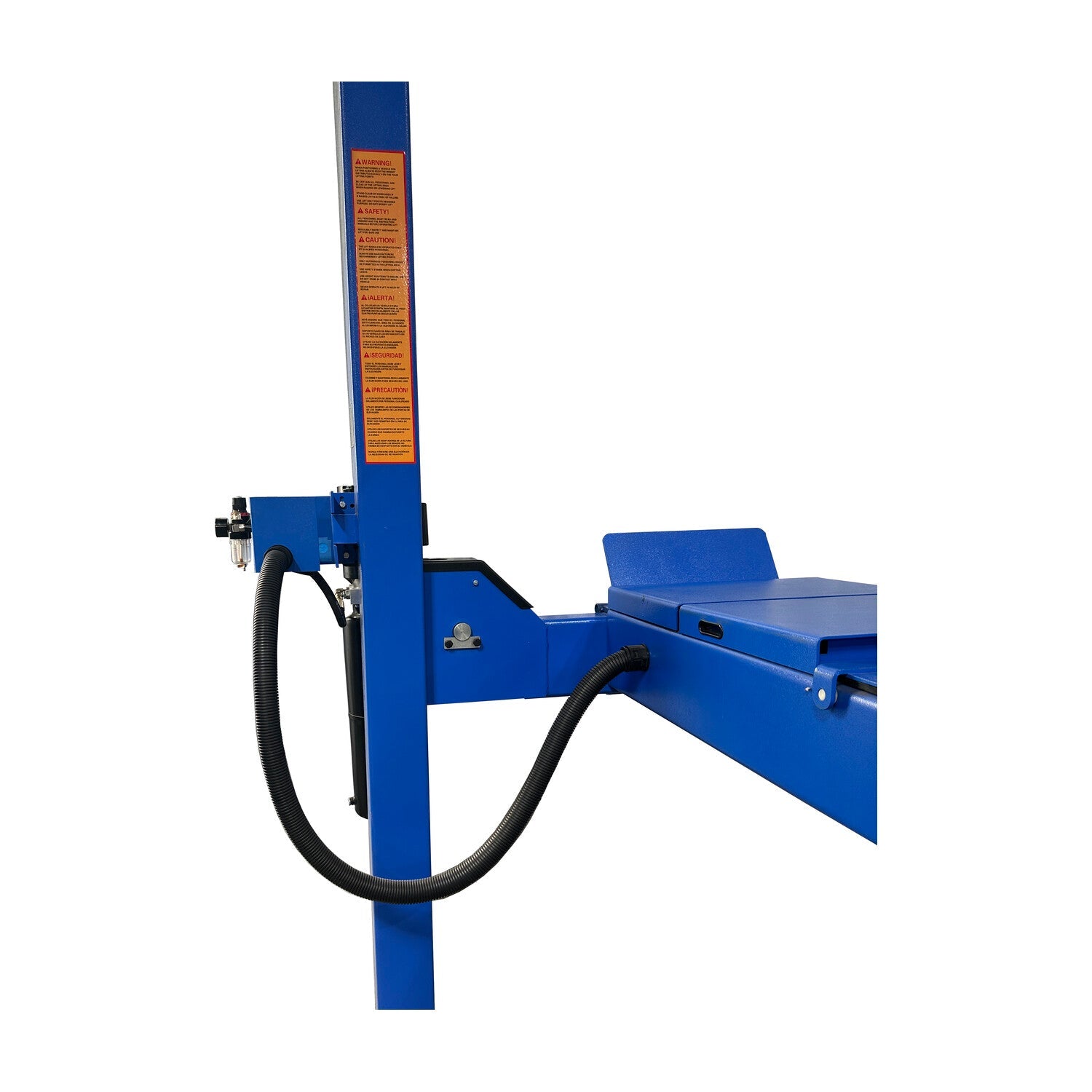

Single-Point Pneumatic Lock Release

A single-point pneumatic lock release simplifies lowering the lift from any locking position.

Runway Configuration & Included Equipment

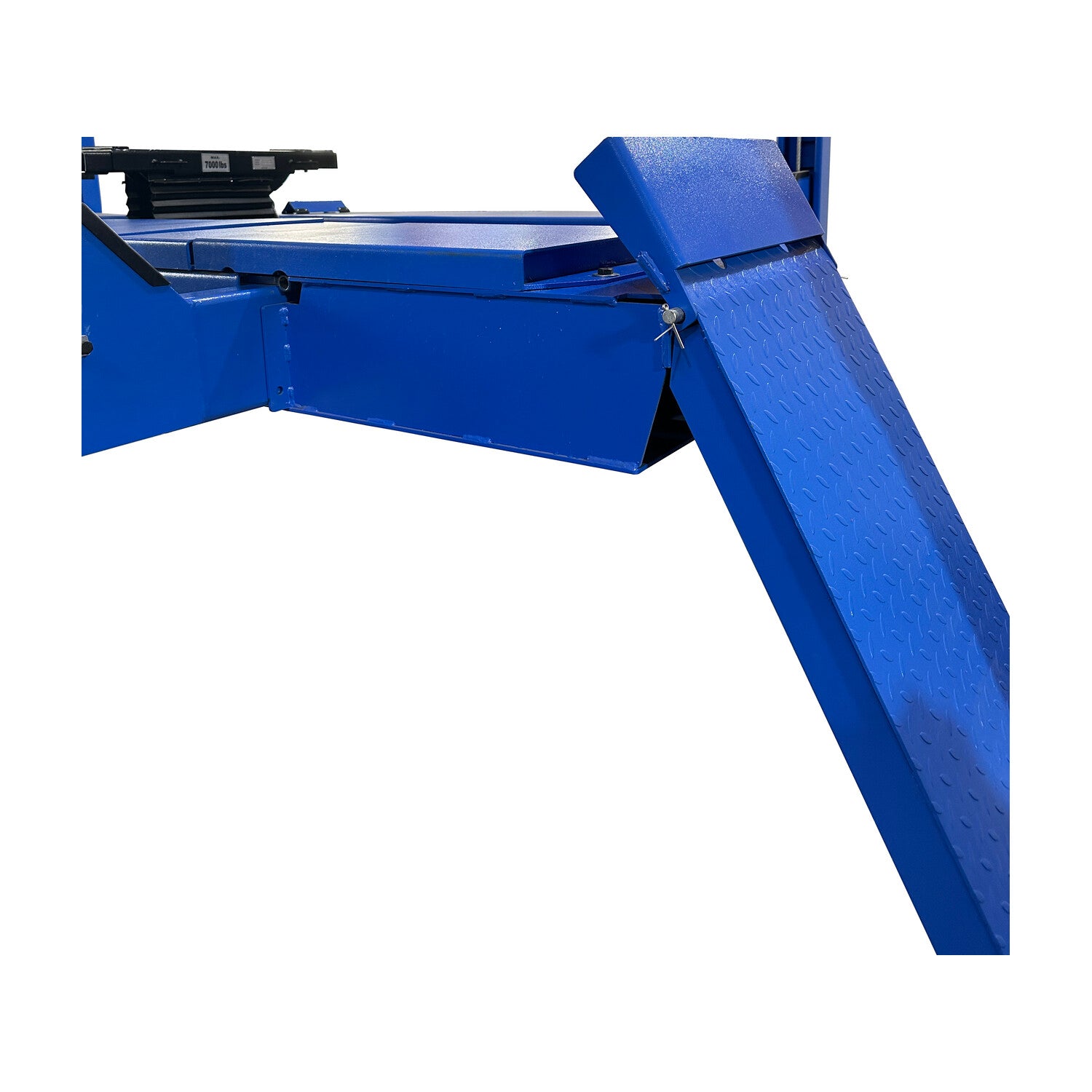

20 in wide runways with narrow and wide mounting positions adapt to different bay layouts. Self-chocking approach ramps with nylon rollers and one pair of wheel chocks are included, finished in a durable powder coat.

✅ Best For

• ✅ Alignment shops needing a dedicated 4-post alignment lift with a bolt-on runway kit
• ✅ Full-service shops that want alignment and general service capability on one lift
• ✅ Bays needing flexible narrow or wide runway mounting

❌ Not Ideal For

• ❌ Vehicles exceeding the 182.5 in max service wheelbase
• ❌ Shops that only need basic parking/storage without alignment capability

FP14KAC-X vs. iDEAL FP14KC-X — Alignment or Service-Only 4-Post Lift?

Choose the FP14KAC-X if you need alignment capability built in. Choose the FP14KC-X if you only need a general-service 4-post lift at a lighter shipping weight. Call (817) 865-3707 — we'll help you pick.

Full Specifications — FP14KAC-X

iDEAL Warranty — FP14KAC-X

The FP14KAC-X carries iDEAL's (Tuxedo Distributors, LLC) published Limited Warranty for its Lifts and Wheel Service equipment line.

Full terms are in the manufacturer's lift manual, linked above.

Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
