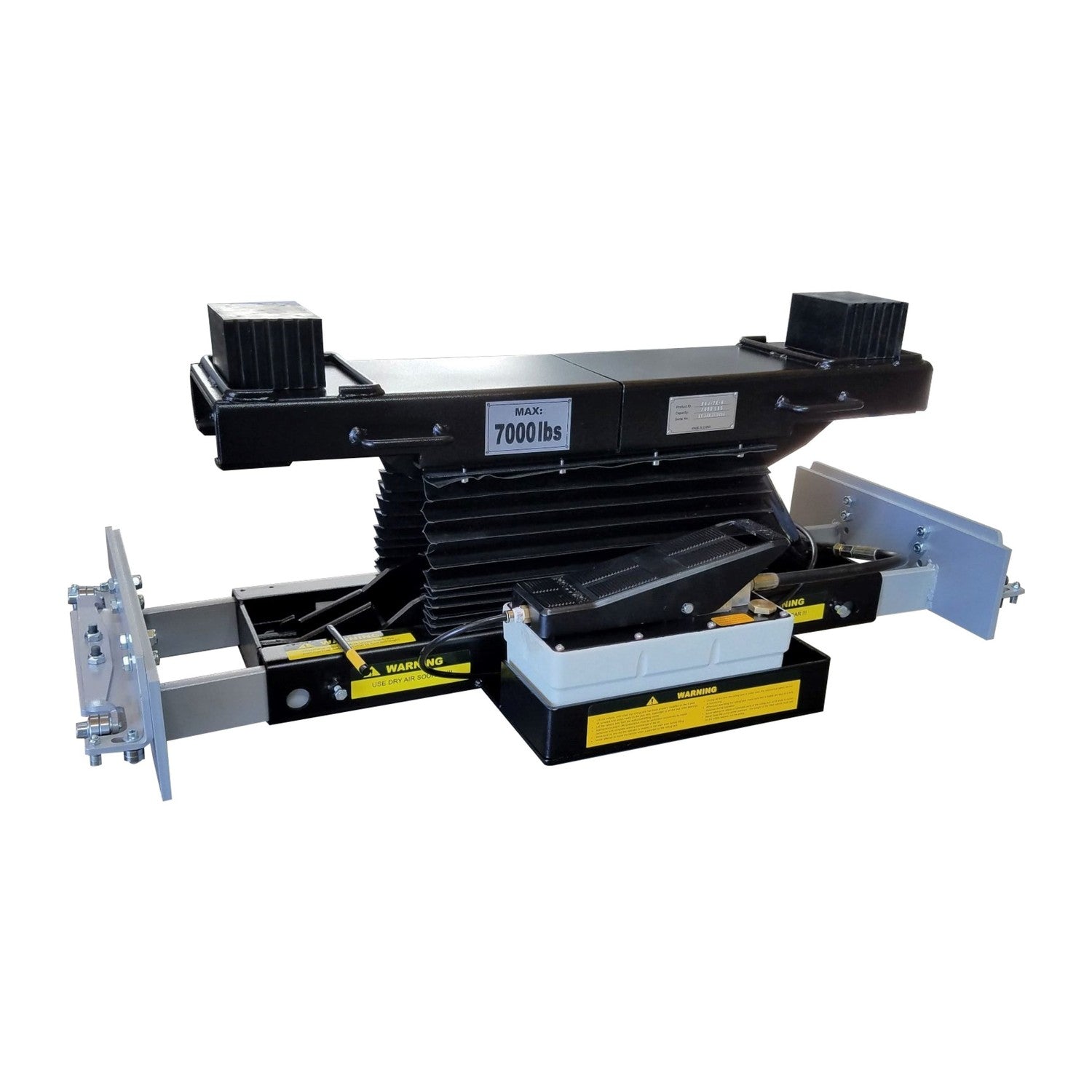

iDEAL Rolling Air Jack 7,000 lb. Capacity - On The Rail - Air / Hyd - Low Mount #RAJ-7K-L
| Part Number | RAJ-7K-L |
| Type | Rolling bridge/scissor air jack, On The Rail — Low Mount |
| Capacity | 7,000 lb |
| Mount Configuration | Low Mount — for medium-to-high runway jack rail positions |
| Operation | Pneumatic / hydraulic |
| Support Arm Range | 37-3/4 in – 49-1/4 in |
| Lifting Arm Range | 29-1/8 in – 51 in |
| Lifting Height Range | 8-11/16 in – 18-7/8 in |
| Locking Positions | 2 |
| Air Power Requirement | 125 PSI / 20 CFM |
| Includes | Rubber pad adapters (set of 2), protective scissor side skirts |
| Shipping Weight | 340 lb |
iDEAL Rolling Air Jack, 7,000 lb, Low Mount #RAJ-7K-L
The iDEAL RAJ-7K-L is a 7,000 lb capacity, automotive frame-engaging, scissor-style rolling bridge jack that mounts on a four-post or scissor lift's jack rails to add "wheels free" service capability for brake, suspension, tire, and general maintenance work. It's pneumatic/hydraulic operated and designed to lift either the front or rear wheels clear of the runways.

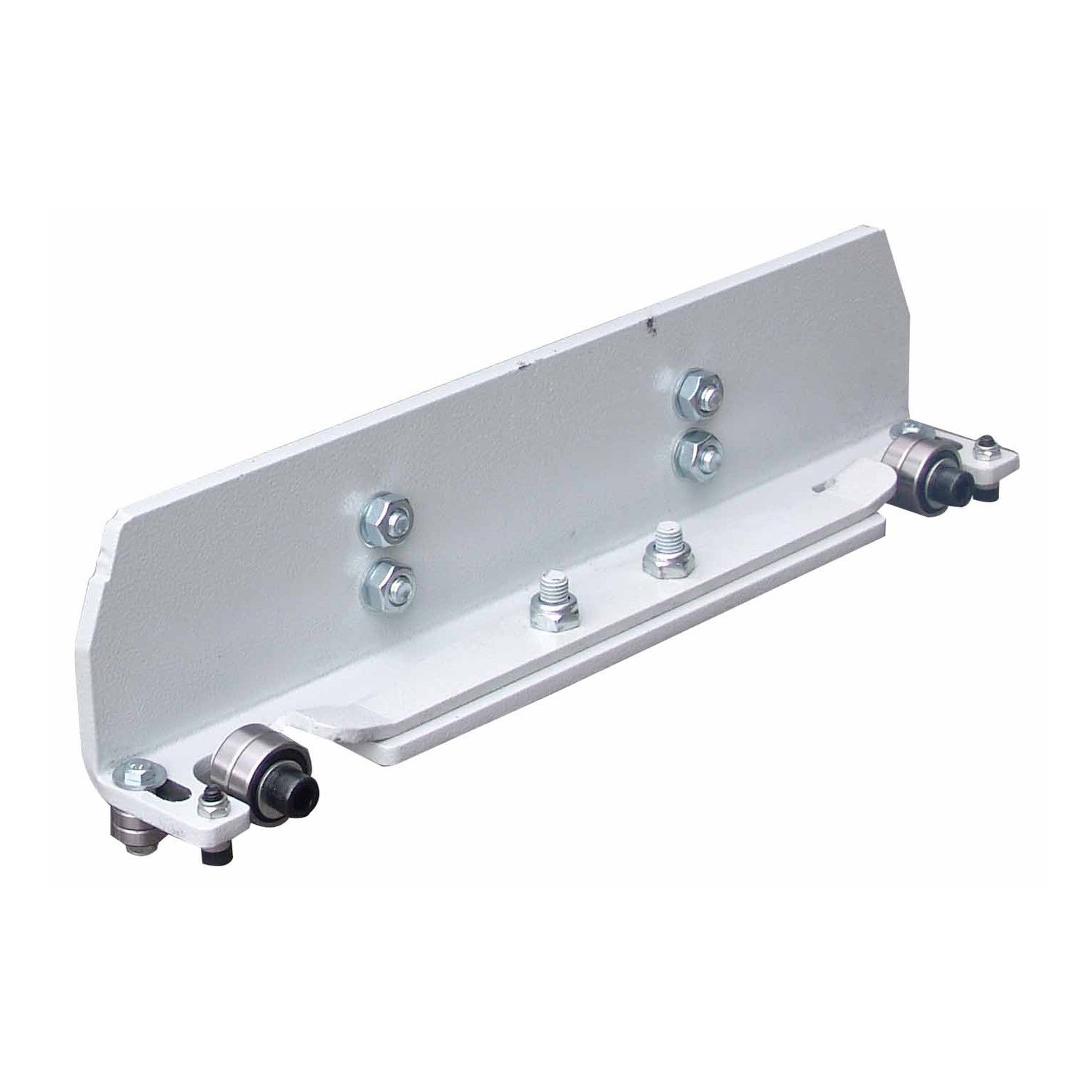

The RAJ-7K-L is the "Low Mount" configuration, built with iDEAL's universal roller body brackets sized for lifts whose runway jack rails sit at a medium-to-high position. Adjustable-width telescoping and locking support arms, with a support arm range of 37-3/4 in to 49-1/4 in and a lifting height range of 8-11/16 in to 18-7/8 in, let the jack cover a wide range of vehicle heights. It runs on 125 PSI / 20 CFM air supply and ships with rubber pad adapters and protective scissor side skirts.
Questions before ordering? Call (817) 865-3707 and our team will help confirm fit for your lift.
Compatibility & Fitment
Mounts on most commercial four-post or scissor lifts with integrated jack rails between the runways, including iDEAL's FP14KC-X family via the FP14KCX-ALK air line kit. The "L" (Low Mount) configuration is sized for lifts with medium-to-high runway jack rail positions — confirm your lift's jack rail height before choosing between the RAJ-7K-L and RAJ-7K-H.
Warranty
Tuxedo Distributors, LLC (iDEAL) backs this equipment with a limited one-year warranty to the original purchaser against defects in materials or workmanship under normal use; the purchaser is responsible for shipping charges. Contact Alamo for full warranty terms.
