iDEAL WB-953 Wheel Balancer - No Hood Assy #WB-953-B-iDEAL
| Model / Part Number | WB-953-B-iDEAL |
| Type | Wheel balancer, no hood |
| Max Wheel Diameter | 39 in |
| Rim Diameter | 10 in – 24 in |
| Wheel Weight Capacity | 150 lb |
| Accuracy | 1 gram |
| Power | 110V – 15 Amp – 1PH |
| Ship Weight | 305 lb |
- Level shop floor or bench rated for a 305 lb machine
- No anchoring required for standard placement
- Indoor use
- Dedicated 110V, 15 Amp, single-phase circuit
- Confirm outlet location relative to intended placement
- Allow clearance for the balancing shaft and operator workspace
- Confirm aisle/bay space for delivery
- Ships by LTL freight

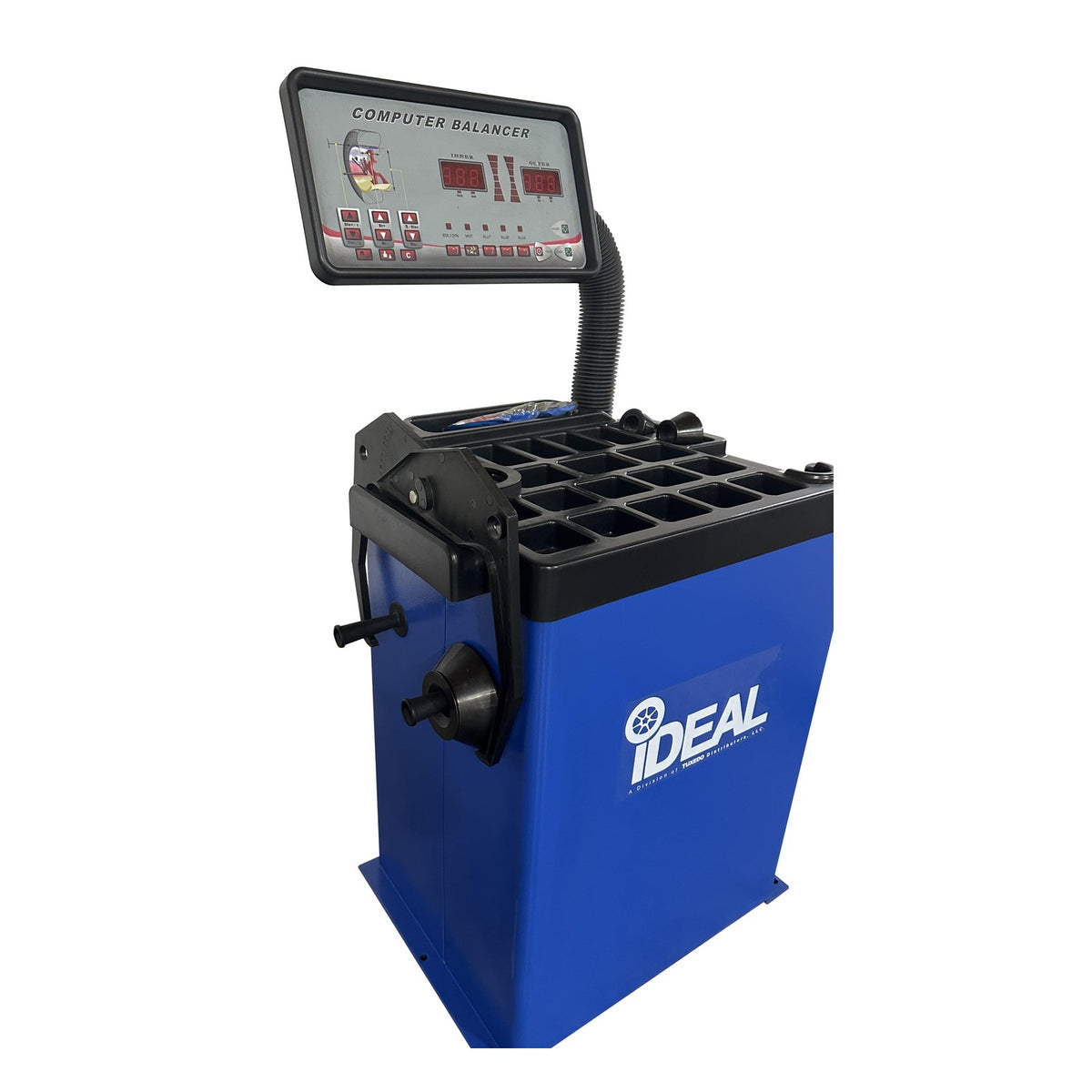

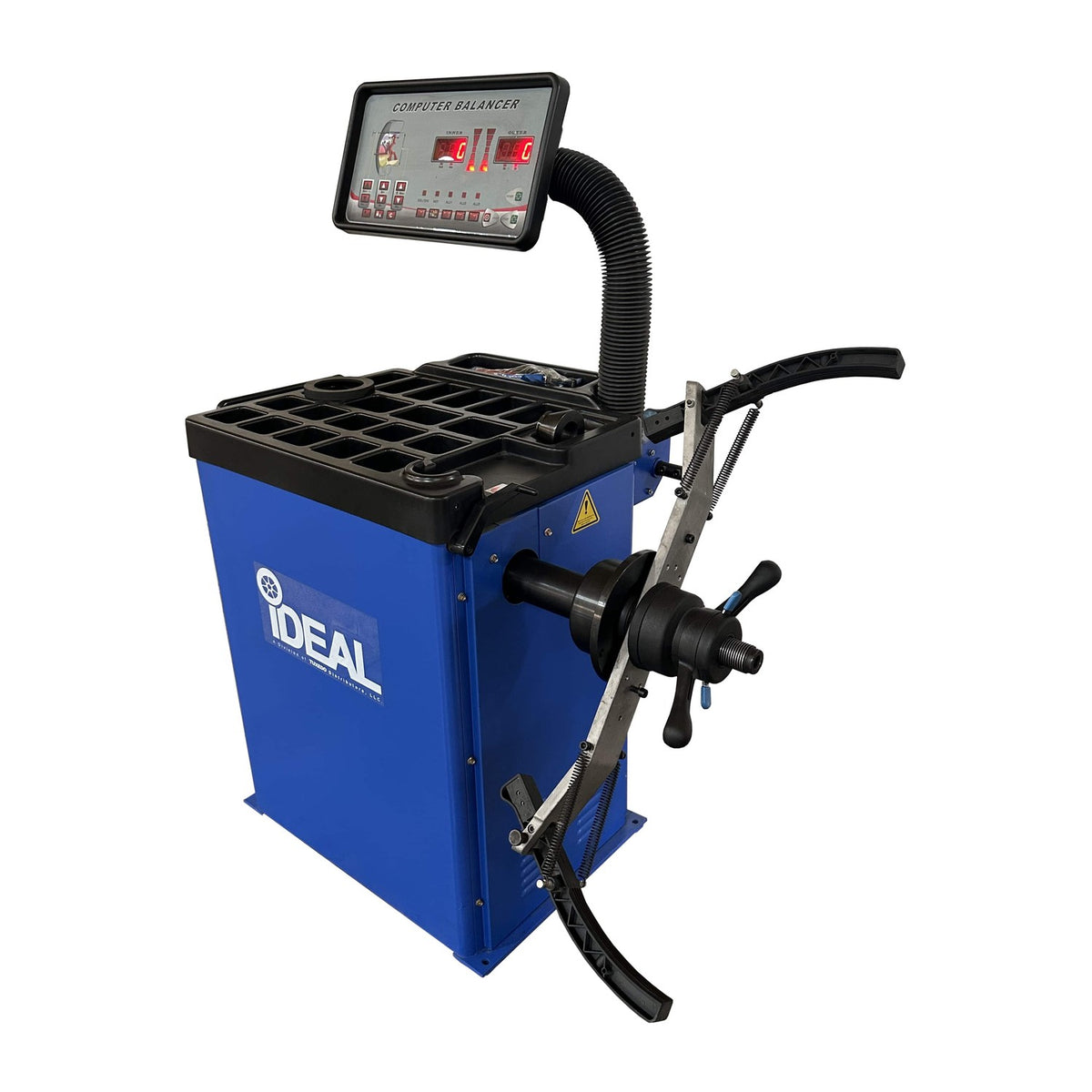

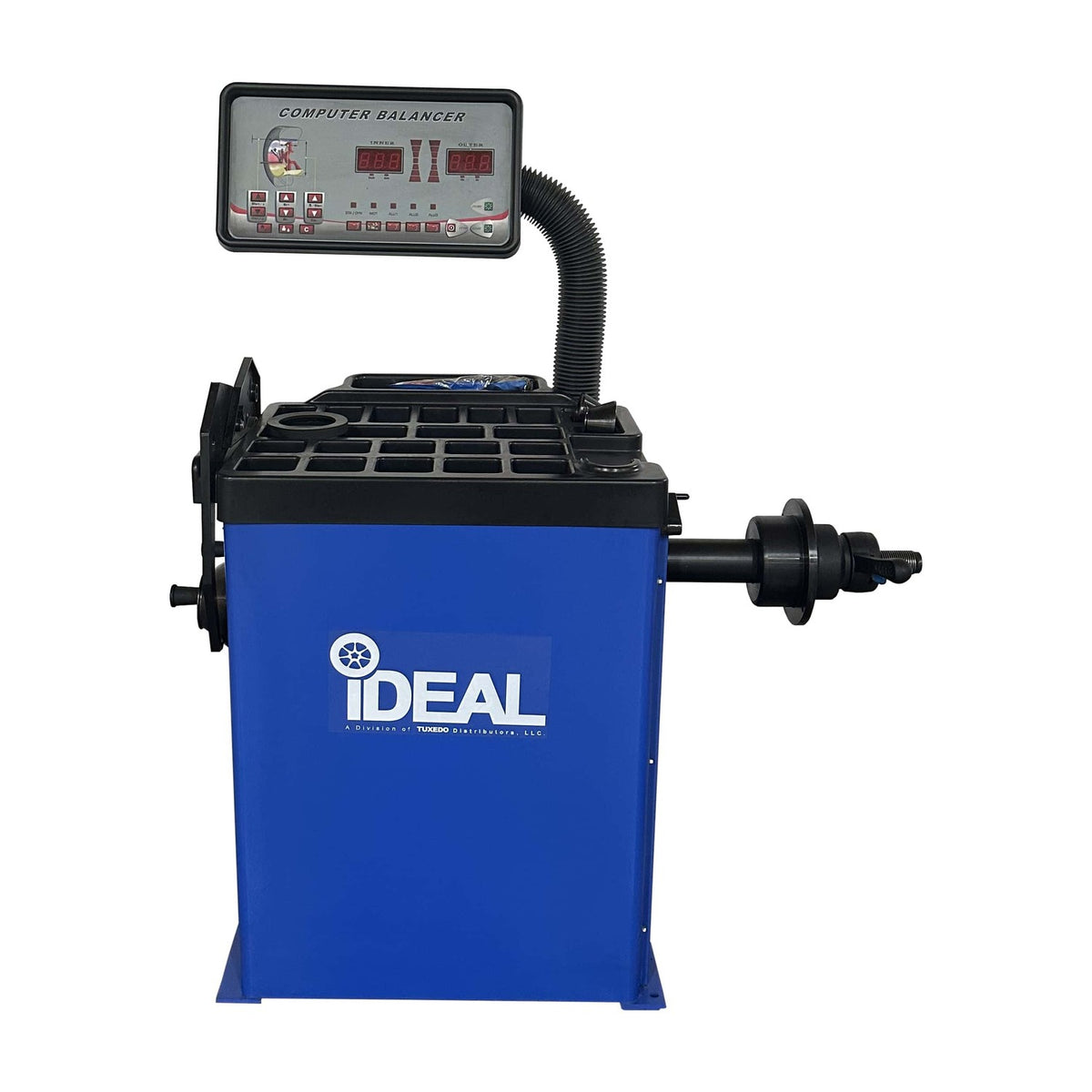

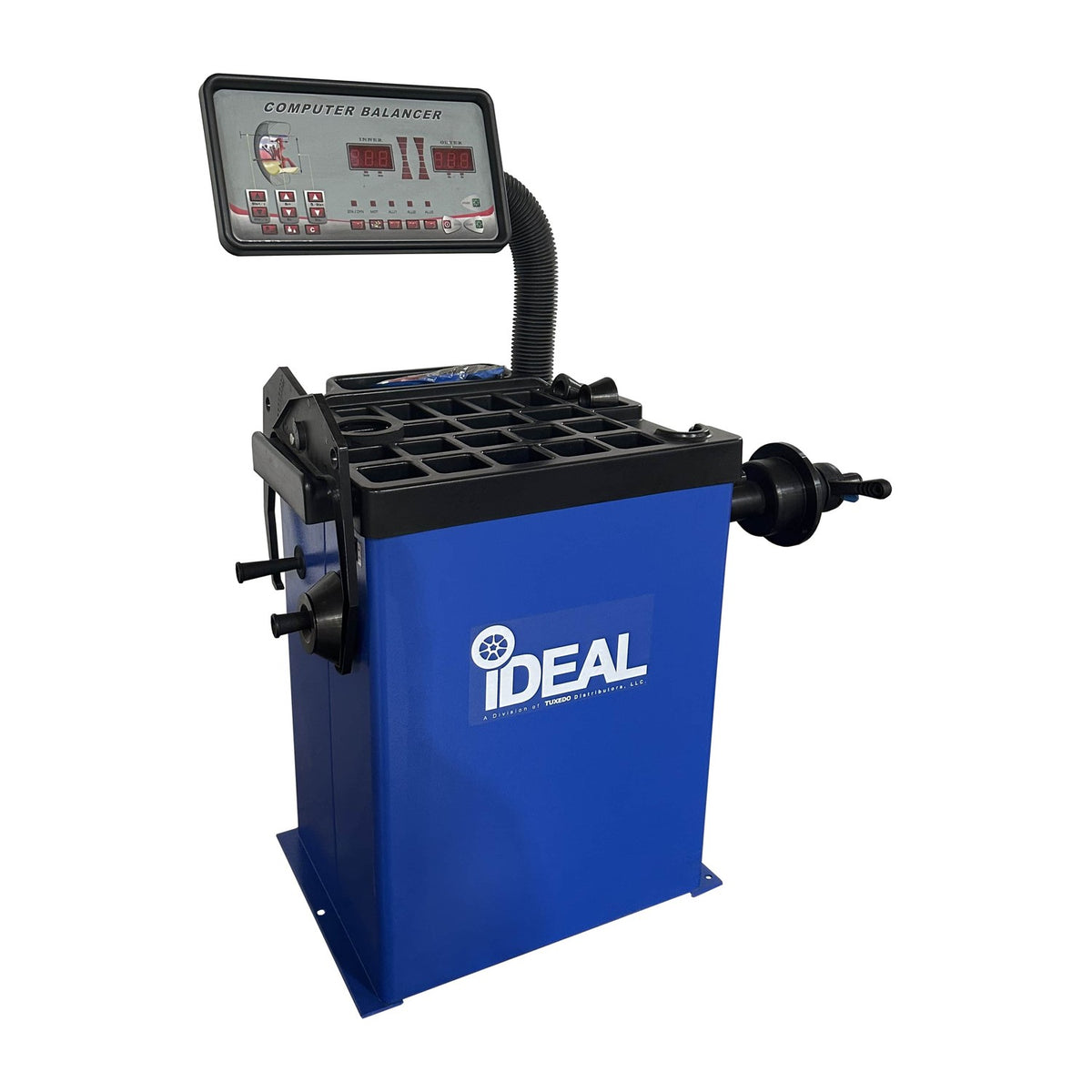

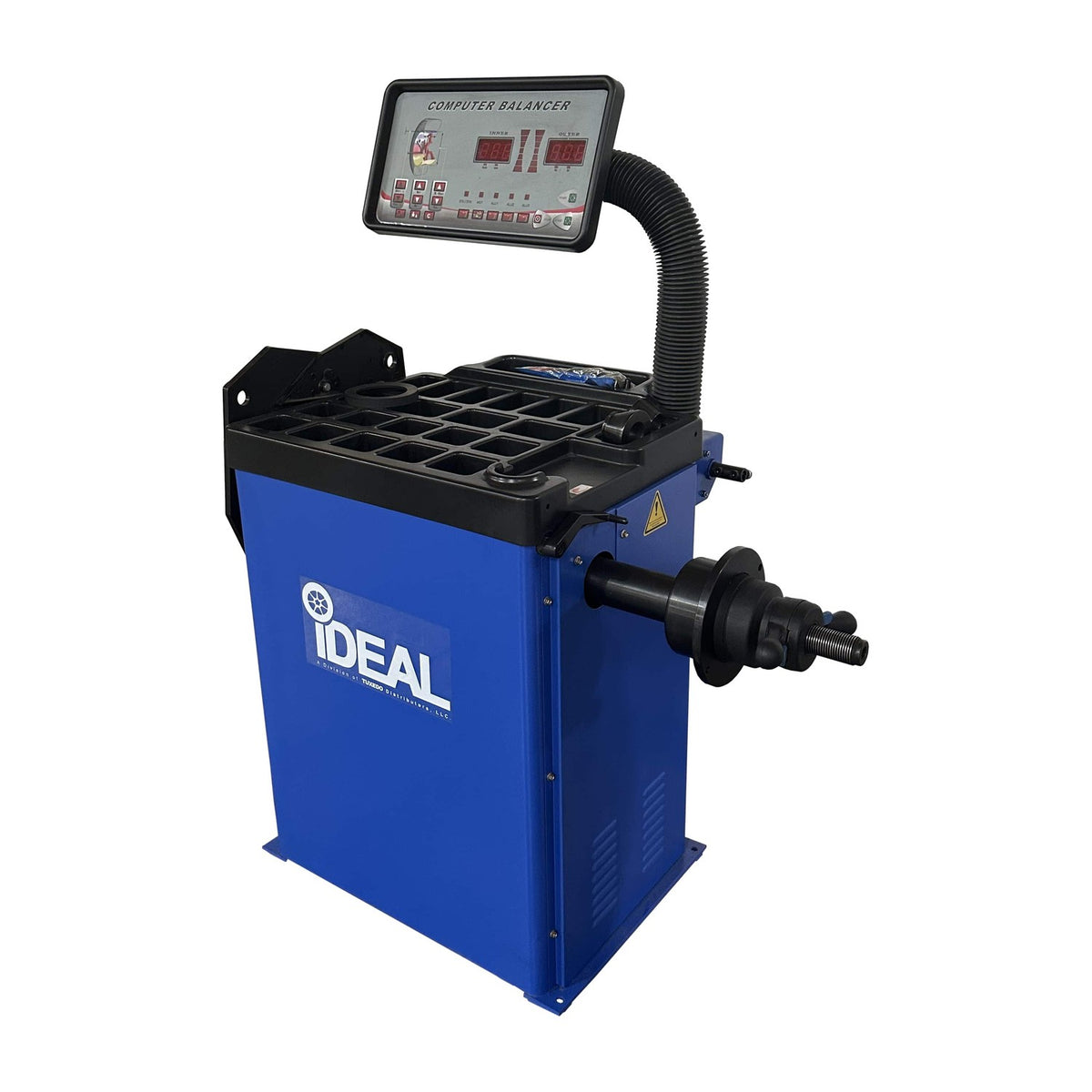

iDEAL WB-953-B-iDEAL — Wheel Balancer, No Hood
The iDEAL WB-953-B-iDEAL is a keypad-entry wheel balancer built for cars, light trucks, and motorcycles, balancing wheels up to 24 in rim diameter and 39 in overall wheel diameter with 1-gram accuracy. The WB-953-B is offered as the economical ‘Basic’ version of Tuxedo’s WB-953 line — same balancing hardware and accuracy, without the 38 in wheel hood/shroud, at a lower price point.
A 36 mm heavy-duty balancing shaft accommodates a wide range of wheel sizes and shapes, and the LED touch-panel keypad supports Static/Dynamic and 3 ALU balancing modes for both car and motorcycle wheels. Self-calibration and self-diagnosis features reduce setup time between uses.
It ships with a full accessory set: a weight hammer/application tool, wheel caliper, clamp bowl/bowl edge, small/medium/large/extra-large cone sets, a speed-nut assembly, and a large measurement indicator.
Who It's Built For
- ✅ Tire and wheel service shops that want an accurate, full-featured balancer without paying for a wheel hood/shroud
- ✅ Shops that balance both cars and motorcycles on the same machine (Multi-Mode Vehicle Balancing)
- ✅ Multi-bay shops needing Multi-User Operation — two operators can work with different settings
What It's NOT Built For
- ❌ Shops that want the debris-shielding 38 in wheel hood — that's the hood-equipped WB-953, a different model
- ❌ Wheels over 24 in rim diameter or 150 lb
Want the black powder-coat finish instead? See the WB-953-B-iDEAL-BLK. Questions about fit or capacity? Call Alamo at (817) 865-3707.
What Makes the WB-953-B-iDEAL Different
Large Rim Diameter Balancing
Balances up to 24 in rim diameter and 39 in overall wheel diameter — covers the large majority of car and light-truck wheels in shop today.
Multi-Mode Vehicle Balancing
Static/Dynamic and 3 ALU balancing modes support both car and motorcycle wheels on the same machine, with manual measurement input for distance and diameter.
Self-Calibrating and Multi-User
Self-calibration and self-diagnosis speed up setup, and Multi-User Operation lets two operators work with different settings without reconfiguring the machine between jobs.
36 mm Heavy-Duty Balancing Shaft
Accommodates a wider range of wheel sizes and shapes than a lighter-duty shaft, and the integrated centering spring speeds up proper wheel mounting.
✅ Best For
- ✅ Shops wanting full WB-953 balancing accuracy and features at a lower price without the hood
- ✅ Multi-operator shops needing Multi-User Operation
❌ Not Ideal For
- ❌ Shops that specifically want the enclosed 38 in wheel hood for debris containment
WB-953-B-iDEAL vs. WB-953-B-iDEAL-BLK — Which Finish Fits Your Shop?
Identical balancing hardware, accuracy, and accessories on both — the only difference is finish color.
| Decision Point | WB-953-B-iDEAL (this product) | WB-953-B-iDEAL-BLK |
|---|---|---|
| Finish | Standard finish | Black powder coat |
| Rim diameter capacity | 10 in – 24 in | 10 in – 24 in (same) |
| Ship weight | 305 lb | 305 lb (same) |
Both balance identically — choose whichever finish matches your shop's equipment lineup. Call (817) 865-3707 with any questions.
Full Specifications — WB-953-B-iDEAL
| Model / Part Number | WB-953-B-iDEAL |
| Wheel Balancer Model | WB-953-B |
| Data Entry | Keypad (LED touch-panel) |
| Max Wheel Diameter | 39 in |
| Rim Width | 1.5 in – 20 in |
| Rim Diameter | 10 in – 24 in |
| Wheel Weight Capacity | 150 lb |
| Accuracy | 1 gram |
| Power | 110V – 15 Amp – 1PH |
| Balancing Shaft | 36 mm heavy-duty |
| Ship Weight | 305 lb |
| Included | Weight hammer/application tool, wheel caliper, clamp bowl/bowl edge, small/medium/large/extra-large cone sets, speed-nut assembly, large measurement indicator |
⚠️ Installation Requirements
- Floor: Level shop floor rated for a 305 lb machine — no anchoring required for standard bench/floor placement.
- Power: Dedicated 110V, 15 Amp, single-phase circuit.
- Bay footprint: Allow clearance for the balancing shaft and operator workspace.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 with setup questions.
Warranty — WB-953-B-iDEAL
The WB-953-B-iDEAL is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.
| Component | Coverage Term |
|---|---|
| Structural components (Columns, Legs, Tracks, Arms, Carriages, Cross Rails, Uprights, Overhead Beam, Top Rail Beam, Swivel Pins) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only (purchaser covers return shipping) |
| Normal maintenance & wear parts | Not covered |
| On-site labor | Not covered |
Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable. Full terms are in the manufacturer's published Limited Warranty document, linked in Manuals & Resources on sibling Tuxedo/iDEAL Lifts and Wheel Service listings.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — WB-953-B-iDEAL
Does the WB-953-B-iDEAL price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
What's the difference between the WB-953-B-iDEAL and the black edition?
They're mechanically and electrically identical — same balancing accuracy, capacity, and accessories. The only difference is finish color.
Does the WB-953-B-iDEAL include a wheel hood?
No. This is the no-hood 'Basic' version of the WB-953 line, priced lower than the hood-equipped WB-953. It includes the full balancing accessory set (cones, caliper, weight hammer, speed-nut).
What is the WB-953-B-iDEAL's warranty?
Tuxedo backs the WB-953-B-iDEAL with the same 5-year structural warranty plus 1-year parts warranty published for Tuxedo/iDEAL Lifts and Wheel Service equipment, to the original purchaser in the US and Canada.
Why Buy the WB-953-B-iDEAL from Alamo Equipment & Service?
- Freight is included. The advertised price includes standard delivery within the contiguous 48 states.
- We coordinate delivery. Alamo helps confirm delivery details before shipment.
- We help with setup. Alamo can help coordinate professional installation.
- We service it. Questions after delivery? Call (817) 865-3707 — not a manufacturer hotline.
One clear delivered price for customers in the contiguous 48 states.
Shipping follows the method shown on the product page and at checkout. Standard parcel, calculated LTL, freight quotes, included freight, and pickup may apply by item.
