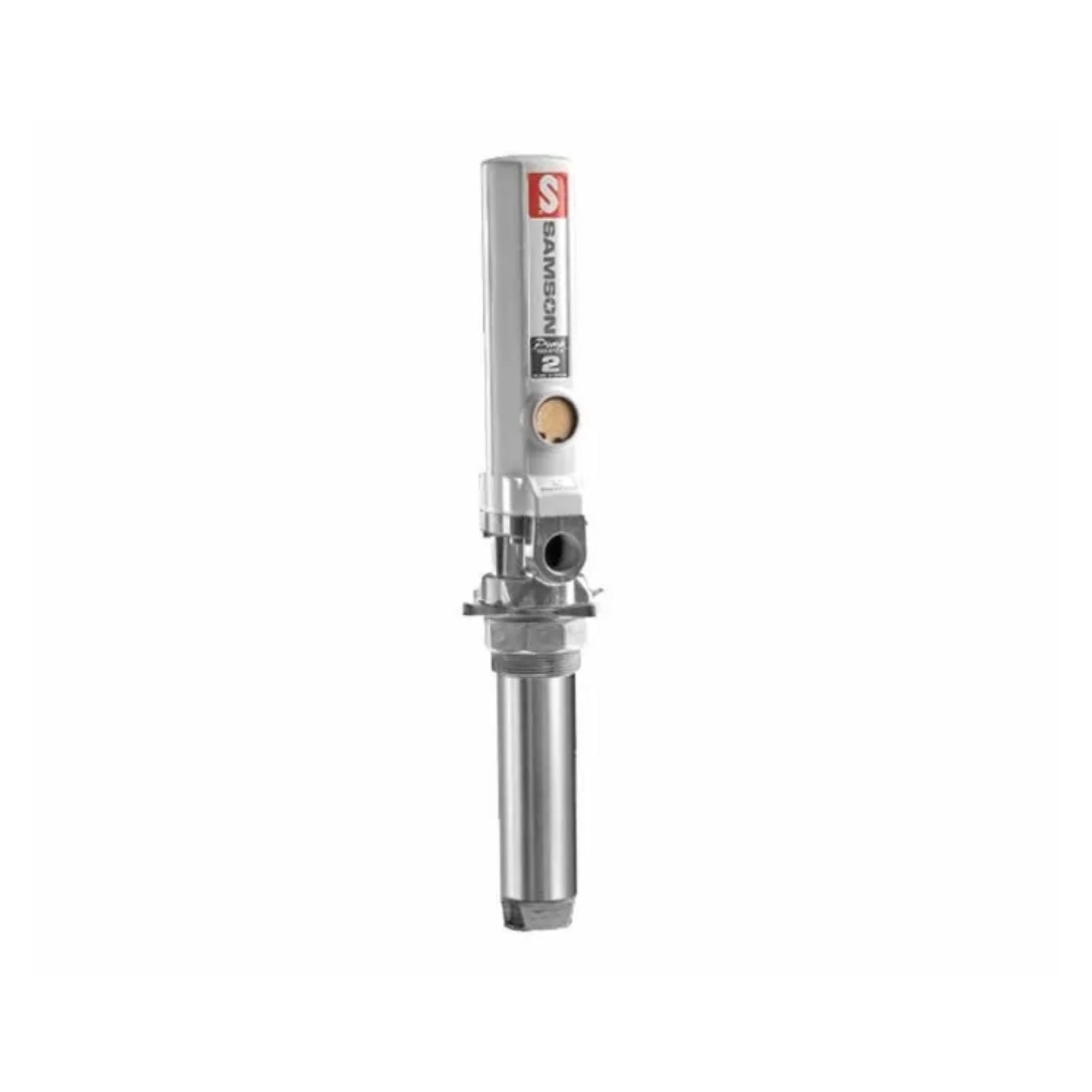

Samson PM2 1:1 55-Gallon Drum Oil Pump #352120
| Samson Part # | 352120 |
| Pump Series | PumpMaster 2 |
| Pump Type | Air-Operated Double-Acting Piston Pump |
| Pressure Ratio | 1:1 |
| Container | 55 Gallon (205 L) Drum |
| Bung Adapter | Height-Adjustable 2" Bung Adapter |
| Air Pressure Range | Approx. 22 to 145 psi (1.5 to 10 bar) |
| Air Consumption | 5.3 scfm (150 NL/min) |
| Maximum Fluid Outlet Pressure | 145 psi (10 bar) |
| Air Motor Effective Diameter | 1.4" (35 mm) |
| Air Motor Stroke | 3" (75 mm) |
| Rated Delivery | 5.3 GPM (20 L/min) |
| Maximum Free Flow | 13.7 GPM (52 L/min) |
| Air Inlet | 1/4" Female |
| Fluid Outlet | 3/4" Female |
| Pump Tube Length | 36" (915 mm) |
| Overall Height | Approx. 47.25" (1200 mm) |
| Published B Dimension | Approx. 11.1" (282-285 mm) |
| Product Weight | 12 lb (5.4 kg) |
| Wetted Materials | Aluminum, Steel, NBR, Acetal & Polyurethane |
Samson PumpMaster 2 1:1 Oil Pump for 55-Gallon Drums #352120
The Samson PumpMaster 2 #352120 is a double-acting, air-operated 1:1 piston pump designed for high-flow transfer of lubricating fluids from 55-gallon drums. Its low-pressure, high-volume design makes it well suited for transferring oil rather than feeding long, high-pressure distribution systems.
The pump includes a height-adjustable 2" bung adapter for drum mounting and a 36" pump tube sized for 55-gallon containers. Compatible fluids include synthetic and mineral-based lubricating oils, transmission fluid, and hydraulic oil.
Published product weight: 12 lb. This is the manufacturer's pump weight and should not be treated as verified packaged shipping weight. Questions before ordering? Call (817) 865-3707.
Applications & Fluid Compatibility
Designed for low-pressure, high-volume transfer of compatible lubricants from a 55-gallon drum. Typical applications include automotive and fleet service shops, in-plant oil transfer, agriculture, marine service, and equipment maintenance.
Installation & Fitment
The #352120 configuration is designed for direct bung mounting on a 55-gallon drum. Verify the drum opening, compressed-air supply, fluid compatibility, and required transfer distance before installation.
