SVI International 2HP Power Unit #BH-7006A-20
| SVI Part Number | BH-7006A-20 |
| OEM / Reference Number | AB-1488 |
| Product Type | Hydraulic Lift Power Unit |
| Motor | 2 HP, Single Phase, 3450 RPM |
| Voltage | 208-230 VAC |
| Pressure Relief Setting | 2900 PSI / 200 bar |
| Pump Displacement | 2.5 cc/rev |
| Reservoir | 4.0 Gallon |
| Motor Frame | 56 Frame |
| Maximum Amps | 18A at 230 VAC |
| Pressure / Return Port | 9/16" SAE |

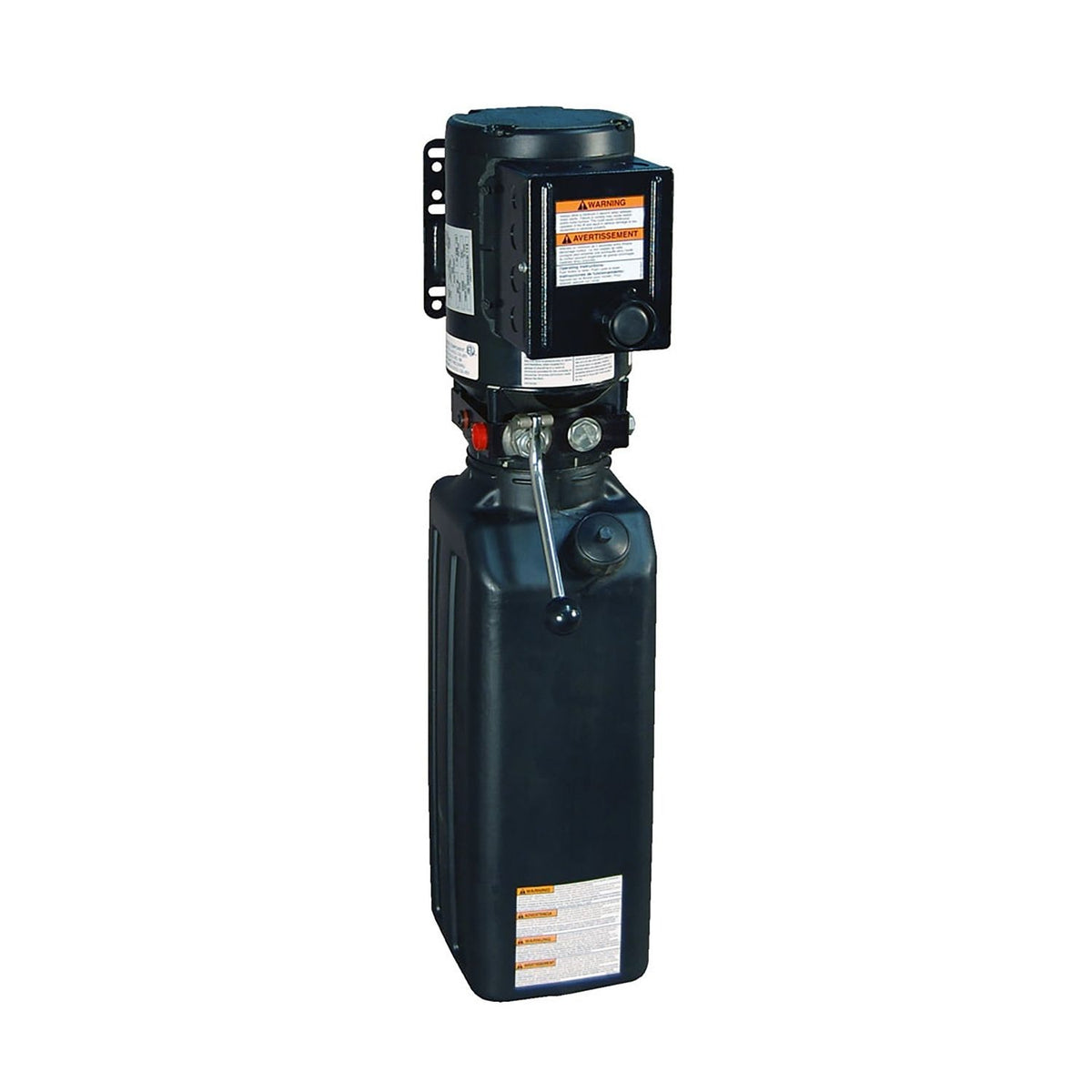

SVI International 2HP Hydraulic Power Unit #BH-7006A-20
SVI International #BH-7006A-20 is an SPX Stone hydraulic power unit built for automotive lift applications requiring a 2900 PSI pressure-relief setting. The assembly combines a 2 HP single-phase 3450 RPM motor, 2.5 cc/rev hydraulic pump, and 4-gallon reservoir.
SVI lists this power unit under OEM/reference number AB-1488. It is also shown in SVI BendPak parts breakdowns as the specified power unit for models including XP-10AC and XP-10C. Because pressure-relief setting, electrical service, reservoir arrangement, and mounting can vary across lift models, confirm the lift model and existing power-unit specifications before ordering.
Aftermarket OEM Alternative: This is an SVI International replacement power unit cross-referenced to AB-1488. The reference number is provided to help identify the correct replacement; this is not an OEM-branded BendPak or SPX Stone part.
Documented Applications
| Make / Brand | Model | OEM / Reference # | Notes |
|---|---|---|---|
| BendPak | XP-10AC | 5585079 | SVI parts breakdown lists BH-7006A-20 as power unit |
| BendPak | XP-10C | 5585079 | SVI parts breakdown lists BH-7006A-20 as power unit |
Other applications may use BH-7006A-20. Verify the exact lift model and required pressure-relief setting before ordering.
Product Features
- 2 HP single-phase electric motor
- 208-230 VAC electrical configuration
- 3450 RPM motor speed
- 2900 PSI / 200 bar pressure-relief setting
- 2.5 cc per revolution pump displacement
- 4-gallon hydraulic reservoir
- Compact SPX Stone power-unit configuration
