Tuxedo 8,000 lb Deluxe Storage Lift Extended Length / Height #FP8K-DX-XLT
| Model / Part Number | FP8K-DX-XLT |
| Capacity | 8,000 lb |
| Type | Four post deluxe storage/service lift, extended length |
| Overall Length w/ Ramp | 222-1/2 in |
| Overall Height | 94 in |
| Lifting Height | 82-1/4 in |
| Length of Runways | 180-1/2 in |
| Power | 115V, 20A, single-phase |
| Ship Weight | 1,800 lb |
- Level, load-rated shop or garage floor
- Follow manufacturer anchoring/base-plate specs in the installation manual
- Indoor use
- 115V, 20A, single-phase electrical service for the cable-drive power unit
- Have a qualified electrician run the circuit if needed
- Confirm 222-1/2 in overall length with ramp and 109-3/8 in overall width against your bay
- Verify ceiling height clears an 82-1/4 in lifting height plus vehicle height
- Ships via LTL freight
Tuxedo FP8K-DX-XLT — 8,000 lb Deluxe Storage Lift, Extended Length

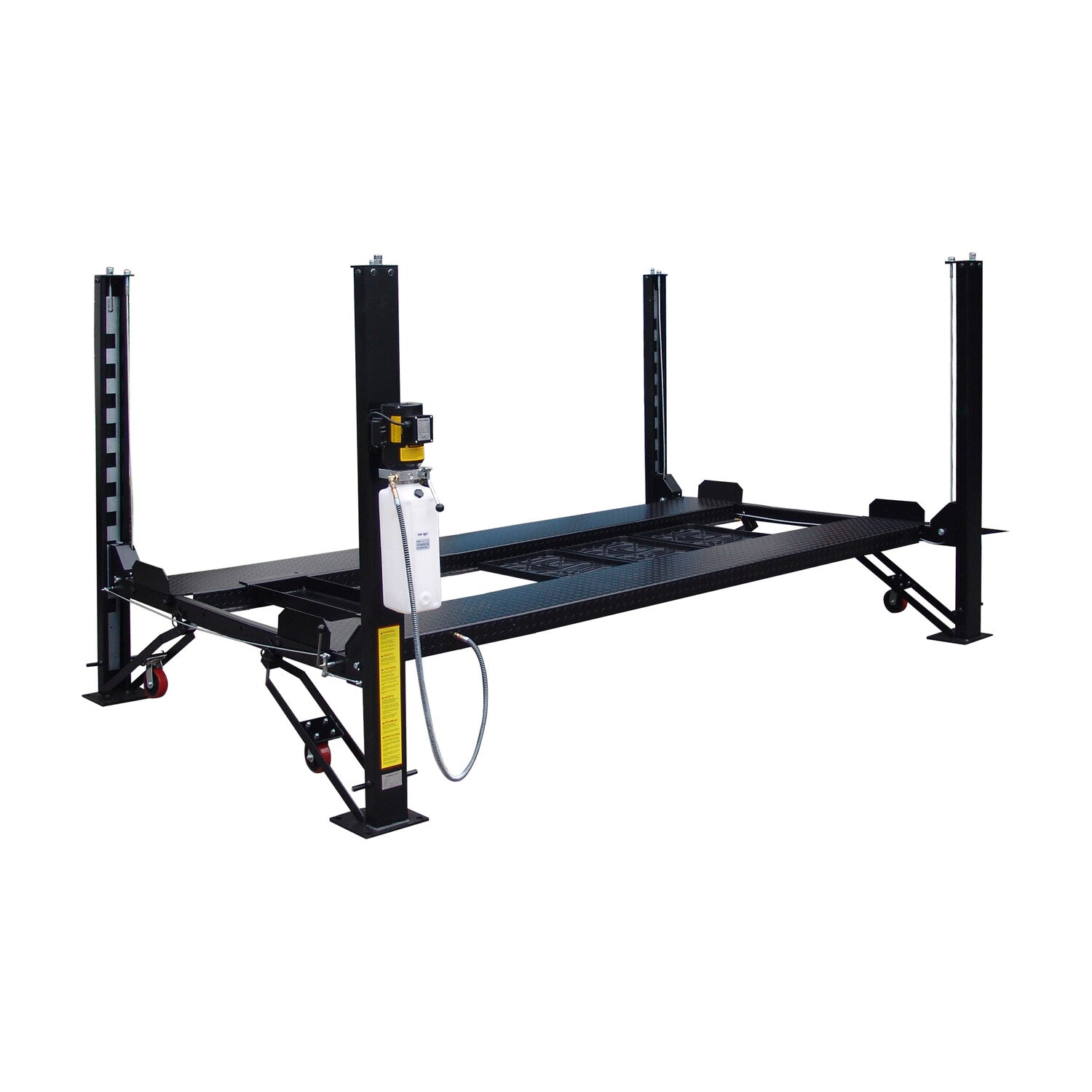

The Tuxedo FP8K-DX-XLT is an 8,000 lb four-post deluxe storage and service lift with extended runway length and height, designed to store one vehicle underneath while using the deck above for a second vehicle, or to raise a vehicle for undercarriage service and inspection. Overall length with ramp is 222-1/2 in, with 180-1/2 in runways and a maximum lifting height of 82-1/4 in.
It uses a classic hydraulic-over-cable lifting system with a 3/8 in cable diameter and 12 lock positions, running on a 115V, 20A single-phase power unit. It comes standard with poly casters (for rolling a vehicle underneath when the lift is up), drip trays, and a jack/tool tray — a step up from Tuxedo's basic storage lift models.
It's built for homeowners and shops that want dual-purpose storage and service capability in one four-post lift, with a longer, taller platform than the standard FP8K-DX for larger vehicles or added ground clearance.
Who It's Built For
- ✅ Homeowners and shops wanting to store one vehicle underneath a second vehicle parked on the lift
- ✅ Facilities needing occasional underside service/inspection access on a storage-style lift
- ✅ Buyers who want the extended-length, extended-height (XLT) version for longer vehicles or extra ground clearance
What It's NOT Built For
- ❌ Vehicles or loads exceeding 8,000 lb
- ❌ High-frequency professional service work — this is a storage-oriented lift, not a dedicated service lift like a two-post
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the FP8K-DX-XLT Different
Extended Length & Height (XLT)
At 222-1/2 in overall length with ramp and 82-1/4 in lifting height, the FP8K-DX-XLT is longer and taller than Tuxedo's standard FP8K-DX, accommodating longer vehicles or providing more ground clearance underneath.
Deluxe Package: Poly Casters, Drip Trays, Jack Tray

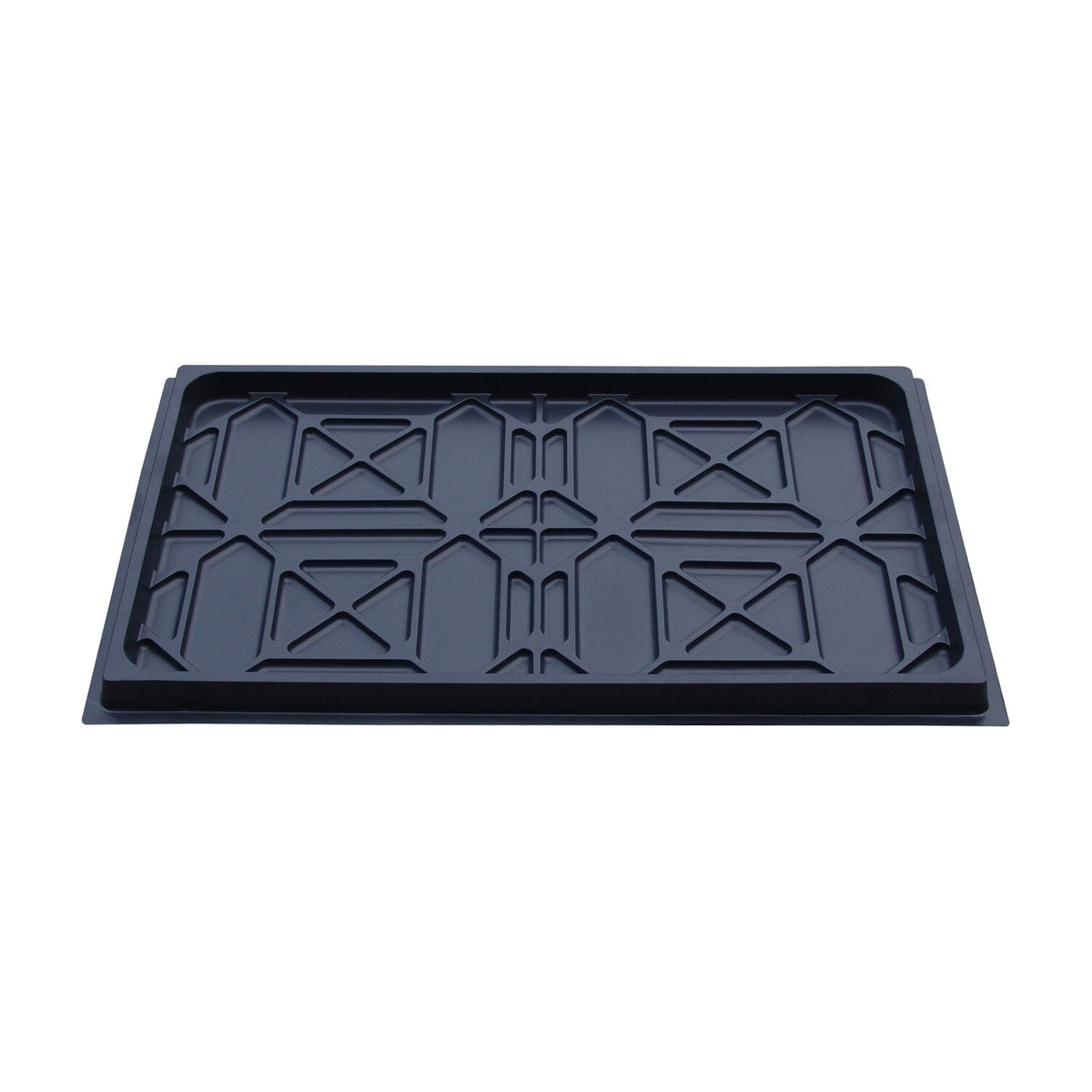

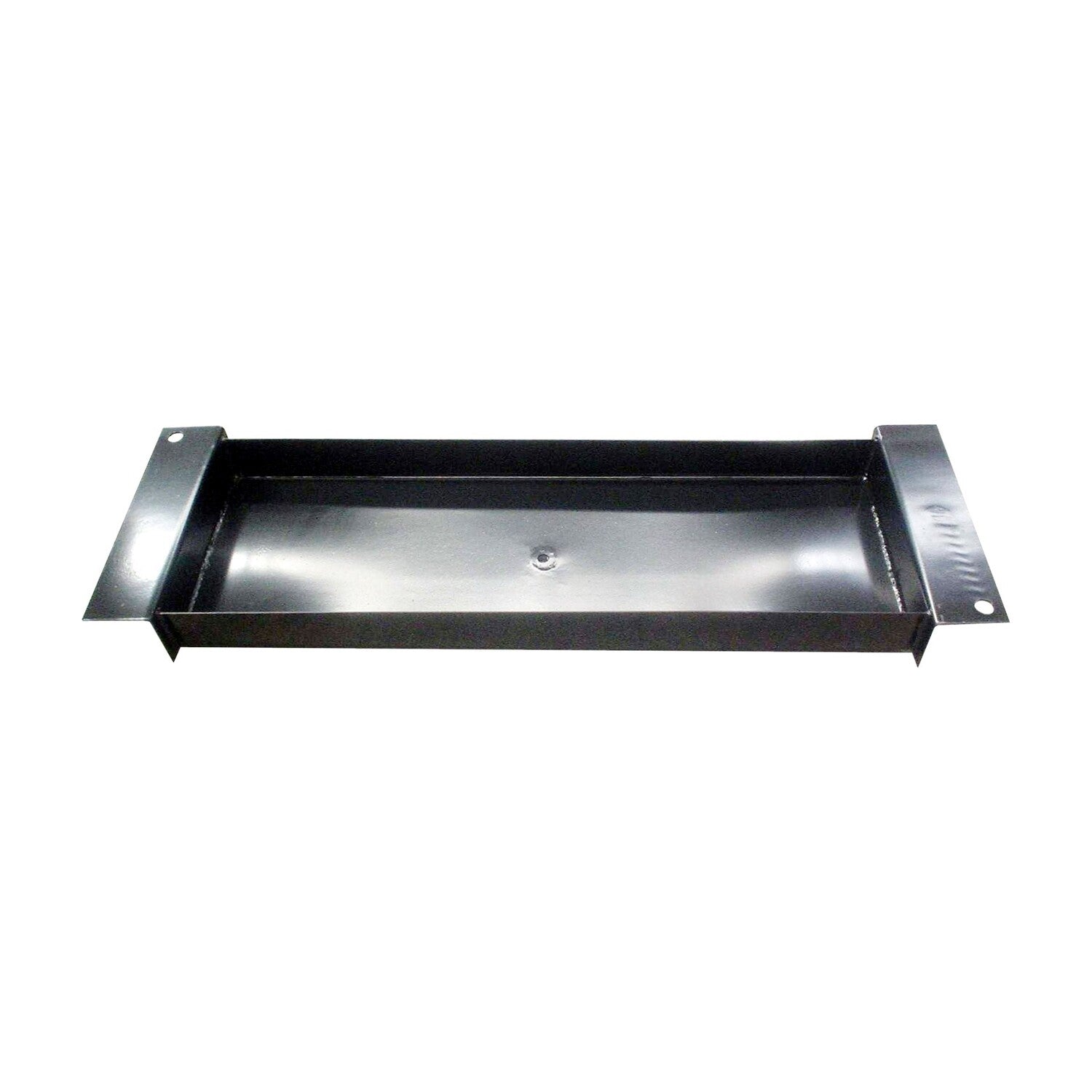

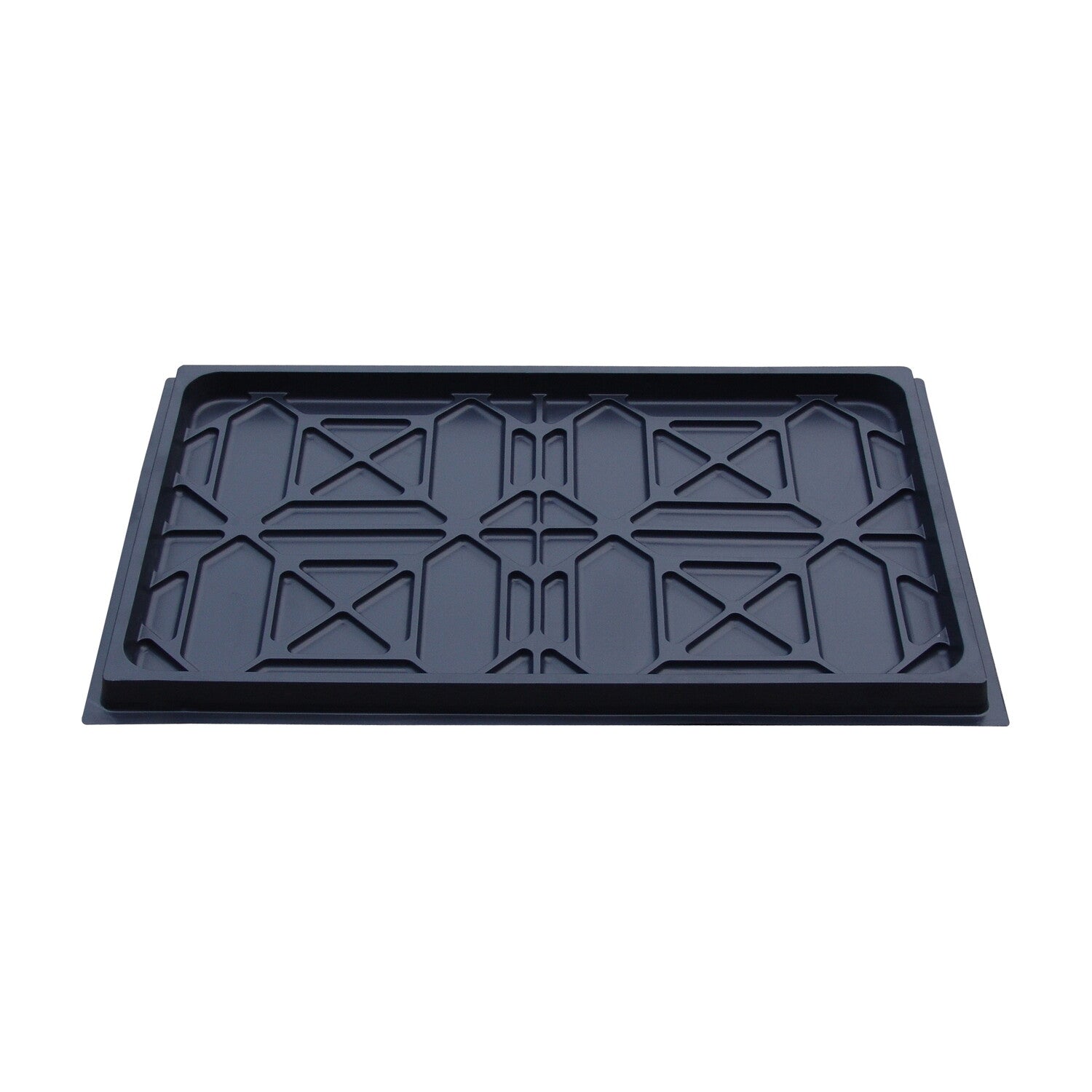

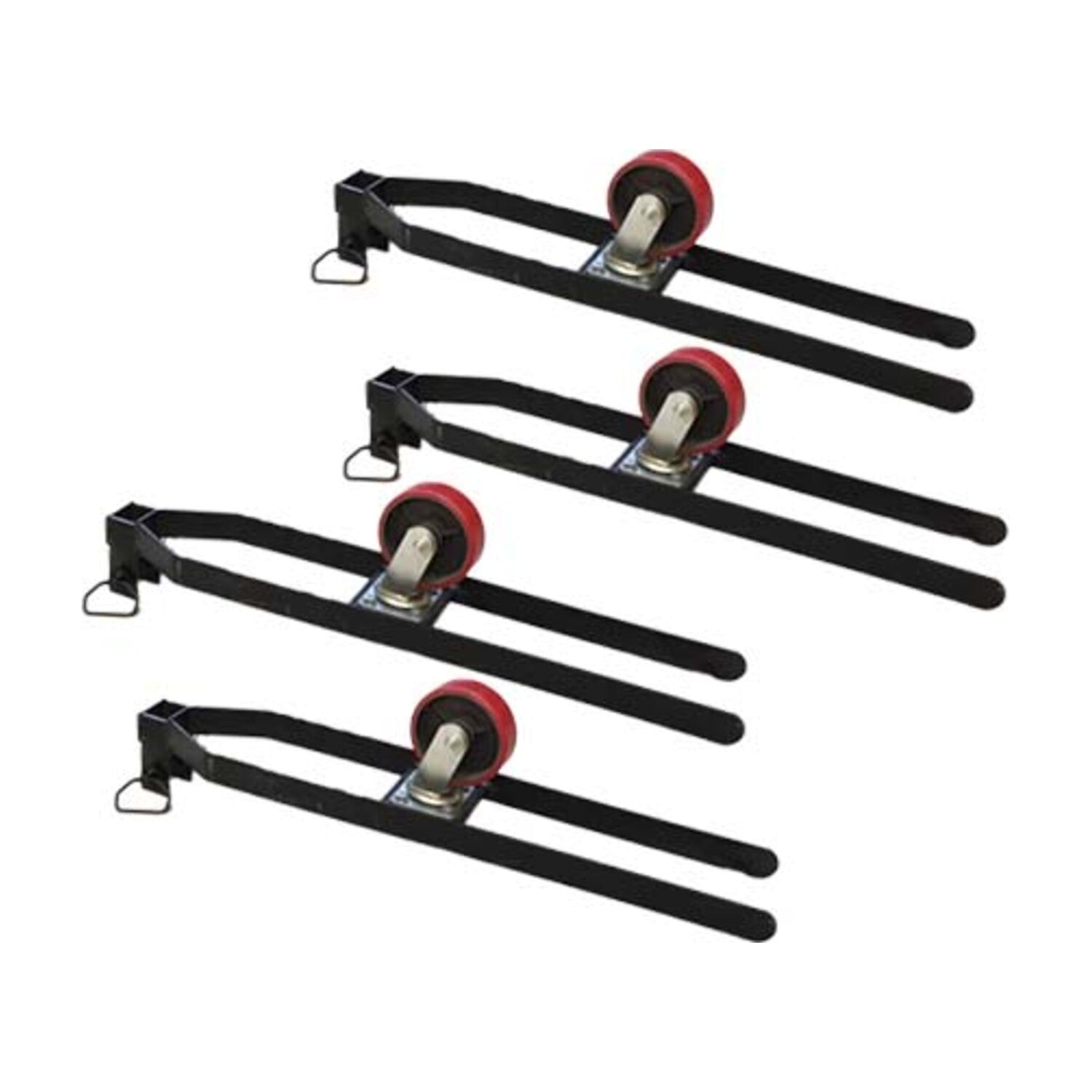

Comes standard with a poly caster kit for rolling a vehicle underneath when the lift is raised, plus drip trays and a jack/tool tray — features not included on Tuxedo's basic FP8K-B storage lift.
Hydraulic-Over-Cable Lifting
A classic hydraulic-over-cable system with 3/8 in cables and 12 lock positions lifts the platform to 82-1/4 in for storage or service access.
Dual-Purpose Storage & Service
Functions as both a vehicle storage lift (park one vehicle underneath) and a service lift for maintenance and repair work.
Footprint
222-1/2 in long x 109-3/8 in wide overall; confirm this against your garage or bay dimensions before ordering.
✅ Best For
- ✅ Homeowners maximizing garage space with dual-vehicle storage
- ✅ Shops wanting occasional underside access on a storage-style lift
- ✅ Buyers needing the extended length/height of the XLT over the standard FP8K-DX
❌ Not Ideal For
- ❌ Vehicles over 8,000 lb — see the FP9K-DX-XLT for higher capacity
- ❌ High-volume professional service shops needing a dedicated two-post or four-post service lift
FP8K-DX-XLT vs. FP9K-DX-XLT — Which Storage Lift Capacity Fits Your Garage?
Both are extended-length, extended-height deluxe storage lifts with poly casters, drip trays, and jack tray included, differing mainly in capacity and footprint.
| Decision Point | FP8K-DX-XLT | FP9K-DX-XLT |
|---|---|---|
| Capacity | 8,000 lb | 9,000 lb |
| Overall length w/ ramp | 222-1/2 in | 239 in (longer) |
| Overall width | 109-3/8 in | 123 in (wider) |
| Lifting height | 82-1/4 in | 85 in (taller) |
| Ship weight | 1,800 lb | 2,332 lb |
Choose the FP8K-DX-XLT for a smaller footprint at 8,000 lb capacity; choose the FP9K-DX-XLT for larger vehicles or higher capacity with a longer, wider, taller platform. Call (817) 865-3707 to confirm which fits your garage or bay.
Full Specifications — FP8K-DX-XLT
| Model / Part Number | FP8K-DX-XLT |
| Capacity | 8,000 lb |
| Overall Length w/ Ramp | 222-1/2 in |
| Overall Width (Outside Base Plates) | 109-3/8 in |
| Overall Height | 94 in |
| Lifting Height | 82-1/4 in |
| Width Between Posts | 100-5/16 in |
| Length of Runways | 180-1/2 in |
| Width of Runways | 18-5/8 in |
| Lifting Speed | 100 sec |
| Max Clearance Under Track | 78 in |
| Cable Diameter | 3/8 in |
| Base Plate Size | 10 in x 12 in |
| Lock Positions | 12 |
| Included | Poly caster kit, drip trays, jack/tool tray |
| Power | 115V, 20A, single-phase |
| Ship Weight | 1,800 lb |
| Shipping Dimensions | 182 in L x 22 in W x 41 in H |
⚠️ Installation Requirements
- Floor: Level, load-rated shop or garage floor; follow manufacturer base-plate/anchoring specs.
- Electrical: 115V, 20A, single-phase circuit for the cable-drive power unit.
- Bay footprint: Confirm 222-1/2 in overall length with ramp and 109-3/8 in overall width.
- Ceiling height: Confirm clearance for an 82-1/4 in lifting height plus the tallest vehicle you'll store or service.
- Freight: Standard freight delivery within the 48 contiguous United States is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 to coordinate delivery and setup guidance.
Warranty — FP8K-DX-XLT
Tuxedo Distributors, LLC offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada, covering the FP8K-DX-XLT.
| Component | Coverage Term |
|---|---|
| FP8K-DX-XLT storage lift (complete unit, parts/workmanship) | 1 year limited warranty, original purchaser, US & Canada |
There is no other express warranty on Tuxedo lifts; this warranty is exclusive of and in lieu of all other warranties, expressed or implied, including warranties of merchantability and fitness for a particular purpose. Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we handle it.
❓ Frequently Asked Questions — FP8K-DX-XLT
Does the FP8K-DX-XLT price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
Can I park one vehicle under another on the FP8K-DX-XLT?
Yes. It's a dual-purpose storage lift — with the included poly casters, a vehicle can be rolled underneath when the lift is raised.
What's the maximum lifting height?
82-1/4 in, giving room to store or work underneath a raised vehicle.
How is the FP8K-DX-XLT different from the FP9K-DX-XLT?
The FP8K-DX-XLT has an 8,000 lb capacity and a smaller footprint (222-1/2 in long, 109-3/8 in wide). The FP9K-DX-XLT is rated for 9,000 lb with a longer, wider, taller platform.
What is the FP8K-DX-XLT's warranty?
Tuxedo backs the FP8K-DX-XLT with a 1-year limited warranty to the original purchaser in the US and Canada.
