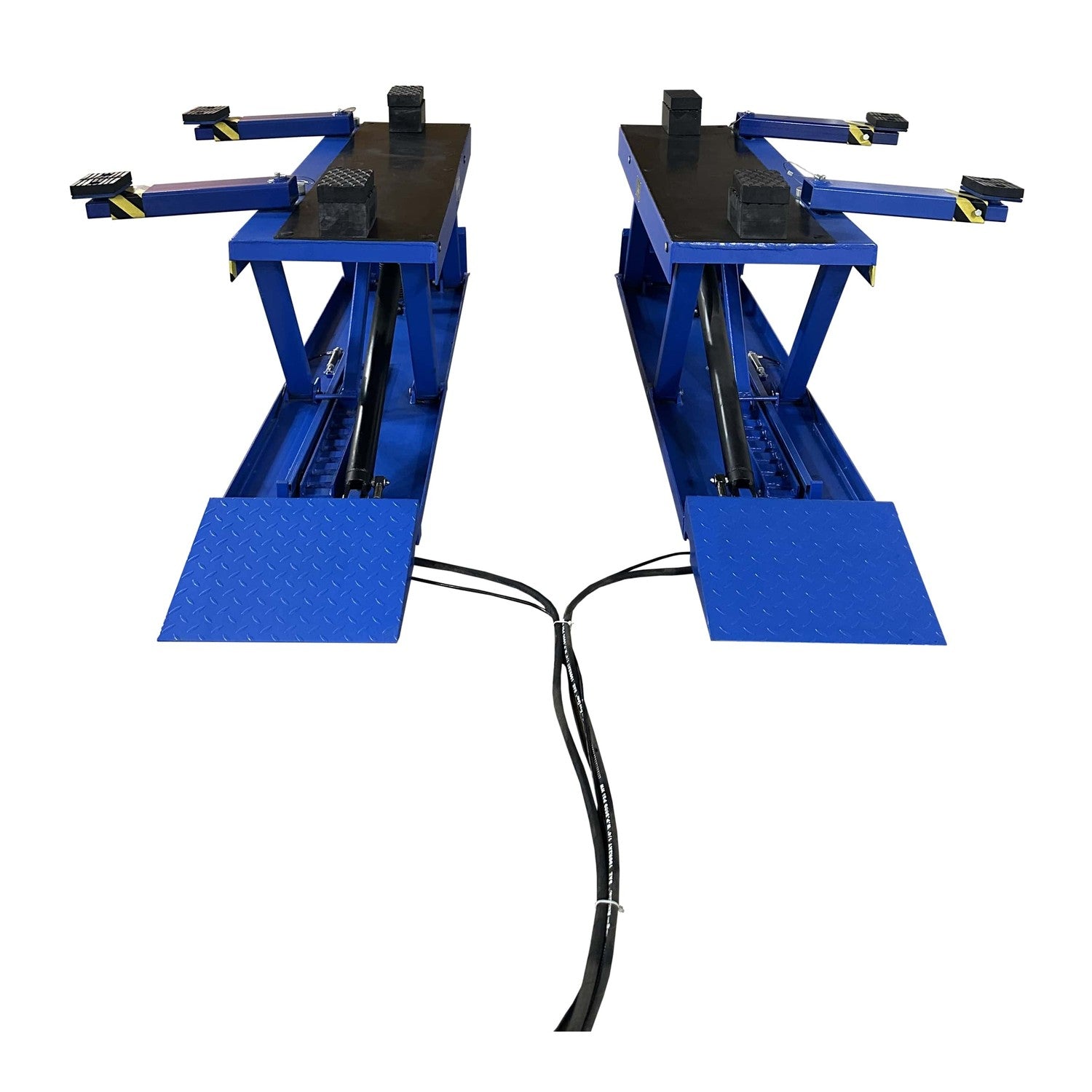

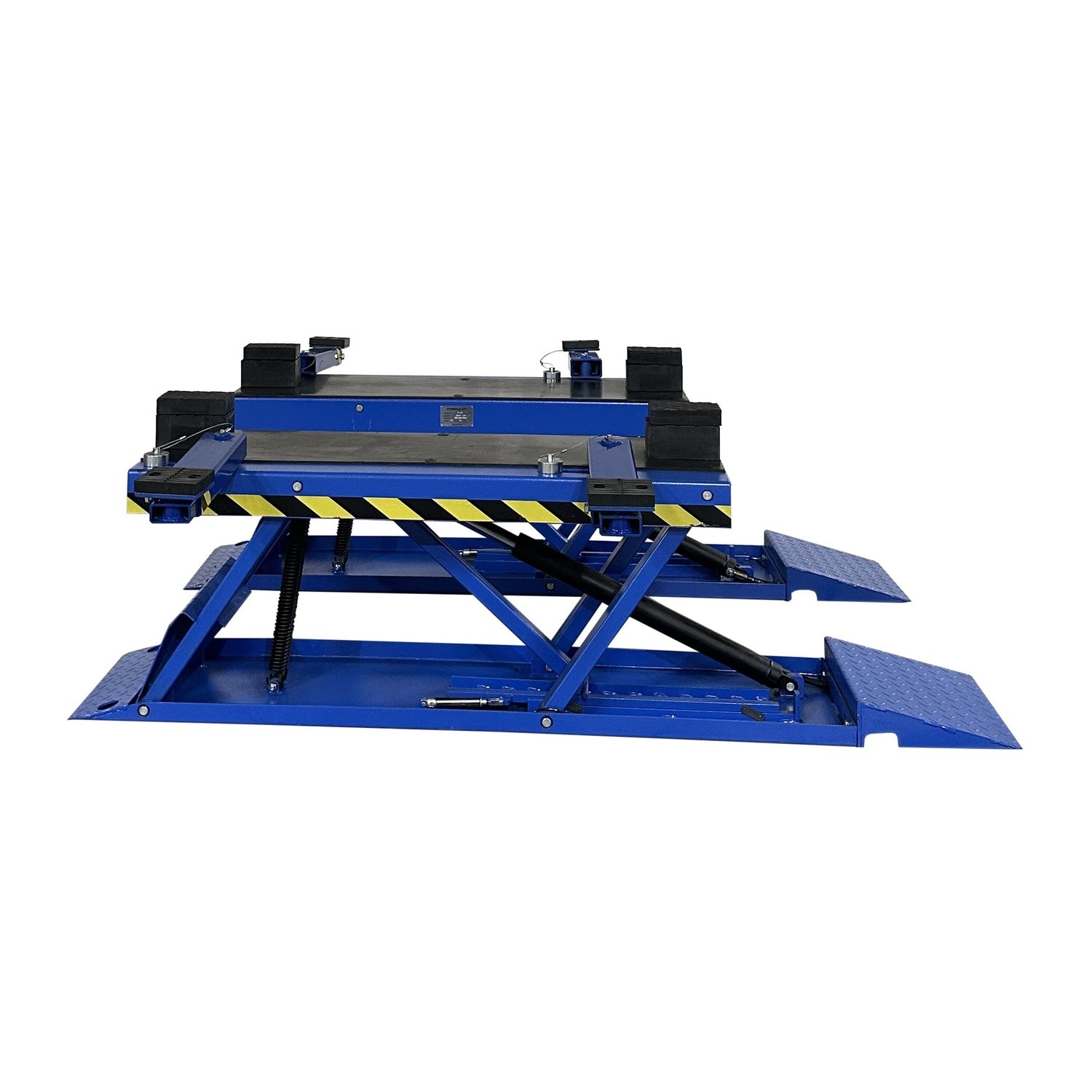

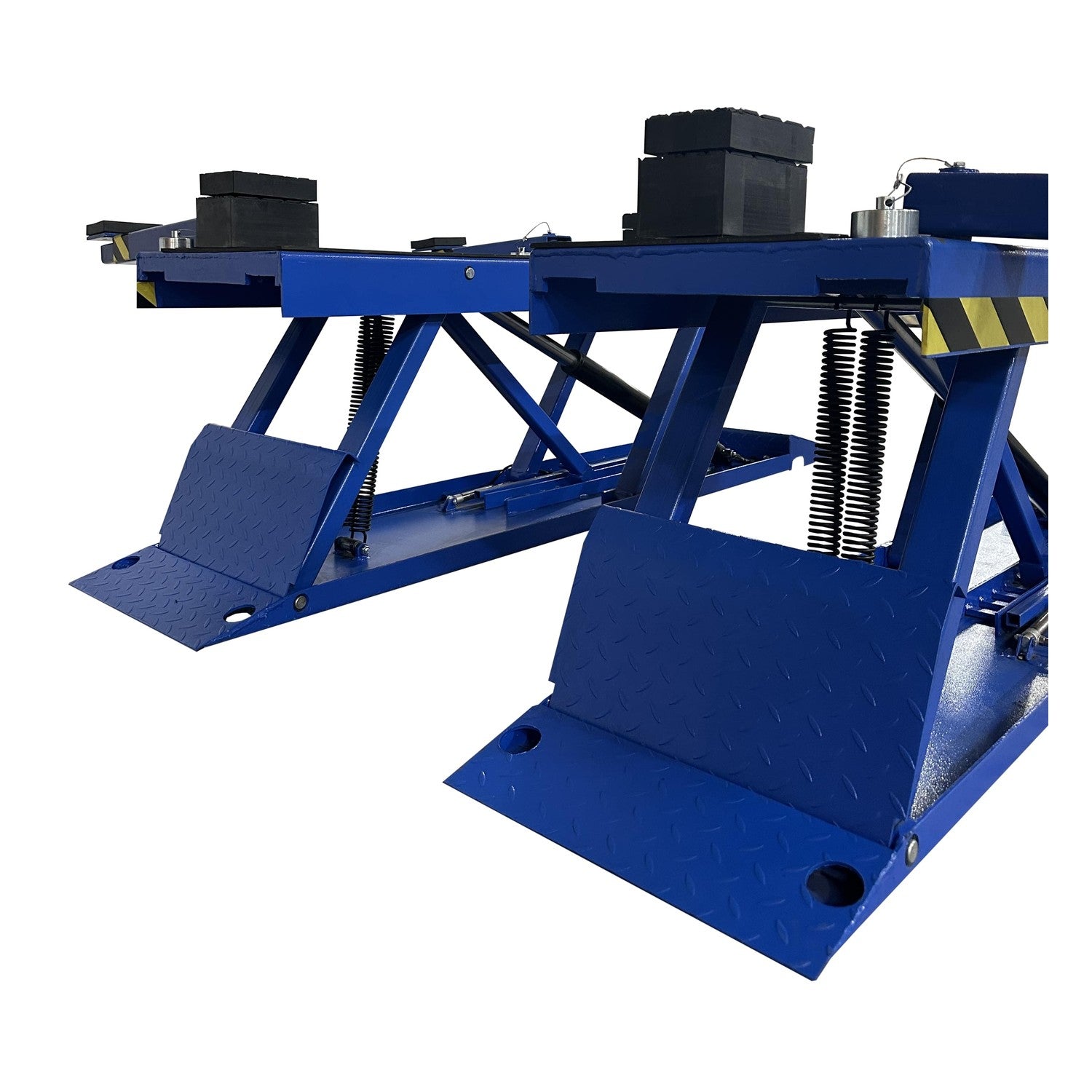

Tuxedo 6,600 lb Low-Rise Pit Lift - Includes Power Unit and Stan #PL6K
| Model / Part Number | PL6K |
| Type | Low-rise pit lift, floor mounted |
| Capacity | 6,600 lb |
| Lifting Height | 28-1/2 in (30 in with adapters) |
| Overall Length | 83-1/4 in |
| Overall Width | 66 in |
| Power | 115V – 15 Amp – 1PH |
| Ship Weight | 770 lb |
- Level concrete shop floor rated for the lift plus vehicle load
- Surface-mounted, open-center design — confirm anchoring against the manufacturer's installation manual
- Indoor use
- Dedicated 115V, 15 Amp, single-phase circuit
- Confirm bay space for the 83-1/4 in x 66 in footprint
- Low driver-over height extends quick-lube service capability without a service pit
- Ships with power unit and stand included, by LTL freight
Tuxedo PL6K — 6,600 lb Low-Rise Pit Lift
The Tuxedo PL6K is a 6,600 lb low-rise pit lift built for quick-lube and general service bays that need low-driver-over clearance without excavating a service pit. The floor-mounted, open-center design keeps the drive-over height minimal so techs can walk under a raised vehicle at a comfortable stooped height instead of climbing into a below-grade pit.
A single-point pneumatic lock release engages the safety locks, and rubber spacer blocks are included standard for protecting vehicle contact points. This listing includes the power unit and stand, so it ships ready to install rather than requiring a separately sourced pump.
Who It's Built For
- ✅ Quick-lube and general service shops that want low-driver-over access without a below-grade pit
- ✅ Facilities that want a floor-mounted lift with a low, open-center design
- ✅ Buyers who want the power unit and stand included in one listing
What It's NOT Built For
- ❌ Loads over 6,600 lb
- ❌ Shops needing frame lifting out of the box — the optional PL6K-ARMKIT and PL6K-HEIGHT-ADAPTER extensions are sold separately for that
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the PL6K Different
Low Driver-Over Height, No Pit Required
At a 4-1/4 in minimum pad height, the PL6K gives low drive-over clearance and quick-lube-style under-vehicle access without the cost and complexity of excavating a service pit.
Open-Center, Surface-Mounted Design
The open-center layout keeps the working area clear of obstructions compared to lifts with center posts or rails running through the mid-section.
Single-Point Pneumatic Lock Release
One pneumatic release disengages the safety locks across the platform, simplifying the lowering sequence.
Power Unit and Stand Included
This listing ships with the power unit and stand — no separate pump purchase required to get the PL6K running.
✅ Best For
- ✅ Quick-lube bays wanting pit-lift-style access without the pit
- ✅ Shops that want a complete, ready-to-install package
❌ Not Ideal For
- ❌ Vehicles over 6,600 lb
- ❌ Shops that need frame-lifting arms included standard — those are optional accessories
Full Specifications — PL6K
| Model / Part Number | PL6K |
| Type | Low-rise pit lift, floor mounted |
| Capacity | 6,600 lb |
| Overall Length | 83-1/4 in |
| Overall Width | 66 in |
| Lifting Height | 28-1/2 in |
| Lifting Height with Adapters | 30 in |
| Min. Pad Height | 4-1/4 in |
| Width Between Runways | 0 to 29-1/2 in |
| Width of Runways | 18 in |
| Pad Length | 53 in |
| Lifting Speed | 40S |
| Power | 115V – 15 Amp – 1PH |
| Ship Weight | 770 lb |
| Included | Power unit and stand |
| Optional Accessories | PL6K-ARMKIT (frame lifting), PL6K-HEIGHT-ADAPTER extensions (frame lifting) |
⚠️ Installation Requirements
- Floor: Level concrete shop floor rated for the lift plus vehicle load. This is a surface-mounted lift — confirm anchoring against the manufacturer's installation manual.
- Power: Dedicated 115V, 15 Amp, single-phase circuit.
- Bay footprint: Confirm room for the 83-1/4 in x 66 in footprint.
- Freight: Delivery within the contiguous 48 states is included in the advertised price. Ships with power unit and stand included.
- Installation: Call Alamo at (817) 865-3707 to coordinate delivery and setup.
Warranty — PL6K
The PL6K is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.
| Component | Coverage Term |
|---|---|
| Structural components (Columns, Legs, Tracks, Arms, Carriages, Cross Rails, Uprights, Overhead Beam, Top Rail Beam, Swivel Pins) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only (purchaser covers return shipping) |
| Normal maintenance & wear parts | Not covered |
| On-site labor | Not covered |
Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable. Full terms are in the manufacturer's installation manual, linked above.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — PL6K
Does the PL6K price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
Does the PL6K include the power unit?
Yes. This listing includes the power unit and stand, so it ships ready to install.
Can the PL6K lift by the frame?
Frame lifting requires the optional PL6K-ARMKIT and PL6K-HEIGHT-ADAPTER extensions, sold separately.
What is the PL6K's warranty?
Tuxedo backs the PL6K with a 5-year structural warranty plus a 1-year parts warranty to the original purchaser in the US and Canada.
