Tuxedo Rolling Air Jack 8,000 lb. Capacity - On The Rail, Air Bag, High Mount #RAJ-8K-H
| Part Number | RAJ-8K-H |
| Type | Rolling bridge/scissor air jack, on-the-rail, air-bag type — High Mount |
| Capacity | 8,000 lb |
| Mount Configuration | High Mount — adjustable roller-body bracket for lower jack-rail positions |
| Operation | Pneumatic, dual air bags |
| Telescoping Support Arms | 38-3/8 in – 60 in (roller body wheel center) |
| Lifting Arms | 35-7/16 in – 57-1/2 in (pad center) |
| Lifting Height | 6-9/16 in – 14-7/8 in (pad adaptor only) |
| Locking Positions | 1 |
| Includes | Stackable pad & height adaptors, 1-5/16 in & 5 in (1 pair each) |
| Required Power | 100–125 PSI / 10–20 CFM |
| Shipping Dimensions | 29 in L x 43 in W x 12 in H |
| Shipping Weight | 430 lb |
Tuxedo Rolling Air Jack 8,000 lb. Capacity - On The Rail (H) #RAJ-8K-H
The Tuxedo RAJ-8K-H is a low-profile, air-bag scissor-type rolling bridge jack built for four-post lifts, with an 8,000 lb capacity and dual precision roller-bearing guide wheels that ride on top of the jack rail.

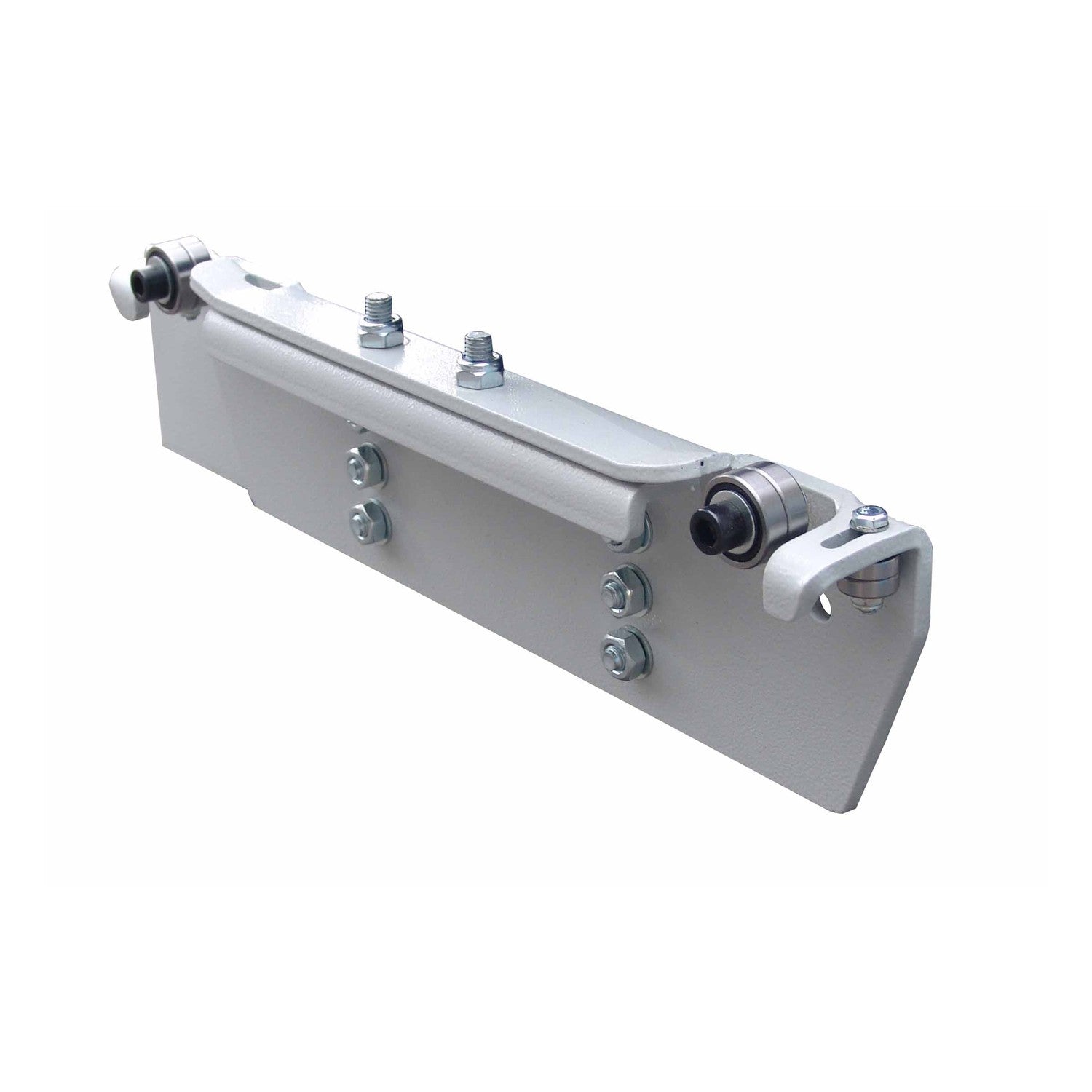

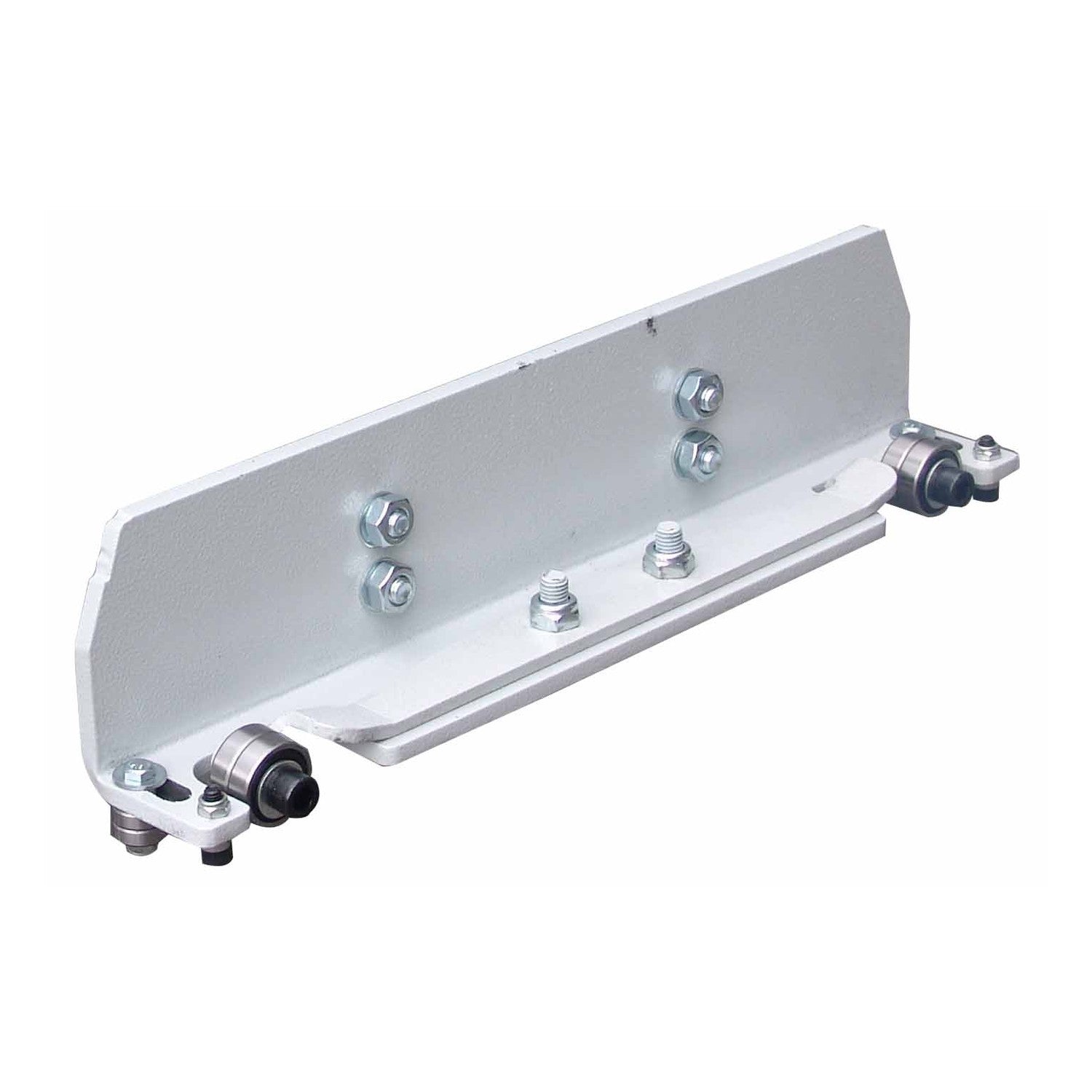

This is the "H" (High Mount) bracket configuration: its adjustable roller-body bracket is sized for lifts with lower jack-rail positions, providing clearance so the jack does not touch the ground when the lift is fully lowered.
Questions before ordering? Call (817) 865-3707 and our team will help confirm fit for your lift.
Compatibility & Fitment
Recommended for the Tuxedo SL-12K-A and OFP12K-K four-post lifts, and acceptable for the OFP14K, XFP14KA, XFP14K-C, XFP14KA-C, and XFP14KO-A models. This 8,000 lb capacity jack is a heavier-duty sibling of the 7,000 lb RAJ-7K-H, sharing similar principles but with a different bracket-adjustment mechanism (spring-loaded roller-body height adjustment vs. rubber pad adapters) and different lifting-arm/height ranges — verify which capacity and mount ("H" or "L") your lift calls for before ordering.
Warranty
Tuxedo Distributors backs this equipment with a 5-year structural warranty on named structural components plus a limited one-year parts warranty to the original purchaser against defects in materials or workmanship under normal use; the purchaser is responsible for return shipping. Normal-wear items are excluded. Contact Alamo for full warranty terms.
