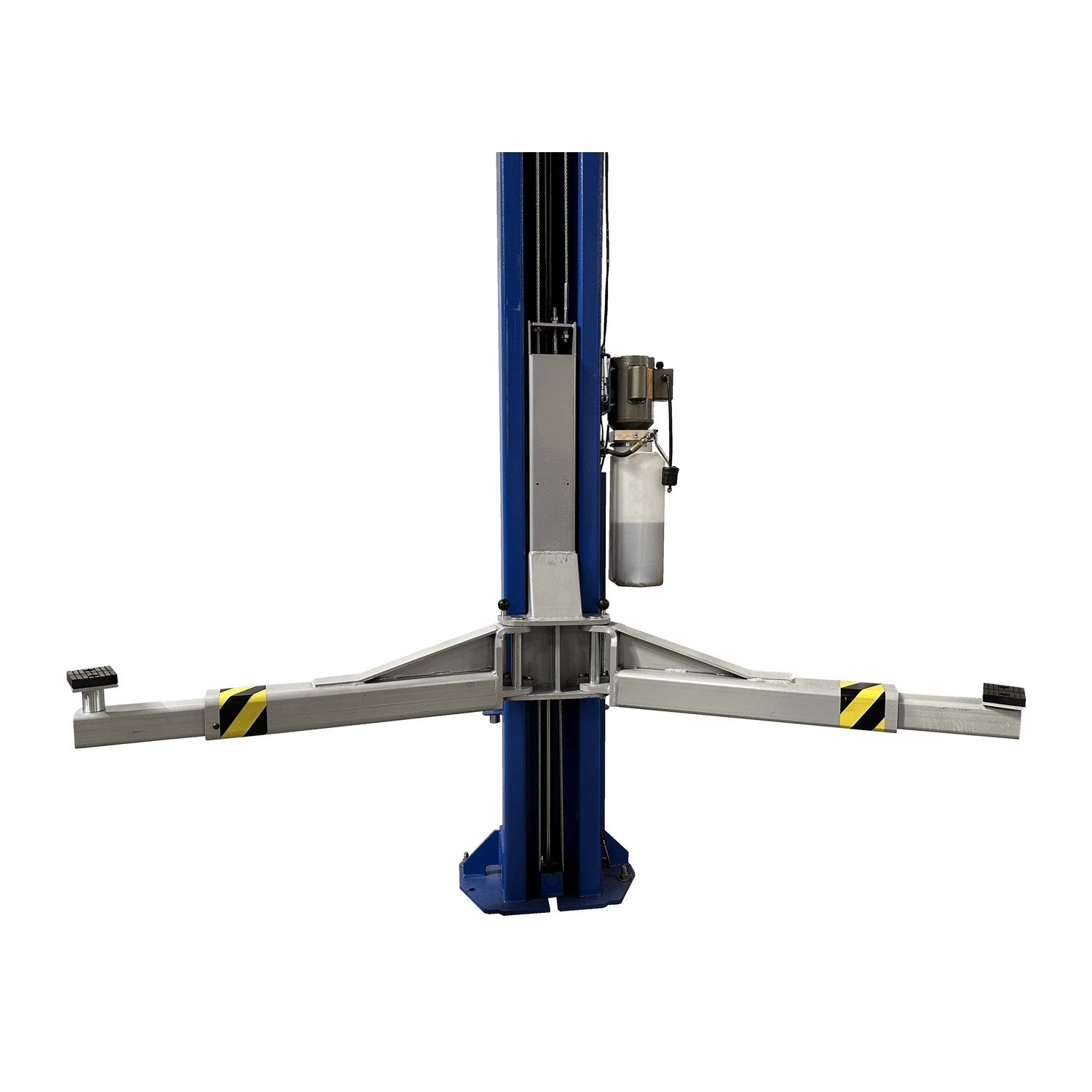

Tuxedo 12,000 lb Two Post Lift - Direct Drive #TP12KC-D
| Model / Part Number | TP12KC-D |
| Type | Two post clear-floor lift, direct drive |
| Capacity | 12,000 lb |
| Max Lift Height | 72 in |
| Width Between Columns | 122 in |
| Drive-Thru Clearance | 109 in |
| Power | 220V – 20 Amp – 1PH |
| Ship Weight | 2,295 lb |
- Minimum 4 in reinforced concrete slab, per manufacturer's anchoring specification — confirm exact thickness/PSI rating in the installation manual before delivery
- Level floor; this is a bolt-down, clear-floor two post lift
- Indoor use
- Dedicated 220V, 20 Amp, single-phase circuit
- Have a licensed electrician run the circuit if one isn't already in place
- Confirm 165 in ceiling clearance for full column height
- Confirm 151 in width overall (with power unit) plus 122 in width between columns
- Ships by LTL freight, crated
Tuxedo TP12KC-D — 12,000 lb Two Post Clear-Floor Lift
The Tuxedo TP12KC-D is a 12,000 lb capacity two post clear-floor lift built for heavier trucks, vans, and commercial vehicles that exceed a standard 9,000-10,000 lb two post lift's rating. Symmetric arms and a direct-drive push-cylinder design lift the vehicle with a single-point pneumatic lock release for fast, even lowering.
The clear-floor design has no cross-brace or floor plate connecting the columns, giving full drive-through access and an open shop floor \u2014 a genuine benefit over floor-plate two post lifts when you need unobstructed floor space around the vehicle.

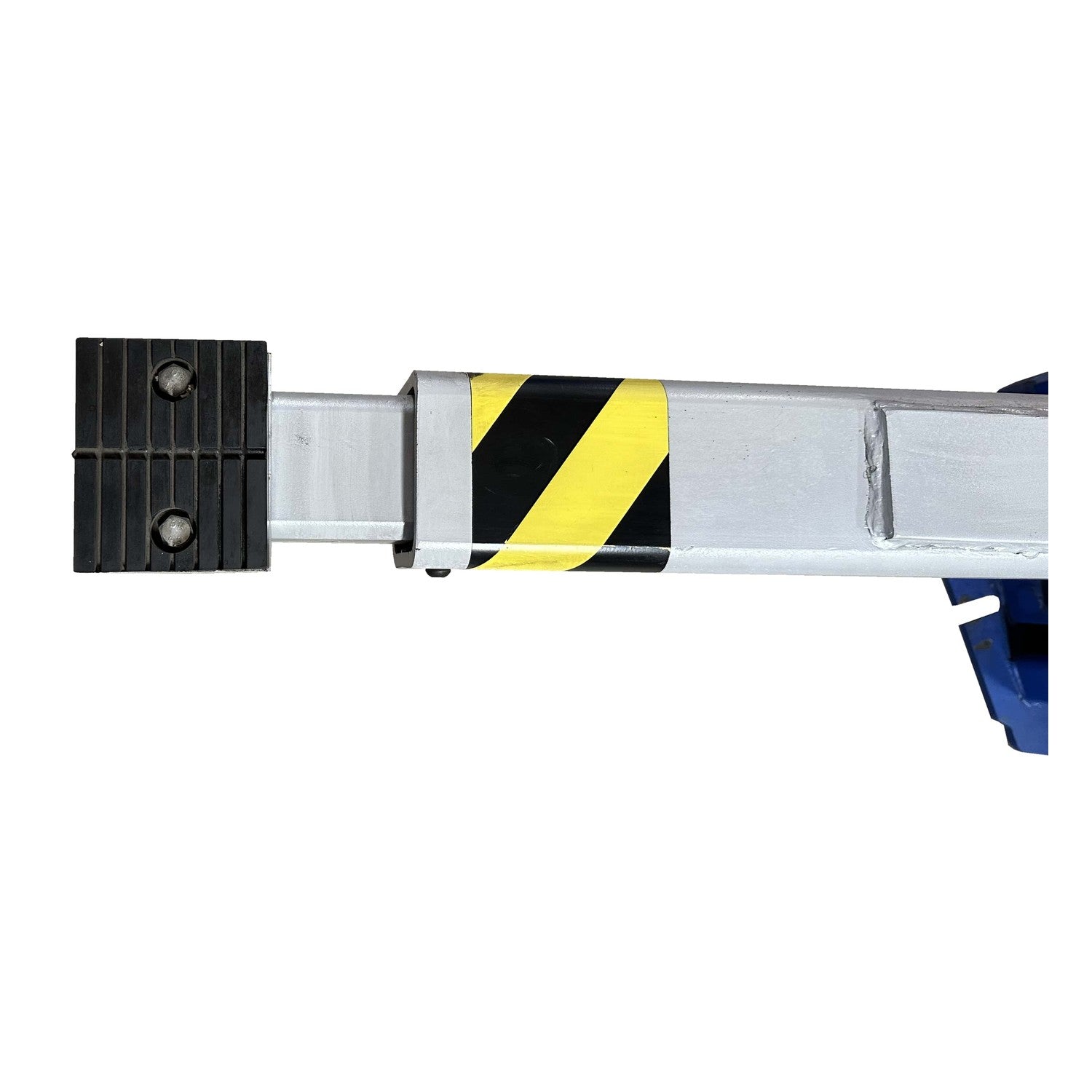

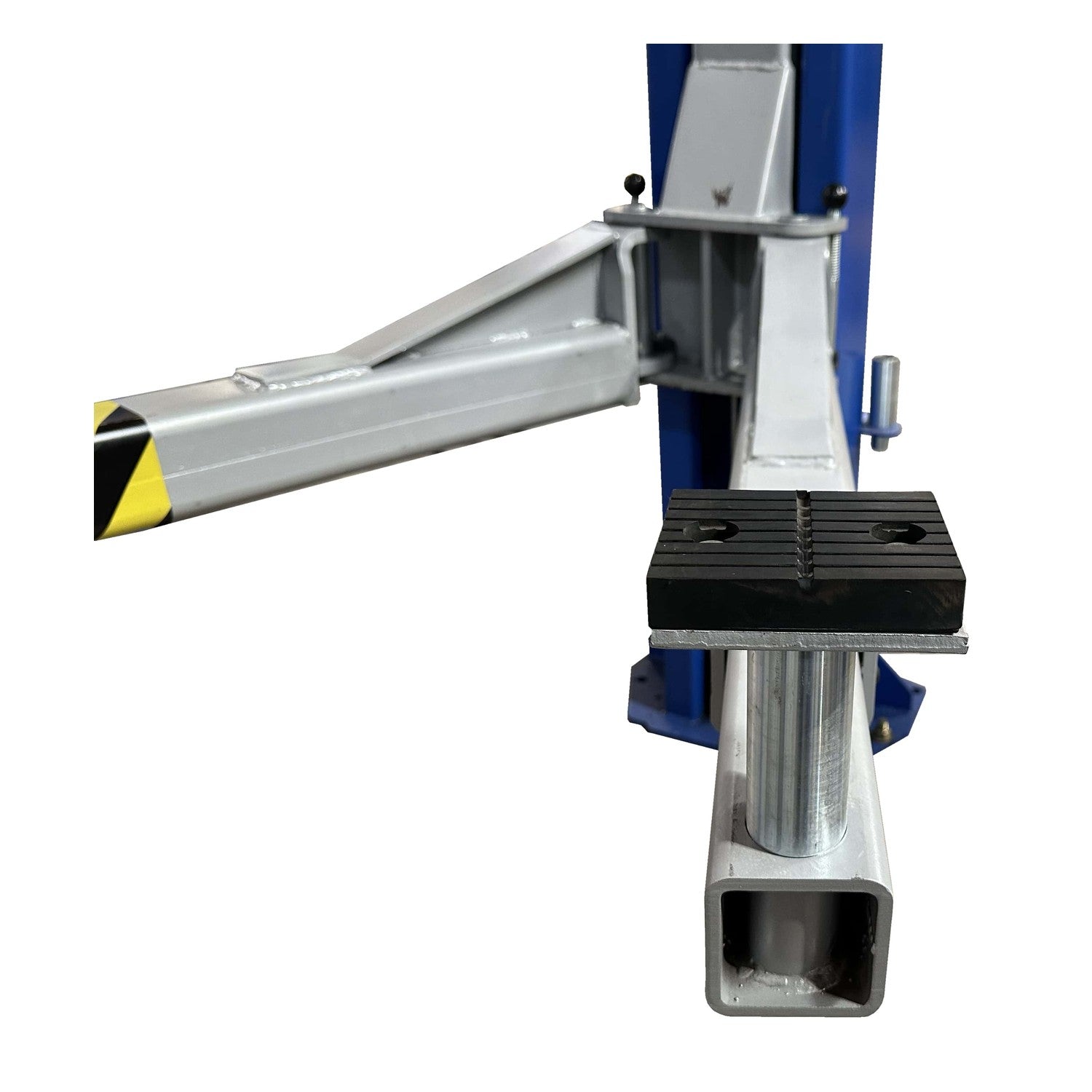

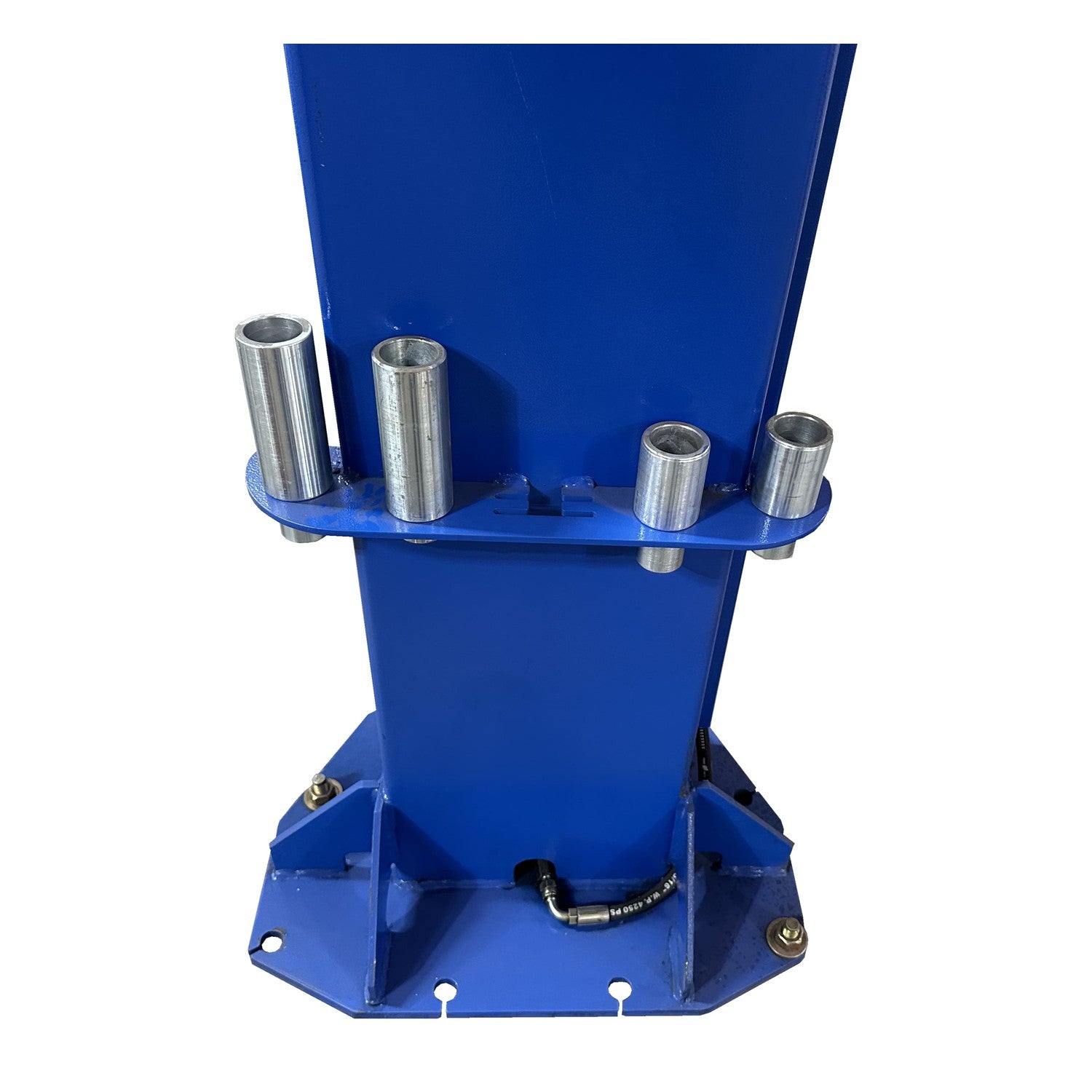

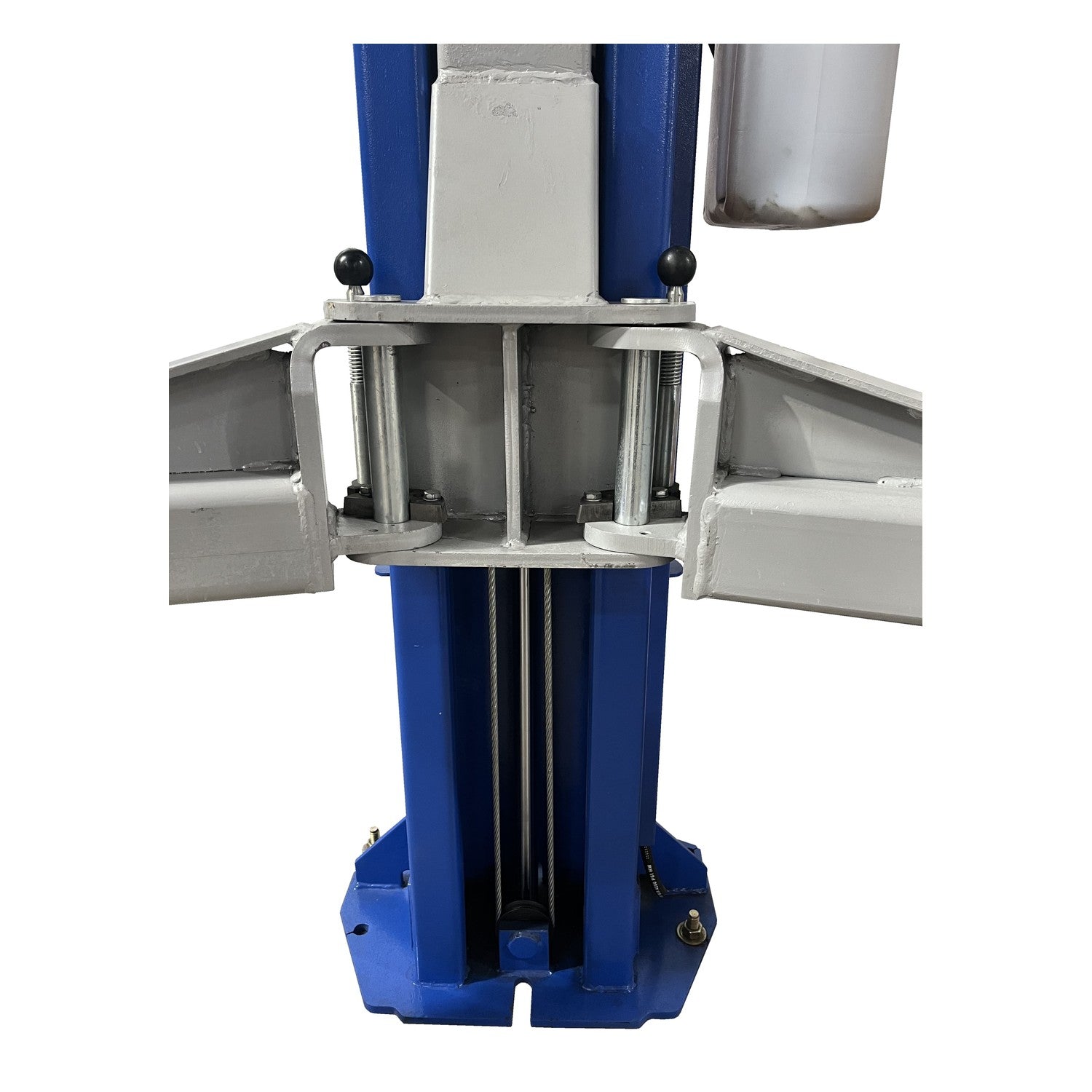

A heavy-duty arm restraint system, drop-in lift pads, and stackable adapters ship standard, along with external hose guards to protect hydraulic lines from damage during normal shop traffic.
Who It's Built For
- Shops servicing heavier trucks, vans, and commercial vehicles up to 12,000 lb
- Bays that need clear-floor access with no cross-brace obstruction
- Facilities with 220V/20A single-phase power already available or easy to add
What It's NOT Built For
- Bays without at least 165 in of ceiling clearance
- Thin or non-reinforced concrete slabs \u2014 confirm your floor meets the manufacturer's anchoring spec before ordering
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the TP12KC-D Different
12,000 lb Capacity for Heavier Vehicles
Rated well above a standard-duty two post lift, with a maximum 3,000 lb load per arm built for trucks and commercial vans that exceed lighter-duty lift ratings.

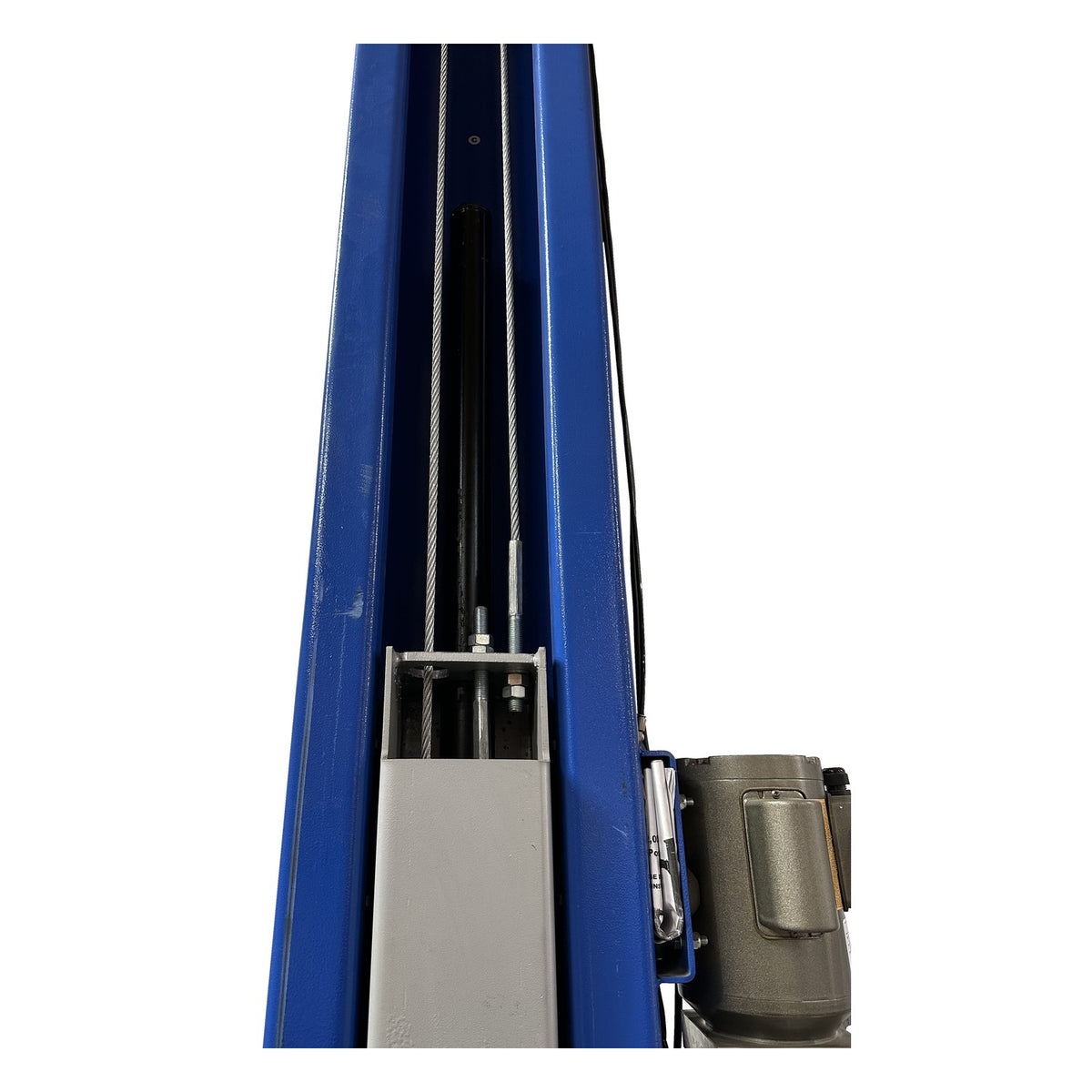

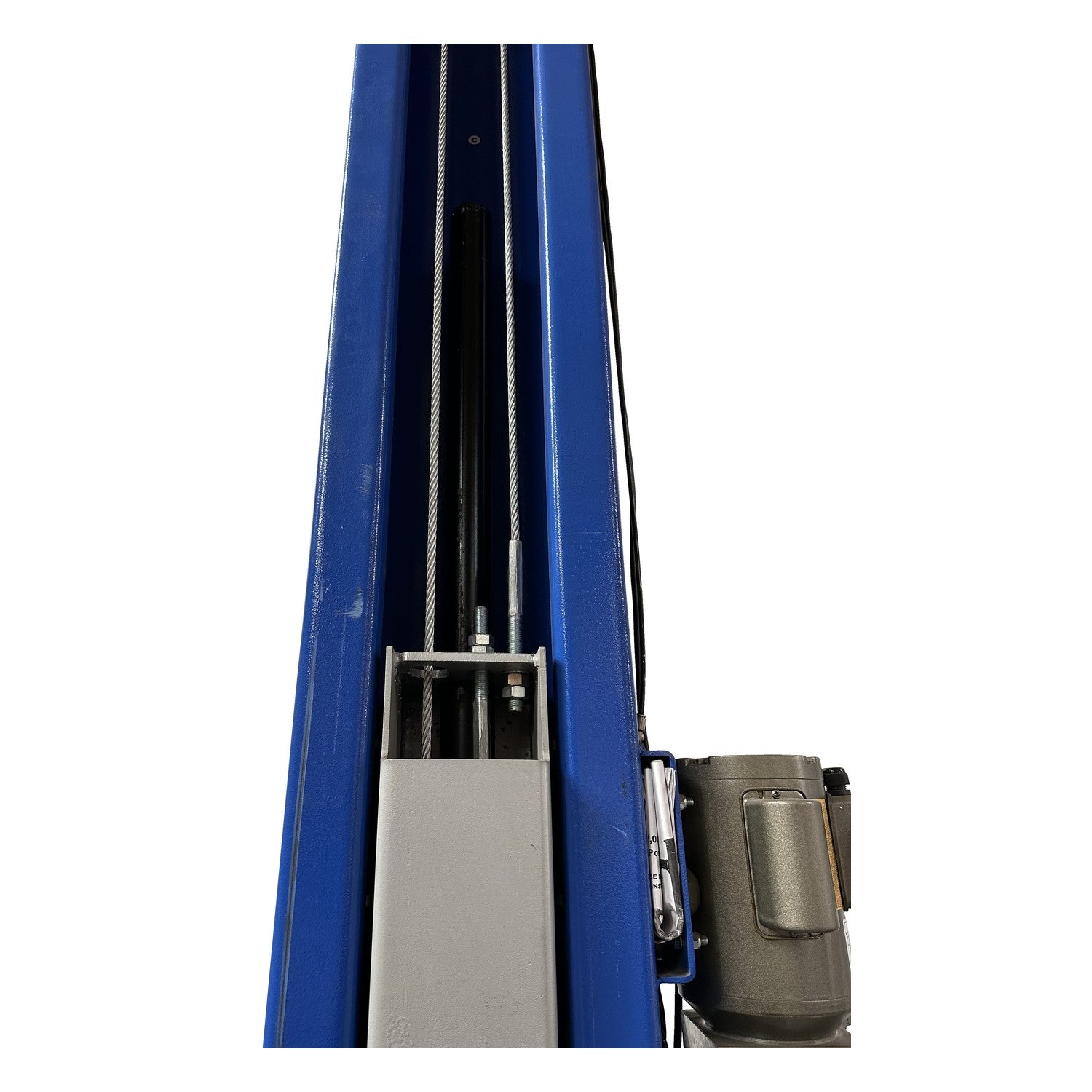

Direct Drive Push Cylinders
Direct-drive cylinders push the carriage directly rather than through a cable system, for a simpler mechanical path with fewer wear parts to maintain over time.
Clear Floor Design
No floor plate or cross-brace between the columns \u2014 genuinely open floor access for drive-through work and easier under-vehicle mobility with rolling jacks and stands.
Single-Point Pneumatic Lock Release
One release point unlocks both arm-mounted safety locks simultaneously for a controlled, even lower \u2014 rather than releasing each side separately.
Best For
- Shops needing 12,000 lb capacity with clear-floor access
- Facilities wanting a direct-drive lift mechanism over a cable-driven design
Not Ideal For
- Bays with less than 165 in ceiling clearance
- Lighter-duty passenger-vehicle-only shops that don't need 12,000 lb capacity
Full Specifications — TP12KC-D
| Model / Part Number | TP12KC-D |
| Capacity | 12,000 lb |
| Height Overall | 165 in |
| Width Overall w/ Power Unit | 151 in |
| Max Lift Height | 72 in |
| Width Between Columns | 122 in |
| Min. Pad Height | 5.5 in |
| Drive-Thru Clearance | 109 in |
| Lifting Speed | 50 sec |
| Arm Configuration | Symmetric |
| Floor Design | Clear Floor |
| Short/Long Arm Reach (min/max) | 37-5/8 in – 56-3/4 in |
| Max Load Per Arm | 3,000 lb |
| Power | 220V – 20 Amp – 1PH |
| Ship Weight | 2,295 lb |
| Included | Drop-in lift pads, stackable adapters, heavy-duty arm restraint system, external hose guards |
⚠️ Installation Requirements
- Floor: Minimum reinforced concrete slab per the manufacturer's anchoring specification \u2014 confirm exact thickness/PSI rating in the installation manual before ordering. This is a bolt-down lift, not portable.
- Power: Dedicated 220V, 20 Amp, single-phase circuit.
- Ceiling clearance: Confirm at least 165 in overhead clearance for the full column height.
- Bay footprint: Confirm 151 in width overall (with power unit) and 122 in width between columns.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 to coordinate professional installation \u2014 two post lifts require certified anchoring and alignment.
Warranty — TP12KC-D
The TP12KC-D is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.
| Component | Coverage Term |
|---|---|
| Structural components (Columns, Legs, Tracks, Arms, Carriages, Cross Rails, Uprights, Overhead Beam, Top Rail Beam, Swivel Pins) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only (purchaser covers return shipping) |
| Normal maintenance & wear parts | Not covered |
| On-site labor | Not covered |
Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable. Full terms are in the manufacturer's installation manual, linked above.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — TP12KC-D
Does the TP12KC-D price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
What is the TP12KC-D's ceiling clearance requirement?
165 in overall column height. Confirm your bay's ceiling height clears this before ordering.
Is the TP12KC-D a clear-floor lift?
Yes. There's no floor plate or cross-brace between the columns, giving open drive-through access and unobstructed floor space around the vehicle.
What is the TP12KC-D's warranty?
Tuxedo backs the TP12KC-D with a 5-year structural warranty plus a 1-year parts warranty to the original purchaser in the US and Canada.
Why Buy the TP12KC-D from Alamo Equipment & Service?
- Freight is included. The advertised price includes standard delivery within the contiguous 48 states.
- We coordinate delivery. Alamo helps confirm delivery details before shipment.
- We help with setup. Alamo can help coordinate professional installation.
- We service it. Questions after delivery? Call (817) 865-3707 — not a manufacturer hotline.
One clear delivered price for customers in the contiguous 48 states.
Shipping follows the method shown on the product page and at checkout. Standard parcel, calculated LTL, freight quotes, included freight, and pickup may apply by item.
