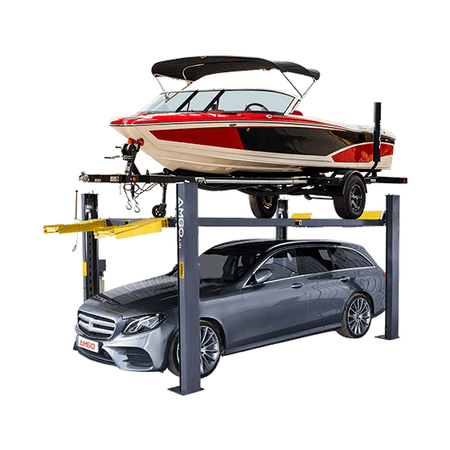

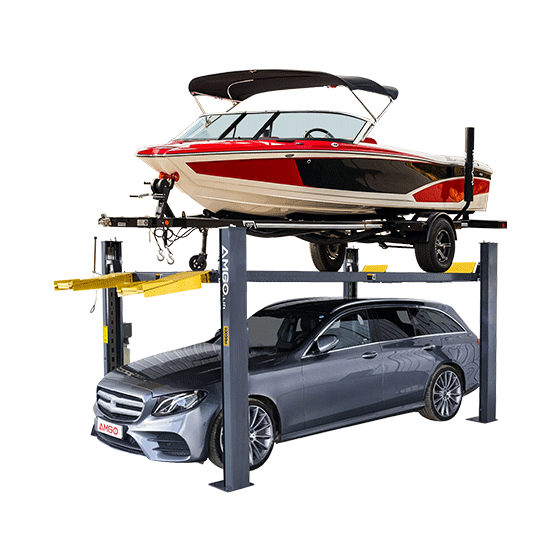

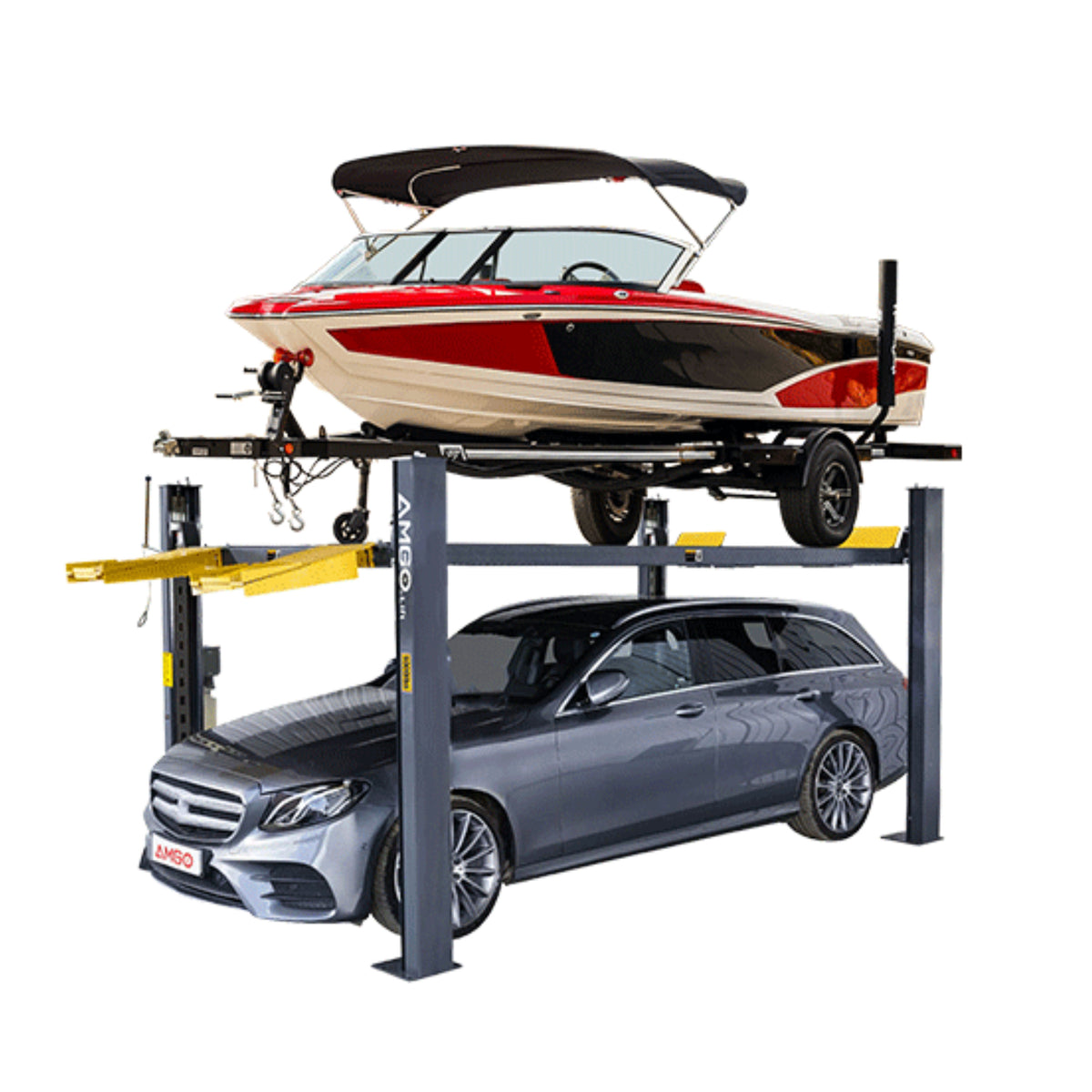

AMGO® 409-HPX 9,000 lb 4-Post Boat Storage Lift #409-HPX
AMGO® Hydraulics shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Capacity | 9,000 lbs |
| Design | Boat & wide-vehicle storage |
| Max Lift | 88 1/16" |
| Underneath | 82 9/16" |
| Runway Width (adjustable) | 46 1/2" – 64 15/16" between |
| Overall Height | 96 5/8" |
| Power | 1.0HP, 110V |
| Warranty | AMGO 5-3-2 |
- Sound, level slab per the manual's concrete spec
- Check anchor zones for seams, cracks, slope
- Confirm before the truck arrives
- 1.0HP motor, 110V/60Hz
- Standard household-adjacent circuit
- Electrician confirms the dedicated circuit
- Adjustable: 46 1/2" (narrow) / 64 15/16" (wide) between runways
- Set the width to the hull before the first lift
- Outside runway edge: 86 1/2" / 104 15/16"
AMGO 409-HPX — 9,000 lb Boat & Wide-Vehicle Storage Lift
A boat doesn't sit on a standard storage lift — the hull needs width the fixed-runway lifts don't have, and the trailer it came in on takes a bay that the boat now occupies. The AMGO 409-HPX is built for exactly that: a 9,000 lb storage lift with adjustable-width runways (46 1/2 inches narrow, 64 15/16 wide between runways) that set themselves to the hull, lifting it to 88 1/16 inches with 82 9/16 inches of clear space underneath.
It runs on a 1.0HP 110-volt motor — household-adjacent power for a 174-second storage cycle — and the whole platform is 131 7/8 inches wide with a 111-inch drive-thru, so the bay it occupies still behaves like a bay.
Who the AMGO 409-HPX Is Built For
- Boat owners storing over a second vehicle — 82 9/16" of underneath height takes a car, a golf cart, or workshop storage under the raised hull.
- Wide-vehicle storage — the adjustable runways (46 1/2"–64 15/16" between, outside edge to 104 15/16") are the spec that fits hulls, pontoon trailers, and wide bodies that fixed-runway lifts can't hold.
- Home garages and boat barns on 110V — the 1.0HP motor runs on standard power; no commercial circuit for a storage lift's rhythm.
- Buyers comparing four-post vehicle storage lifts — same platform concept, but the adjustable runways are what make the difference when the load is a boat instead of a car.
- Shops storing customers' trailers and wide equipment — 9,000 lbs covers loaded boat-and-trailer combinations that exceed passenger-car storage ratings.
What the AMGO 409-HPX Is NOT Built For
This is not a service lift — 174-second cycles and a storage platform make it a parking tool (AMGO's scissors and two-posts are the service answers). It's not for ceilings under 96 5/8" plus the raised hull, and it's not for anything over 9,000 lbs. And its width adjustment is for hulls — a vehicle-only shop gains little over a fixed four-post.
Important sizing note: measure bay length (238 1/8" with ramps), width (131 7/8"), ceiling against the 96 5/8" height plus hull, and check the underneath height (82 9/16") against what parks below before purchase.
What Makes the AMGO 409-HPX Different
Adjustable-width runways — the boat-lift spec
Between-runway width adjusts from 46 1/2" (narrow) to 64 15/16" (wide), with outside runway edges to 104 15/16" — the geometry that fits hulls and trailers.
- 46 1/2" / 64 15/16" between runways
- Outside edge to 104 15/16"
- Width set per hull
9,000 lbs with real underneath storage
The platform lifts to 88 1/16" with 82 9/16" of clearance below — enough for a vehicle or a workshop under the stored boat.
110V storage-lift economics
A 1.0HP motor on household-adjacent power running 174-second cycles — the storage lift doesn't demand commercial infrastructure.
Best For
- Boat storage over a second vehicle
- Wide hulls / pontoon trailers
- Home garages & boat barns
- 110V power
Not Ideal For
- Service-bay use (see AMGO scissors / 2-post)
- Low-ceiling bays
- Loads over 9,000 lbs
AMGO boat-storage line — where the 409-HPX sits
| Spec | 409-HPX (this page) | 408-HPX | 408-HLX |
|---|---|---|---|
| Capacity | 9,000 lbs | 8,000 lbs | 8,000 lbs |
| Max lift | 88 1/16" | 87 11/16" | 104 11/16" |
| Underneath | 82 9/16" | 82 15/16" | 99 15/16" |
| Platform height | 96 5/8" | 96 5/8" | 113" |
| Best for | Heaviest hulls | Standard hulls | Tall underneath storage |
The 409-HPX is the capacity play; the HLX is the height play; the 408-HPX splits the difference.
Full Specifications - AMGO 409-HPX
| Model | 409-HPX — Boats and wide vehicles storage lift |
| Lifting capacity | 9,000 lbs |
| Lifting time | 174s |
| Overall length (inc ramps) | 238 1/8" |
| Overall length (without ramps) | 204 11/16" |
| Overall width | 131 7/8" |
| Width between posts | 122 3/16" |
| Max lifting height | 88 1/16" |
| Max lock height | 85 5/16" |
| Overall height | 96 5/8" |
| Minimum height | 6 1/8" |
| Max underneath height | 82 9/16" |
| Max underneath lock height | 79 13/16" |
| Drive-thru clearance | 111" |
| Width between runways | 46 1/2" (narrow) / 64 15/16" (wide) |
| Outside edge of runways | 86 1/2" (narrow) / 104 15/16" (wide) |
| Gross weight | 2,061 lbs |
| Motor | 1.0HP, 110V/60Hz |
⚠️ Installation Requirements
- Anchor per the included AMGO manual on a sound, level slab — follow the manual's concrete spec
- Electrical: 1.0HP motor, 110V/60Hz — electrician confirms the dedicated circuit
- Plan the adjustable-runway width setting (narrow/wide) before loading the first hull
- Alamo installs every lift we sell — one team for anchoring, wiring, and setup
AMGO® Hydraulics Warranty - AMGO 409-HPX
AMGO backs every lift with its published 5-3-2 warranty — five years on steel structure, three on hydraulics, two on electrical and power-unit components (rubber pads are consumables and excluded). Coverage applies in the 48 contiguous states, and it's handled through Alamo.
| Component | Coverage Term |
|---|---|
| Steel structure components | 5 years |
| Hydraulic parts (cylinders, seals, hoses, fittings) | 3 years |
| Electrical components & power unit | 2 years |
| Rubber pads (consumables) | Excluded |
Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we help get the issue moving.
Warranty terms can change. Confirm exact coverage at the time of purchase. Warranty can be void if the lift is installed improperly or not anchored per spec.
❓ Frequently Asked Questions - AMGO 409-HPX
Will it actually fit a boat hull?
That's the design point — the runways adjust from 46 1/2" to 64 15/16" between (outside edges to 104 15/16"), so the platform sets its width to the hull instead of the hull adapting to the lift.
What fits underneath?
Up to 82 9/16" of clearance (79 13/16" at the storage lock) — a car, a golf cart, or workshop storage under the raised boat.
What power does it need?
110V/60Hz on a dedicated circuit — household-adjacent power; the 174-second cycle is storage-lift pace, not service-lift pace.
Is it a service lift too?
No — it's a storage lift. For service work, AMGO's scissor line and the OH-10 two-post are the right tools; we sell both.
Why Buy the AMGO 409-HPX from Alamo Equipment & Service?
- We install it. Hull width setting, anchoring, and power — one Alamo crew does the whole install.
- We service it. AMGO's 5-3-2 warranty routes through the shop that installed it.
- We size the bay with you. Bay length, ceiling, underneath height — checked before you order.
- Freight handled. 2,061 lbs ships freight; we coordinate delivery.
- Expert comparison help. 409-HPX vs 408-HPX vs 408-HLX — capacity vs underneath height; one call sorts it.
