AMGO® 9,000 lb Mid-Rise Scissor Lift #MRL09
Shipping information
Enter your delivery ZIP code to see priced freight options for this item. Rates match checkout exactly.
AMGO® Hydraulics shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | MRL09 |
| Lifting Capacity | 9,000 lbs |
| Lift Type | Mid-Rise Scissor |
| Max Lifting Height | 47 1/4" |
| Minimum Height | 5 9/16" |
| Motor | 2.0 HP, 220V/60Hz, 1-phase |
- Level, load-rated shop floor
- Portable low-profile design — no fixed concrete anchor spec published in the AMGO material for this model
- Indoor use
- 2.0 HP, 220V, 60Hz, single phase
- Supply cord 12 AWG or larger, properly grounded
- Wiring by a licensed electrician; ETL-certified power unit
- Low-profile entry accommodates ultra-low-chassis vehicles
- Dual two-stage drive-in ramps for double entry
- Minimum height 5 9/16"

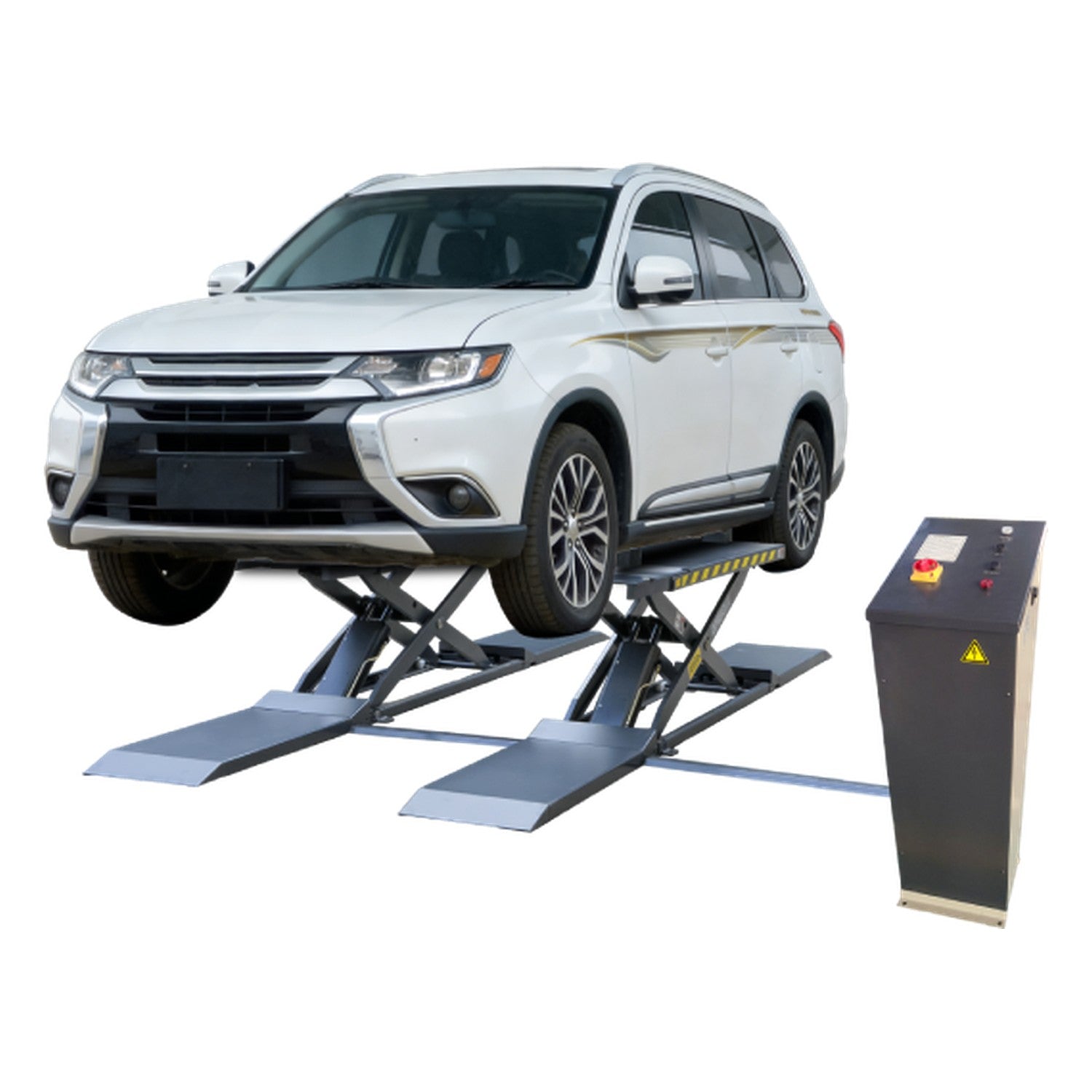

AMGO® MRL09 9,000 lb Mid-Rise Scissor Lift
The AMGO® MRL09 is a 9,000 lb mid-rise scissor lift with a two-stage runway design that creates a low-profile entry for a wide range of vehicles, including ultra-low-chassis cars. Dual hydraulic synchronization and a hydraulic locking system keep the platforms level with no separate air source required.
Extendable platforms suit different wheelbases, and the ETL-certified power unit makes it an easy-to-use quick-service mid-rise lift.
Who It's Built For
- Quick-service and tire shops
- Low-chassis and sports cars
- Vehicles within the 9,000 lb rating
- Shops wanting dual-side drive-in entry
- Bays needing a low minimum height
What It's NOT Built For
- Loads above 9,000 lbs
- Full-height under-vehicle work
- Two-wheeled vehicles
- Outdoor installation
- Vehicles wider than the extended platforms allow
Key Differentiator: Ultra-low two-stage entry
A two-stage runway with a 5 9/16" minimum height lets ultra-low-chassis vehicles drive on where taller mid-rise lifts cannot.
- Low-chassis vehicles and quick-service work
- Full-height component and exhaust work
How the MRL09 Compares - Which AMGO Mid/Low-Rise Lift Fits Your Shop?
| Model | Capacity | Type | Max Lift Height |
|---|---|---|---|
| MRL09 | 9,000 lb | Mid-Rise Scissor | 47 1/4" |
| MRP06 | 6,000 lb | Portable Mid-Rise | 41 3/4" |
| MR06 | 6,000 lb | Portable Mid-Rise | 42 15/16" |
Need more capacity than the 6,000 lb mid-rise units? Call Alamo at (817) 865-3707 and we'll confirm the MRL09 fits.
Full Specifications – MRL09
| Brand | AMGO® Hydraulics |
| Model | MRL09 |
| Part / SKU | ALMAMGMRL09 |
| Lifting Capacity | 9,000 lbs |
| Design | Mid-Rise Scissor |
| Lifting Time | 30 s |
| Max Lifting Height | 47 1/4" |
| Minimum Height | 5 9/16" |
| First Stage Ramp Height | 2 3/8" |
| Overall Length (incl. ramps) | 156 11/16" |
| Overall Width | 76 3/4" |
| Width Between Runways | 29 1/2" |
| Motor | 2.0 HP, 220V / 60Hz, single phase |
| Power Unit | ETL-certified |
| Gross Weight | 1,821 lbs |
| Shipping Weight | 1,821 lbs |
Installation & Setup
- Placement: Level, load-rated indoor floor; low-profile portable design
- Power: 2.0 HP, 220V/60Hz single phase; 12 AWG or larger grounded supply
- Wiring: By a licensed electrician per the AMGO data plate
AMGO 5-3-2 Limited Warranty – MRL09
AMGO Hydraulics stands behind this lift with a strong limited warranty covering defects in materials and workmanship under normal service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, scissor frames, platforms, arms and structural steel |
| 3 Years | Hydraulic Parts | Cylinders, oil seals, hoses, bronze bushings, slider blocks and fittings |
| 2 Years | Electrical & Cables | Electrical components and cables (rubber pads are a wear item and excluded) |
Alamo Equipment administers your warranty directly — call (817) 865-3707 and we coordinate parts and claims with AMGO for you.
Coverage excludes consumable wear items such as rubber pads and is voided by loading past the rated capacity or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
