AMGO® 6,000 lb Portable Mid-Rise Scissor Lift #MRP06
AMGO shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | MRP06 |
| Lifting Capacity | 6,000 lbs |
| Lift Type | Portable Mid-Rise Scissor |
| Max Lifting Height | 41 3/4" |
| Minimum Height | 4 1/8" |
| Motor | 110V / 1.0 HP |
- Level, load-rated shop floor
- Portable design — no fixed concrete anchor spec published in the AMGO manual
- Indoor use only
- 110V, 1.0 HP power unit
- Supply circuit rated for 2.0 HP, cord 12 AWG or larger, grounded
- Wiring by a licensed electrician
- Portable — moves between bays
- Drive-on ramps included
- Minimum height 4 1/8"

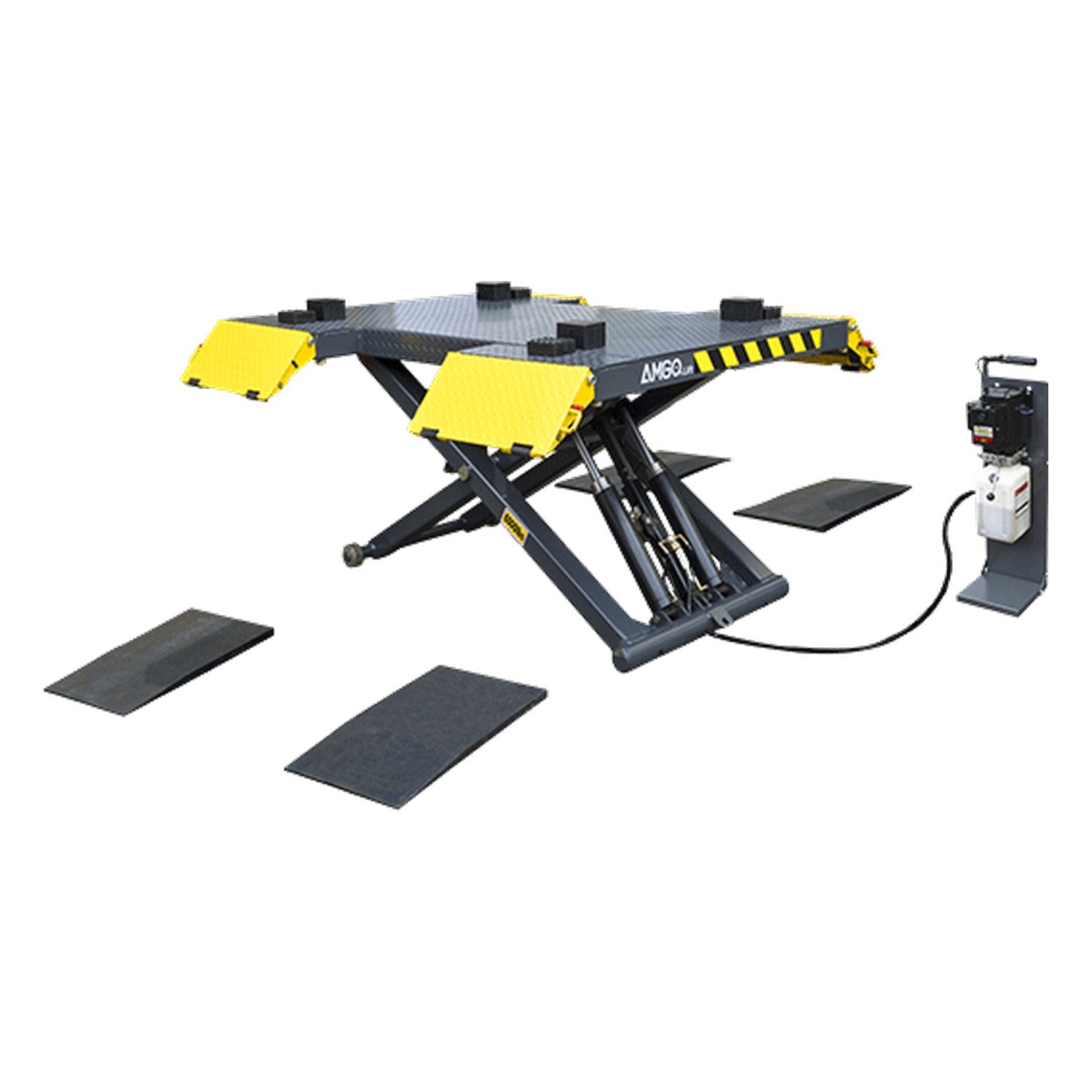

AMGO® MRP06 6,000 lb Portable Mid-Rise Scissor Lift
The AMGO® MRP06 is a portable 6,000 lb mid-rise scissor lift. Its mechanical lock releases freely by hand, and included drive-on ramps make loading quick and easy. A 4 1/8" minimum height lets low vehicles roll on with ease.
Running on a 110V power unit, the MRP06 plugs into common shop power and relocates between bays as work demands.
Who It's Built For
- Quick-service and detail shops
- Vehicles within the 6,000 lb rating
- Bays that need a movable mid-rise lift
- Low-clearance vehicles via included ramps
- Shops on 110V power
What It's NOT Built For
- Loads above 6,000 lbs
- Full-height under-vehicle work
- Two-wheeled vehicles
- Outdoor installation
- Permanent anchored duty
Key Differentiator: 110V plug-in portability
A 110V power unit and portable frame let the MRP06 run on common shop power and move where the work is.
- Movable mid-rise service on 110V power
- Shops needing 220V high-capacity lifting
How the MRP06 Compares - Which AMGO Mid/Low-Rise Lift Fits Your Shop?
| Model | Capacity | Type | Max Lift Height |
|---|---|---|---|
| MRP06 | 6,000 lb | Portable Mid-Rise | 41 3/4" |
| MR06 | 6,000 lb | Portable Mid-Rise | 42 15/16" |
| MRL09 | 9,000 lb | Mid-Rise Scissor | 47 1/4" |
All models stay inside Alamo's catalog (comparison links go live as siblings publish). Call (844) 480-6059 and we will help you choose before ordering.
Full Specifications – MRP06
| Brand | AMGO® Hydraulics |
| Model | MRP06 |
| Part / SKU | ALMAMGMRP06 |
| Lifting Capacity | 6,000 lbs |
| Design | Portable Mid-Rise Scissor |
| Lifting Time | 68 s |
| Max Lifting Height | 41 3/4" |
| Max Locking Height | 40 9/16" |
| Minimum Height | 4 1/8" |
| Overall Length (incl. ramps) | 79 15/16" |
| Overall Length (excl. ramps) | 57 1/2" |
| Width Between Runways | 29 15/16" |
| Overall Width | 80 5/16" |
| Motor | 110V / 1.0 HP (2.0 HP supply circuit) |
| Shipping Carton | 90" x 64" x 13" |
| Shipping Weight | 1,162 lbs |
Installation & Setup
- Placement: Level, load-rated indoor floor; portable
- Power: 110V/1.0 HP power unit on a 2.0 HP-rated circuit, 12 AWG or larger grounded cord
- Wiring: By a licensed electrician per the AMGO data plate
AMGO 5-3-2 Limited Warranty – MRP06
AMGO Hydraulics stands behind this lift with a strong limited warranty covering defects in materials and workmanship under normal service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, scissor frames, platforms, arms and structural steel |
| 3 Years | Hydraulic Parts | Cylinders, oil seals, hoses, bronze bushings, slider blocks and fittings |
| 2 Years | Electrical & Cables | Electrical components and cables (rubber pads are a wear item and excluded) |
Alamo Equipment administers your warranty directly — call (844) 480-6059 and we coordinate parts and claims with AMGO for you.
Coverage excludes consumable wear items such as rubber pads and is voided by loading past the rated capacity or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
Frequently Asked Questions - MRP06
Why Buy the MRP06 from Alamo Equipment & Service?
- We set it up. Our crew delivers and commissions it in your bay.
- We service it. Parts and warranty run through our shop, not a hotline.
- We size it with you. Tell us your vehicles and space; we confirm the fit.
- Straight answers. We will point you to a better-value model when one exists.
- Call for Shipping. Freight is quoted per order so you pay the real rate — (844) 480-6059.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
AMGO shipping is quoted by destination before payment. Select your product options and request a freight quote above. We will confirm the shipping total before sending a payment link.
