AMGO® Hydraulics 12,000 lbs 4-Post Lift #PRO-12SX
AMGO shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | PRO-12SX |
| Lifting Capacity | 12,000 lbs |
| Lift Type | Four-Post Service |
| Overall Height | 86" |
| Drive-Thru Clearance | 104 3/16" |
| Motor | 2.0 HP |
- Not published in the AMGO documentation for this model — confirm with Alamo before install (AMGO publishes a spec/feature brochure, not a full concrete-spec install manual, for this model)
- Power unit is 220V, 60Hz, single-phase (AMGO ETL-certified unit, 2.0 HP)
- Supply cord sized and grounded per your electrician's load calc
- Circuit amperage not specified by AMGO — have your electrician size the breaker
- Overall height of the lift is 86"
- Per-setting ceiling clearance table not published for this model
- Not published in the AMGO documentation for this model — confirm with Alamo before install

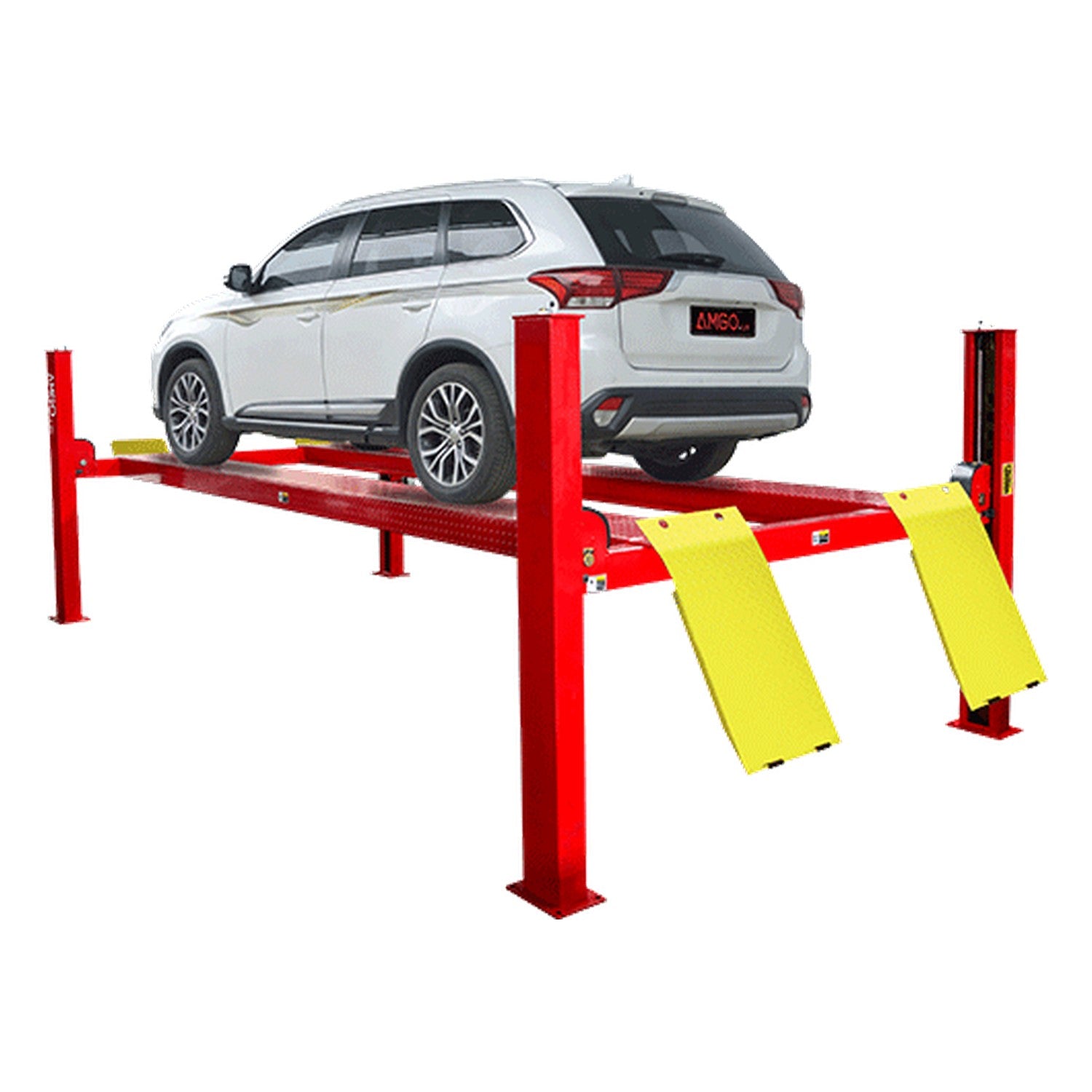

AMGO® Hydraulics PRO-12SX 12,000 lbs 4-Post Lift
The AMGO® Hydraulics PRO-12SX is a 12,000 lbs-capacity commercial four-post service lift, built for daily general service. Rated for 12,000 lbs with runways over 118 inches between columns, it swallows wide wheel tracks that pinch on narrower four-posts. A cable-driven mechanism, AMGO ETL-certified power unit, primary multiple safety locks and cable-slack protection come standard, along with non-skid diamond platforms. It ships with power unit 071101.
With extra-wide runways and stepless width adjustment, the PRO-12SX handles cars, SUVs, pickups and vans without fighting the frame — the practical daily-driver of AMGO's twelve-thousand-pound four-posts.
Who It's Built For
- Busy general-service bays turning cars, SUVs and light trucks daily
- Shops that need the extra column width for wide-track vehicles
- Techs who prefer stepless runway width over fixed spacing
- First-time four-post buyers stepping up from a two-post
- Owners who want AMGO ETL power without the alignment premium
What It's NOT Built For
- Loads beyond twelve thousand pounds — look at the PRO-14 or higher
- Recessed or flush installs — the PRO-12SX bolts to the surface
- Untested or thin slabs — have the concrete checked first
- Bikes and quads — reach for a powersport lift
- Wheel-alignment jobs needing turnplate pockets — pick the PRO-12ASX
Key Differentiator: Widest general-service runways in the twelve-thousand-pound class
With extra-wide runways and stepless width adjustment, the PRO-12SX handles cars, SUVs, pickups and vans without fighting the frame — the practical daily-driver of AMGO's twelve-thousand-pound four-posts.
- Everyday service on wide-track cars, SUVs and light trucks
- Four-wheel alignment work (step to the PRO-12ASX)
How the PRO-12SX Compares - Which AMGO Four-Post Lift Fits Your Shop?
| Model | Capacity | Service Type | Overall Length (w/ ramps) | Drive-Thru |
|---|---|---|---|---|
| PRO-12SX | 12,000 lbs | Service | 232 5/8" | 104 3/16" |
| PRO-12ASX | 12,000 lbs | Alignment | 232 5/8" | 104 3/16" |
| PRO-12 | 12,000 lbs | Service | 239 13/16" | 98 3/8" |
| PRO-12A | 12,000 lbs | Alignment | 239 13/16" | 98 3/8" |
All compared models are AMGO four-post lifts. Call (844) 480-6059 and we will help you decide before ordering.
Full Specifications – PRO-12SX
| Brand | AMGO® Hydraulics |
| Model | PRO-12SX |
| Part / SKU | ALMAMGPRO12SX |
| Lifting Capacity | 12,000 lbs |
| Service Type | General service |
| Lifting Time | 45s |
| Overall Length (incl. ramps) | 232 5/8" |
| Overall Length (no ramps) | 190 9/16" |
| Overall Width | 132 1/8" |
| Width Between Columns | 118 1/8" |
| Max. Lifting Height | 74 7/16" |
| Overall Height | 86" |
| Minimum Height | 6 1/16" |
| Drive-Thru Clearance | 104 3/16" |
| Motor | 2.0 HP, 220V/60Hz, single phase |
| Power Unit | 071101 |
| Gross Weight | 2,229 lbs |
| Shipping Carton | 200" x 23" x 29" |
| Shipping Weight | 2,227 lbs |
Installation Requirements
- Concrete: Slab spec is not published in AMGO's brochure for this model — Alamo verifies your slab before anchoring
- Power: 220V, 60Hz single-phase (AMGO ETL-certified 2.0 HP unit); confirm your service at order
- Overhead: Clear the raised lift and its air/shut-off hardware
- Anchoring: Anchored per the AMGO installation procedure by our crew
AMGO 5-3-2 Limited Warranty – PRO-12SX
AMGO Hydraulics backs every four-post lift with one of the strongest warranties in the industry, covering defects in materials and workmanship under normal commercial service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, runways/platforms, cross beams, top beam, base plates, drive-in ramps |
| 3 Years | Hydraulic Parts | Cylinders, oil seal, oil hose, fittings |
| 2 Years | Other Parts, Electrical & Power Unit | Cables, electrical components and the ETL-certified power unit (consumption parts excluded) |
Alamo Equipment administers your warranty directly — call (844) 480-6059 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items and is voided by installation on non-compliant concrete, loading past the rated capacity, or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
Frequently Asked Questions - PRO-12SX
Why Buy the PRO-12SX from Alamo Equipment & Service?
- We service it. Parts and warranty go through our shop at (844) 480-6059, not an offshore hotline.
- We size it with you. Tell us your bay length, width and vehicles; we confirm the 12,000 lift fits.
- Straight answers. We'll tell you when the alignment version or a different capacity is the smarter buy.
- Call for Shipping. Freight is quoted per order — call (844) 480-6059 for your rate to your bay.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
AMGO shipping is quoted by destination before payment. Select your product options and request a freight quote above. We will confirm the shipping total before sending a payment link.
