AMGO® Hydraulics 18,000 lbs Alignment 4-Post Lift #PRO-18A
AMGO shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | PRO-18A |
| Lifting Capacity | 18,000 lbs |
| Lift Type | Four-Post Alignment |
| Overall Height | 86 13/16" |
| Drive-Thru Clearance | 108 1/4" |
| Motor | 2.0 HP |
- Not published in the AMGO documentation for this model — confirm with Alamo before install (AMGO publishes a spec/feature brochure, not a full concrete-spec install manual, for this model)
- Power unit is 220V, 60Hz, single-phase (AMGO ETL-certified unit, 2.0 HP)
- Supply cord sized and grounded per your electrician's load calc
- Circuit amperage not specified by AMGO — have your electrician size the breaker
- Overall height of the lift is 86 13/16"
- Per-setting ceiling clearance table not published for this model
- Not published in the AMGO documentation for this model — confirm with Alamo before install

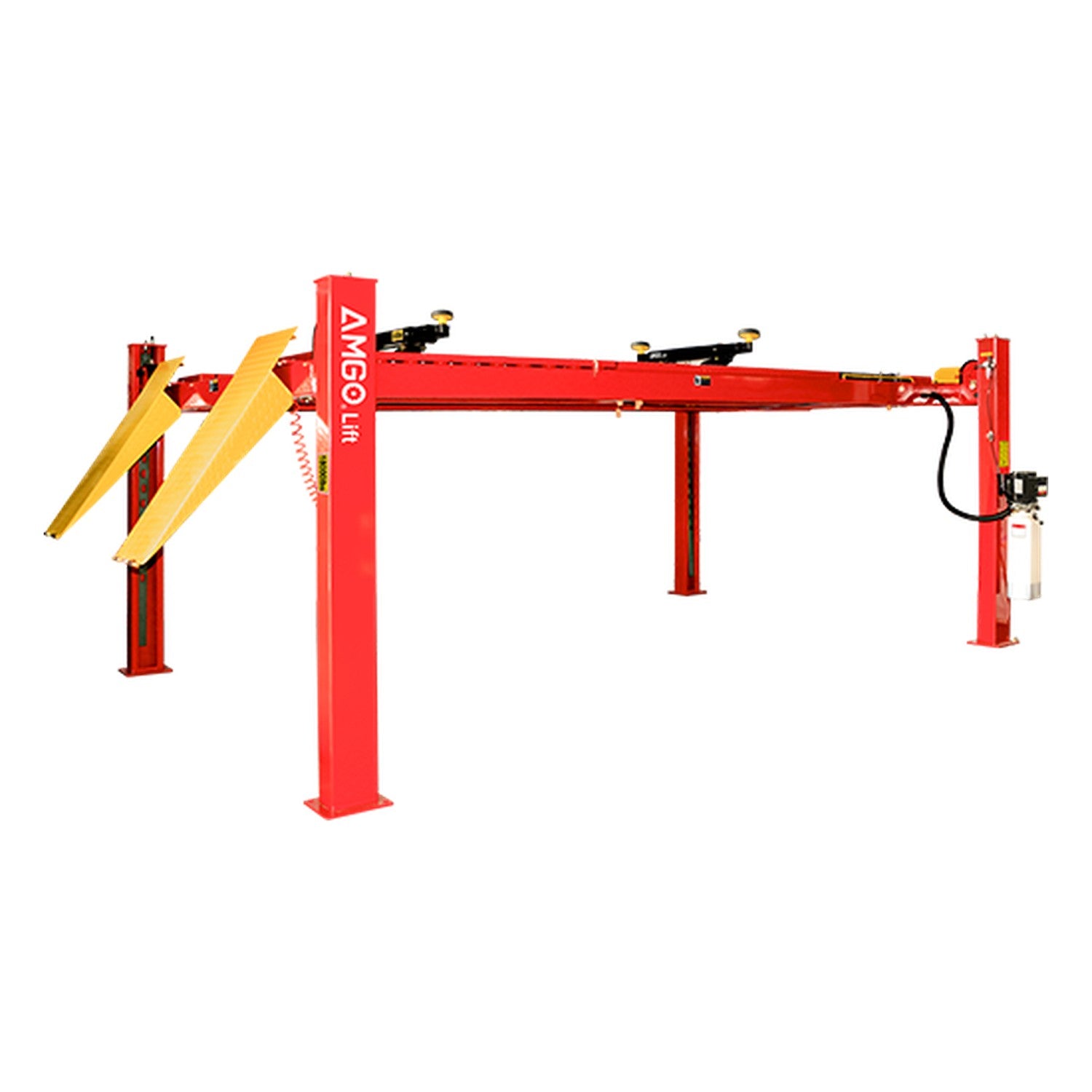

AMGO® Hydraulics PRO-18A 18,000 lbs Alignment 4-Post Lift
The AMGO® Hydraulics PRO-18A is a 18,000 lbs-capacity commercial four-post alignment lift, the alignment eighteen for heavy trucks. Rated for 18,000 lbs, it adds slip plates and adjustable turnplate pockets so heavy-truck shops can align one-ton and larger vehicles. A cable-driven mechanism, AMGO ETL-certified power unit, and mechanical self-locking safety with air-driven lock release keep it running; integrated slip plates and adjustable turnplate pockets make it alignment-ready out of the crate. It ships with power unit 071102.
The PRO-18A brings four-wheel alignment to eighteen-thousand-pound service, with turnplate pockets and slip plates built for one-ton trucks and heavy commercial vans.
Who It's Built For
- Heavy-truck shops aligning one-ton and larger vehicles
- Fleets aligning commercial vans and trucks in-house
- Techs needing eighteen-thousand-pound alignment capacity
- Bays with room for the wide alignment runways
- Owners upgrading a heavy service lift to alignment
What It's NOT Built For
- Loads over eighteen thousand pounds — step to a PRO-30 class
- Flush or in-ground installs — surface mount only
- Marginal concrete — verify the slab first
- Passenger-car-only shops — smaller lift fits better
- Service-only shops (the PRO-18 costs less)
Key Differentiator: Eighteen-thousand-pound alignment four-post for heavy trucks
The PRO-18A brings four-wheel alignment to eighteen-thousand-pound service, with turnplate pockets and slip plates built for one-ton trucks and heavy commercial vans.
- Aligning one-ton trucks and heavy commercial vans
- Service-only heavy-truck work (choose the PRO-18)
How the PRO-18A Compares - Which AMGO Four-Post Lift Fits Your Shop?
| Model | Capacity | Service Type | Overall Length (w/ ramps) | Drive-Thru |
|---|---|---|---|---|
| PRO-18 | 18,000 lbs | Service | 294 1/4" | 108 1/4" |
| PRO-18A | 18,000 lbs | Alignment | 293 1/4" | 108 1/4" |
All compared models are AMGO four-post lifts. Call (844) 480-6059 and we will help you decide before ordering.
Full Specifications – PRO-18A
| Brand | AMGO® Hydraulics |
| Model | PRO-18A |
| Part / SKU | ALMAMGPRO18A |
| Lifting Capacity | 18,000 lbs |
| Service Type | Alignment (four-wheel & two-wheel) |
| Lifting Time | 81s |
| Overall Length (incl. ramps) | 293 1/4" |
| Overall Length (no ramps) | 236 1/4" |
| Overall Width | 137 1/16" |
| Width Between Columns | 122 3/8" |
| Max. Lifting Height | 77 9/16" |
| Overall Height | 86 13/16" |
| Minimum Height | 9 13/16" |
| Drive-Thru Clearance | 108 1/4" |
| Min. Four-Wheel Alignment | 99 13/16" |
| Max. Four-Wheel Alignment | 190 3/4" |
| Max. Two-Wheel Alignment | 191 3/4" |
| Motor | 2.0 HP, 220V/60Hz, single phase |
| Power Unit | 071102 |
| Gross Weight | 4,367 lbs |
| Shipping Carton | 256" x 24" x 35" |
| Shipping Weight | 4,480 lbs |
Installation Requirements
- Concrete: Slab spec is not published in AMGO's brochure for this model — Alamo verifies your slab before anchoring
- Power: 220V, 60Hz single-phase (AMGO ETL-certified 2.0 HP unit); confirm your service at order
- Overhead: Clear the raised lift and its air/shut-off hardware
- Anchoring: Anchored per the AMGO installation procedure by our crew
AMGO 5-3-2 Limited Warranty – PRO-18A
AMGO Hydraulics backs every four-post lift with one of the strongest warranties in the industry, covering defects in materials and workmanship under normal commercial service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, runways/platforms, cross beams, top beam, base plates, drive-in ramps |
| 3 Years | Hydraulic Parts | Cylinders, oil seal, oil hose, fittings |
| 2 Years | Other Parts, Electrical & Power Unit | Cables, electrical components and the ETL-certified power unit (consumption parts excluded) |
Alamo Equipment administers your warranty directly — call (844) 480-6059 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items and is voided by installation on non-compliant concrete, loading past the rated capacity, or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
Frequently Asked Questions - PRO-18A
Why Buy the PRO-18A from Alamo Equipment & Service?
- We install it. Our crew levels the columns, runs the cables and commissions the PRO-18A on your floor.
- We service it. Parts and warranty go through our shop at (844) 480-6059, not an offshore hotline.
- We size it with you. Tell us your bay length, width and vehicles; we confirm the 18,000 lift fits.
- Straight answers. We'll tell you when the service version or a different capacity is the smarter buy.
- Call for Shipping. Freight is quoted per order — call (844) 480-6059 for your rate to your bay.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
AMGO shipping is quoted by destination before payment. Select your product options and request a freight quote above. We will confirm the shipping total before sending a payment link.
