AMGO® Hydraulics 40,000 lbs 4-Post Lift #PRO-40E
AMGO shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | PRO-40E |
| Lifting Capacity | 40,000 lbs |
| Lift Type | Four-Post Service |
| Overall Height | 92" |
| Drive-Thru Clearance | 119 13/16" |
| Motor | 2.0 HP |
- Not published in the AMGO documentation for this model — confirm with Alamo before install (AMGO publishes a spec/feature brochure, not a full concrete-spec install manual, for this model)
- Power unit is 220V, 60Hz, single-phase (AMGO ETL-certified unit, 2.0 HP)
- Supply cord sized and grounded per your electrician's load calc
- Circuit amperage not specified by AMGO — have your electrician size the breaker
- Overall height of the lift is 92"
- Per-setting ceiling clearance table not published for this model
- Not published in the AMGO documentation for this model — confirm with Alamo before install

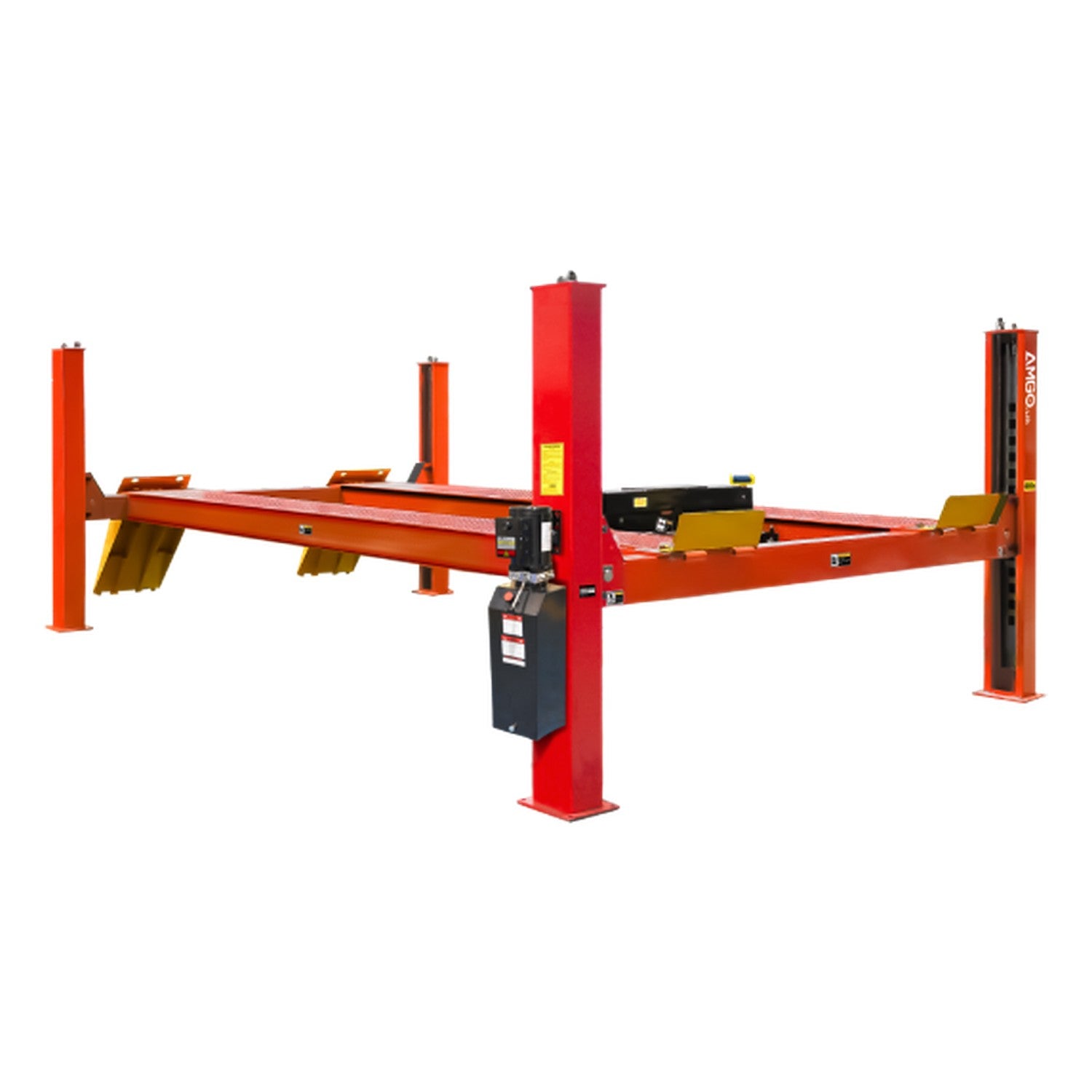

AMGO® Hydraulics PRO-40E 40,000 lbs 4-Post Lift
The AMGO® Hydraulics PRO-40E is a 40,000 lbs-capacity commercial four-post service lift, the extended-runway flagship forty. Rated for 40,000 lbs with runways extended to 374 inches (425-inch overall), it fits the longest heavy vehicles on the road. A cable-driven mechanism, AMGO ETL-certified power unit, primary multiple safety locks and cable-slack protection come standard, along with non-skid diamond platforms. It ships with power unit 071107.
The PRO-40E pairs forty-thousand-pound capacity with the longest runways AMGO builds, so extra-long buses, tankers and specialty rigs are fully supported at maximum capacity.
Who It's Built For
- Fleet and municipal shops servicing the longest heavy vehicles
- Operations running extra-long buses and commercial tankers
- Techs needing both maximum capacity and runway length
- Bays with the floor length for a 374-inch runway
- Owners servicing oversized specialty equipment
What It's NOT Built For
- Short bays that can't fit the 374-inch runways
- Flush or in-ground installs — surface mount only
- Concrete not rated for the load — verify the slab first
- Light-vehicle service — a smaller lift fits better
- Bays without the ceiling for a super-duty frame
Key Differentiator: Longest-runway flagship four-post at forty thousand pounds
The PRO-40E pairs forty-thousand-pound capacity with the longest runways AMGO builds, so extra-long buses, tankers and specialty rigs are fully supported at maximum capacity.
- Extra-long buses, tankers and specialty commercial rigs
- Short bays or lighter vehicles (see PRO-40)
How the PRO-40E Compares - Which AMGO Four-Post Lift Fits Your Shop?
| Model | Capacity | Service Type | Overall Length (w/ ramps) | Drive-Thru |
|---|---|---|---|---|
| PRO-40 | 40,000 lbs | Service | 366 1/8" | 119 13/16" |
| PRO-40E | 40,000 lbs | Service | 425 3/16" | 119 13/16" |
All compared models are AMGO four-post lifts. Call (844) 480-6059 and we will help you decide before ordering.
Full Specifications – PRO-40E
| Brand | AMGO® Hydraulics |
| Model | PRO-40E |
| Part / SKU | ALMAMGPRO40E |
| Lifting Capacity | 40,000 lbs |
| Service Type | General service |
| Lifting Time | 183s |
| Overall Length (incl. ramps) | 425 3/16" |
| Overall Length (no ramps) | 366 1/8" |
| Overall Width | 151 1/2" |
| Width Between Columns | 133 15/16" |
| Max. Lifting Height | 75 3/8" |
| Overall Height | 92" |
| Minimum Height | 10 3/8" |
| Drive-Thru Clearance | 119 13/16" |
| Motor | 2.0 HP, 220V/60Hz, single phase |
| Power Unit | 071107 |
| Gross Weight | 9,576 lbs |
| Shipping Carton | 377" x 30" x 41" |
| Shipping Weight | 9,564 lbs |
Installation Requirements
- Concrete: Slab spec is not published in AMGO's brochure for this model — Alamo verifies your slab before anchoring
- Power: 220V, 60Hz single-phase (AMGO ETL-certified 2.0 HP unit); confirm your service at order
- Overhead: Clear the raised lift and its air/shut-off hardware
- Anchoring: Anchored per the AMGO installation procedure by our crew
AMGO 5-3-2 Limited Warranty – PRO-40E
AMGO Hydraulics backs every four-post lift with one of the strongest warranties in the industry, covering defects in materials and workmanship under normal commercial service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, runways/platforms, cross beams, top beam, base plates, drive-in ramps |
| 3 Years | Hydraulic Parts | Cylinders, oil seal, oil hose, fittings |
| 2 Years | Other Parts, Electrical & Power Unit | Cables, electrical components and the ETL-certified power unit (consumption parts excluded) |
Alamo Equipment administers your warranty directly — call (844) 480-6059 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items and is voided by installation on non-compliant concrete, loading past the rated capacity, or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
Frequently Asked Questions - PRO-40E
Why Buy the PRO-40E from Alamo Equipment & Service?
- We install it. Our crew levels the columns, runs the cables and commissions the PRO-40E on your floor.
- We service it. Parts and warranty go through our shop at (844) 480-6059, not an offshore hotline.
- We size it with you. Tell us your bay length, width and vehicles; we confirm the 40,000 lift fits.
- Straight answers. We'll tell you when the alignment version or a different capacity is the smarter buy.
- Call for Shipping. Freight is quoted per order — call (844) 480-6059 for your rate to your bay.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
AMGO shipping is quoted by destination before payment. Select your product options and request a freight quote above. We will confirm the shipping total before sending a payment link.
