AMGO® XL-10F 10,000 lb Flush-Mount Scissor Lift #XL-10F

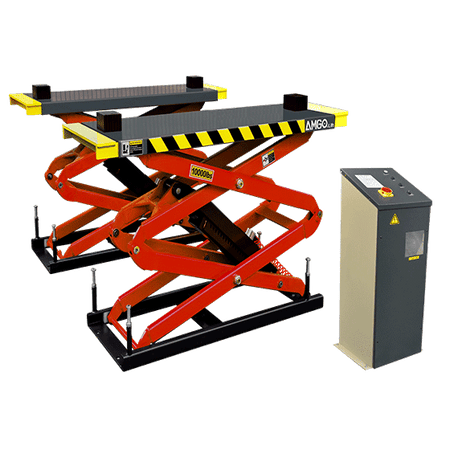

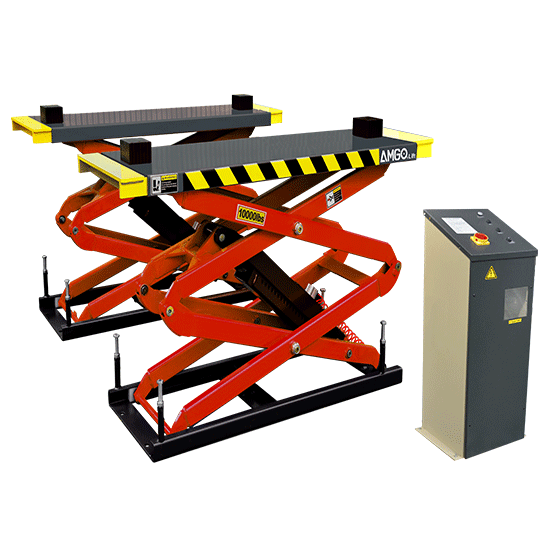

AMGO XL-10F — 10,000 lb Flush-Mount Scissor Lift

A scissor lift that sits on the floor is a trip hazard with a vehicle on it — every approach is a step-up, and the bay never quite goes back to being a bay. The AMGO XL-10F is the flush-mount answer: a 10,000 lb scissor designed for recessed/pit installation so the platform sits flush with the finished floor, invisible until it's working.

At 75 inches of maximum lift on a 49-second cycle, with runways extending 65 1/8 to 80 5/16 inches and 31 1/2 inches between them, it covers full underbody service on a wide vehicle mix — and AMGO's 5-3-2 warranty backs the whole machine.

Who the AMGO XL-10F Is Built For

• Shops that want the bay back when the lift is down — the flush-mount design means no approach ramps, no step-up edges, and a floor that reads as a floor until the lift is in use.
• Quick-service and inspection bays — drive over the flush platform freely, lift in 49 seconds, work at up to 75" of height, and release the bay the moment the vehicle rolls off.
• Shops doing full underbody work to 10,000 lbs — brakes, exhaust, and fluid work at real standing height on a flush scissor platform.
• Clean-floor shops — wash bays, detail shops, and inspection operations where a floor-mounted lift's edges and ramps are unacceptable.
• New construction or renovating bays — the recessed/pit installation is a construction project, which is exactly when flush-mount makes sense; retrofitting is possible but planning is everything.

What the AMGO XL-10F Is NOT Built For

This is not a surface-mount purchase decision — the XL-10F is built for a recessed/pit installation, so the floor needs a purpose-built recess per the manual's spec. It's not for anything over 10,000 lbs, and shops wanting a plug-in surface-mount scissor should look at AMGO's on-surface models instead.

Important sizing note: plan the pit/recess per the manual before ordering (13 3/4" minimum height), confirm the 75 7/16" width in the finished opening, and check your vehicle mix against the 65 1/8"–80 5/16" runway range before purchase.

What Makes the AMGO XL-10F Different

Flush-mount — the floor that disappears

13 3/4" of minimum height drops into a recessed pit so the platform sits flush with the finished floor — no ramps, no edges, no trip hazards.

• Flush with finished floor
• 13 3/4" minimum height
• Recessed/pit installation

10,000 lbs at speed

A 49-second lift to 75" — flush-mount convenience without the slow-cycle penalty, at the top of AMGO's scissor capacity range.

• 10,000 lb capacity
• 75" max lift
• 49s lift time

Runways that adjust to the vehicle

65 1/8" to 80 5/16" of runway length with 31 1/2" between runways — the platform geometry that fits real service work.

Best For

• Flush-floor bays
• Quick service / inspection lanes
• Full underbody work to 10K
• New-bay construction

Not Ideal For

• No-pit, no-recess floors (see surface-mount models)
• Vehicles over 10,000 lbs
• Rush retrofits without planning

XL-10F vs XL-8F — the flush-mount scissor pair

Same flush-mount concept — the XL-10F adds capacity and runway length; the XL-8F is the lighter, faster-cycle sibling.

Full Specifications - AMGO XL-10F

AMGO® Hydraulics Warranty - AMGO XL-10F

AMGO backs every lift with its published 5-3-2 warranty — five years on steel structure, three on hydraulics, two on electrical and power-unit components (rubber pads are consumables and excluded). Coverage applies in the 48 contiguous states, and it's handled through Alamo.

Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we help get the issue moving.

Warranty terms can change. Confirm exact coverage at the time of purchase. Warranty can be void if the lift is installed improperly or not anchored per spec.
