AMGO® XL-8F 8,000 lb Flush-Mount Scissor Lift #XL-8F

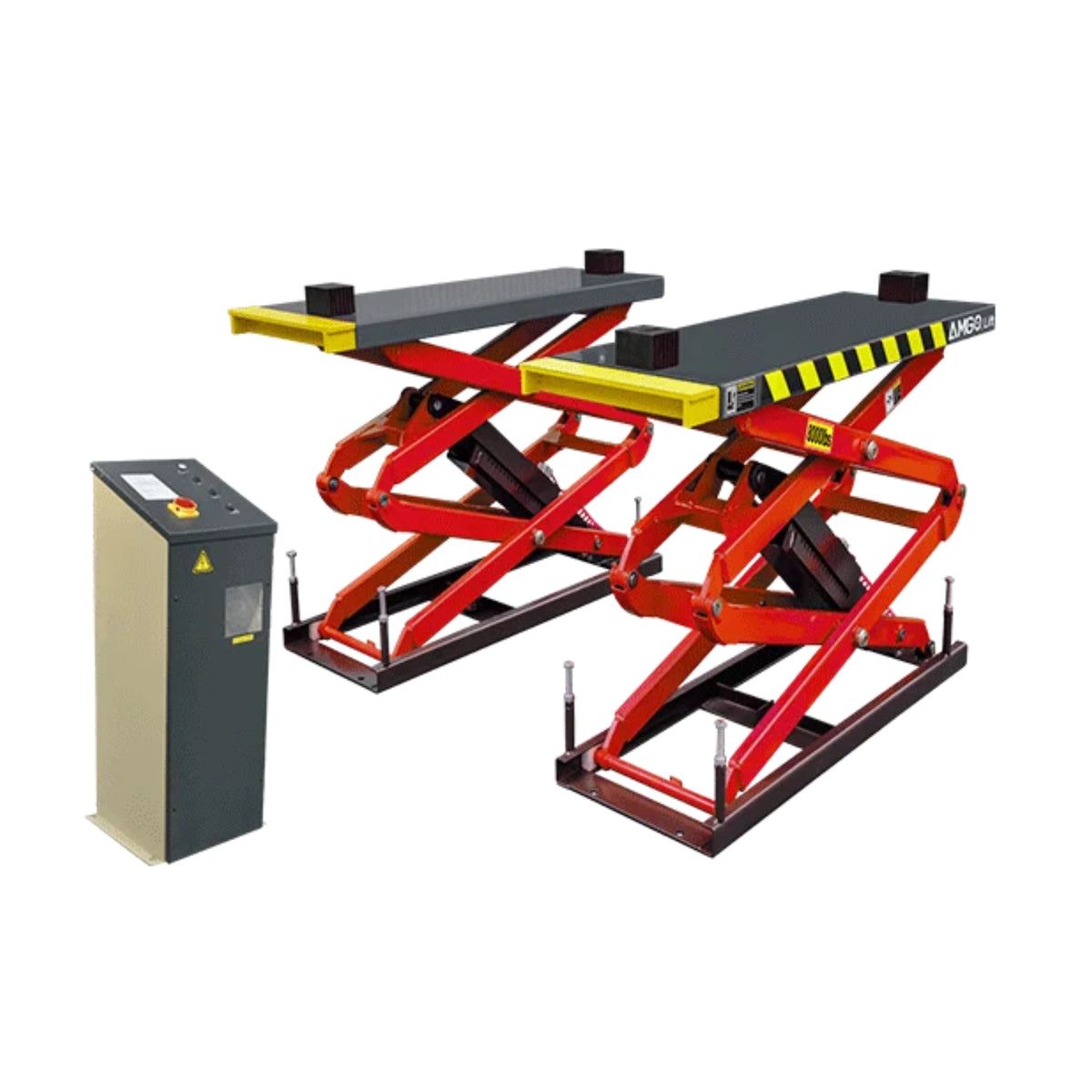

AMGO XL-8F — 8,000 lb Flush-Mount Scissor Lift

A bay floor with a lift edge across it is a bay that punishes cart traffic all day — and flush-mount is the cure that usually gets priced out. The AMGO XL-8F makes it attainable at 8,000 lbs: the same recessed-pit, flush-with-the-floor scissor concept as its bigger sibling, in a lighter package that lifts a full cycle in 35 seconds.

At 72 7/16 inches of maximum lift with runways from 61 3/16 to 69 1/16 inches, it covers the passenger-car and light-truck service range — brakes, tires, inspections — on a platform that disappears into the floor when the work is done.

Who the AMGO XL-8F Is Built For

• Service bays that want the floor back — the flush-mount platform sits level with the finished floor, so the bay doubles as flat workspace whenever the lift is down.
• Shops on the 8,000 lb vehicle mix — sedans, SUVs, and half-ton trucks are squarely in the XL-8F's range, with 72 7/16" of lift for real underbody access.
• Speed-sensitive operations — the 35-second cycle is the fastest in AMGO's flush-mount pair, fitting quick-lube and inspection rhythm.
• Clean-floor shops — wash, detail, and inspection bays where floor edges and ramps are unacceptable.
• Budget-aware flush-mount buyers — the XL-8F delivers the flush concept with less steel, less weight (1,479 lbs), and a lower commitment than the 10K XL-10F.

What the AMGO XL-8F Is NOT Built For

This is not for 3/4-ton-and-up service trucks — 8,000 lbs is the ceiling, and that work belongs to the XL-10F. It's not a surface-mount decision either: the XL-8F requires a recessed pit per the manual, and a shop unwilling to cut the floor should look at surface-mount scissors instead.

Important sizing note: plan the pit/recess per the manual before ordering (13 3/4" minimum height), confirm the 74 13/16" width in the finished opening, and check your vehicle mix against the 61 3/16"–69 1/16" runway range before purchase.

What Makes the AMGO XL-8F Different

Flush-mount — the floor that disappears

13 3/4" of minimum height in a recessed pit — the platform sits level with the finished floor, no ramps, no edges.

• Flush with finished floor
• 13 3/4" minimum height
• Recessed/pit installation

35-second cycles

The fastest cycle in AMGO's flush-mount pair — quick-service rhythm without giving up 72 7/16" of working height.

The honest 8K platform

Runways 61 3/16"–69 1/16", 31 1/2" between them, 1,479 lbs of machine — the right-sized flush-mount for the passenger and light-truck fleet.

Best For

• Flush-floor bays
• Passenger / light-truck service
• Fast-cycle inspection lanes
• Clean-floor operations

Not Ideal For

• 3/4-ton+ service trucks (see XL-10F)
• No-pit, no-recess floors
• Vehicles over 8,000 lbs

XL-8F vs XL-10F — the flush-mount scissor pair

Same flush concept — the XL-8F is the faster, lighter 8K; the XL-10F is the capacity and runway-length play.

Full Specifications - AMGO XL-8F

AMGO® Hydraulics Warranty - AMGO XL-8F

AMGO backs every lift with its published 5-3-2 warranty — five years on steel structure, three on hydraulics, two on electrical and power-unit components (rubber pads are consumables and excluded). Coverage applies in the 48 contiguous states, and it's handled through Alamo.

Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we help get the issue moving.

Warranty terms can change. Confirm exact coverage at the time of purchase. Warranty can be void if the lift is installed improperly or not anchored per spec.
