APlusLift 48" Wide 1500 lb Air Operated Lift Table for Motorcycles, ATV, #MT1500X
Lead time:
-
DESCRIPTION

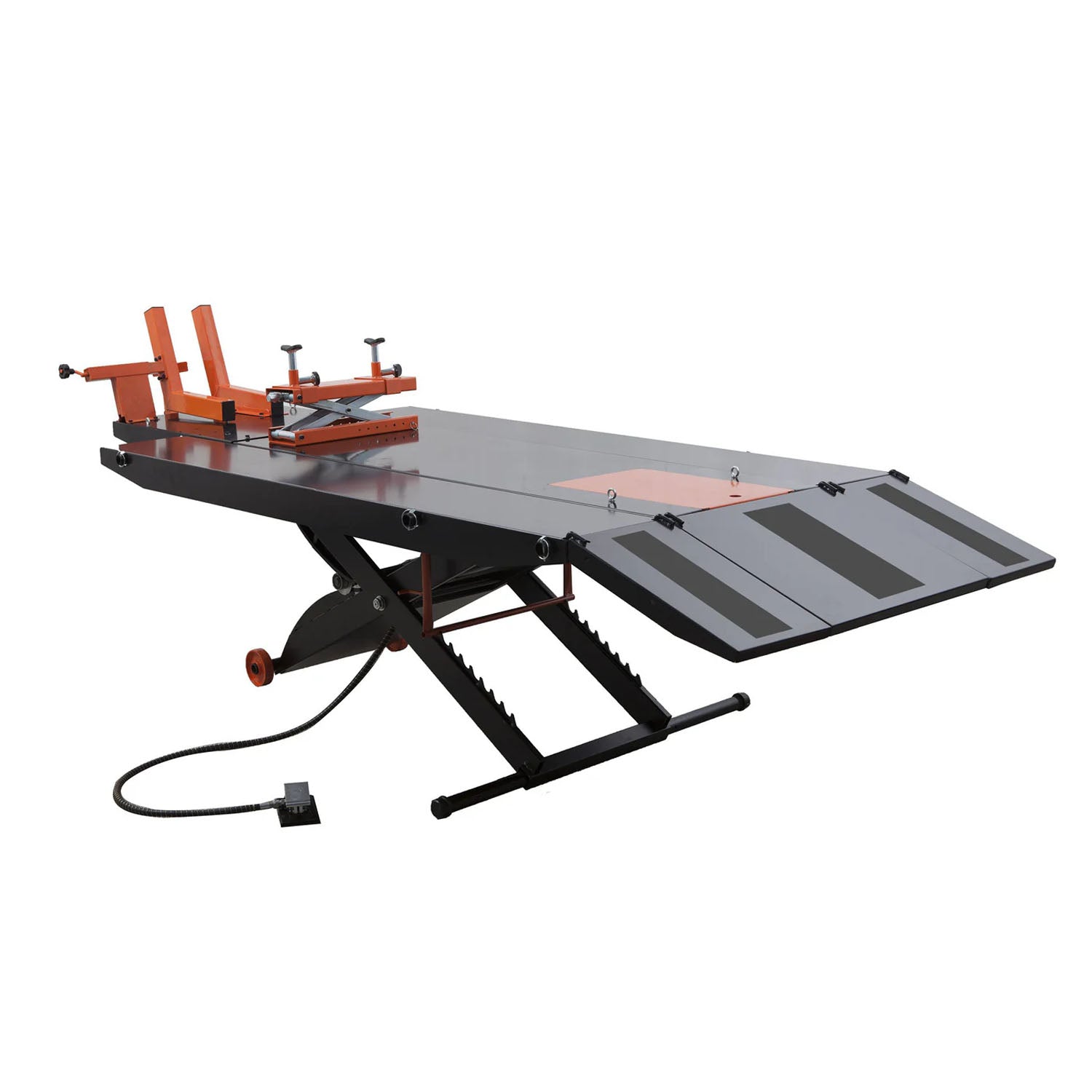

APlusLift MT1500X 48" Wide 1500LB Air Operated Lift Table for Motorcycles, ATVs, UTVs & Snowmobiles
APlusLift 1500LB heavy-duty air-operated lift table includes a main lift table, side extensions (for 48" and 72" wide tables), a front wheel clamping vise, a drop-out tail, a 3-stage adjustable front extension, a 20" long drive-on approach ramp, and a FREE service jack. It is constructed with high-quality materials and meticulous workmanship from a dedicated factory.
- APlusLift MT1500X air-operated lift table is a 48" wide table for motorcycles, trikes, and ATVs. Our other lift tables include: APlusLift MT1500 24" wide 1500LB lift tables for motorcycles and similar vehicles.
- APlusLift MT1500XLT 72" wide 1500LB lift tables for motorcycles/Trikes/ATVs/UTVs/Snowmobiles.
- Falcon 2200LB electric/hydraulic lift tables for motorcycles, Trikes, ATVs, UTVs, and Snowmobiles.
-
FEATURES + BENEFITS
- New Butterfly Foot Pedal with Auto Neutral Position (Patent Pending)
- 1 service jack included. ($1000 Value) The service jack designed for lifting motorcycles for wheel service, and with included adapters, will also lift ATVs and other small vehicles.
- 3-stage adjustable front extension. The front chopper extension allows long bikes to fit onto the lift.
- 7-position safety locking system. Secures the lift in place while operating.
- An adjustable front extension and front stop which help a longer motorcycle.
- Compact portable design. Makes the AP-MT1500X easy to move and store.
- Detachable drive on ramp. Low-angle ramp protects bikes as they are rolled onto and off the lift.
- Drop out tail. Allows access to the rear of vehicles and facilitates wheel service more easily.
- Enhanced rack under the main table. Seven-position safety locking system: secures the lift in place while working.
- Front wheel vise. Secures vehicles and includes an adjustable front stop.
- Greasable shaft. Grease zerks on the xle maintains smooth rolling action.
- Pneumatic operation. Air powered with foot pedal controls.
- Single heavy-duty pneumatic cylinder. Heavy-duty construction w/ sealed roller bearings for smooth operation.
- Tailor-made cylinder with strong steel. Strengthening the cylinder wall to support a genuine 1,500 lb capacity.
- Exceptionally Durable E-Coated Black Paint Finish; Durable Powder-Coated Orange Paint Finish
- 8.8 Construction Grade Hardware
- Stable Scissor Frame with Precise Pivot Shafts and Thicker Gauge Steel
-

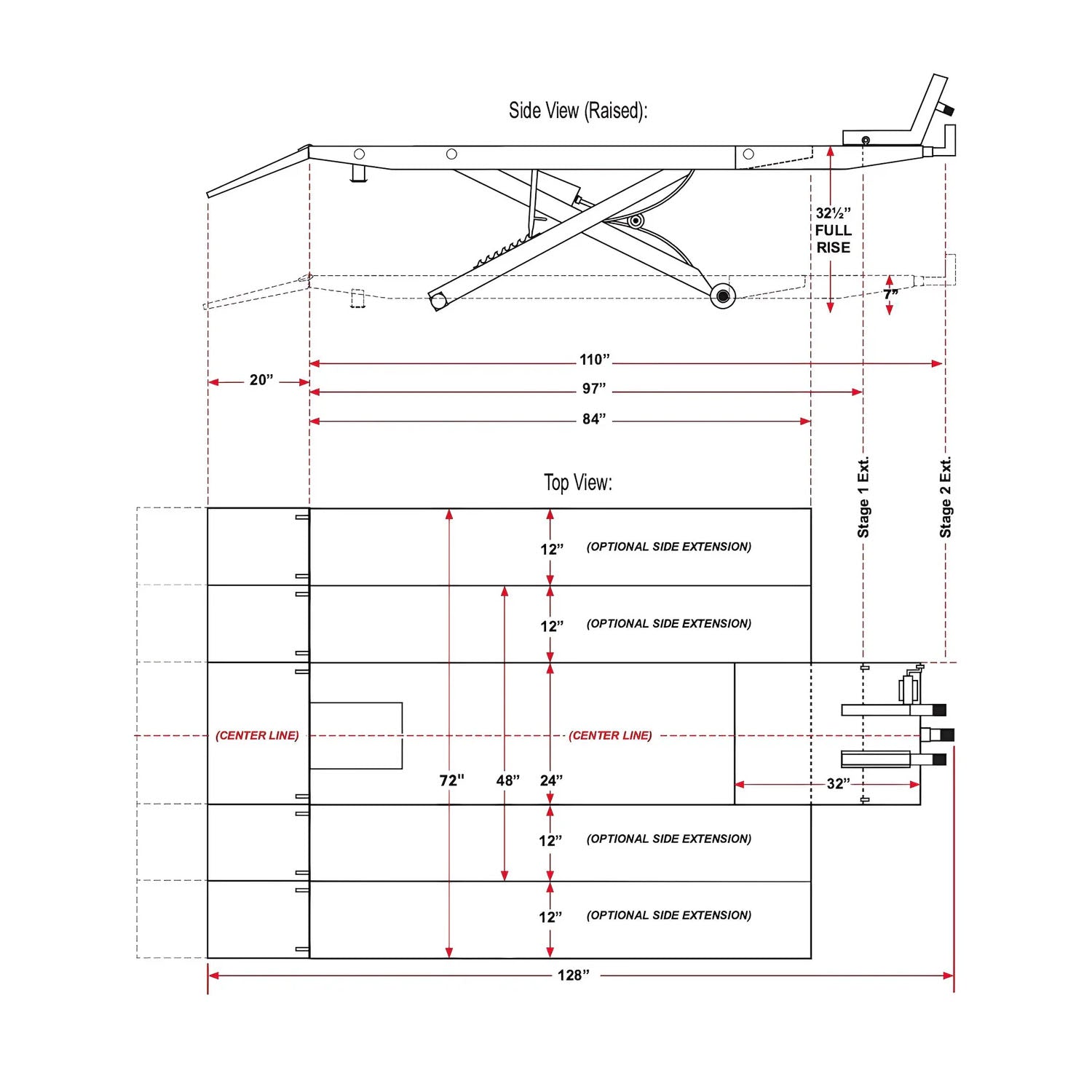

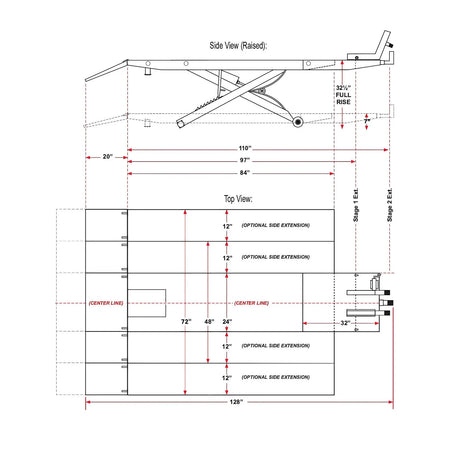

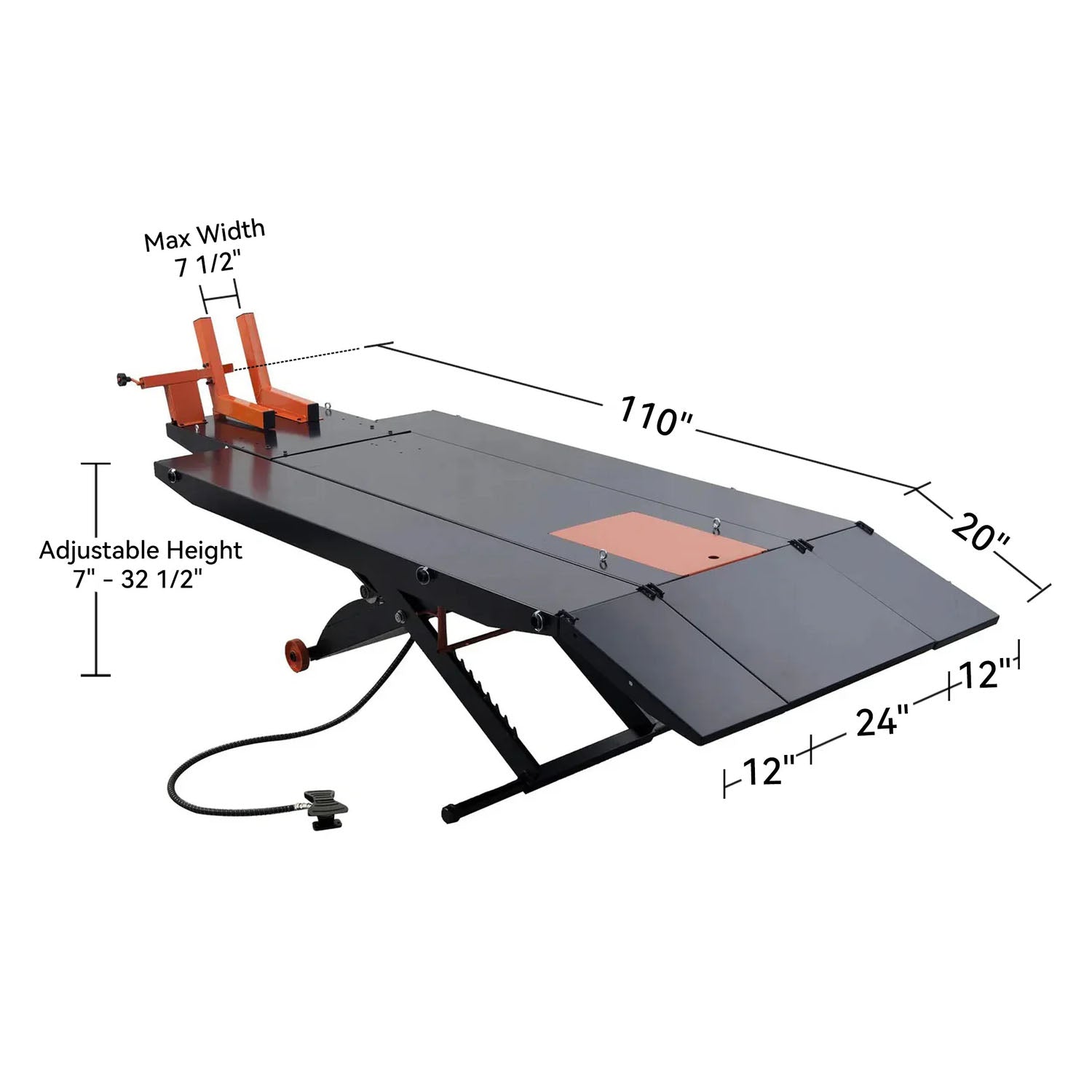

SPECIFICATIONS
Model MT1500X
Manual MT1500X Manual Style Motorcycle, ATV, Trikes, UTV, Snowmobile Lift Table Weight Capacity 1500 lbs Warranty 2-year (24 months) warranty Table Length without Front Extensions
84"
Table Length with Front Extensions 97" (Stage 1), 110" (Stage 2) Front Extension Width without Extensions 24" Table Width with Extensions 48" Side Extension Size 84"L x 12"W (2 piece) Removable Approach Ramp Size 20"L x 24"W Drop Out Plate Size 21"L x 14"W Table Steel Thickness 1/8" Safety Locking Positions (to Table Top) 19.5", 21.75", 23.5", 25", 27", 28.5", 30" Maximum Lifting Height (Table Top to Ground) 33" Minimum Height (Table Top to Ground) 7" Service Jack Max Lifting Height 15") Service Jack Lowered Height 3.5" Service Jack Weight Capacity 1,000 lbs. Air Requirements 90-120 PSI Shipping Weight 600 lbs Shipping Dimension 88"L x 26"W x 17"H -
WARRANTY
Warranty Information
- 2-Year (24 months) Warranty
- 2-Year (24 months) Warranty
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
