APlusLift 9,000LB 2-Post Floor Plate Car Lift #HW-9KFL

APlusLift HW-9KFL — 9,000 lbs 2-Post Lift

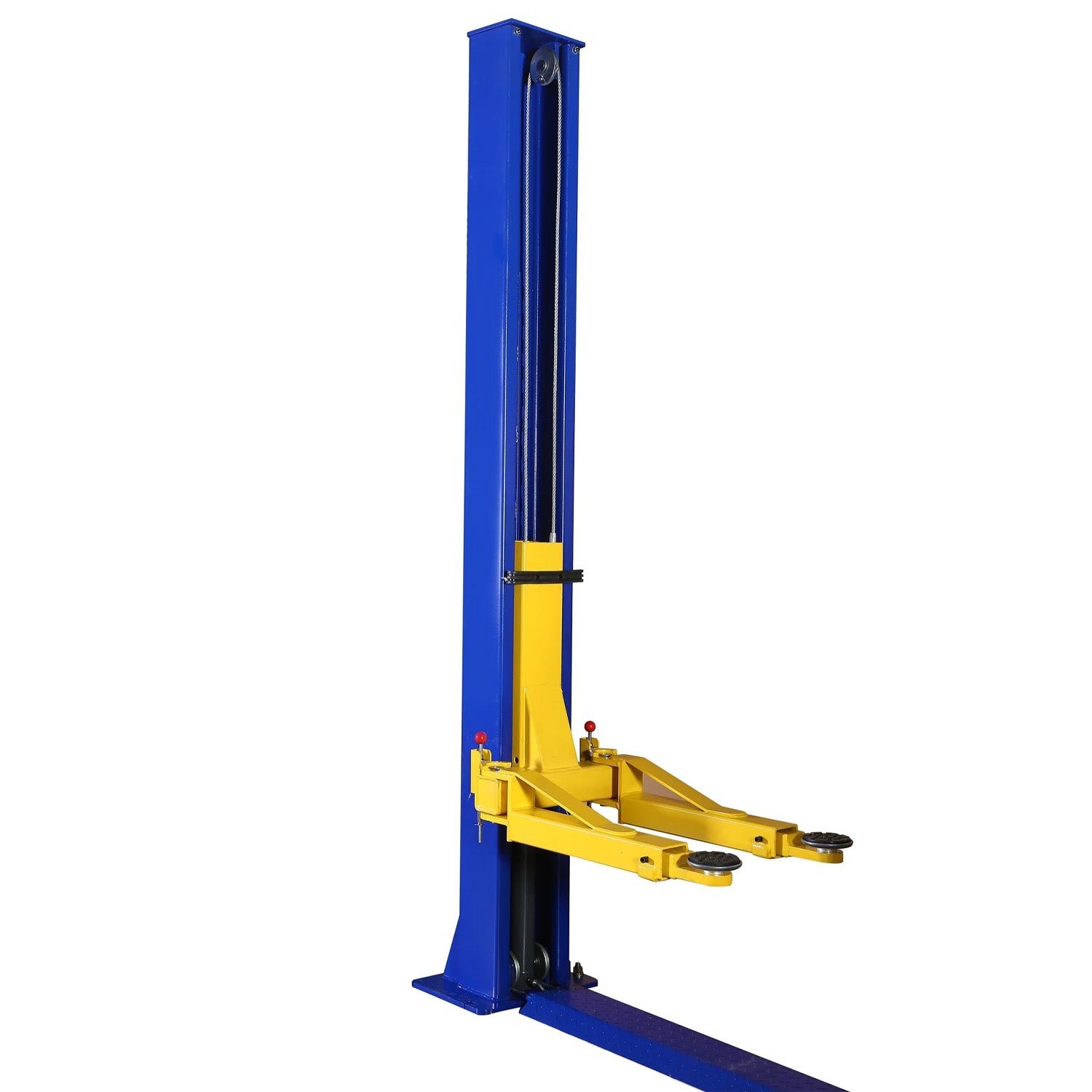

Shops in residential garages and light commercial bays regularly run into the same constraint: the vehicle volume calls for a 2-post lift, but the 10-foot ceiling rules out every standard overhead design. The APlusLift HW-9KFL is the 9,000 lb floor plate 2-post built for that bay — a 113 5/8" total column height that installs cleanly under a 10-foot ceiling where overhead lifts can't go. The floor plate cable runs at floor level between the bases, which is the structural trade-off that allows the low column profile.

The HW-9KFL uses combo symmetric and asymmetric arms — the same arm flexibility as the larger HW-10KBP-A, scaled for 9,000 lb capacity. APlusLift's 3-year parts warranty applies to all components, and replacement parts are available for the HW series. Note: the installation manual for the HW-9KFL is available on request through Alamo — call (844) 480-6059 and we'll provide it before your install date. Confirm bay measurements before ordering.

Who the HW-9KFL Is Built For

• The home mechanic or light commercial shop owner with a 10-foot ceiling who wants a 9,000 lb lift and has been told an overhead 2-post won't fit — the HW-9KFL's 113 5/8" total height is the answer
• Shops on a tight budget adding a first or second bay where the HW-9KFL's price point is the deciding factor in making the bay expansion happen
• Technicians already running a floor plate lift in another bay who want a consistent platform with a known workflow — same floor plate design, newer equipment, longer warranty
• Shops servicing mostly passenger cars and light vehicles where 9,000 lb capacity is correct and a 10K platform would be over-specifying for the actual vehicle mix
• Residential shops where the combo symmetric/asymmetric arm assembly means one lift handles both the family sedan and the truck without dedicated configuration

What the HW-9KFL Is NOT Built For

• ❌ Shops with 12-foot or greater ceiling clearance — an overhead clearfloor 2-post provides better floor access and is worth the extra height in those bays
• ❌ Shops requiring ALI/ETL certification — the HW-9KFL is CE certified; choose an ALI-certified alternative for compliance needs
• ❌ Bays where complete clearfloor access between columns is operationally required — the floor plate cable occupies floor space between the bases

Questions about fit or capacity? Call Alamo at (844) 480-6059.

What Makes the HW-9KFL Different

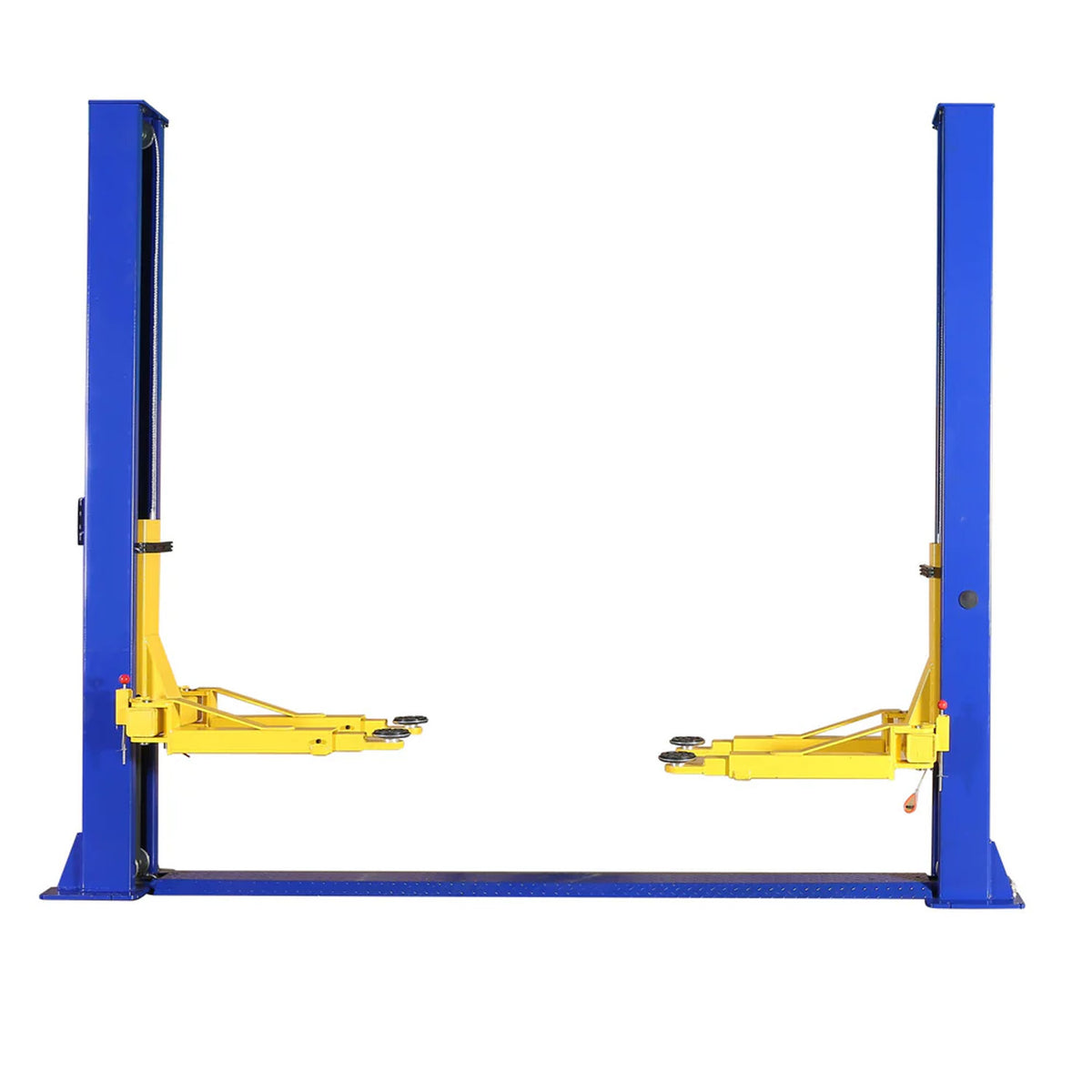

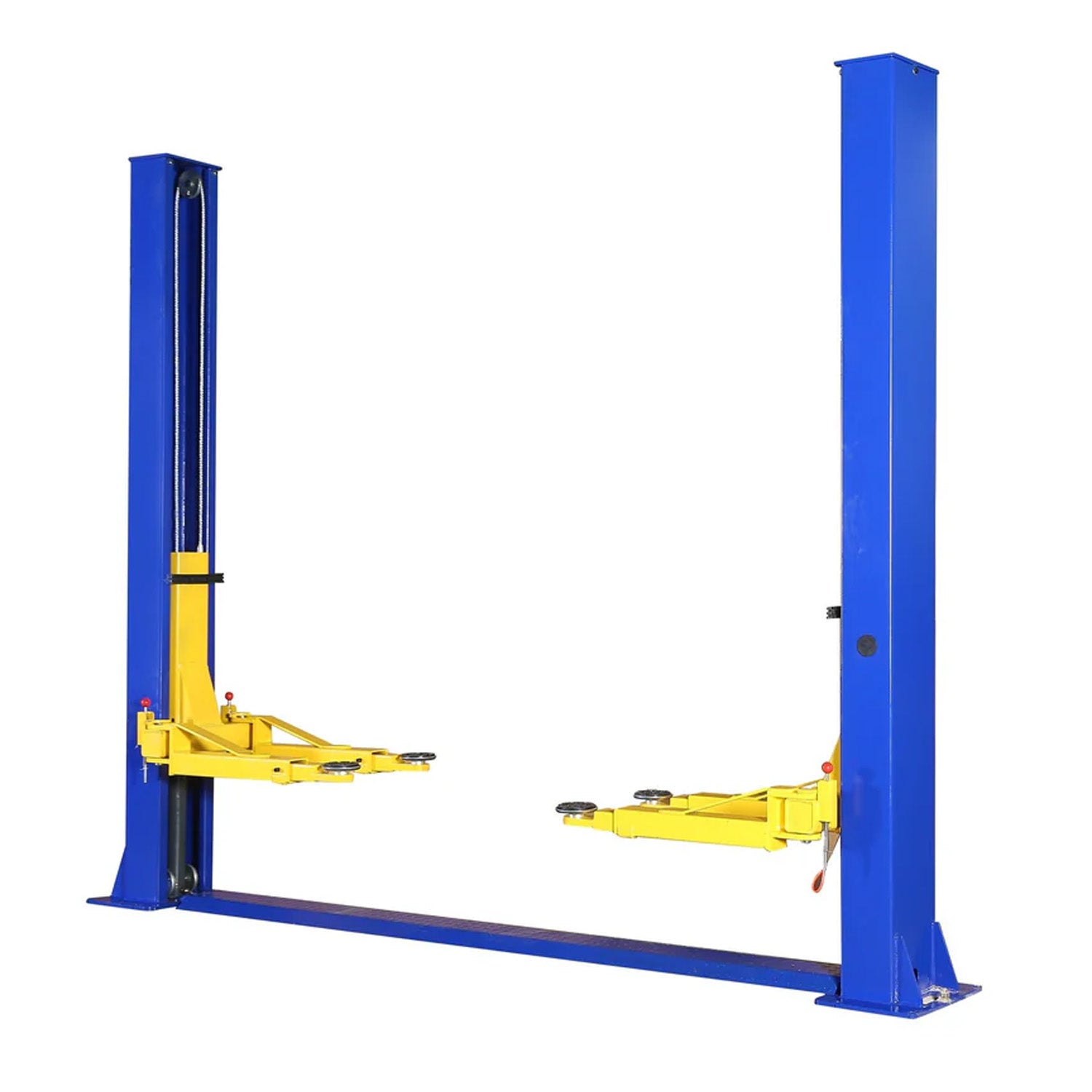

9,000 lb Floor Plate Design — 10-Foot Ceiling Compatible

The HW-9KFL's 113 5/8" (9' 5 5/8") overall column height is the spec that matters for low-ceiling bays. An overhead 2-post at 9K capacity requires a 12-foot minimum ceiling — the floor plate design drops that requirement to 10 feet. For shops in residential garages or older commercial buildings with non-standard ceiling heights, the HW-9KFL opens a path to 9K 2-post capability that standard designs can't provide.

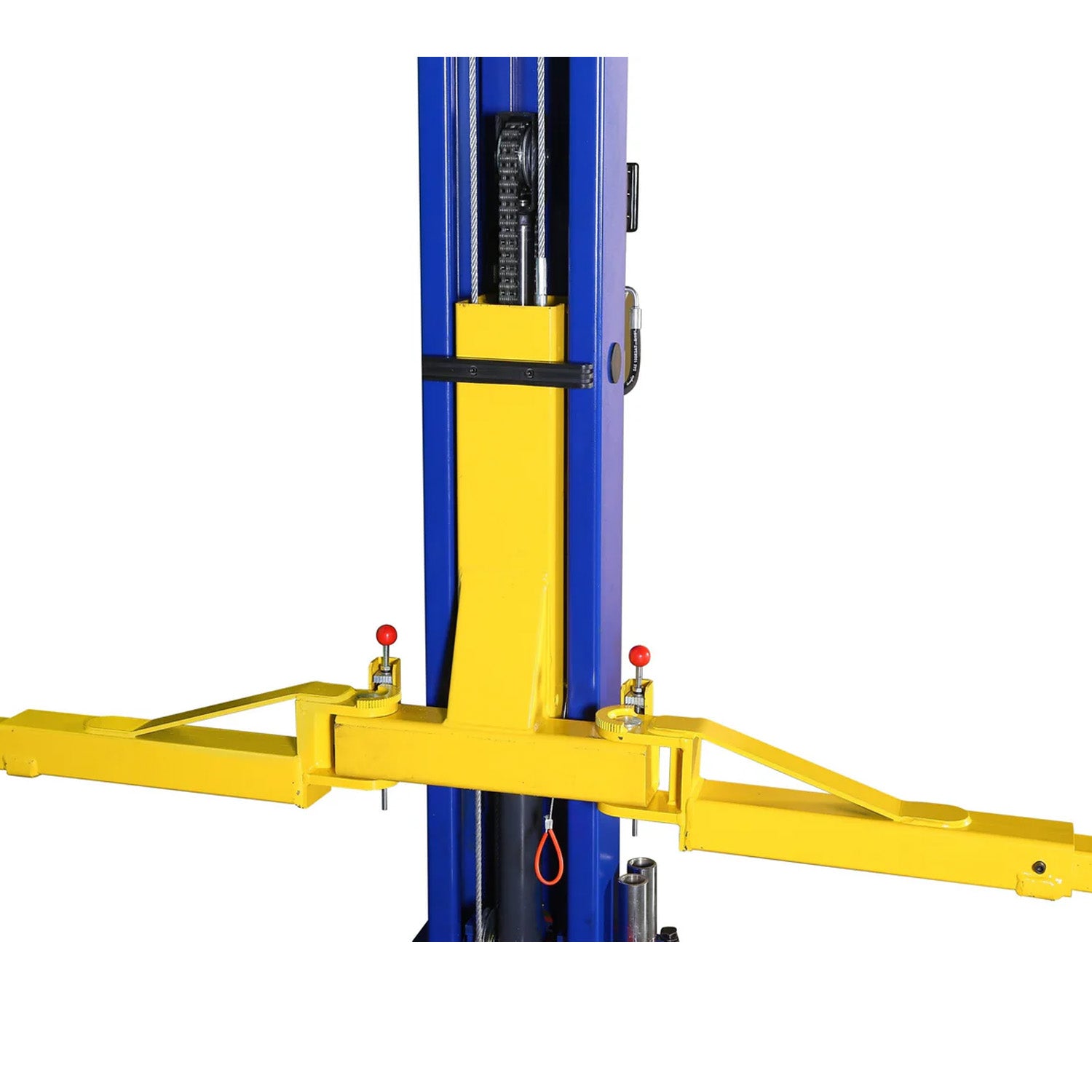

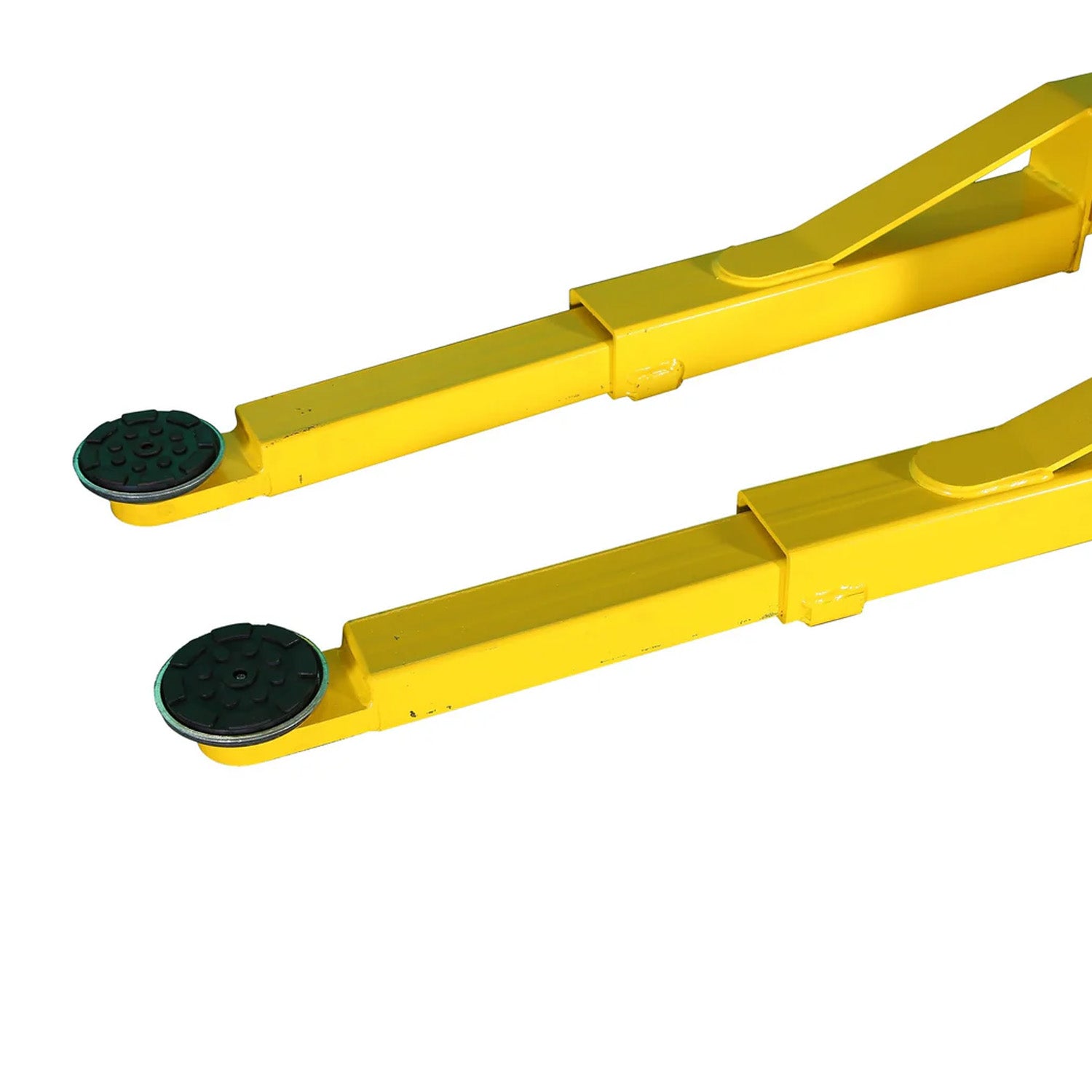

Combo Symmetric and Asymmetric Arms — Low-Ceiling Bay, Full Arm Flexibility

The HW-9KFL's combo arm assembly supports both symmetric loading (equal front-rear arm reach, centered between columns) and asymmetric loading (offset for door-open access on passenger cars). The adjustable screw pads handle lift points at different heights across vehicle types. That combination — both loading geometries from one arm assembly — in a floor plate package means low-ceiling shops don't have to choose between a single-geometry lift and the ceiling clearance they don't have.

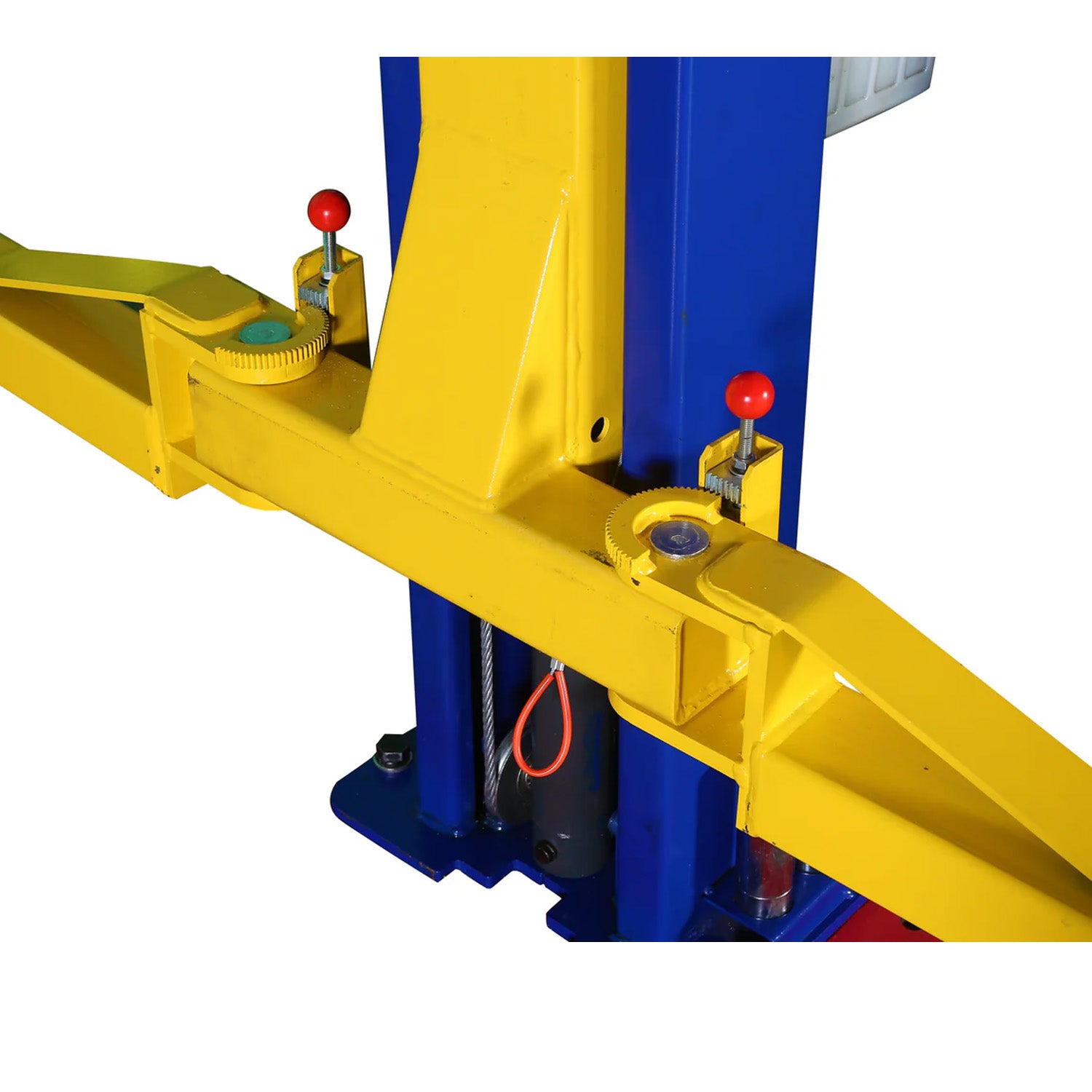

Double Point Safety Lock Release — Both Columns Simultaneously

The HW-9KFL's dual-point lock release requires both columns to disengage simultaneously before descent — a basic safety feature that prevents the vehicle from tipping or shifting if one side releases while the other holds. Automatic arm lock restraints engage when the arms reach extended position, holding them against the vehicle's lift points throughout the service period. The up-limit switch stops the cylinder at the top of the safe working stroke, protecting the hydraulic system from over-extension.

Beveled Diamond Plate Floor Plate with Supporting Bracket

The HW-9KFL's upgraded floor plate uses beveled diamond plate steel (5/32" thickness) with a supporting bracket — a more durable floor plate profile than standard flat plate designs. The beveled edge reduces the trip hazard at the plate perimeter, and the supporting bracket adds rigidity to the plate section that spans between the column bases. The 5/8" stiffened base plate at each column adds column stability at the floor anchor point.

APlusLift 3-Year Parts Warranty — Affordable 9K Platform, Full Term Coverage

APlusLift's 3-year parts warranty applies to all HW-9KFL components. At this price point — under $2,000 — a 3-year full-parts warranty is the coverage term that separates a lift investment from a lift expense. Replacement parts are stocked and available. Alamo coordinates parts procurement for warranty claims. Installation manual is available on request for the HW-9KFL — call (844) 480-6059 before install day and we'll provide it.

Full Specifications — HW-9KFL

APlusLift Warranty — HW-9KFL

APlusLift backs the HW-9KFL with a 3-year parts warranty for all car lifts — sourced from the official APlusLift website (apluslift.com). APlusLift publishes a flat parts warranty without a component-level breakdown; the 3-year term covers all covered components for the full warranty period.

Warranty service is through Alamo Equipment & Service. When you buy from us, you are not waiting on a manufacturer hotline — call (844) 480-6059 and we handle it.
