APlusLift BJK-45 4,500 lb Air Sliding Jack (Crate) #BJK-45

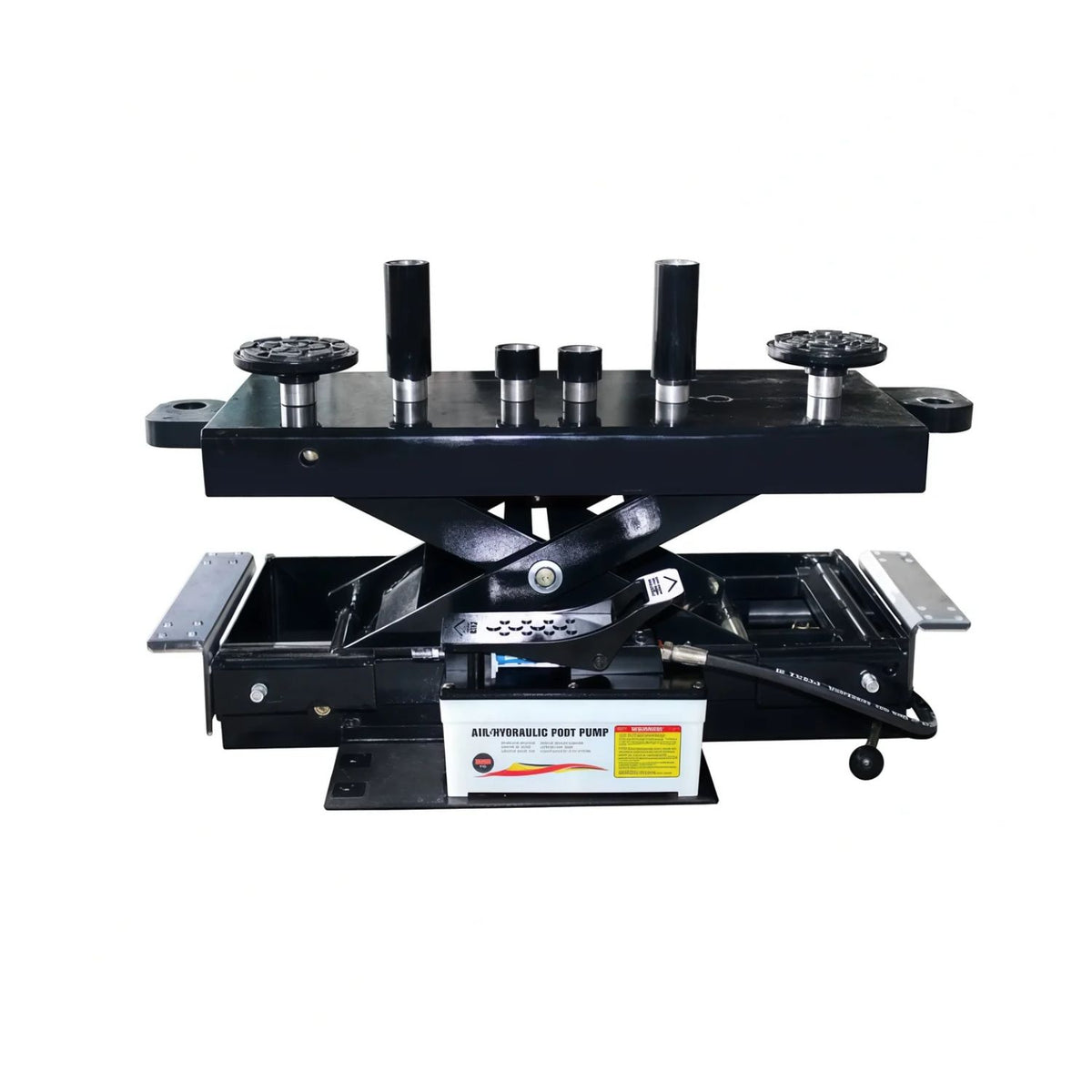

APlusLift BJK-45 — 4,500 lb Air Sliding Jack

A four-post lift without a bridge jack is a parking deck — the wheels never leave the runway, and brake work happens somewhere else. The APlusLift BJK-45 is the bridge jack that finishes the lift: 4,500 pounds of air-operated capacity, sliding on an adjustable frame that fits almost all service and storage lifts, lifting axles 4 3/4 to 12 1/8 inches above the runway.

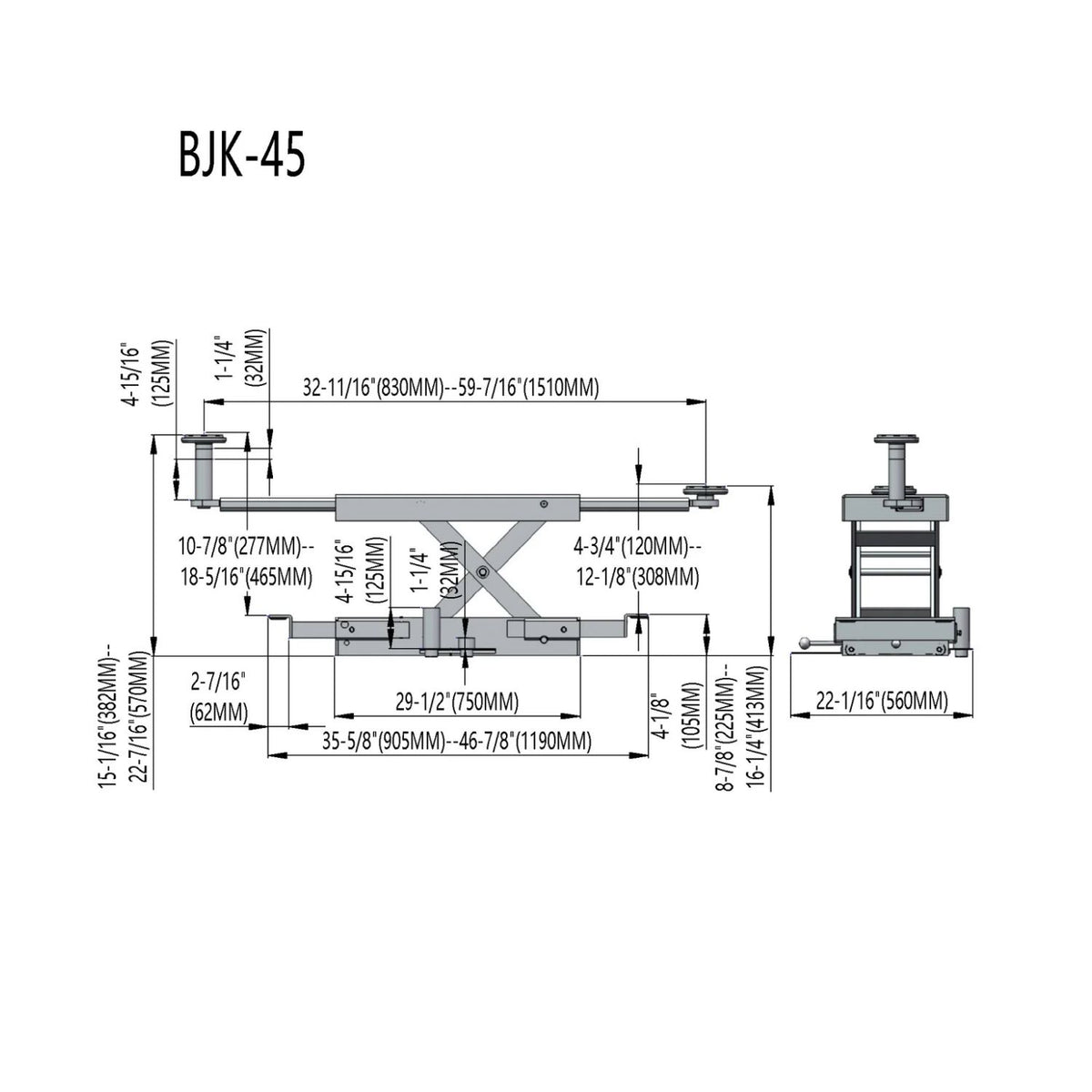

The width adjustability is the real spec: overall length extends from 35 5/8 to 46 7/8 inches, with arm pads spanning 32 11/16 to 59 7/16 inches — one jack that fits the fleet of lifts a shop actually owns, instead of a jack married to one runway width.

Who the APlusLift BJK-45 Is Built For

• Four-post owners adding wheel service — the BJK-45 turns a storage or service lift into a brake-and-wheel bay on the same footprint.
• Multi-lift shops — the adjustable width (35 5/8"–46 7/8" overall, 32 11/16"–59 7/16" between pads) is designed to fit almost all service and storage lifts, so one jack model covers the shop's fleet.
• Shops with compressed air — air operation means smooth, controlled lifts under a 4,500 lb axle with no hand-pump workout.
• Shops that want adapters in the box — two drop-in pads, two 1/4" truck adapters, and two 4 15/16" truck adapters ship with the jack, covering light-truck lifting points out of the crate.
• Buyers comparing bridge jacks — 4,500 lbs, adjustable width, 12-month warranty: the honest comparison class for the Atlas RJ45A.

What the APlusLift BJK-45 Is NOT Built For

This is not for two-post lifts (bridge jacks ride 4-post runway tracks), and it's not a heavy-axle tool — 4,500 lbs is the light-truck class, with the bigger jacks covering 3/4-ton work. Like all air-operated jacks it needs shop air at the point of use.

Compatibility note: measure your runway width and the distance between your lift's runway tracks (the jack adjusts from 35 5/8" to 46 7/8" overall), confirm 4,500 lb capacity against your axles, and verify shop air before purchase. Questions on fit? Call (817) 865-3707 before ordering — we confirm compatibility, not guesses.

What Makes the APlusLift BJK-45 Different

Adjustable width — the fitting spec

The frame adjusts from 35 5/8" to 46 7/8" overall with arm pads spanning 32 11/16" to 59 7/16" — the manufacturer's stated goal is fitting almost all service and storage lifts.

• Adjustable overall length
• Wide arm-pad span
• Fits almost all 4-post lifts

Air operated, 4,500 lbs

Shop air lifts the axle smoothly from 4 3/4" to 12 1/8" above the runway — brake and wheel work at runway height without hand pumping.

Adapters in the box

Two drop-in pads, two 1/4" and two 4 15/16" truck adapters — the light-truck lifting points are covered on delivery day.

Best For

• 4-post owners adding wheel service
• Multi-lift shops (adjustable fit)
• Light-truck axle work
• Shops with compressed air

Not Ideal For

• 2-post lifts
• Axles over 4,500 lbs (see RJ8BKAH class)
• Shops without compressed air

APlusLift BJK-45 vs Atlas RJ45A — two 4,500 lb bridge jacks

Same 4,500 lb class — BJK-45 for cross-fit adjustable width; RJ45A for Atlas-track rolling action. We sell both and service both.

Full Specifications - APlusLift BJK-45

APlusLift Warranty - APlusLift BJK-45

APlusLift backs the BJK-45 with a 12-month warranty, handled through Alamo.

Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we help get the issue moving.

Warranty terms can change. Confirm exact coverage at the time of purchase. Warranty can be void if the lift is installed improperly or not anchored per spec.
