APlusLift Falcon 2200lb Mobile Column Lift #MCL-220

APlusLift Falcon MCL-220 — 22,000 lbs per column Battery-powered mobile column lift system, CE certified

Some fleets run vehicles heavy enough that even an 18,000-lb-per-column mobile lift doesn't leave enough margin — larger trucks, loaded buses, and specialty heavy-duty vehicles need more headroom per column before a fleet manager feels comfortable putting a vehicle up. Those operations need the same mobile-column flexibility as a standard system, just rated higher.

The APlusLift Falcon MCL-220 delivers 22,000 lbs of capacity per column — verified directly against the manufacturer's manual — on the same CE-certified, battery-powered mobile column platform as the MCL-180, scaling up to 48 columns as fleet needs grow. Note: this model currently shows pre-order status with a 90-120 day delivery window — call Alamo at (844) 480-6059 for current lead time before ordering.

Who the MCL-220 Is Built For

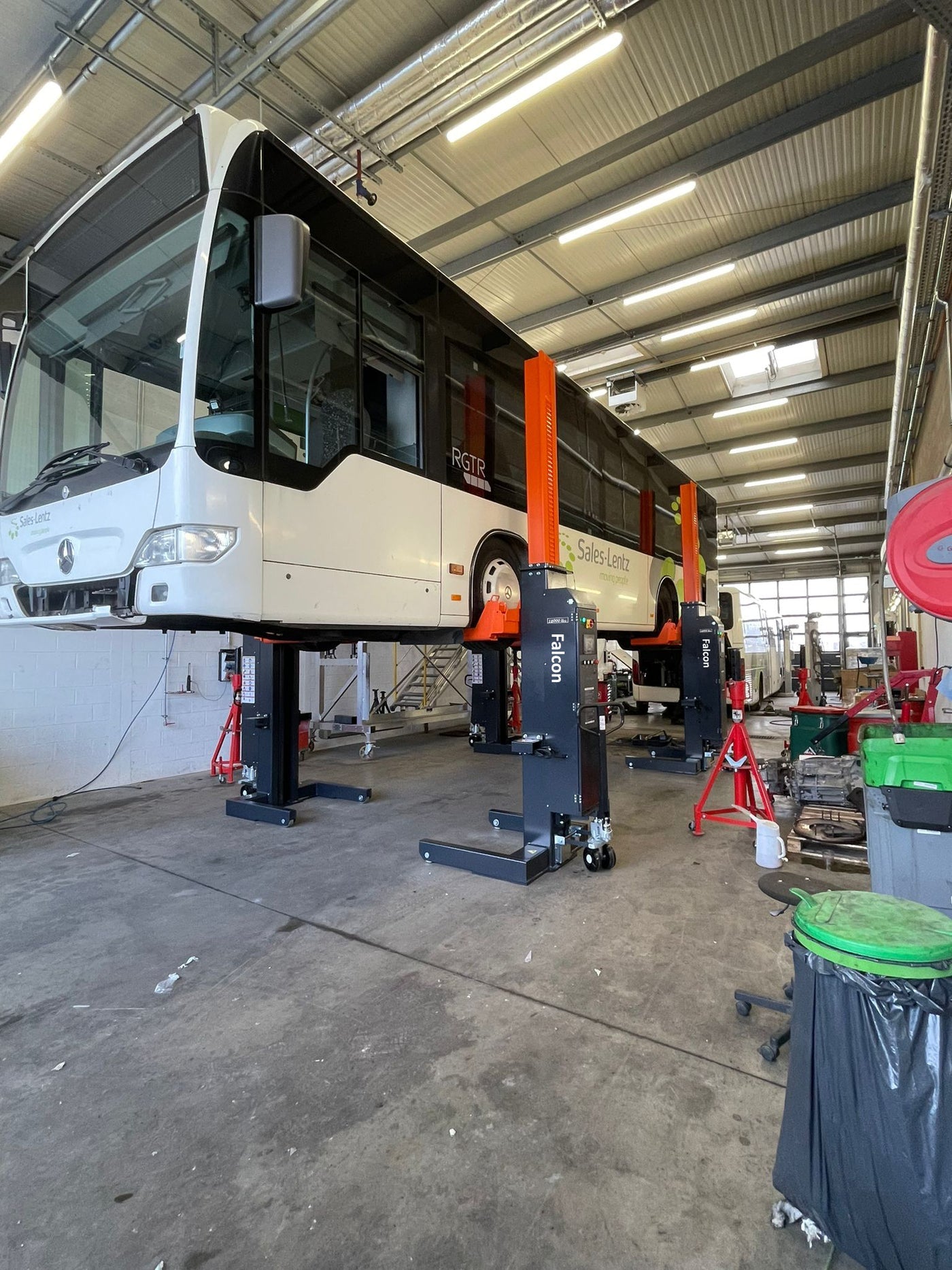

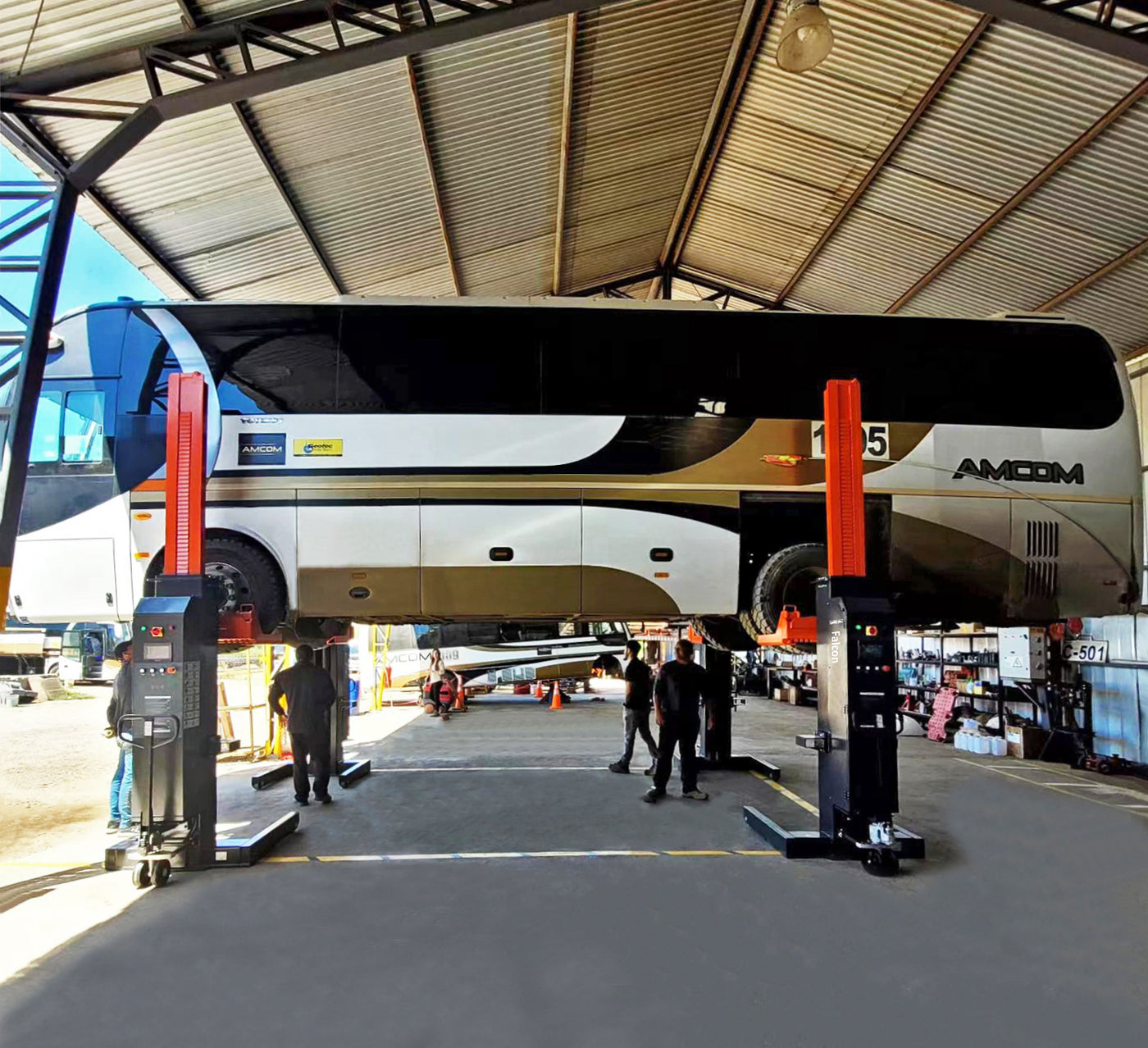

• A fleet shop that tried lifting a fully-loaded transit bus on 18,000 lb columns and watched the load rating get uncomfortably close to the limit — the MCL-220's extra 4,000 lbs per column puts real margin back into that lift
• An operation already running MCL-180 columns that just picked up a contract for heavier articulated vehicles and needs to add MCL-220 columns into the same rotation without retraining staff on a different system
• A shop that services municipal buses, waste trucks, and other axle-heavy vehicles where a lighter-duty mobile column would mean derating or refusing the job
• A safety-conscious fleet manager who wants the CE-certified, third-party load-tested paperwork on file specifically because heavier vehicles carry more liability if something is undersized
• A facility already scoping a 6- or 8-column expansion who wants to start with the higher per-column rating now instead of hitting a capacity wall later and re-ordering
• A buyer who noticed the conflicting capacity numbers on this exact listing and wants confirmation from an actual person before ordering — which is exactly why we pulled the manufacturer's manual and verified 22,000 lbs per column before writing this page

What the MCL-220 Is NOT Built For

• ❌ Shops whose vehicle mix doesn't need 22,000 lbs of capacity per column — the MCL-180 costs less
• ❌ Facilities without at least 14' of ceiling clearance and an 8"-thick, 4,000 PSI reinforced concrete floor

Questions about fit or capacity? Call Alamo at (844) 480-6059.

What Makes the MCL-220 Different

22,000 lbs Per Column for Heavier Fleet Vehicles

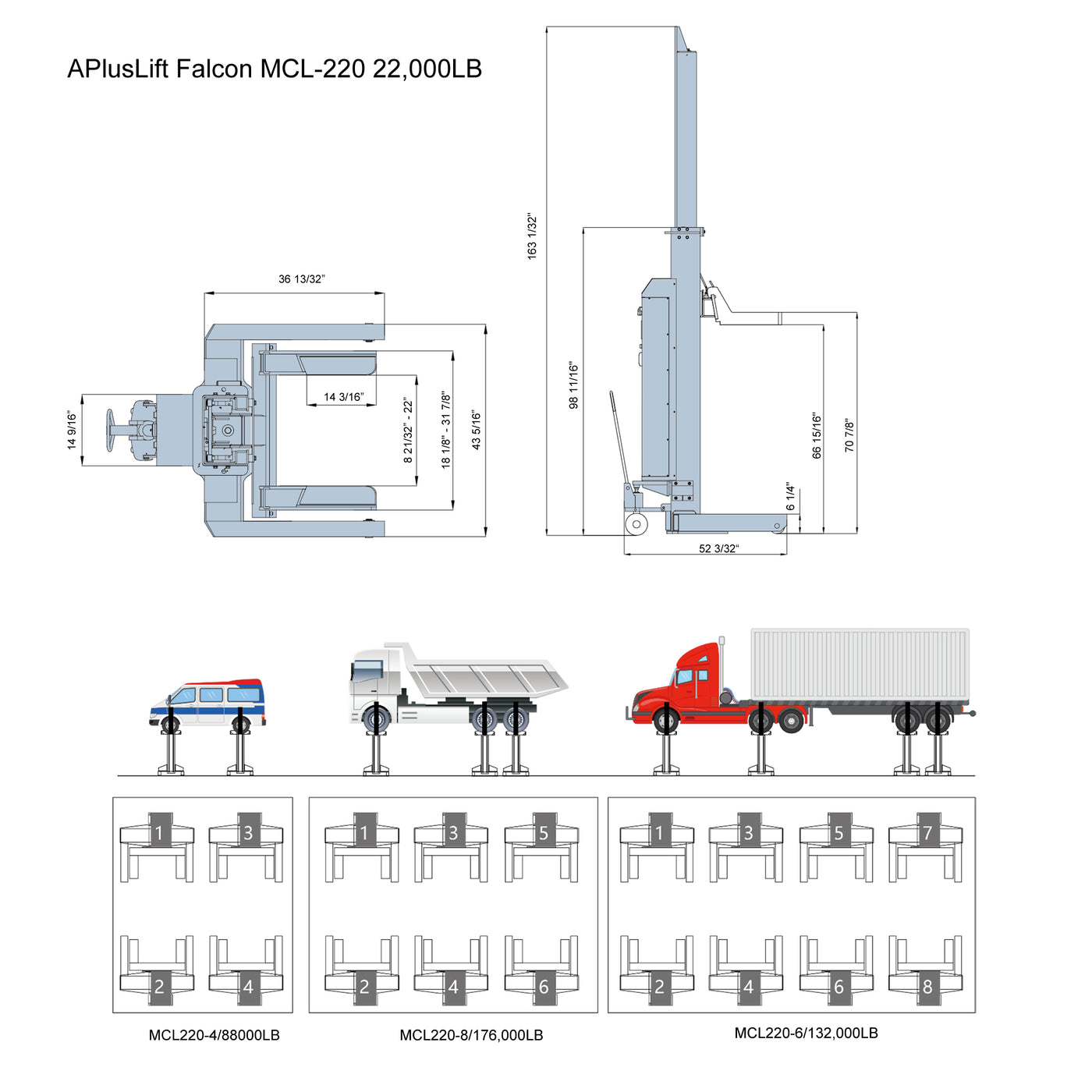

Each MCL-220 column is rated for 22,000 lbs, giving heavier trucks and buses meaningfully more margin per lift point than the 18,000 lb MCL-180. Rise height runs from a 6 1/4" minimum pad height up to 70 7/8" maximum — the same working range as the MCL-180, just with higher capacity behind it.

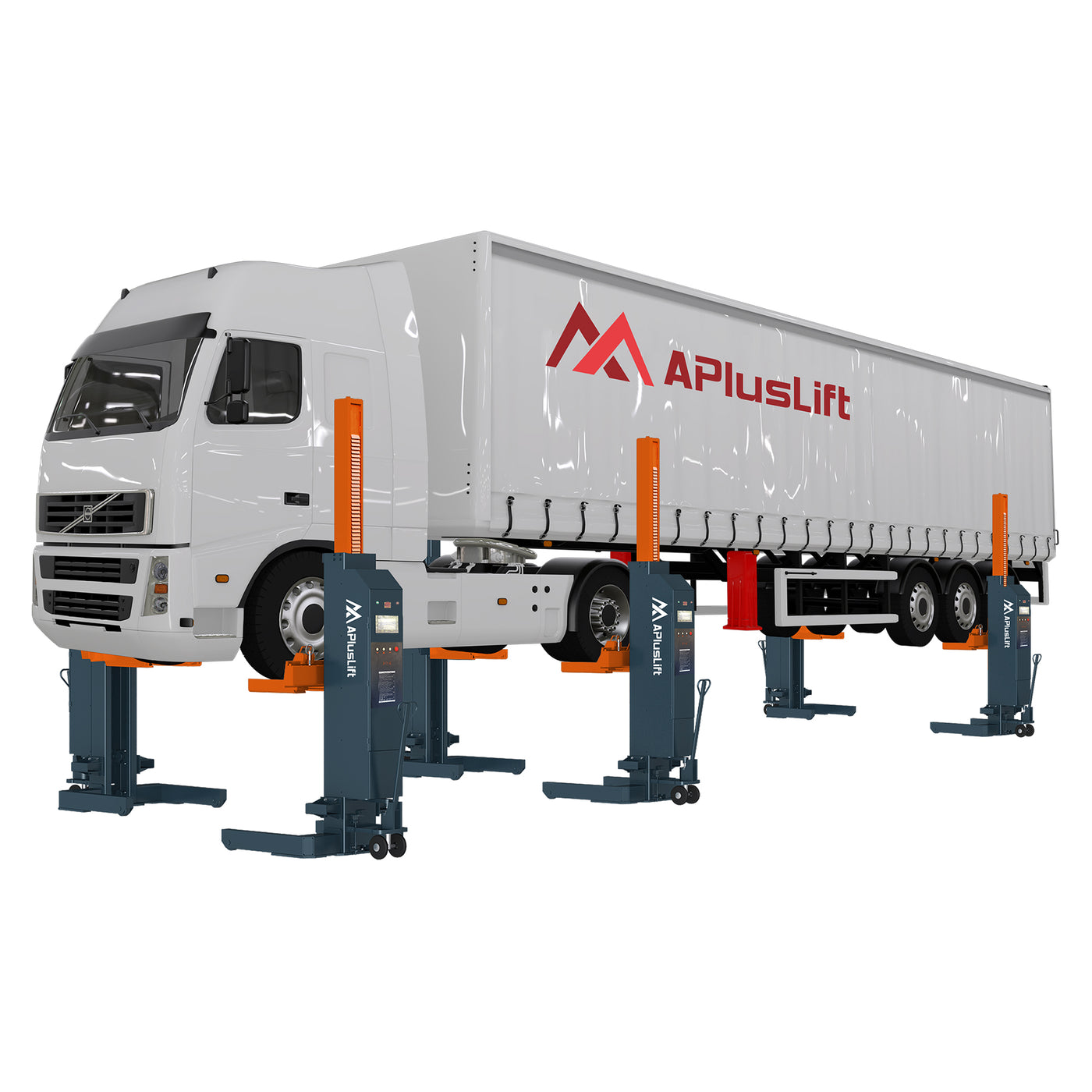

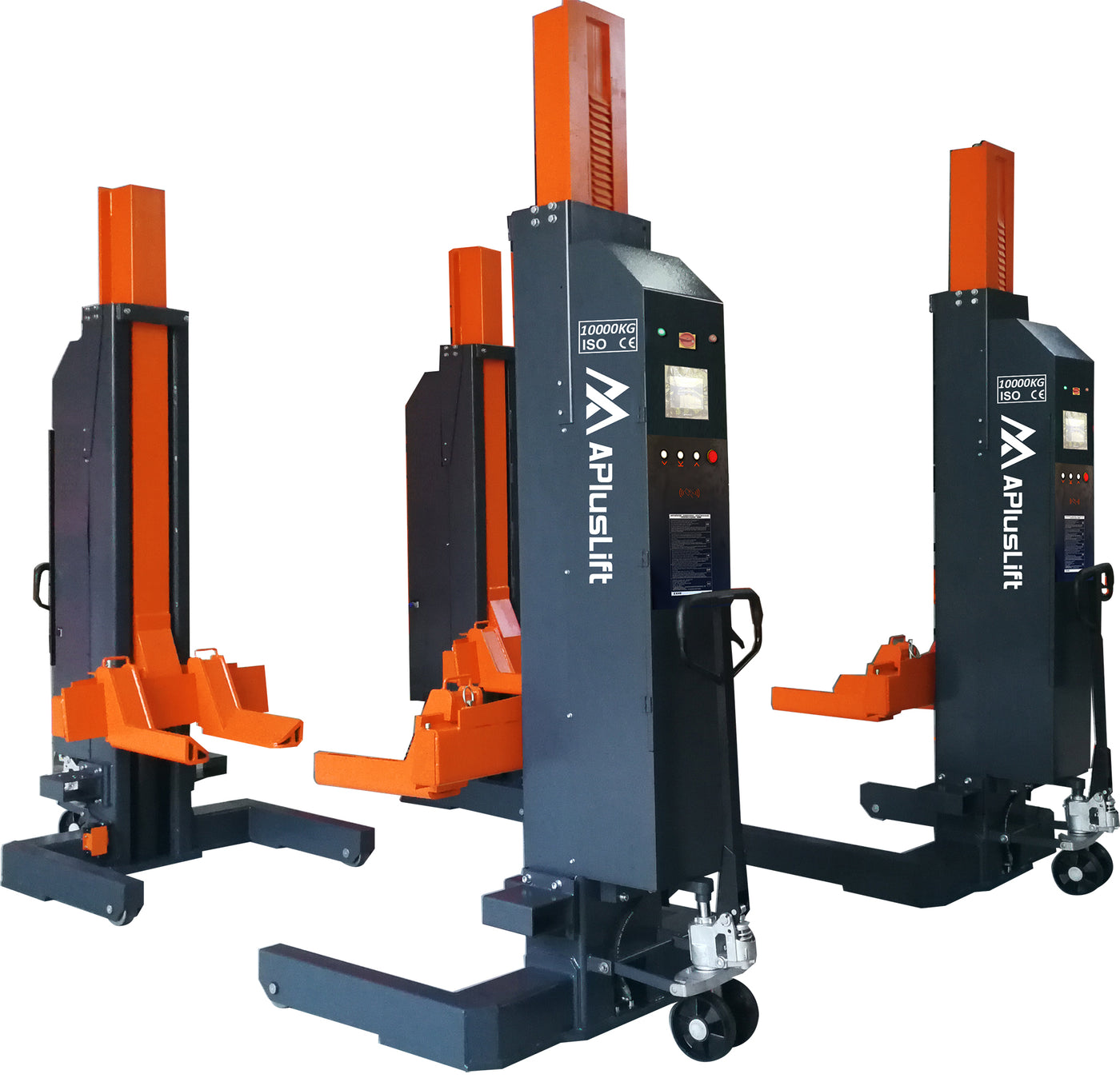

Expandable to 48 Columns With Real Redundant Safety

Like the MCL-180, the MCL-220 expands up to 48 columns using wired data communication so every column in a group moves in sync, with double safety locking — mechanical and hydraulic — so the system never relies on a single point of failure to hold a heavy vehicle in place.

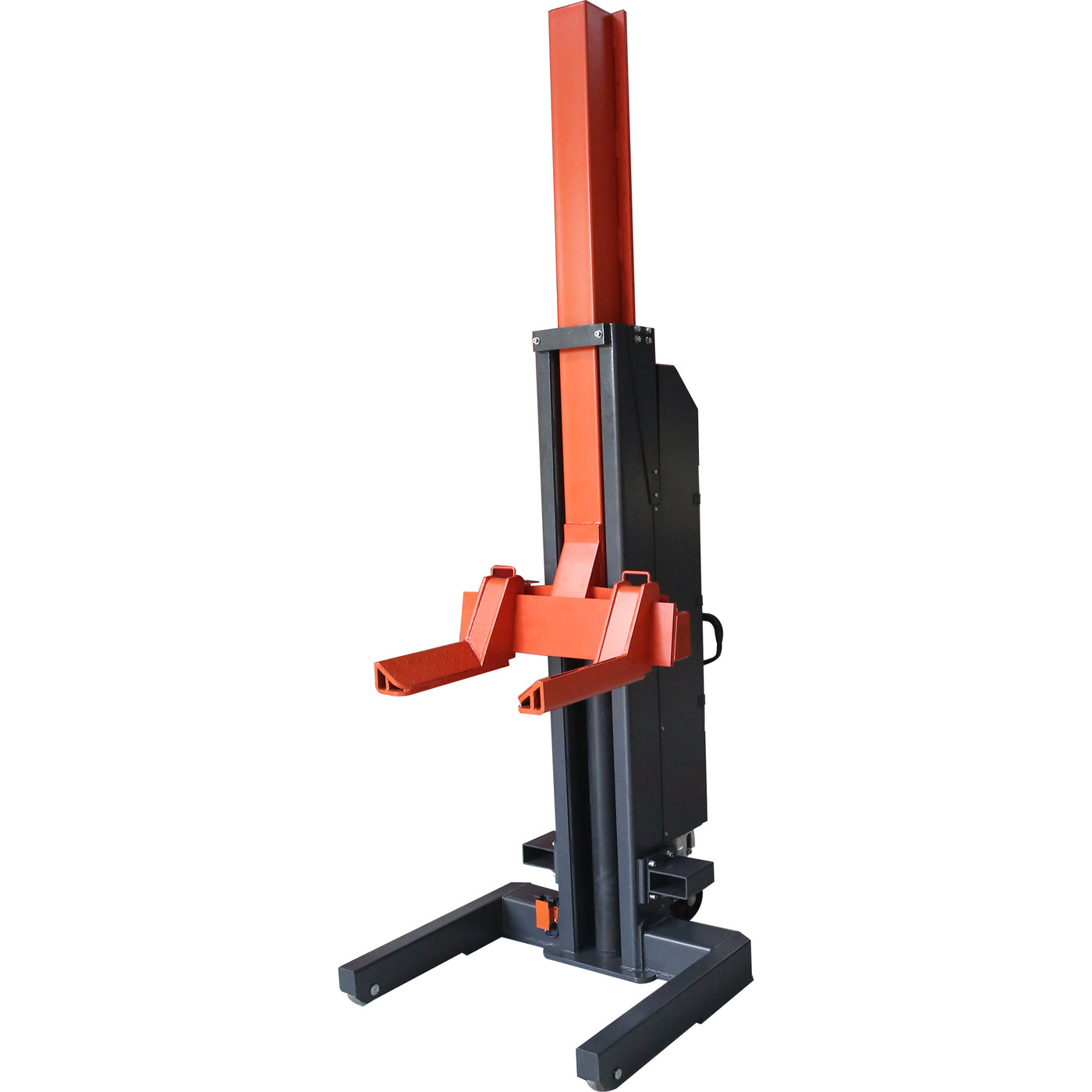

Battery-Powered Columns Built for Heavier Duty

Each column runs on DC24V power from onboard 2x12V 100Ah batteries, charged from standard AC110-240V single-phase service — no hardwired run needed at every lift position. The floor needs to be 8" thick reinforced concrete at 4,000 PSI, and overall height per column is 163 1/32" — confirm your bay clearance with Alamo before ordering, since the taller column height matters more in lower-ceiling bays.

Atlas Build Quality Backed by a Real Warranty

The MCL-220 carries Atlas's 3-year (36 months) parts warranty. Warranty service runs through Alamo — call (844) 480-6059 for any claim or service question, so a fleet operation always has a direct line instead of a manufacturer hotline.

Column Footprint Sized to Your Fleet Layout

Because column count and spacing depend on the vehicles being serviced, call Alamo for full column footprint dimensions for your specific configuration — mobile columns don't use a fixed runway, so layout flexes to match your fleet. Alamo will walk through the numbers with you before you order.

Full Specifications — MCL-220

APlusLift Falcon Warranty — MCL-220

Atlas backs the MCL-220 with its published warranty terms for this model — verified from Atlas’s own product documentation (manufacturer-web source). Coverage varies by model in the Atlas standard car lift line; the terms below are specific to the MCL-220 and should not be assumed to apply to other Atlas models.

Warranty service is through Alamo Equipment & Service. When you buy from us, you are not waiting on a manufacturer hotline — call (844) 480-6059 and we handle it.
