  Atlas® Automotive Equipment 9KBP Floor Base-Plate 2 Post Lift 9,000 lbs

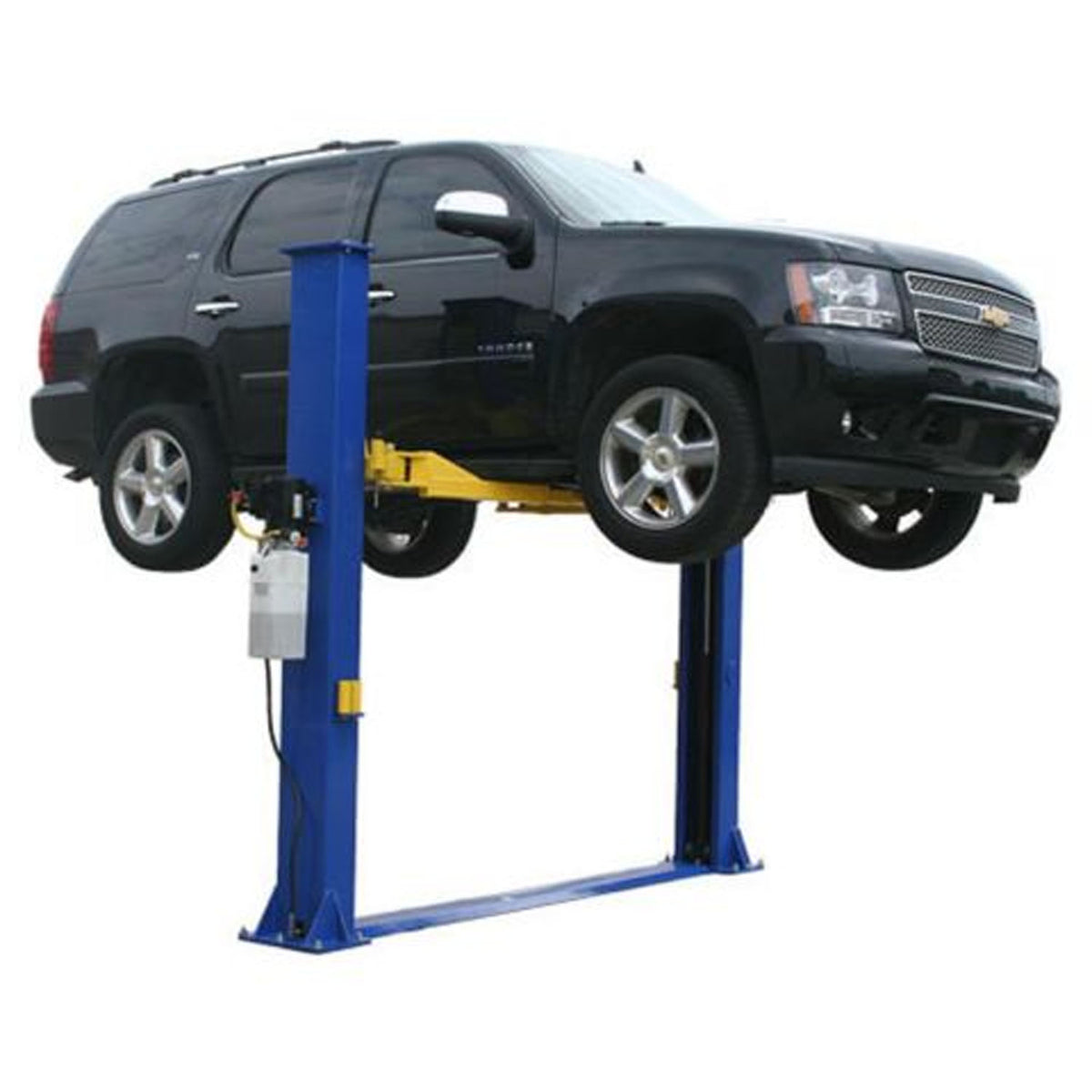

  The Atlas® 9KBP is a base-plate two-post lift designed for low-ceiling garages. The total column height of 111 ½” (9 feet 3 ½ inches) allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet 6 inches.

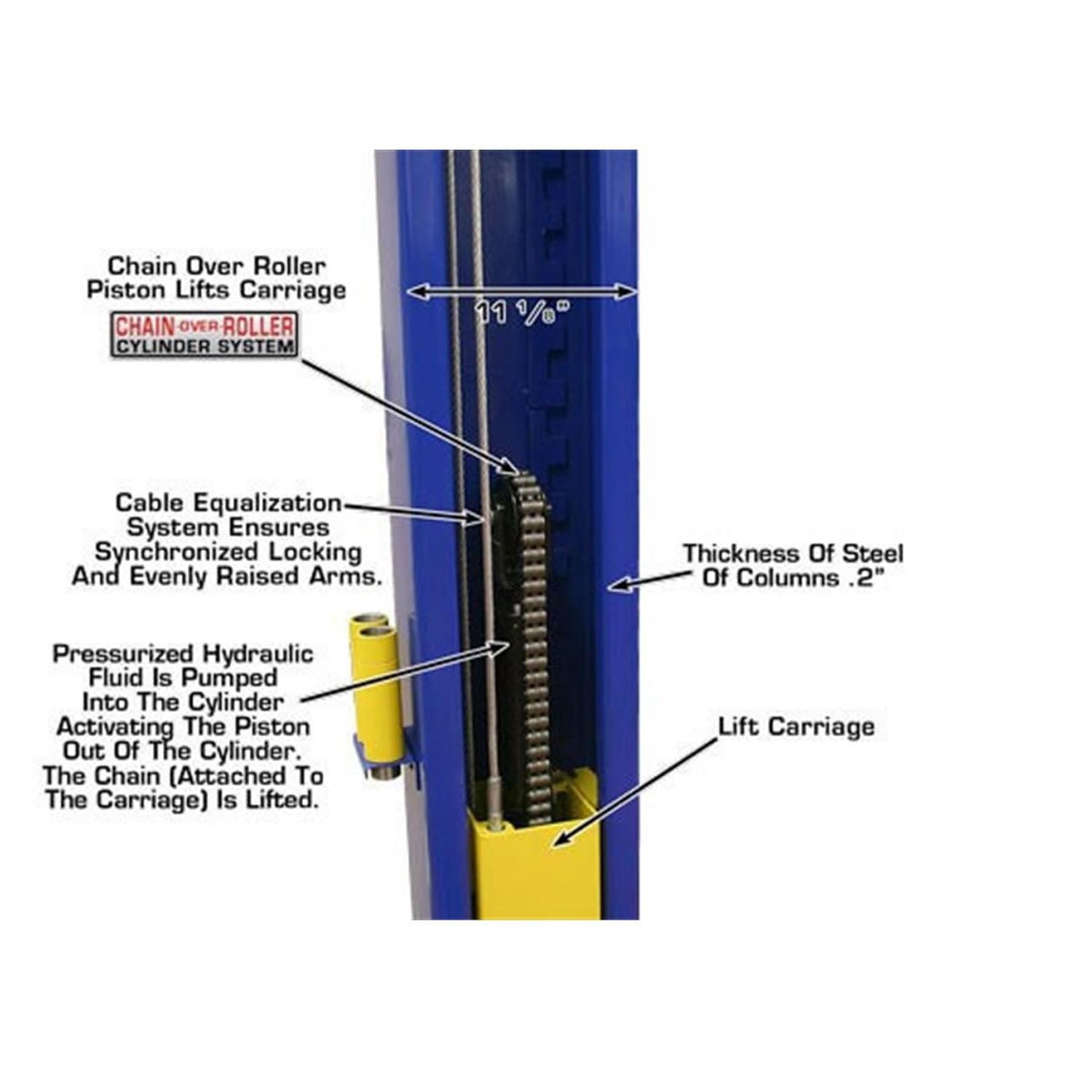

  The Atlas® 9KBP features dual hydraulic chain-drive cylinders, symmetric arms, and automatic arm restraints. Atlas® 9KBP two post “chain over roller” lifts have a spring-loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain.

• FEATURES + BENEFITS

  • 9,000 lb. Capacity
  • Symmetric Arms
  • Base Plate Design
  • Dual Hydraulic Chain-Drive Cylinders
  • Secondary Lock System (SLS)
  • Free Truck Adapter Set

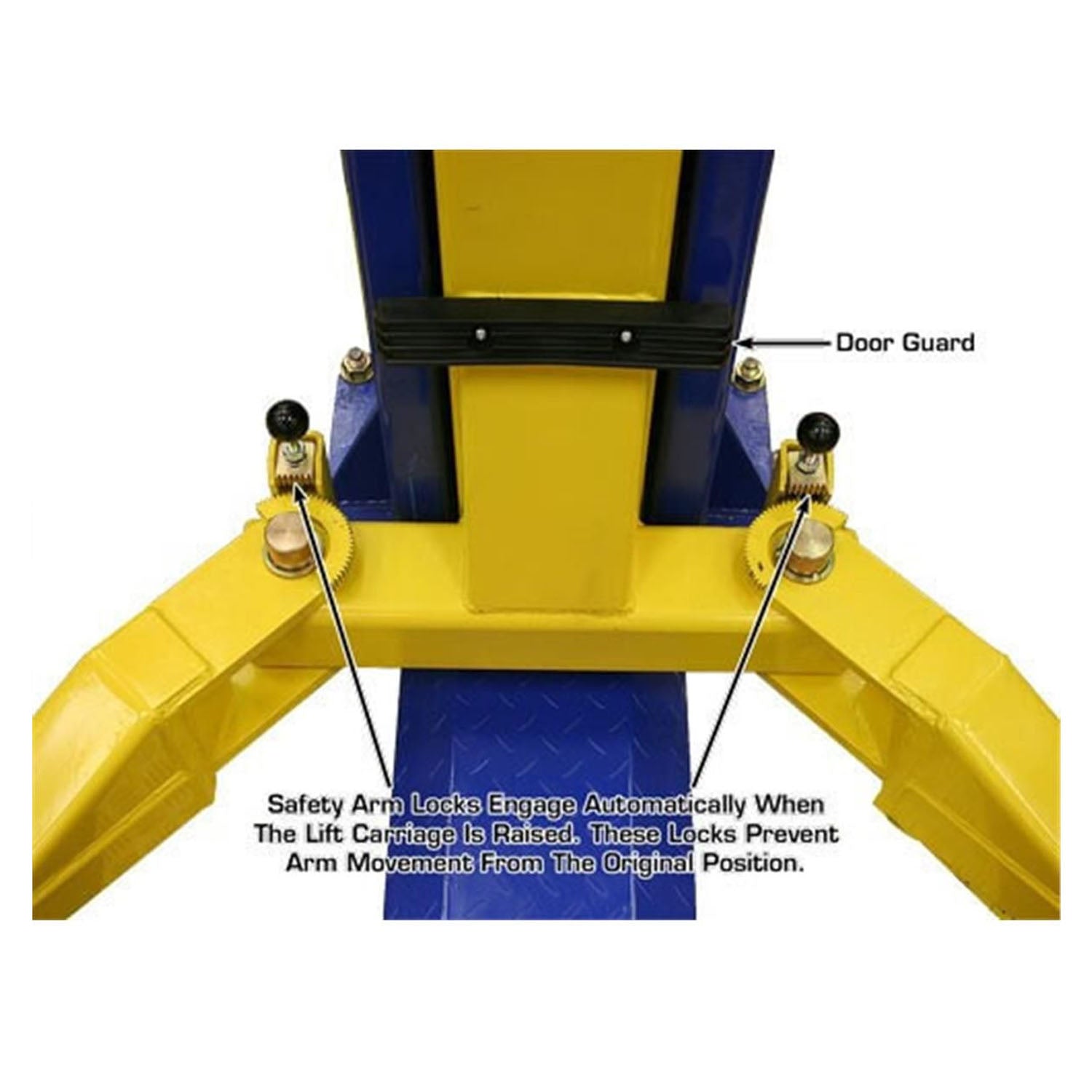

  • Automatic Arm Restraints
  • Dual Point Lock Release
  • Designed For Low Ceiling Clearance – 9' 3 ½” Columns
  • Mounting Hardware Included

  Includes

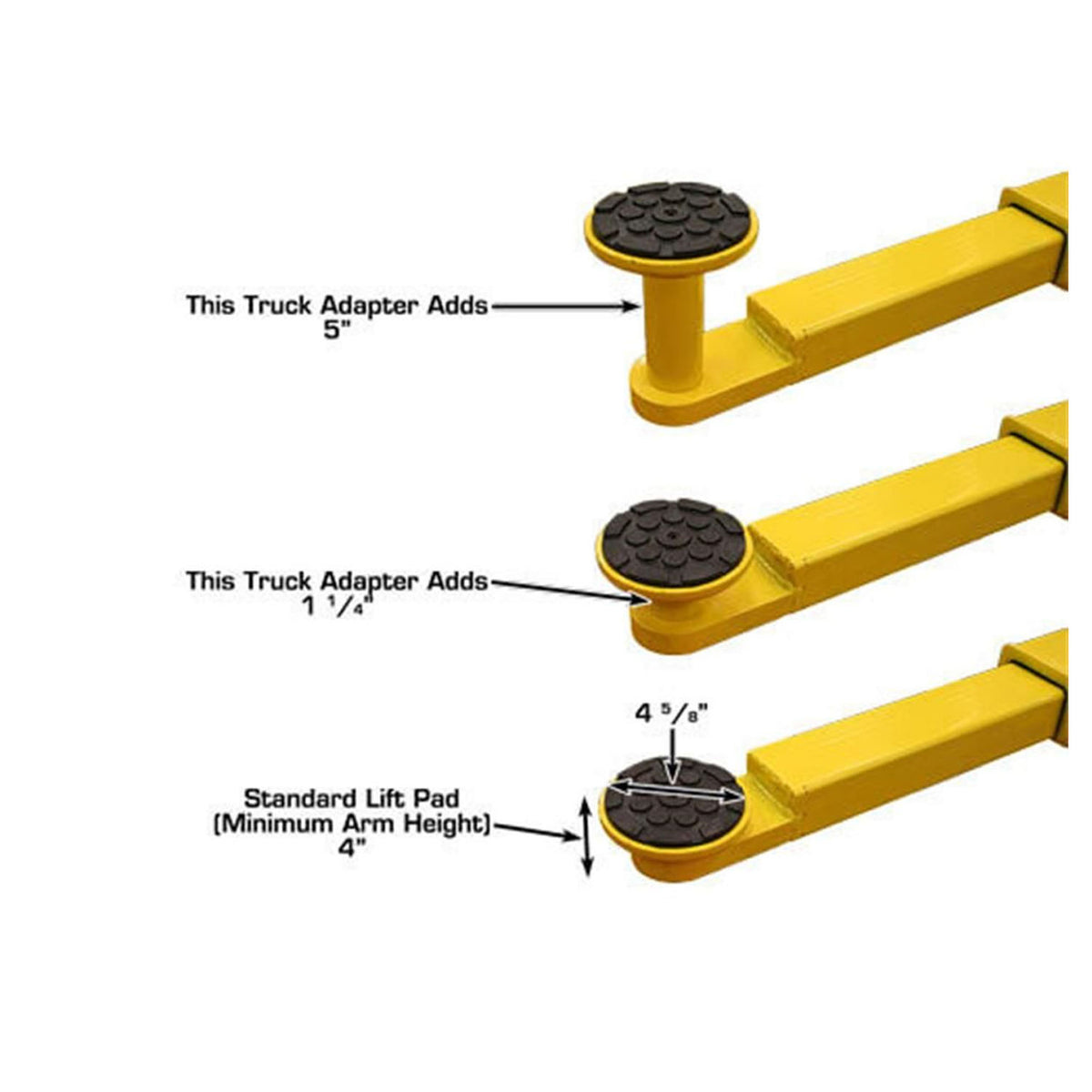

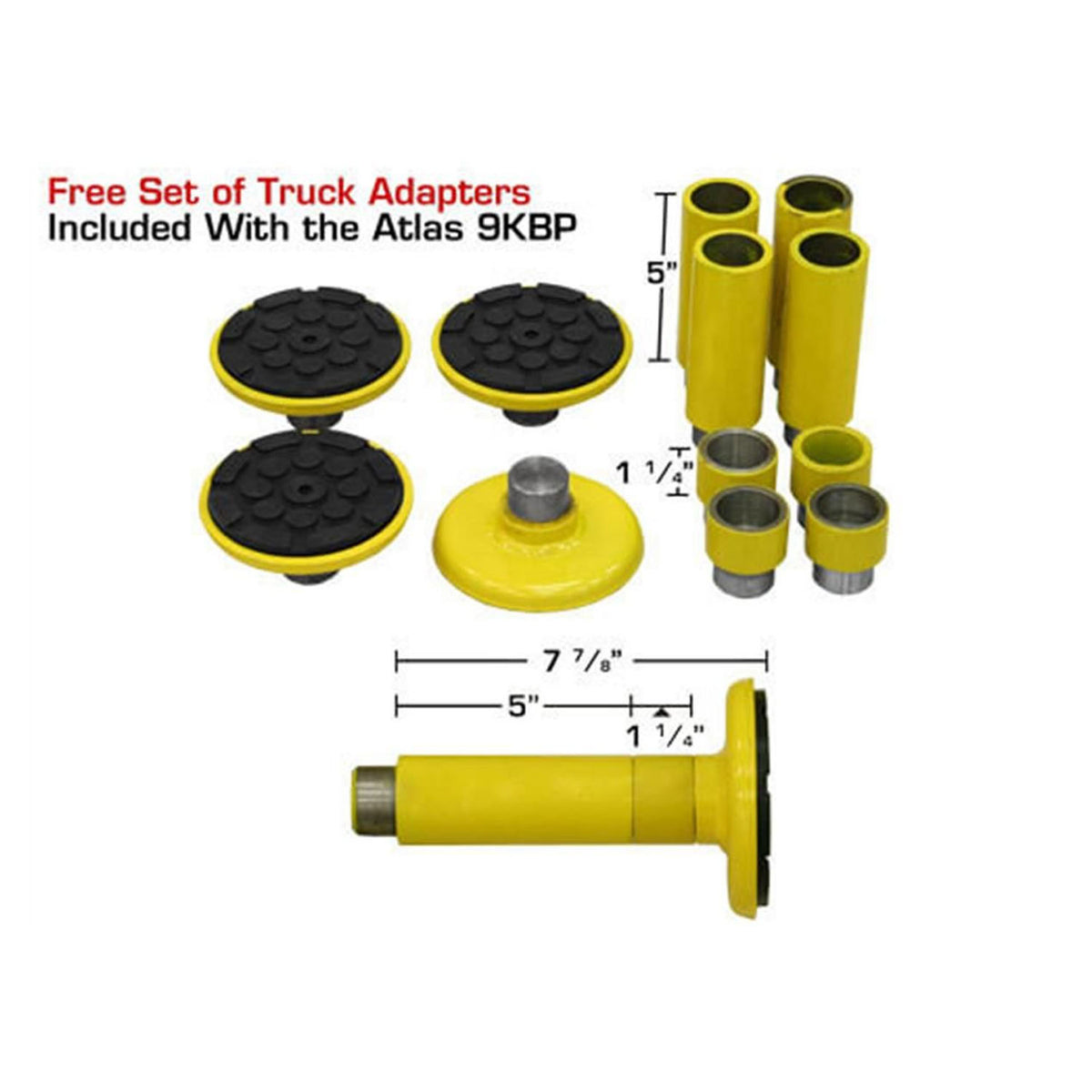

  • 8 piece Truck Adapter Set

• SPECIFICATIONS

  Lifting Capacity	9,000 lbs

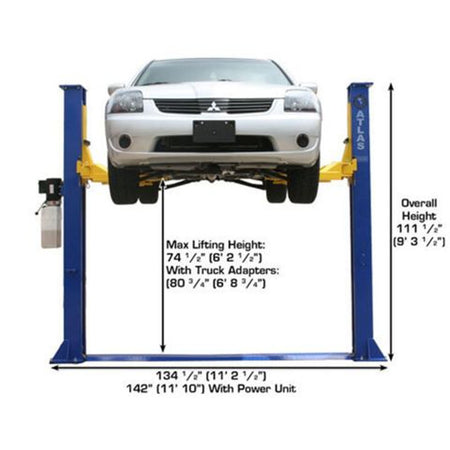

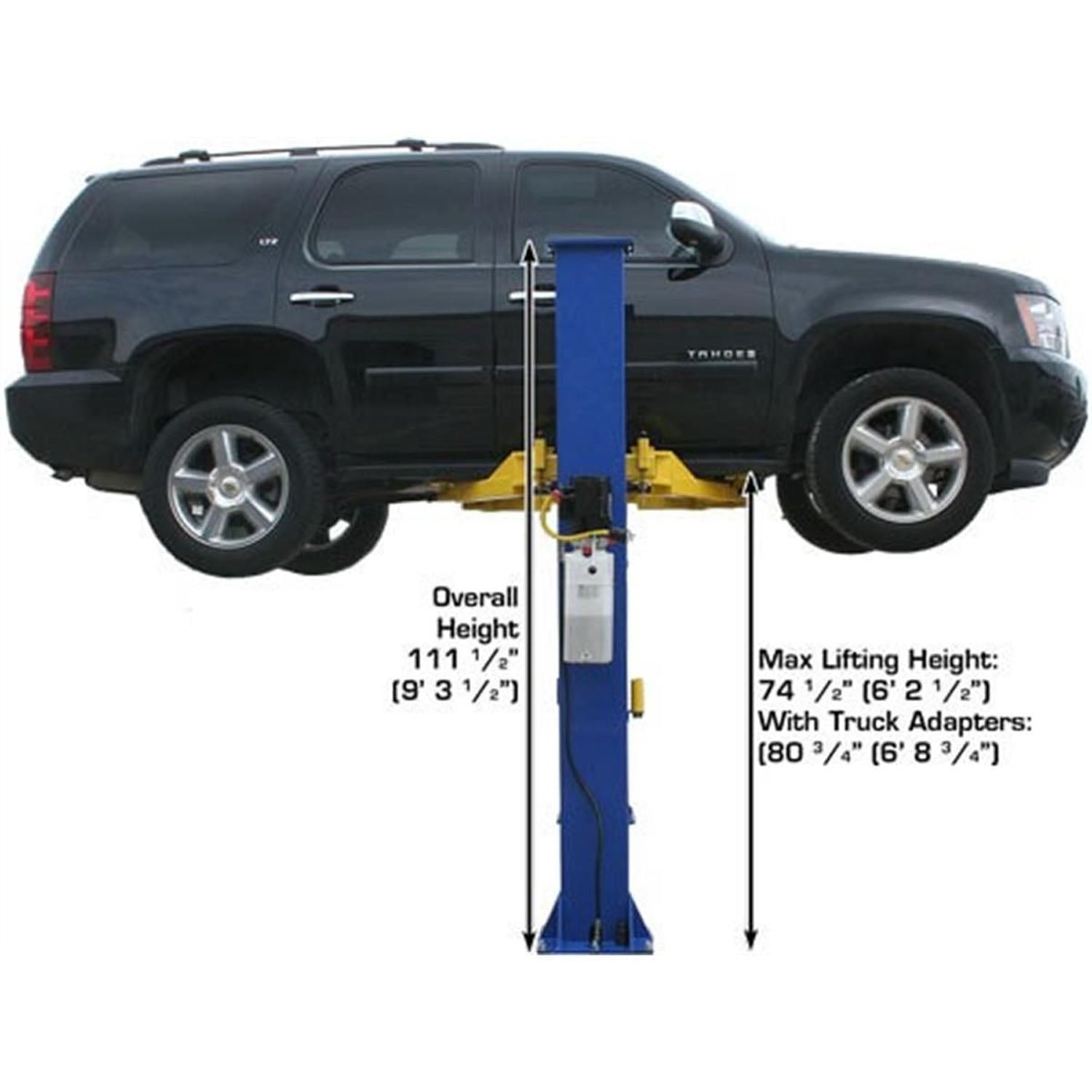

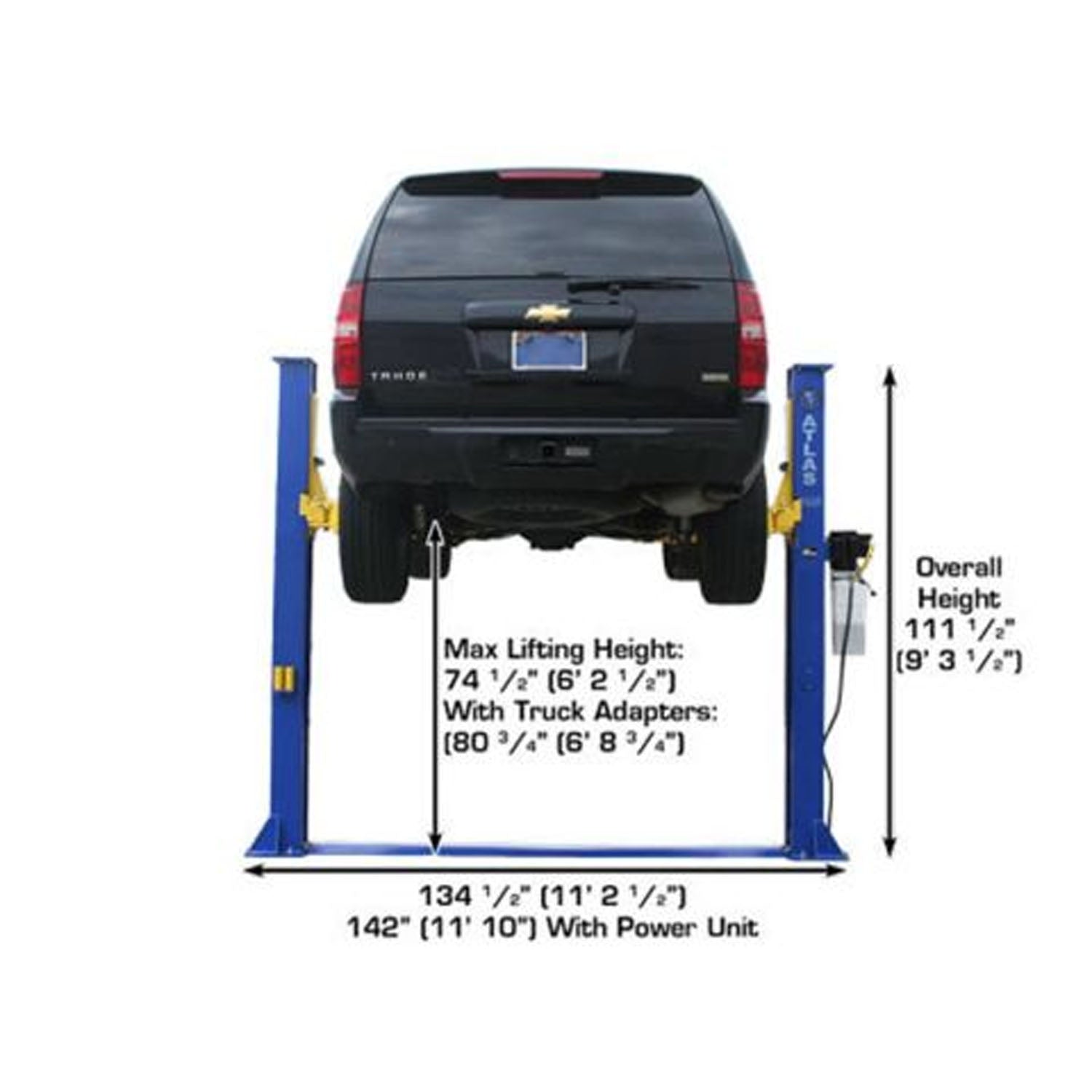

  Overall Height	111 ½" (9' 3 ½")
  Overall Width with Power Unit	142" (11' 10")
  Overall Width without Power Unit	134 ½" (11' 2 ½")
  Outside Column To Outside Column	124 7/8" (10' 4 7/8")
  Maximum Lift Height	74 ½" (6' 2 ½")
  Minimum Arm Height	4"
  Base Plate Width	10 ¾"
  Inside Column	110" (9' 2")
  Drive Thru	101" (8' 5")
  Column Size	7 ¼" x 11 1/8"
  Column Thickness of Steel	5mm
  Base of Lift	13 ½" x 18 ¼"
  Carriage Thickness of Steel	6mm
  Arm Thickness of Steel	6mm
  Cable Diameter	.375"

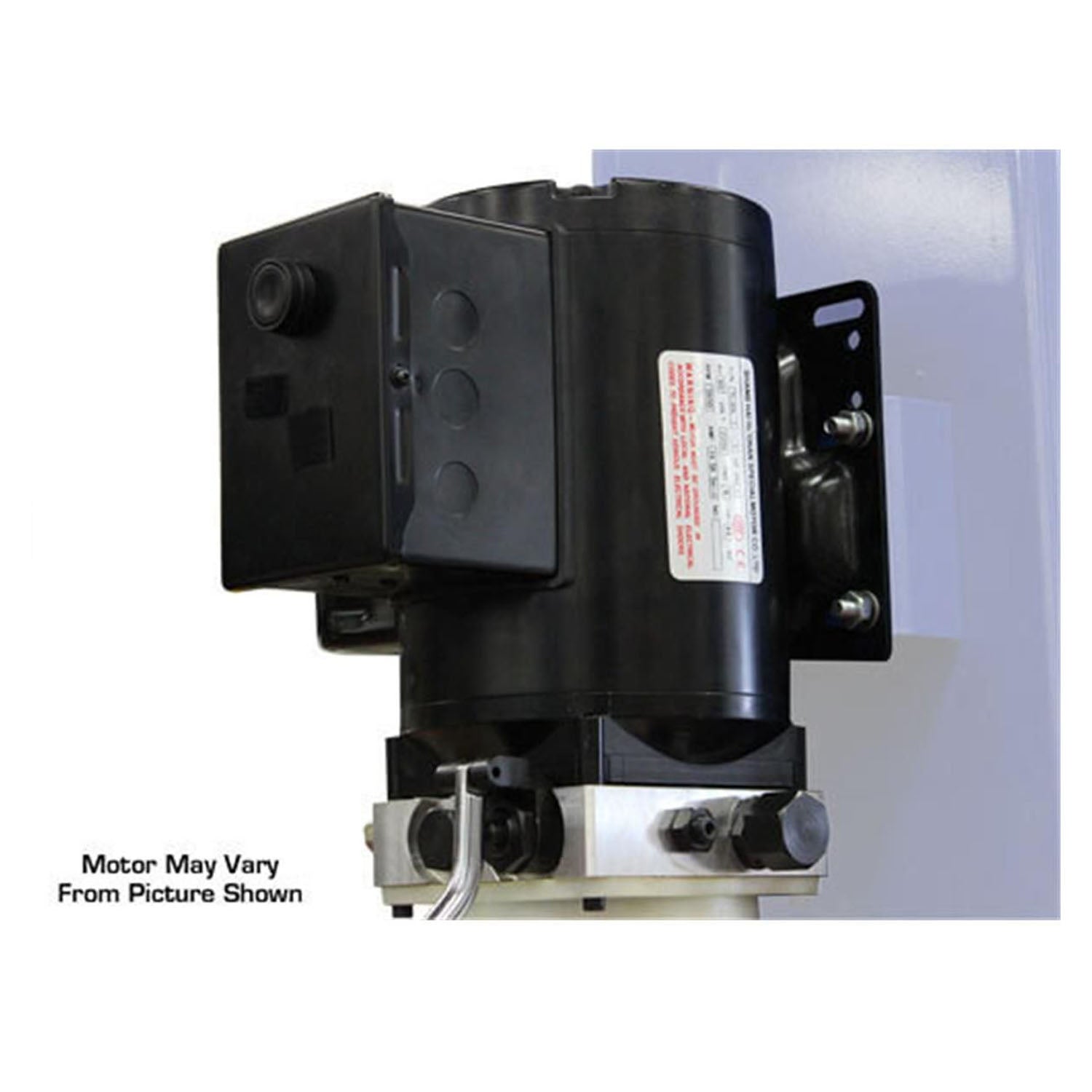

  Motor/Electrical Requirement	3Hp 220V single (1) phase / 30 amp breaker is required.
  Oil Requirements	3-5 Gallons AW32/AW46
  Shipping Weight	1,400 lbs.

• WARRANTY

  Warranty Information

  • 2-Year Structural Warranty

  • 1-Year Hydraulic-Power Warranty
  9KBP Warranty

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
