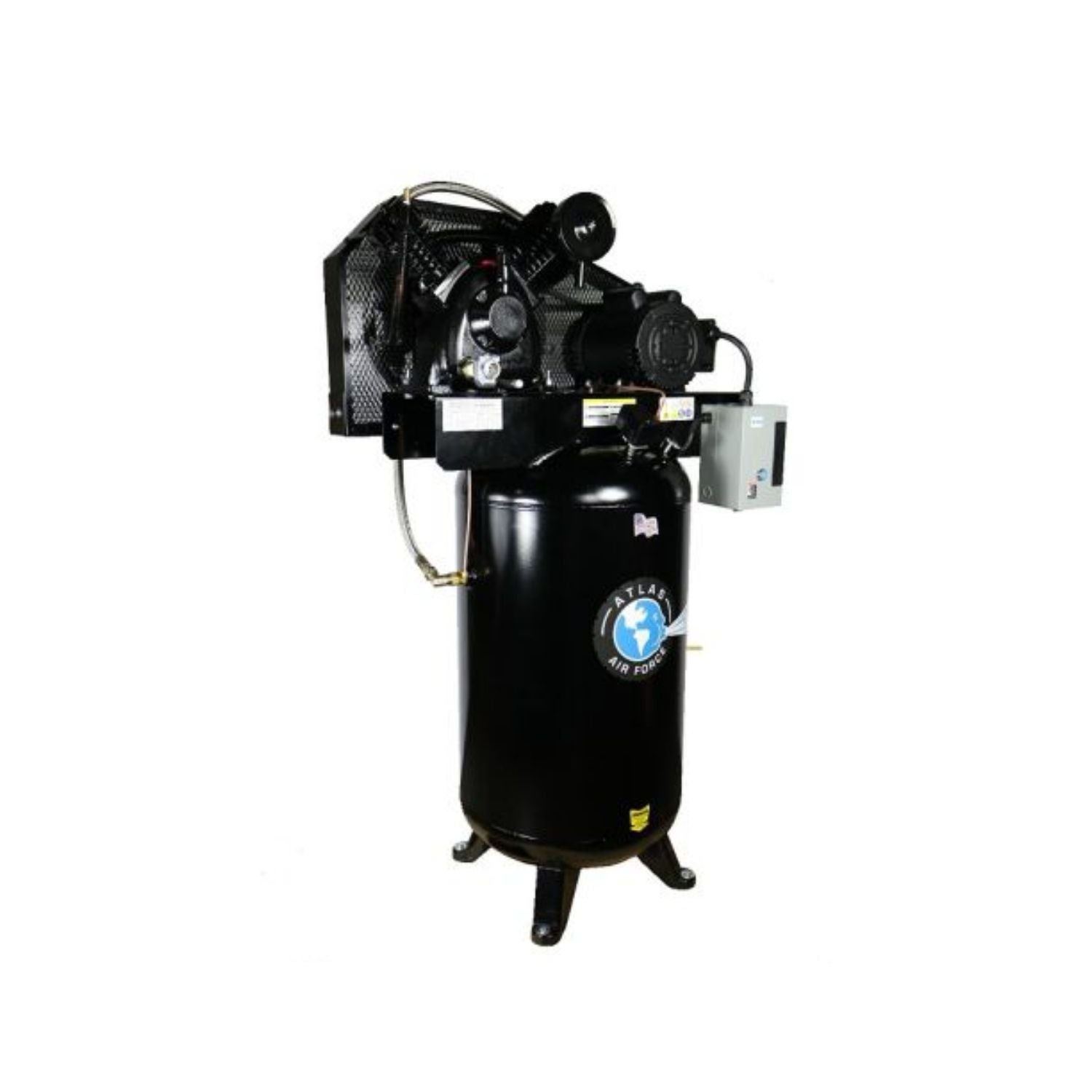

Atlas® AF8P 5HP 80 Gallon Air Compressor w/ Plus Package #ATEMPAF8P-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

  The Atlas® AF8P 5HP 80 Gallon Air Compressor with Plus Package is a premium commercial-grade upgrade designed for shops that rely on consistent, high-quality compressed air every day.

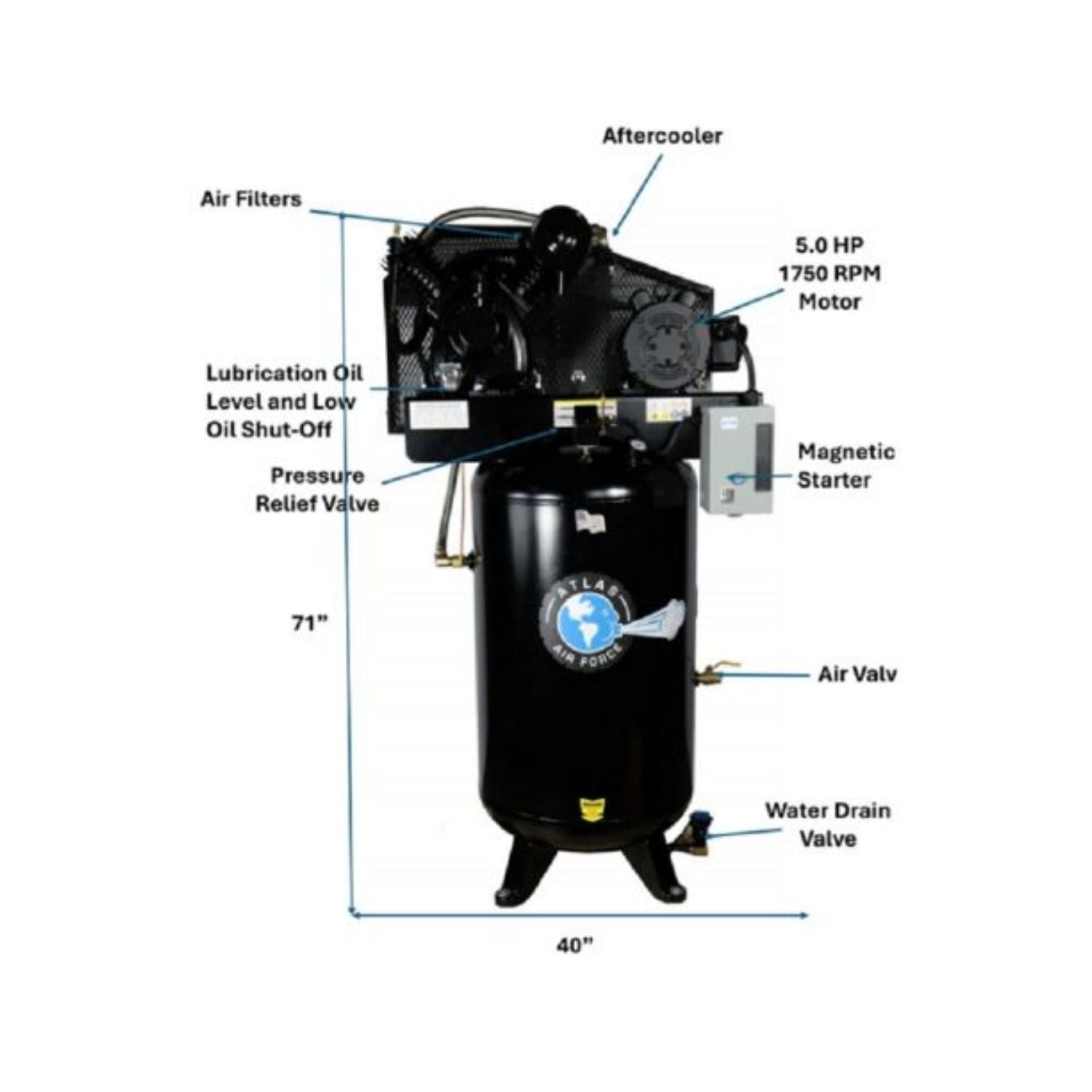

  Built on the AF8 platform, this unit adds the “Plus Package”, which includes an air-cooled aftercooler, automatic low oil monitor, and automatic tank drain—features that improve air quality, reduce moisture, and extend the life of the compressor.

  With a low-RPM 5HP motor and 2-stage pump, it delivers up to 20 CFM at 145 PSI, making it capable of running multiple tools and supporting demanding shop operations.

  This is the model Atlas positions for 3–4 technician shops or growing businesses that need reliable, daily performance.

• FEATURES AND BENEFITS

  • 2-Cylinder, 2-Stage Pump
  • Commercial Grade
  • 5HP Heavy Duty Motor
  • 80 Gallon Vertical Tank(Made in the USA)
  • Air Output 145-175 PSI
  • Extremely Quiet Operation
  • Magnetic Starter Included, Adding ToLongevity Of The Unit
  • Set of Vibro-Isolation Pads Included
  • Hands Free Tank Drain Extension
  • Compressor Oil Drain Extension Tube
  • Finned Tank Inlet Tube For Reduced TankWater Accumulation
  • Heavy Duty Metal Belt Guard
  • Industrial Grade Pressure Switch(Hubbell) And EATON Starter
  • 220volt/1phase, 30 Amp Breaker Required
  • 1 Year Parts Only Warranty

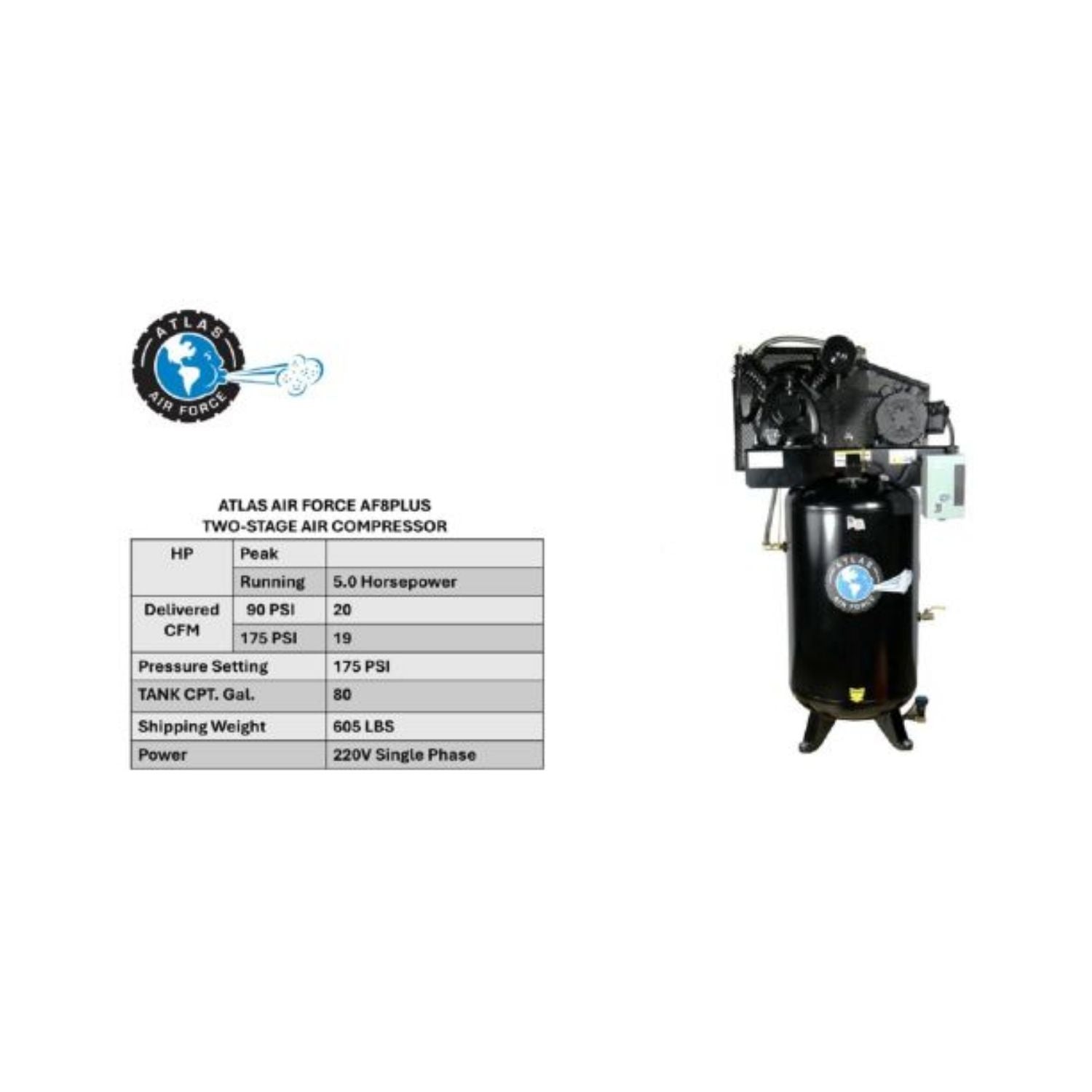

• SPECIFICATIONS

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEMPAF8P
  Dimensions:	40" L × 24" W × 71" H
  Weight:	605 lbs
  UPC:	810524027793
  Country of Origin:	USA
  Motor Running:	5 Horsepower
  Delivered-CFM @ 145 PSI:	20
  Delivered-CFM @ 175 PSI:	19
  Pressure Setting:	145-175 PSI
  Tank Capacity:	80 Gallons
  Air Outlet Size:	3/4" NPT
  Motor Voltage:	220 Volt, 1PH, 30 Amp Breaker, Number 10 Wire Required
  Compressor Pump:	2 Cylinder, 2-Stage

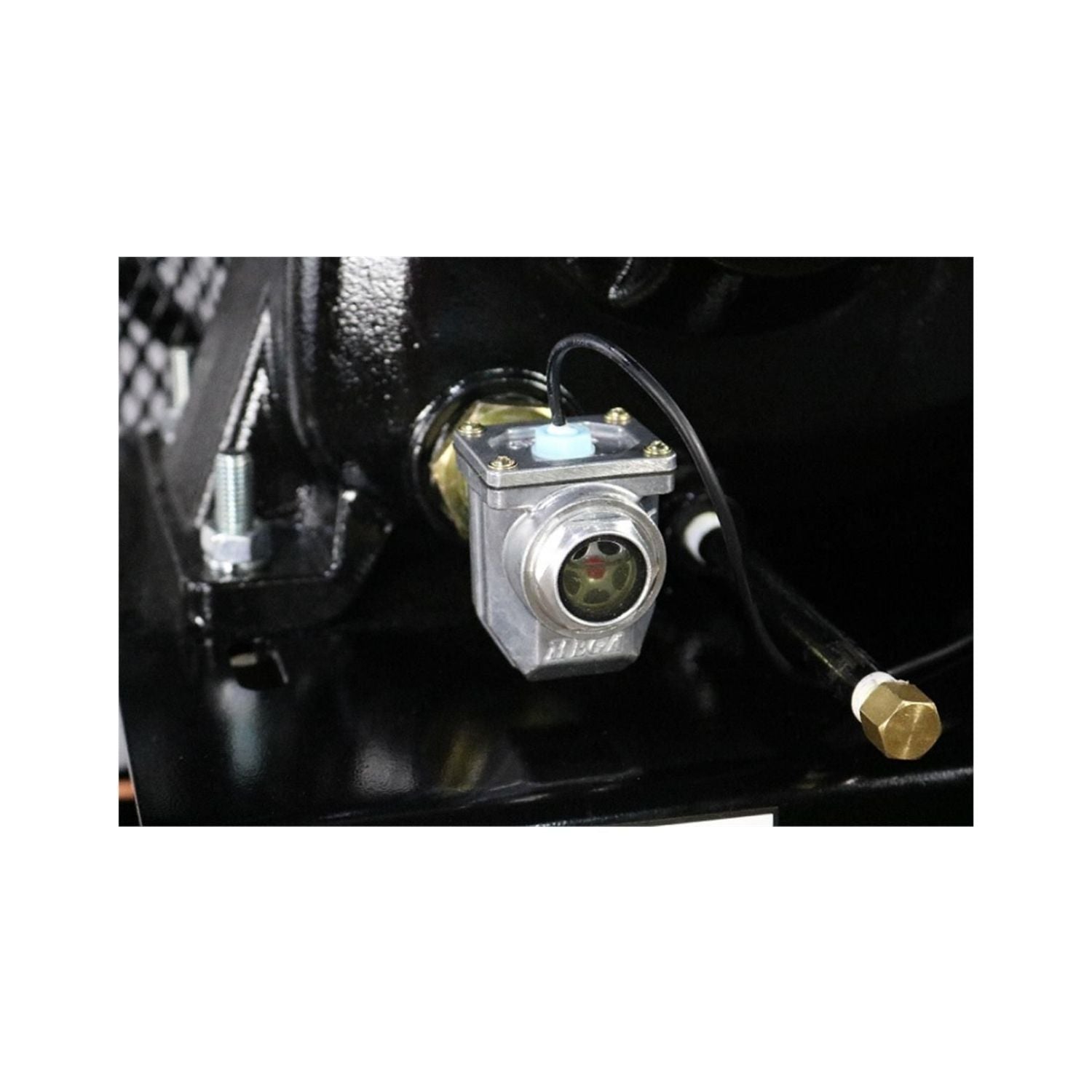

  Automatic Low Oil Monitor:	Yes
  Automatic Tank Drain:	Yes
  Air Cooled Aftercooler:	Yes

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
