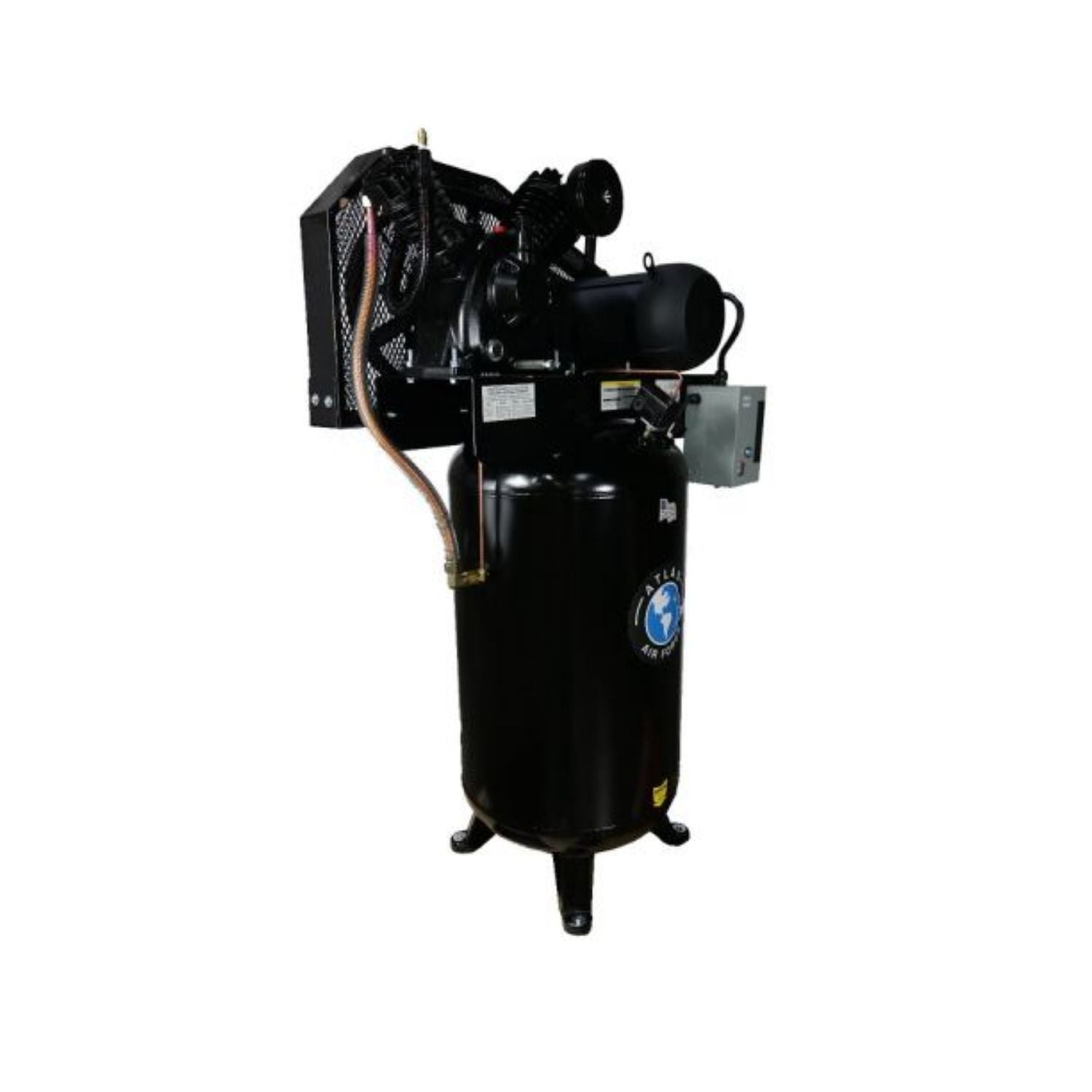

Atlas® AF9 7.5HP 80 Gallon Commercial Air Compressor #ATEMPAF9-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

  The Atlas® AF9 7.5HP 80 Gallon Commercial Air Compressor is a high-output commercial-grade air system built for demanding automotive shops and industrial environments that require reliable, continuous compressed air.

  Powered by a 7.5HP low-RPM motor and equipped with a 3-cylinder, 2-stage cast iron pump, the AF9 delivers significantly more airflow than standard 5HP compressors, making it ideal for multi-tech shops, sandblasting, paint work, and heavy pneumatic tool usage. The compressor operates between 145–175 PSI and includes a magnetic starter for safer electrical control and longer motor life.

  Built with a USA-made 80-gallon vertical tank, industrial-grade components, and vibration-reduction features, the AF9 is engineered for long-term daily operation in professional shop environments.

• FEATURES AND BENEFITS

  • 3-Cylinder, 2-Stage Pump
  • Commercial Grade
  • 7.5hp, 1740 RPM Motor
  • 80 Gallon Vertical Tank (Made in the USA)
  • Air Output 145-175 PSI
  • Extremely Quiet Operation
  • Magnetic Starter Included, Adding To Longevity Of The Unit
  • Set of Vibro-Isolation Pads Included
  • Hands Free Tank Drain Extension
  • Compressor Oil Drain Extension Tube
  • Finned Tank Inlet Tube For Reduced Tank Water Accumulation
  • Heavy Duty Metal Belt Guard
  • Industrial Grade Pressure Switch (Hubbell) And EATON Starter220volt/1phase, 40 Amp Breaker Required
  • 1 Year Parts Only Warranty

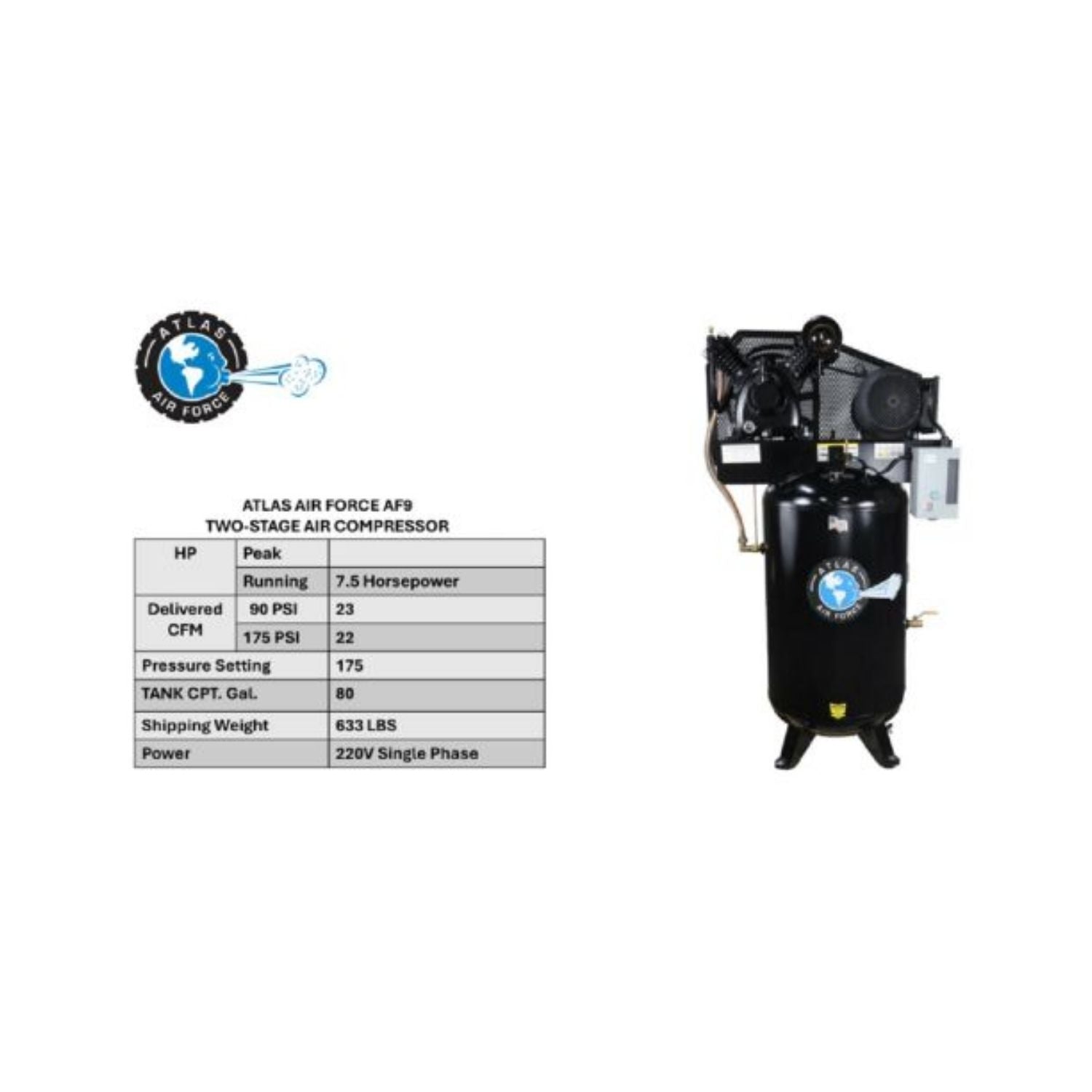

• SPECIFICATIONS

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEMPAF9-FPD
  Dimensions:	40" L × 24" W × 71" H
  Weight:	633 lbs
  UPC:	810524025362
  Country of Origin:	USA
  Motor Running:	7.5 Horsepower
  Delivered-CFM @ 90 PSI:	23
  Delivered-CFM @ 175 PSI:	20
  Pressure Setting:	145-175 PSI
  Tank Capacity:	80 Gallons
  Air Outlet Size:	3/4" NPT
  Motor Voltage:	220 Volt, 1PH, 40 Amp Breaker, Number 8 Wire Required
  Compressor Pump:	3 Cylinder, 2-Stage
