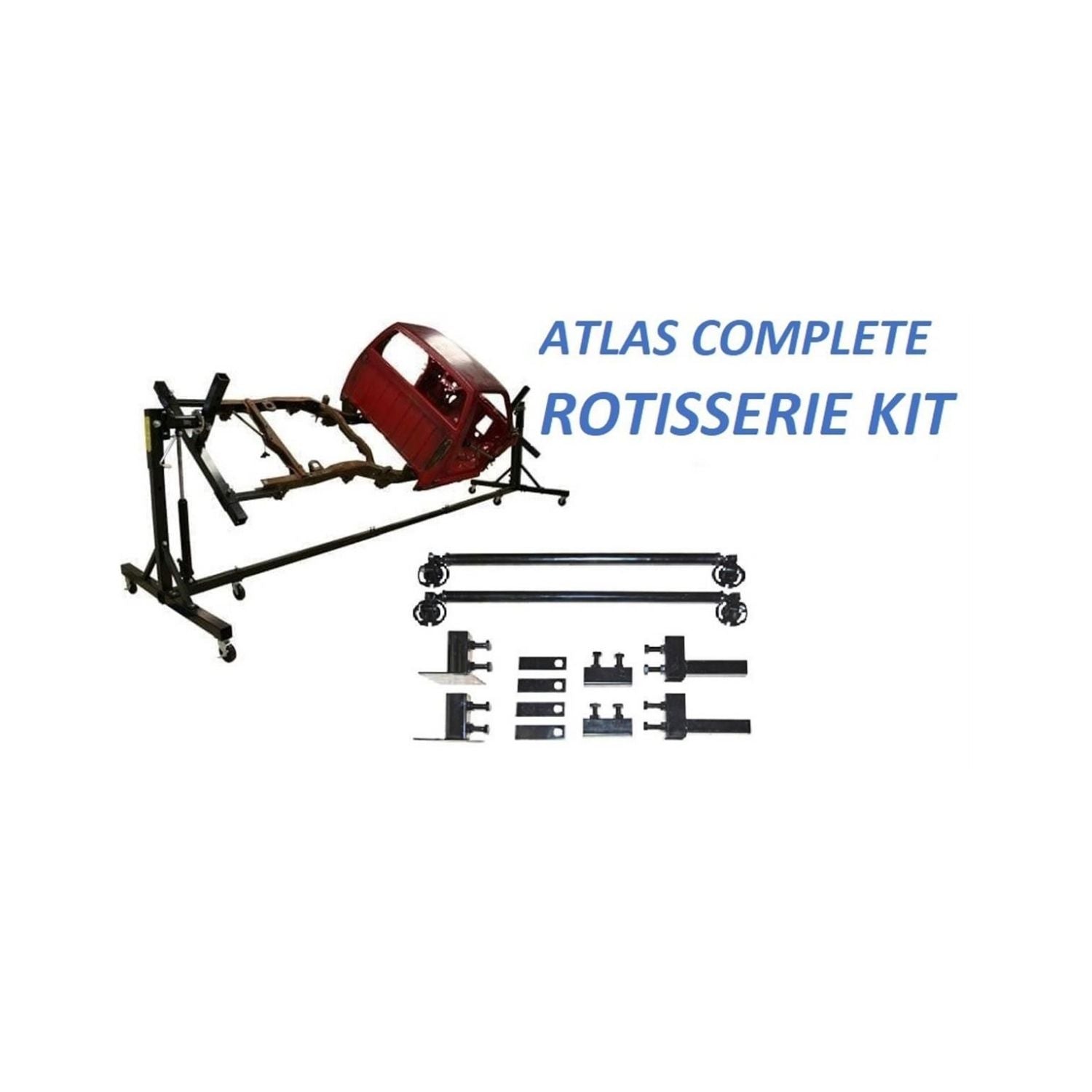

Atlas® Auto SPINS Rotisserie with Adapter Kit #ATEHT-ROTI-KIT-FPD
Couldn't load pickup availability
-
DESCRIPTION
The Atlas® Auto SPINS Rotisserie with Adapter Kit is a complete vehicle rotation system designed for restoration, fabrication, and bodywork projects.
This full setup allows a vehicle body to be securely mounted and rotated 360 degrees, providing complete access to the underside, frame, and body panels. It is ideal for welding, painting, rust repair, and detailed restoration work.
Included with the rotisserie is a comprehensive adapter kit, enabling compatibility with a wide range of vehicle types including unibody cars, trucks with leaf spring frames, and custom builds. This combination provides maximum flexibility and eliminates the need for additional mounting components.
Built for durability and stability, the Atlas Auto SPINS system is a professional-grade solution for restoration shops and serious builders.
What’s Included:
- Auto SPINS Rotisserie System
- (2) Universal Door Bars
- (2) Leaf Spring Adapters
- (2) Unibody Adapters
- (2) Valance Adapters
- (4) Adapter Mounting Plates
-
FEATURES AND BENEFITS
- Rotisserie with complete Adapter Kit
- 360 degrees of Movement
- Threaded rod adjuster makes finding center of gravity easy
- Powder coat finish
- Heavy Duty Construction
- Adjustable Width, Height, and Centering
- 2 Hydraulic Rams For Greater Height Adjustability
- 6" diameter, 1 1/2" wide Polyurethane Swivel Caster Wheels
- Universal Door Bars Included
- Valance, Uni-Body, and Leaf Spring Adapters Included
- 1 Year Parts Only Warranty
- This part number FREIGHT PREPAID
-
SPECIFICATIONS
Brand: Atlas® Automotive Equipment Part Number: ATEHT-ROTI-KIT-FPD Dimensions: 74" L × 32" W × 30" H Max Weight Capacity: 3,000 lbs Width (Mounting Brackets): 14 1/4" – 48 3/4" Width Capacity (Car or Truck Body): 85" Working Height: 20 1/2" – 48 1/2" Working Length: Up to 19' (weight capacity decreases at full extension) Ceiling Height Requirement: 8' Steel Thickness: 1/8" (9 gauge) Main Structure Construction: 3" × 3" square tubing Shipping Weight: 600 lbs UPC: 810524023450 Country of Origin: CHN
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Atlas Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
